DCP54: DescriptionNPN SURFACE MOUNT TRANSISTOR; File Size150KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet View All

DCP54 Overview

NPN SURFACE MOUNT TRANSISTOR

Preview

Download Datasheet

View All

Not Recommended for New Design

Alternative is BCP54 & BCP5416

DCP54/-16

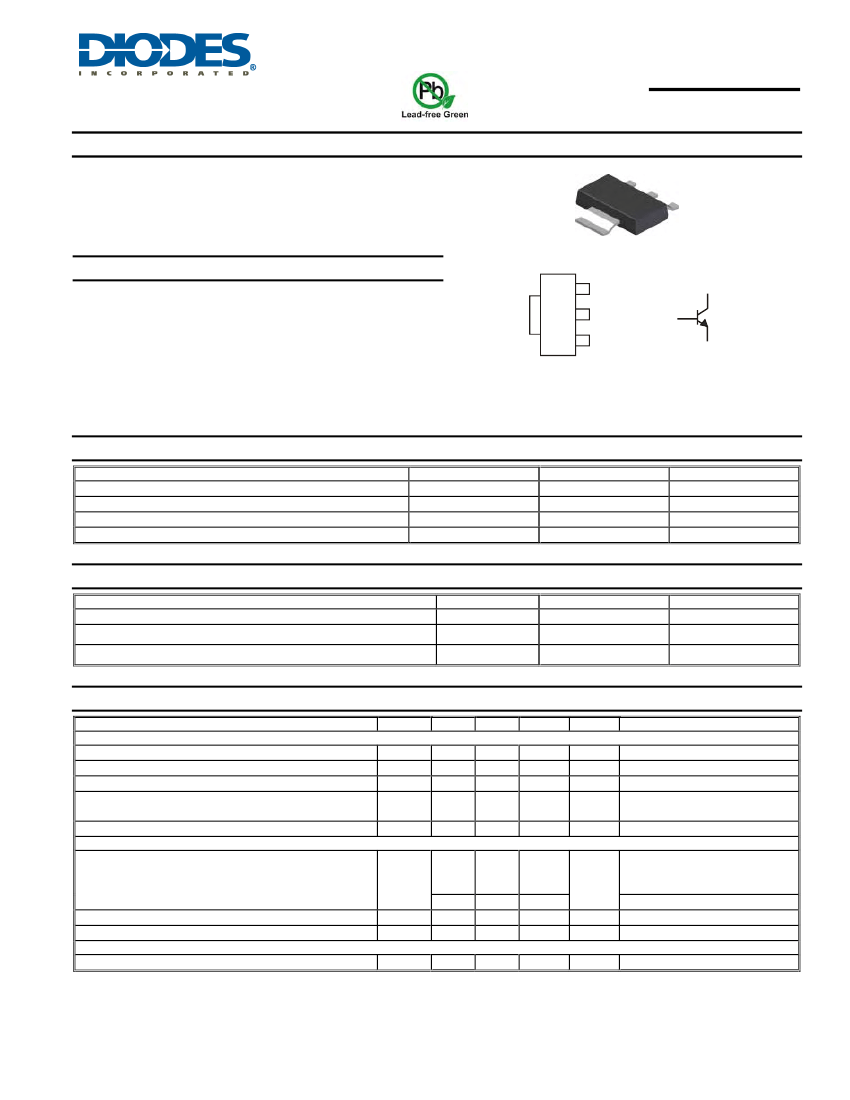

NPN SURFACE MOUNT TRANSISTOR

Features

•

Epitaxial Planar Die Construction

Complementary PNP Type Available (DCP51)

Ideally Suited for Automated Assembly Processes

Ideal for Medium Power Switching or Amplification Applications

Lead Free By Design/RoHS Compliant (Note 1)

"Green" Device (Note 2)

SOT-223

COLLECTOR

Mechanical Data

•

Case: SOT-223

Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish — Matte Tin annealed over Copper Leadframe

(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Marking & Type Code Information: See Page 3

Ordering Information: See Page 3

Weight: 0.115 grams (approximate)

3 E

C 4

2 C

1 B

TOP VIEW

BASE

2,4

EMITTER

Schematic and Pin Configuration

Maximum Ratings

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Continuous Collector Current

= 25°C unless otherwise specified

Symbol

CEO

CBO

EBO

Value

Unit

Characteristic

Thermal Characteristics

Characteristic

Power Dissipation (Note 3) @T

= 25°C

Operating and Storage Temperature Range

Thermal Resistance Junction to Ambient Air @ T

= 25°C (Note 3)

Symbol

, T

STG

Value

-55 to +150

125

Unit

°C

°C/W

Electrical Characteristics

Characteristic

Off Characteristics (Note 4)

Collector-Base Breakdown Voltage

Collector-Emitter Breakdown Voltage

Emitter-Base Breakdown Voltage

Collector-Base Cutoff Current

Emitter-Base Cutoff Current

On Characteristics (Note 4)

DC Current Gain

= 25°C unless otherwise specified

Symbol

(BR)CBO

(BR)CEO

(BR)EBO

CBO

EBO

Min

⎯

100

⎯

Typ

⎯

Max

⎯

100

⎯

250

⎯

250

500

⎯

Unit

μA

Test Condition

= 100μA

= 10mA

= 10μA

= 30V, I

= 0

= 30V, I

= 0, T

= 150°C

= 5V, I

= 0A

= 5mA, V

= 2V

= 150mA, V

= 2V

= 500mA, V

= 2V

= 150mA, V

= 2V

= 500mA, I

= 50mA

= 500mA, V

= 2V

= 50mA, V

= 5V, f = 100MHz

DCP54-16

⎯

200

⎯

MHz

Collector-Emitter Saturation Voltage

Base-Emitter Voltage

Small Signal Characteristics

Transition Frequency

Notes:

CE(SAT)

BE(ON)

No purposefully added lead.

Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.

Device mounted on FR-4 PCB, pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document AP02001, which can be found on our

website at http://www.diodes.com/datasheets/ap02001.pdf.

Measured under pulsed conditions. Pulse width = 300μs. Duty cycle

≤

DCP54/-16

Document number: DS30816 Rev. 6 - 3

1 of 4

www.diodes.com

June 2011

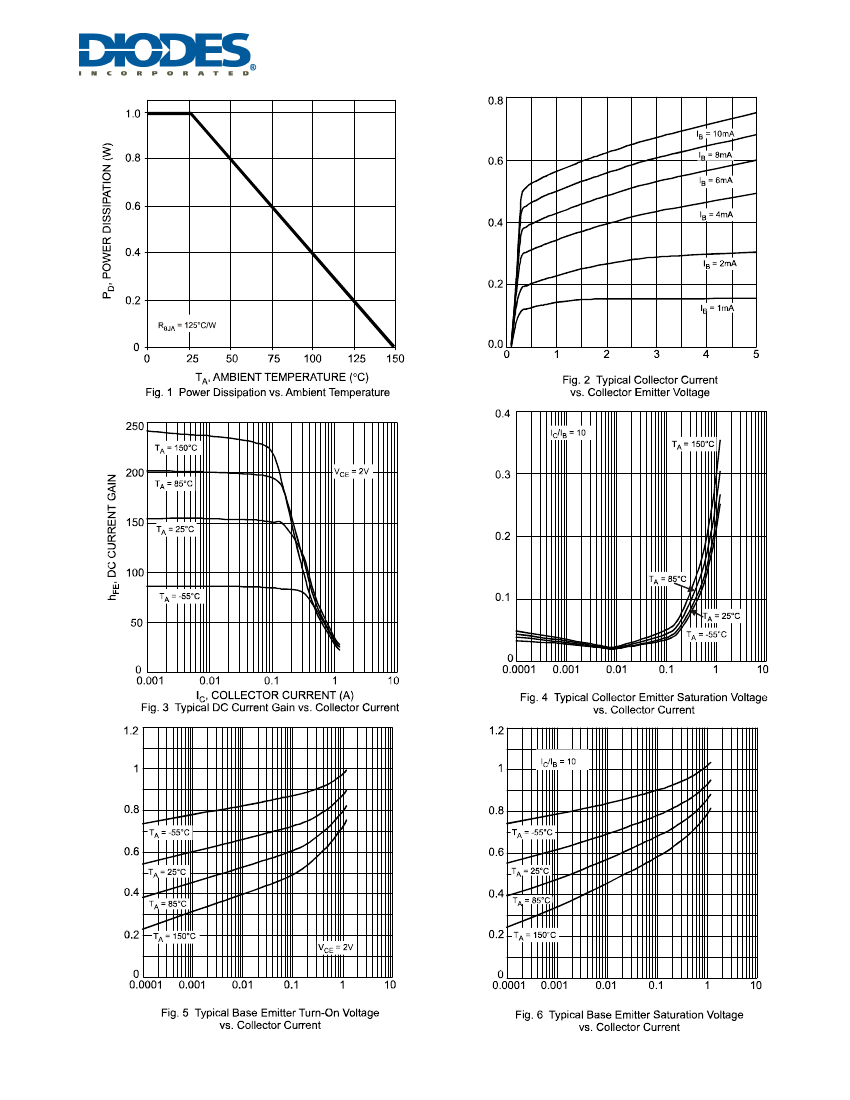

Not Recommended for New Design

Alternative is BCP54 & BCP5416

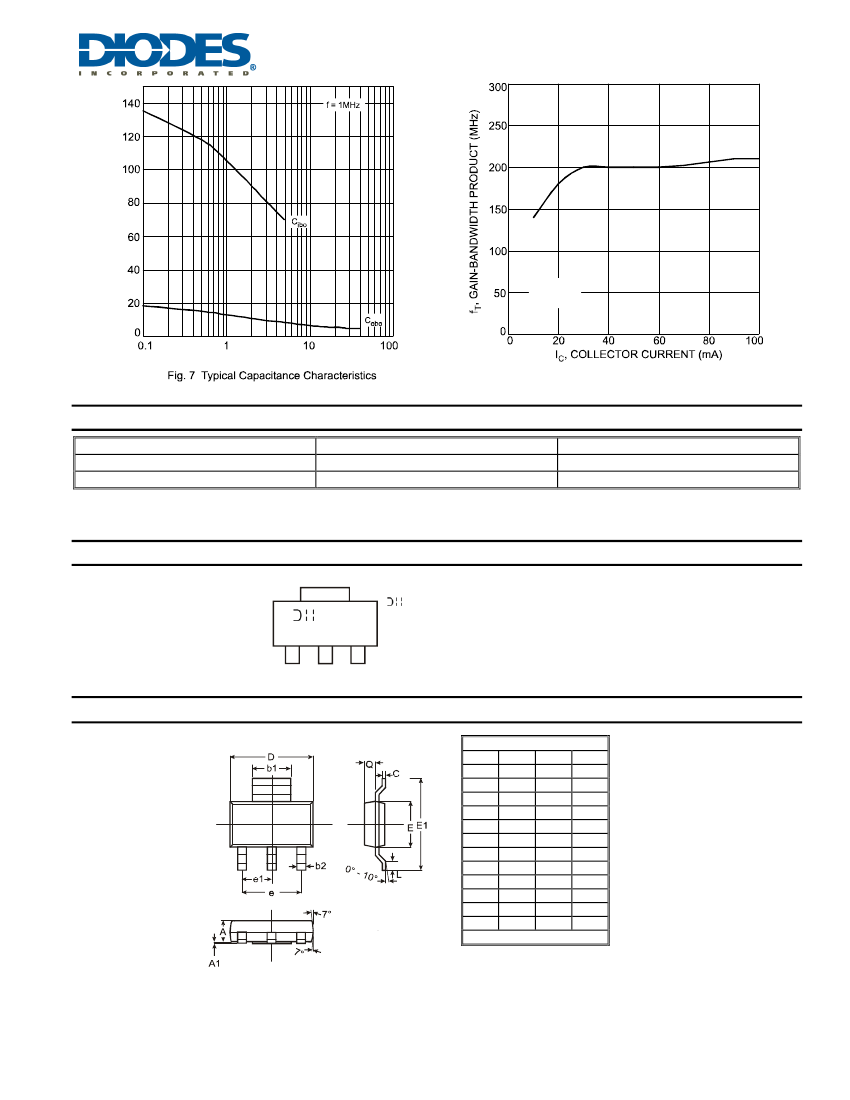

Suggested Pad Layout: (Based on IPC-SM-782)

3.3

1.6

6.4

1.6

2.3

(Unit: mm)

1.2

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS

DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other

changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability

arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any

license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described

herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies

whose products are represented on Diodes Incorporated website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized

sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall

indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees

arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names

and markings noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without

the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided

in the labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected

to cause the failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or

systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements

concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems,

notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further,

Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes

Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DCP54/-16

Document number: DS30816 Rev. 6 - 3

4 of 4

www.diodes.com

June 2011
