DLPA006
DATA BUS TRANSIENT SUPPRESSOR / 3-PHASE FULL WAVE BRIDGE RECTIFIER
Please click here to visit our online spice models database.

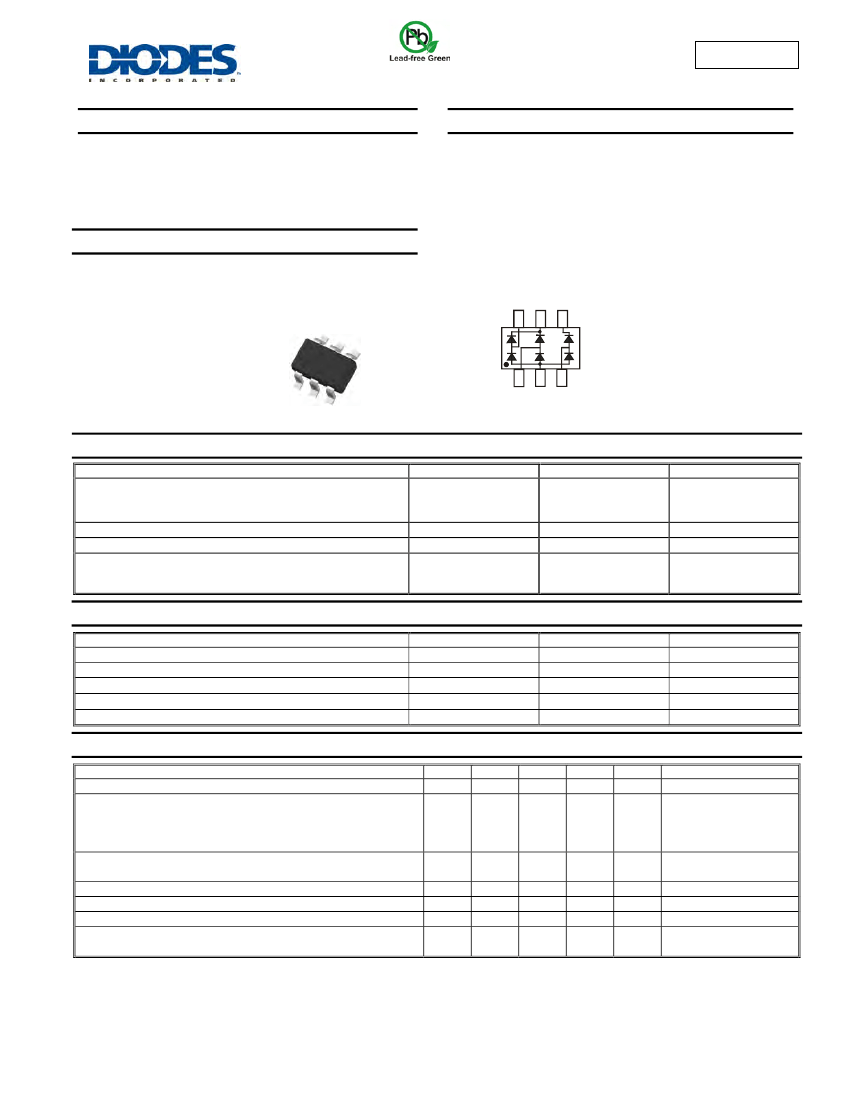

Features
•
•
•
•
•
Fast Switching Speed
Ultra-Small Surface Mount Package
Ideal For Three Dataline Rail Clamp or Three Phase Full Wave
Bridge Rectification
Lead Free By Design/RoHS Compliant (Note 4)
"Green" Device (Note 5)
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-363
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0 (Note 4)
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish
⎯
Matte Tin annealed over Alloy 42
Leadframe. Solderable per MIL-STD-202, Method 208
Ordering Information: See Page 2
Marking Information: See Page 2
Weight: 0.006 grams (approximate)
AC
3
DL
3
Data Line Transient Protection
In accordance with (Note 1):
•
IEC 61000-4-2 Contact Method: ±15kV
•
IEC 61000-4-2 Air Discharge Method: ±25kV
/
DC+
V
CC
/
DC+
V
CC
/
SOT-363
DL
1
AC
1
/
GND
DC-
/
DL
2
AC
2
/
TOP VIEW
TOP VIEW
Internal Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
@ t = 1.0μs
@ t = 1.0ms
@ t = 1.0s
I
FSM
Value
85
60
160
4.0
1.0
0.5
Unit
V
V
mA
A
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Current (Single Diode)
Non-Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 2)
Power Dissipation (Note 3)
Thermal Resistance Junction to Ambient Air (Note 2)
Thermal Resistance Junction to Ambient Air (Note 3)
Operating and Storage Temperature Range
Symbol
P
D
P
D
R
θ
JA
R
θ
JA
T
J
, T
STG
Value
200
300
625
417
-65 to +150
Unit
mW
mW
°C/W
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
85
⎯
Typ
⎯
⎯
Max
⎯
0.90
1.0
1.1
1.25
5.0
80
⎯
2.6
3.5
3.0
Unit
V
V
nA
nA
pF
pF
pF
μs
Test Condition
I
R
= 100μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= 150°C
V
R
= 0, f = 1.0MHz
V
R
= 0, f = 1.0MHz
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Characteristic
Reverse Breakdown Voltage (Note 6)
Forward Voltage
Leakage Current (Note 6)
Total Capacitance (per element)
Capacitance Between Two Data Lines (DL
1
& DL
2
, DL
1
& DL
3
)
Capacitance Between Data Line and Ground
Reverse Recovery Time
Notes:
I
R
C
T
C
LL
C
LG
t
rr
⎯
⎯
⎯
⎯
⎯
⎯
2
1.6
2.5
⎯
1. Tested with V
CC
pins connected to GND pin.
2. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
3. Device mounted on Alumina PCB, 0.4 inch x 0.3 inch x 0.024 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which
can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
4. No purposefully added lead.
5. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
6. Short duration pulse test used to minimize self-heating.
DLPA006
Document number: DS30665 Rev. 8 - 2
1 of 4
www.diodes.com
October 2008
© Diodes Incorporated
DLPA006
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
300
250
1,000
P
D
, POWER DISSIPATION (mW)
100
200
10
150
1.0
100
50
0.1
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)

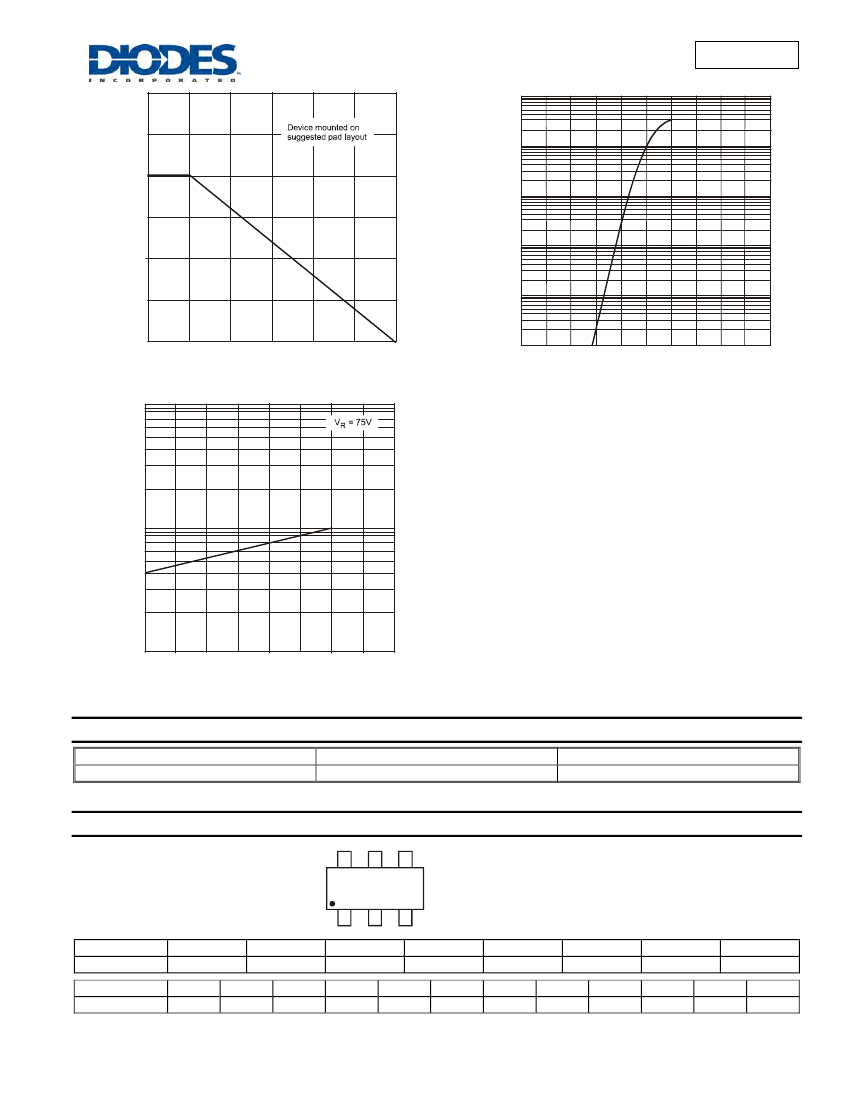

Fig. 1 Power Derating Curve, Total Package
0.01
2
0
1
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
10
1
0.1
0
50
100
150
200
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 3 Typical Reverse Characteristics, Per Element
Ordering Information
Part Number
DLPA006-7
Notes:
(Note 7)
Case
SOT-363
Packaging
3000/Tape & Reel
7. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
JAD = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: S = 2005)
M = Month (ex: 9 = September)
JAD
Date Code Key
Year
Code
Month
Code
2005
S
Jan
1
Feb
2
2006
T
Mar
3
2007
U
Apr
4
May
5
YM
2008
V
Jun
6
2009
W
Jul
7
Aug
8
2010
X
Sep
9
2011
Y
Oct
O
Nov
N
2012
Z
Dec
D
DLPA006
Document number: DS30665 Rev. 8 - 2
2 of 4
www.diodes.com
October 2008
© Diodes Incorporated
DLPA006
