SR-MIN-MIN-H-18-A datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> SR-MIN-MIN-H-18-A

SR-MIN-MIN-H-18-A: DescriptionRF Coaxial Relay, SPST, Latched, 0.13A (Coil), 12VDC (Coil), 1560mW (Coil), 18000MHz, DC Input, DC Output, Surface Mount-Straight,; CategoryMechanical and electronic products relay; File Size29KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

SR-MIN-MIN-H-18-A Overview

RF Coaxial Relay, SPST, Latched, 0.13A (Coil), 12VDC (Coil), 1560mW (Coil), 18000MHz, DC Input, DC Output, Surface Mount-Straight,

SR-MIN-MIN-H-18-A Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
ECCN code	EAR99
body width	15.88 mm
body height	10.16 mm
Body length or diameter	15.88 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.13 A
Coil power	1560 mW
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.7 dB
Maximum isolation	40 dB
Manufacturer's serial number	SR
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating frequency	18000 MHz
Minimum operating frequency	12400 MHz
physical size	15.88mm X 15.88mm X 10.16mm
Relay action	LATCHED
Relay function	SPST
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	15 ms
Termination type	SOLDER
voltage standing wave ratio	1.7

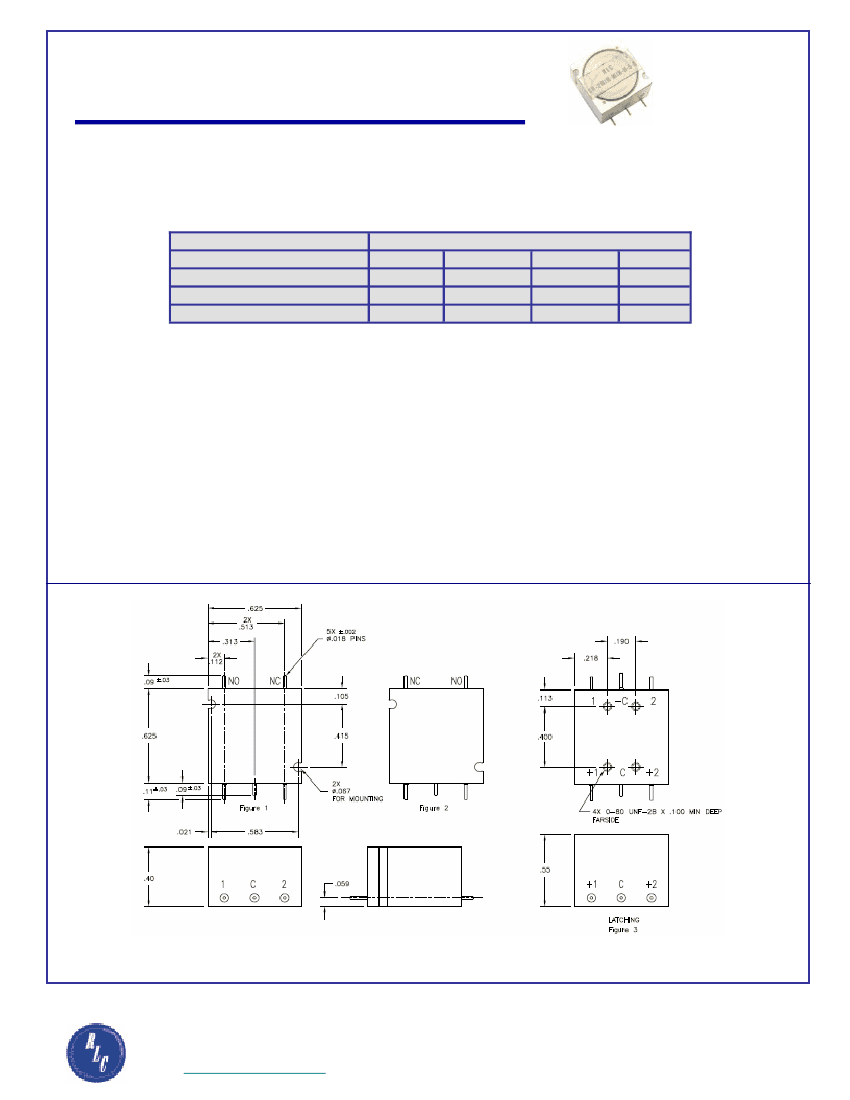

SR-MIN-MIN-H-18-A Preview

Miniature Surface Mount

Coaxial Switches

RLC Electronics’ miniature surface mount coaxial switch is

a single pole two position type. The switch provides ex-

tremely high reliability, long life, and excellent electrical

performance characteristics in a miniature package. The

power consumption is approximately one half that of the

miniature connectorized switches. The switch is available

with a choice of four different operating frequencies, three

coil voltages, and two different pin configurations

SR-2min-min-

1-2-3

Switch Type

Frequency (GHz)

Insertion Loss (Max dB)

VSWR (Max)

Isolation (dB Min)

Power Rating, RF Cold Switching :

See page 5

Impedance:

50 ohms

Operating Power

25 deg C (ma

nominal): 5vdc at 310mA

12vdc at 130mA 28vdc at 75mA

DC-2.0

0.2

1.3

Single pole two position

2.0-5.0

5.0-12.4

0.3

0.4

1.4

1.5

12.4-18

0.7

1.7

Connectors:

RF and power: .018

DIA. Pins

Life:

1,000,000 operations

Switching Time:

15 milliseconds

max.

Weight:

0.6 oz.

Environmental Conditions:

MIL-

DTL-3928

Operating Mode:

Failsafe or latching

Switching Sequence:

Break before

make

To designate the Switch desired use:

1: ‘H’ for 12-15 volts coil ‘D’ for 24-28 volts coil ‘E’ for 5

volt coil

2: ‘2’ for DC-2GHz ‘5’ for DC-5 GHz ‘12’ for DC-12.4

GHz ‘18’ for DC-18 GHz

3: ‘L’ for pulse latching

4: ‘A’ for Figure 1 (pin configuration) “B’ for Figure 2 (pin

configuration)

Example: SR-2min-min-D-2-A is a SPDT, 24-28vdc, DC-2 GHz, failsafe switch. (per Figure 1)

SR-2min-min-D-2-L is a SPDT, 24-28vdc, DC-2 GHz latching switch. (per Figure 3)

Specifications subject to change without notification.

Tolerances unless otherwise specified are .xx +/- .02, xxx +/- .005

Specials requiring closer tolerances, different frequency ranges, special

connectors, different materials, finishes, etc. can be furnished upon request.

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 Telephone 914-241-1334 Fax 914-241-1753

e-mail:

sales@rlcelectronics.com

www.rlcelectronics.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
