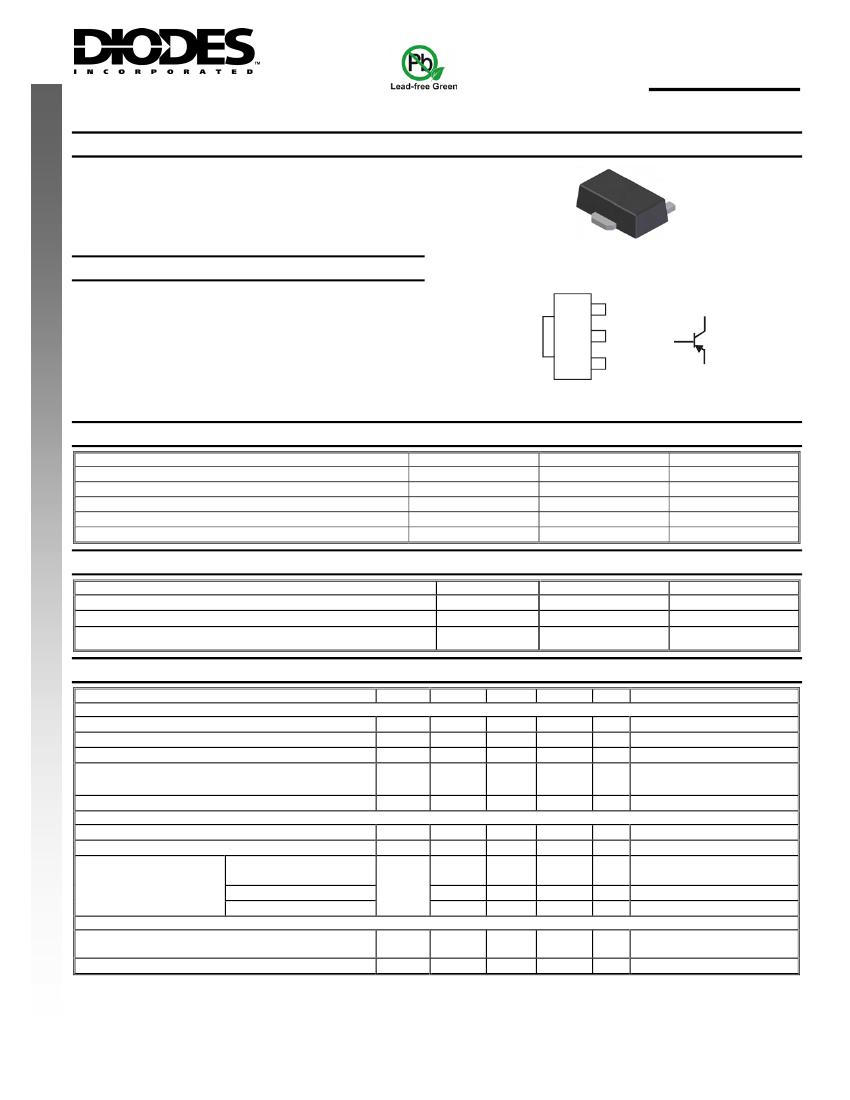

DCX53/-16
PNP SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary NPN Type Available (DCX56)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Switching or Amplification Applications
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
NEW PRODUCT
SOT89-3L
COLLECTOR
2,4
Mechanical Data
•
•
•
•
•
•
•
Case: SOT89-3L
Case Material: Molded Plastic, "Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish — Matte Tin annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Marking & Type Code Information: See Page 3
Ordering Information: See Page 3
Weight: 0.072 grams (approximate)
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
CM
I
C
Value
-100
-80
-5
-1.5
-1
Unit
V
V
V
A
A
3 E
C 4
2 C
1 B
1
BASE
3
EMITTER
TOP VIEW
Schematic and Pin Configuration
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Peak Pulse Current
Continuous Collector Current
Characteristic
Thermal Characteristics
Characteristic
Power Dissipation (Note 3) @ T
A
= 25°C
Thermal Resistance, Junction to Ambient Air @ T
A
= 25°C (Note 3)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
j
, T
STG
Value
1
125
-55 to +150
Unit
W
°C/W
°C
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 4)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Emitter Cutoff Current
ON CHARACTERISTICS (Note 4)
Collector-Emitter Saturation Voltage
Base-Emitter Turn-On Voltage
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
V
CE(SAT)
V
BE(SAT)
DCX53, DCX53-16
h
FE
Min
-100
-80
-5
⎯
⎯
⎯
⎯
63
40
63
100
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
200
⎯
Max
⎯
⎯
⎯
-100
-20
-100
-0.5
-1.0
⎯
⎯
250
250
⎯
25
Unit
V
V
V
nA
μA
nA
V
V
⎯
⎯
⎯
⎯
MHz
pF
Test Conditions
I
C
= -100μA, I
E
= 0
I
C
= -10mA, I
B
= 0
I
E
= -10μA, I
C
= 0
V
CB
= -30V, I
E
= 0
V
CB
= -30V, I
E
= 0, T
A
= 150°C
V
EB
= -5V, I
C
= 0
I
C
= -500mA, I
B
= -50mA
I
C
= -500mA, V
CE
= -2V
I
C
= -5mA, V
CE
= -2V
I
C
= -500mA, V
CE
= -2V
I
C
= -150mA, V
CE
= -2V
I
C
= -150mA, V
CE
= -2V
I
C
= -50mA, V
CE
= -5V,
f = 100MHz
V
CB
= -10V, f = 1MHz
DC Current Gain
SMALL SIGNAL CHARACTERISTICS
Current Gain-Bandwidth Product
Output Capacitance
Notes:
1.
2.
3.
4.
DCX53
DCX53-16
f
T
C
obo
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Device mounted on FR-4 PCB; pad layout as shown on page 4 or in Diodes Inc. suggested pad layout document AP02001, which can
be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Measured under pulsed conditions. Pulse width = 300μs. Duty cycle
≤2%.
DS31160 Rev. 3 - 2
1 of 4
www.diodes.com
DCX53/-16
© Diodes Incorporated

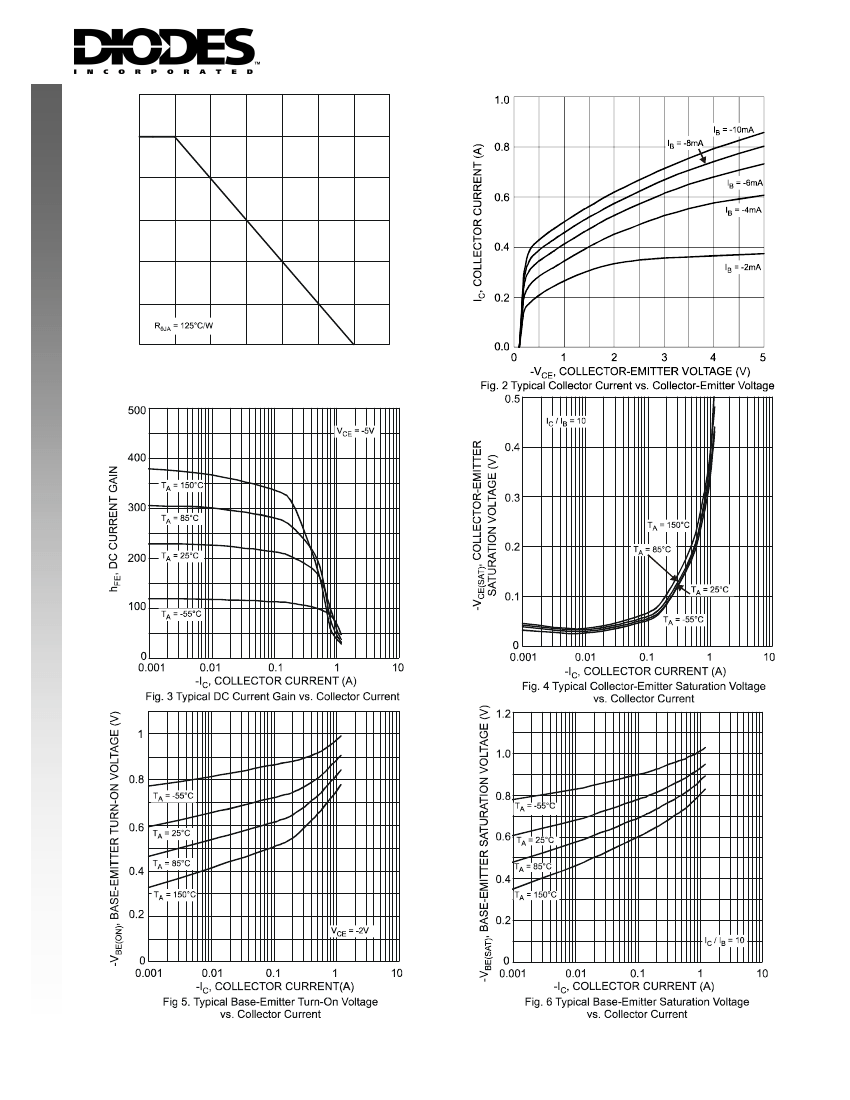

160
140
120
CAPACITANCE(pF)
100
80
60
40
20
0
0
10
20
30
40
V
R
, REVERSE VOLTAGE (V)

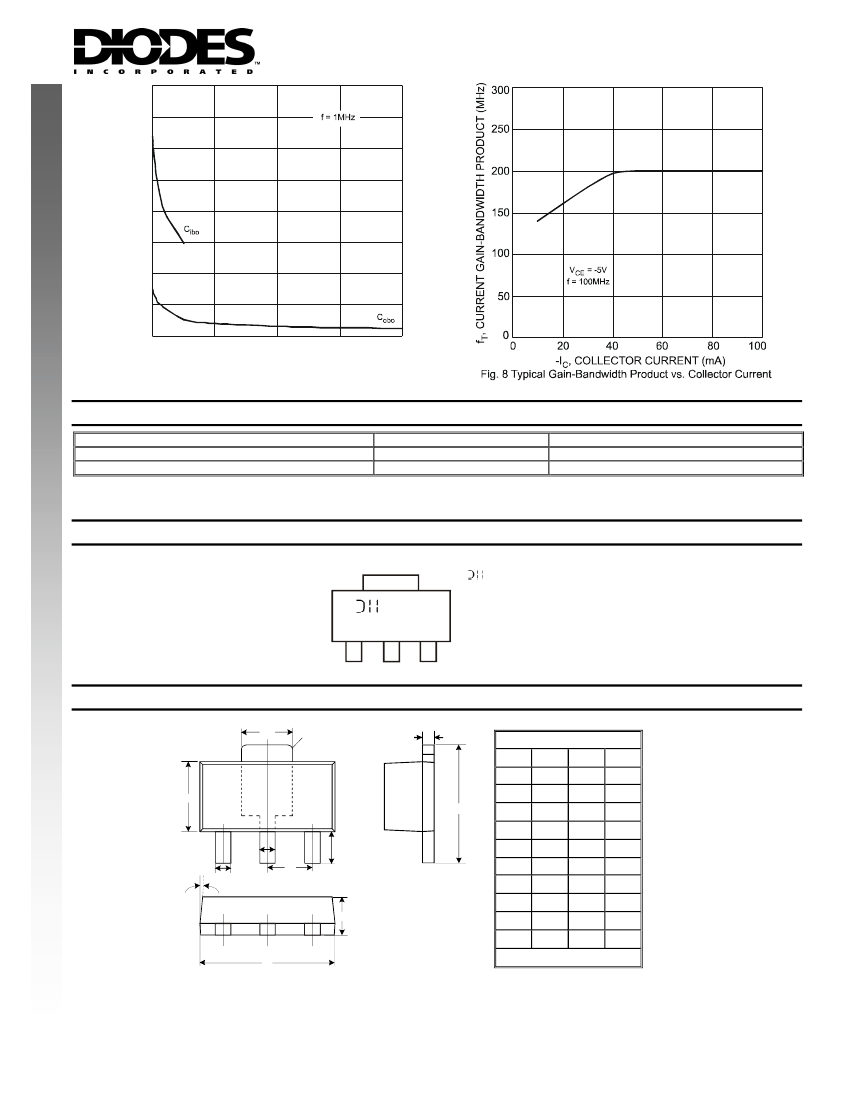

Fig. 7 Typical Capacitance Characteristics
NEW PRODUCT
Ordering Information
(Note 5)
Device
DCX53-13
DCX53-16-13
Notes:
5.
Packaging
SOT89-3L
SOT89-3L
Shipping
2500/Tape & Reel
2500/Tape & Reel
For packaging details, go to our website at http://www.diodes.com/ap02007.pdf.
Marking Information
(Top View)
YWW
XXX
= Manufacturer’s code marking
XXX = Product type marking code Ex: P18 = DCX53
P18-16 = DCX53 -16
YWW = Date code marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
Package Outline Dimensions
D1
0
20
0.
R
C
SOT89-3L
Dim
A
B
H
Min
1.40
0.45
0.37
0.35
4.40
1.50
2.40
—
3.95
0.90
Max
1.60
0.55
0.47
0.43
4.60
1.70
2.60
—
4.25
1.20
Typ
1.50
0.50
0.42
0.38
4.50
1.60
2.50
1.50
4.10
1.05
E
B1
C
D
D1
E
e
B
B1
8°
e
(4X
)
L
A
H
L
D
All Dimensions in mm
DS31160 Rev. 3 - 2
3 of 4
www.diodes.com
DCX53/-16
© Diodes Incorporated
Suggested Pad Layout
1.7
NEW PRODUCT
2.7
0.4
1.9
1.3
0.9
3.0
Unit: mm
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
DS31160 Rev. 3 - 2
4 of 4
www.diodes.com
DCX53/-16
© Diodes Incorporated
