DZT5551

Description
600 mA, 160 V, NPN, Si, SMALL SIGNAL TRANSISTOR
Categorysemiconductor    Discrete semiconductor
File Size145KB,7 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric View All

DZT5551 Overview

600 mA, 160 V, NPN, Si, SMALL SIGNAL TRANSISTOR

DZT5551 Parametric

Parameter NameAttribute value
Number of terminals4
Transistor polarityNPN
Maximum collector current0.6000 A
Maximum Collector-Emitter Voltage160 V
Processing package descriptionGREEN, PLASTIC PACKAGE-4
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE TIN
Terminal locationDUAL
Packaging MaterialsPLASTIC/EPOXY
structureSINGLE
Shell connectionCOLLECTOR
Number of components1
transistor applicationsSWITCHING
Transistor component materialsSILICON
Transistor typeGENERAL PURPOSE SMALL SIGNAL
Minimum DC amplification factor30
Rated crossover frequency100 MHz
DZT5551
160V NPN VOLTAGE TRANSISTOR IN SOT223
Features
BV
CEO
> 160V
BV
EBO
> 6V
I
C
= 600mA Continuous Collector Current
Low Saturation Voltage (150mV max @10mA)
h
FE
specified up to 50mA for a high gain hold up
Complementary PNP Type: DZT5401
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SOT223
Case material: molded plastic. “Green” molding compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (approximate)
Applications
High Voltage Amplification Applications
High Voltage Switching

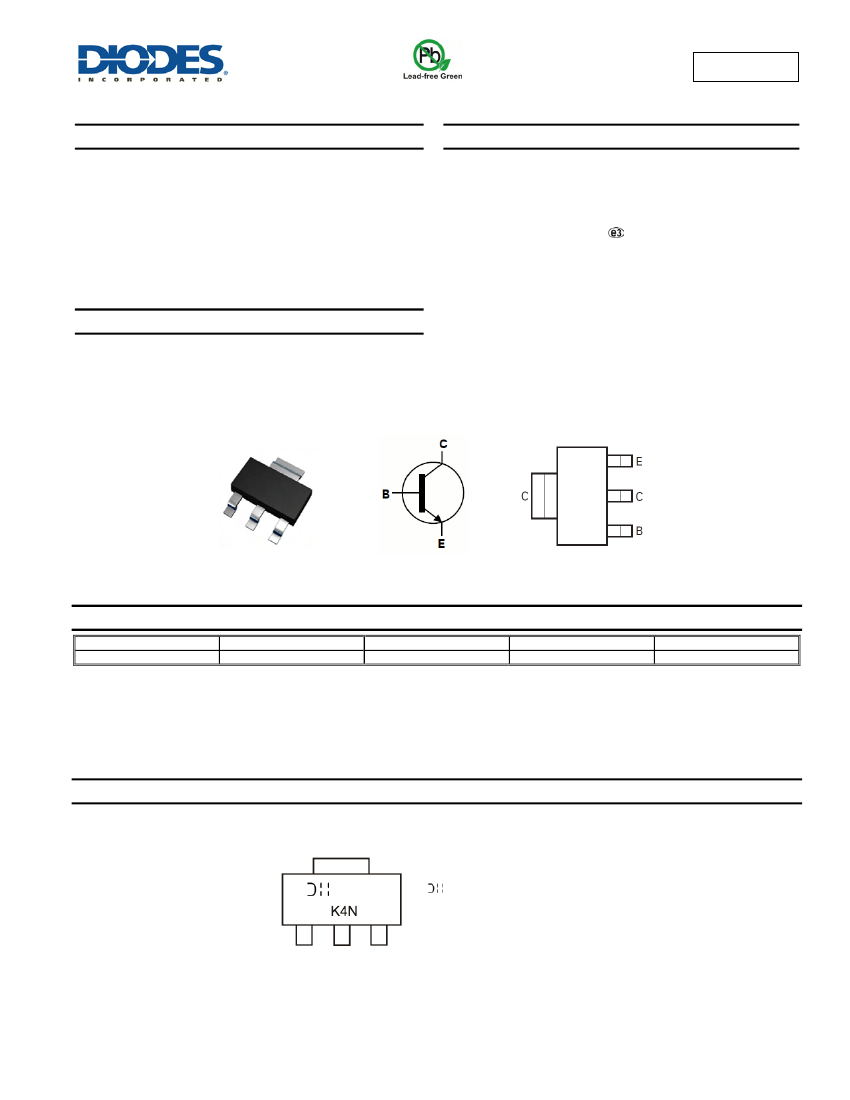

SOT223
Top View
Device Schematic
Pin-Out Top View
Ordering Information
(Note 4)
Part Number
DZT5551-13
Notes:
Marking
K4N
Reel size (inches)
13
Tape width (mm)
12
Quantity per reel
2,500
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen and Antimony free,"Green" and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com
Marking Information
(Top View)
YWW
K4N = Product type marking code
= Manufacturer’s code marking
YWW = Date code marking
Y = Last digit of year ex: 7 = 2007
WW = Week code 01 - 52
DZT5551
Document number: DS31219 Rev. 3 - 2
1 of 7
www.diodes.com
November 2012
© Diodes Incorporated
