A Series
1-4 Pole Rotary Switches
Features/Benefits
•
Multi-pole and multi-position
•
Positive detent
•
Shorting & non-shorting contacts
•
Panel and PCB mounting
•
RoHS Compliant
Models Available
Typical Applications
•
Automotive
•
Major and small appliances
•
Industrial equipment
Specifications
CONTACT RATING: Q contact material: Switch - 2.5 AMPS @
125 V AC; 350 mA @ 125 V DC (UL/CSA). Carry - 5 AMPS
continuous. See page L-6 for additional ratings.
ELECTRICAL LIFE: 15,000 make-and-break cycles at full load up
to 300,000 detent operations.
CONTACT RESISTANCE: Below 20 m
Ω
typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts.
INSULATION RESISTANCE: 10 9
Ω
min.
DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Operating and storage temp: -30º to 85ºC
OPERATING & STORAGE TEMPERATURE: -30ºC to 85ºC
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
Materials
HOUSING & BUSHING: Glass filled 6/6 nylon (UL 94V-0).
ACTUATOR: Glass filled 6/6 nylon (UL 94V-0).
MOVABLE CONTACTS: Q contact material: Coin silver, silver plated.
See page K-6 for additional contact materials.
STATIONARY CONTACTS & TERMINALS: Q contact material: Brass,
silver plated. See page K-6 for additional contact materials.
HARDWARE: Nut - zinc, nickel plated. Lockwasher — steel, bright
zinc plated. Stop Ring - brass, nickel plated.
TERMINAL SEAL: Epoxy.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages K–4 through K–7. For additional options not shown in catalog, consult Customer Service Center.
K
Rotary
Switch Function
A100
SP, 30° Index, 12 pos. no stops
A102
SPDT, 30° Index
A103
SP, 30° Index, 3 pos.
Actuator
A104
SP, 30° Index, 4 pos.
15
1.500"
high, flatted
A105
SP, 30° Index, 5 pos.
03
.375" high, flatted
A106
SP, 30° Index, 6 pos.
05
.500" high, flatted
A107
SP, 30° Index, 7 pos.
14
1.500" high, flatted
A108
SP, 30° Index, 8 pos.
42
1.654" high, metric
A109
SP, 30° Index, 9 pos.
S1
Screwdriver Slot
A110
SP, 30° Index, 10 pos.
A112
SP, 30° Index, 12 pos.
Mounting Style
A114
SP, 90° Index, 2 pos.
R
3/8-32 threaded
A115
SP, 45° Index, 3 pos.
M
M10 x .75 metric
A124
SP, 90° Index, 4 pos.
Shorting/
A125
SP, 45° Index, 8 pos.
Non-shorting Contacts
A203
DP, 30° Index, 3 pos.
N
Non-shorting contacts
A204
DP, 30° Index, 4 pos.
S
Shorting contacts
A205
DP, 30° Index, 5 pos.
(Not available with models A114, A124 & A214)
A206
DP, 30° Index, 6 pos.
A214
DP, 90° Index, 2 pos.
Terminations
A303
3P, 30° Index, 3 pos.
Z
Solder lug
A304
3P, 30° Index, 4 pos.
C
PC Thru-hole
Contact Material
A402
4PDT, 30° Index
MC
Modular base
Q
Silver
A403
4P, 30° Index, 3 pos
B
Gold
Seal
G
Gold over silver
NONE
No seal
E
Epoxy seal
F
Splashproof bushing seal
K
Epoxy & splashproof bushing seal
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–3
www.ck-components.com
A Series
1-4 Pole Rotary Switches
SWITCH FUNCTION
30º INDEXING
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
12 Position
No Stops
SPDT
3 Position
4 Position
5 Position
6 Position
7 Position
8 Position
9 Position
10 Position
12 Position
3 Position
4 Position
5 Position
6 Position
3 Position
4 Position

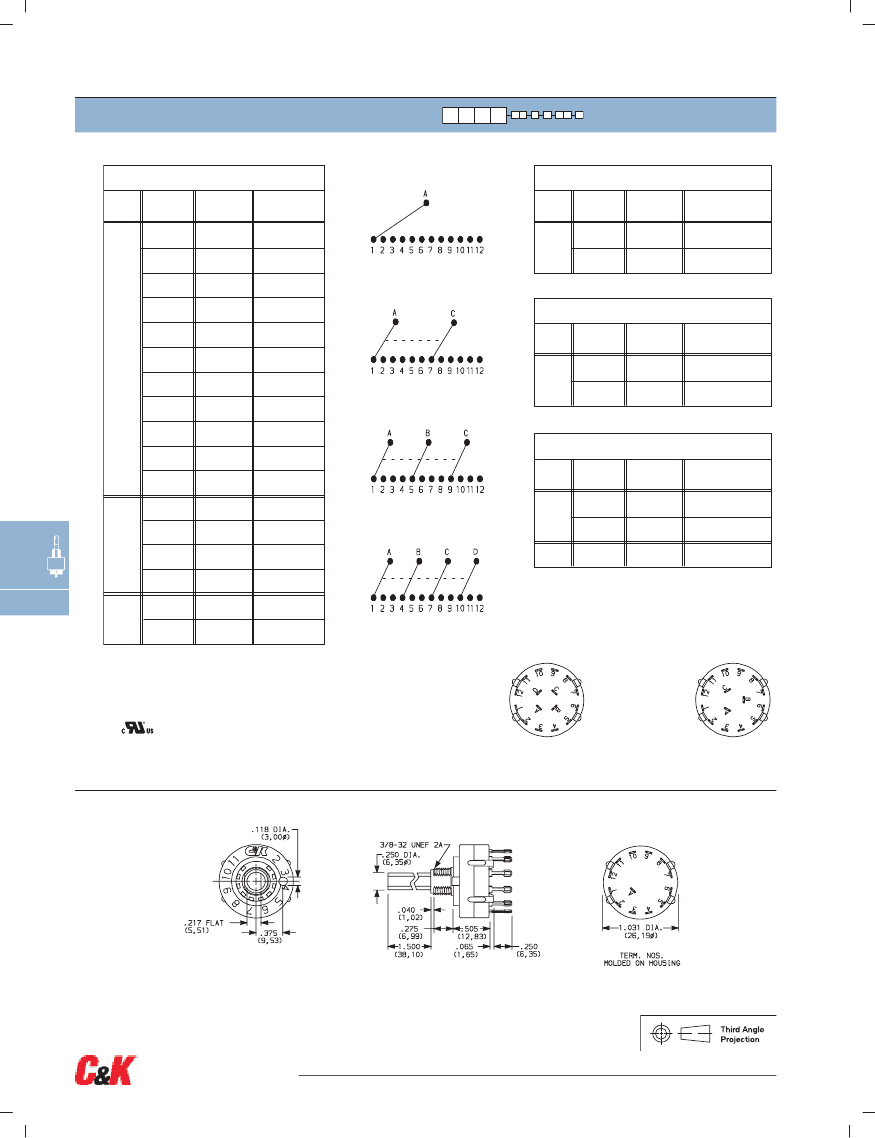

SP MODELS SCHEMATIC
30º INDEXING
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
4PDT
3 Position
TERMINALS
TERMINALS
A,B,C,D,1,2,4,5,7,
8,10,11
All Terminals
A100
A102
A103
A104
A105
SP
A,1-12
A402
4P
A,1,2*
A,1-3*
DP MODELS SCHEMATIC
A403
A,1-4*
A,1-5*
A,1-6*
45º INDEXING
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
3 Position
8 Position
TERMINALS
A106
A107
A108
A109
A110
A112
A203
A115
A,1-7
A,1-8
3P MODELS SCHEMATIC
A,1,2,4*
A,1,2,4,5,7,8,10,11
SP
A125
A,1-9
90º INDEXING
A,1-10
A,1-12
A,C,1-3,7-9
NO.
POLES
MODEL
NO.
SWITCH
FUNCTION
2 Position
4 Position
2 Position
TERMINALS
A114
SP
4P MODELS SCHEMATIC
A,1,4*
A,1,4,7,10
A,C,1,4,7,10
DP
A204
A205
A206
A,C,1-4,7-10
A,C,1-5,7-11
A,C,1-12
A,B,C,1-3,5-7
9-11
A,B,C,1-12
A124
DP
A214
K
3P
A303
A304
Rotary
TERMINAL NUMBERS
NOTE:
* These models with ‘C’ or ‘MC’ terminations have additional terminal no. 9
as switch support only. This terminal is not connected electrically inside switch.
All models
with all options when ordered with ‘G’ or ‘Q’ contact
material, see page K-6.
Terminal numbers
molded on bottom
of housing.
4P MODELS
SP MODELS (omit terminals B, C & D)
DP MODELS (omit terminals B & D)
3P MODELS
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–4
www.ck-components.com
A Series
1-4 Pole Rotary Switches

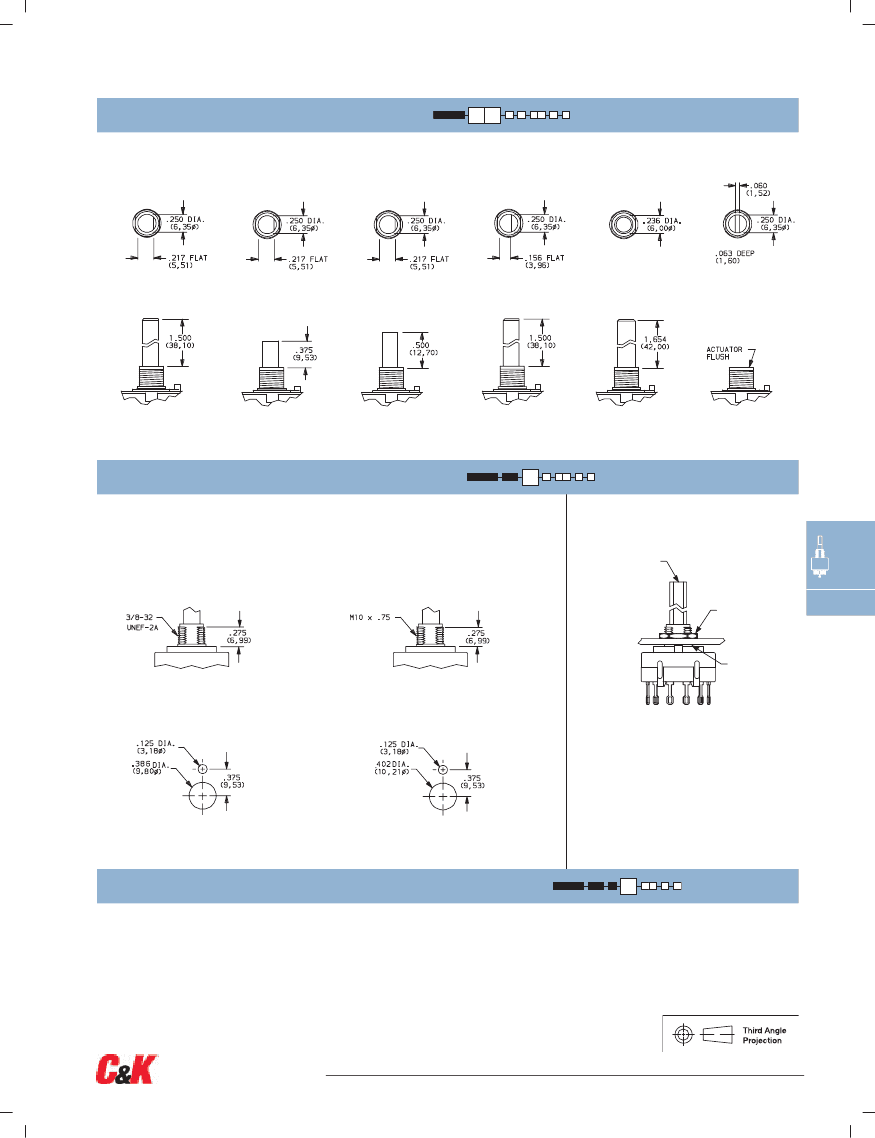

ACTUATOR
15
1.500" HIGH
03
.375" HIGH
05
.500" HIGH
14
1.500" HIGH
42
1.654" METRIC
S1
SCREWDRIVER SLOT
NOTE:
Actuators shown in position 1, fully CCW.
MOUNTING STYLE
R
3/8-32 THREAD
M
M10 x .75 METRIC
TYPICAL INSTALLATION
Maximum force to
push on knob should
not exceed 10 in./lbs.
NUT
K
Rotary
LOCKWASHER
PANEL MOUNTING
PANEL MOUNTING
Install switch with stop ring (if used) and
lockwasher in back of panel. Tighten hex nut
from front of panel.
On PC mounted switches, use hex nut and
lockwasher to hold stop ring in place.
Actuation torque: 8–16 oz./in.
Maximum torque: 30 oz./in.
3
/ IN. BUSHING
8
METRIC BUSHING
SHORTING/NON-SHORTING CONTACTS
N
S
NON-SHORTING CONTACTS (break-before-make)
SHORTING CONTACTS (make-before-break)
NOTE:
‘S’ shorting contacts are not available with A114, A124 and A214 models.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–5
www.ck-components.com
A Series
1-4 Pole Rotary Switches
TERMINATIONS
Z
SOLDER LUG
C
PC THRU-HOLE
MC
MODULAR BASE (for wave soldering)
NOTE:
Switches with ‘C’ or ‘MC’ terminations have additional terminal no. 9 as switch support only. This terminal
is not connected electrically inside switch. Solder and clean switch base on PC board with other components, then
snap on housing/actuator assembly. See page K-7 for installation instructions.
PC MOUNTING
K
Rotary
4P MODEL
SP MODEL (omit terminals B, C & D)
DP MODEL (omit terminals B & D)
3P MODEL
CONTACT MATERIAL
OPTION
CODE
CONTACT AND
TERMINAL MATERIAL
SILVER
2
GOLD
1
GOLD OVER SILVER
3
RATING
SWITCH-2.5 AMPS @ 125 V AC; 350 mA @ 125V DC (UL/CSA).
CARRY-5 AMPS CONTINUOUS.
0.4 VA MAX. @ 20 V AC or DC MAX
0.4 VA MAX. @ 20 V AC or DC MAX. or SWITCH-2.5 AMPS @ 125 V AC;
350 mA @ 125 V DC (UL/CSA). CARRY-5 AMPS CONTINUOUS.
Q
B
G
POWER
LOW LEVEL/DRY CIRCUIT
LOW LEVEL/DRY CIRCUIT
OR POWER
* Note: See Technical Data section of this catalog for RoHS compliant and compatible definition and specifications.
1
MOVABLE CONTACTS: Copper alloy, with gold plate over nickel plate.
STATIONARY CONTACTS & TERMINALS: Brass, with gold plate over nickel plate.
2
MOVABLE CONTACTS: Coin silver, silver plated.
STATIONARY CONTACTS & TERMINALS: Brass, silver plated (standard with all
termination options).
3
MOVABLE CONTACTS: Coin silver, with gold plate over nickel plate over silver plate.
STATIONARY CONTACTS & TERMINALS: Brass, with gold plate over nickel plate
over silver plate.
NOTE:
Any models supplied with Q, B or G contact material are RoHS compliant.
All models
with all options when ordered with ‘G’ or ‘Q’ contact material.
NOTE:
‘G’ contact material is equivalent to both ‘B’ and ‘Q” contact materials.
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–6
www.ck-components.com
A Series
1-4 Pole Rotary Switches
FUNCTION
NONE
NO SEAL
E
EPOXY SEAL
F
SPLASHPROOF BUSHING SEAL
K
EPOXY & SPLASHPROOF BUSHING SEAL
SPLASHPROOF
BUSHING SEAL

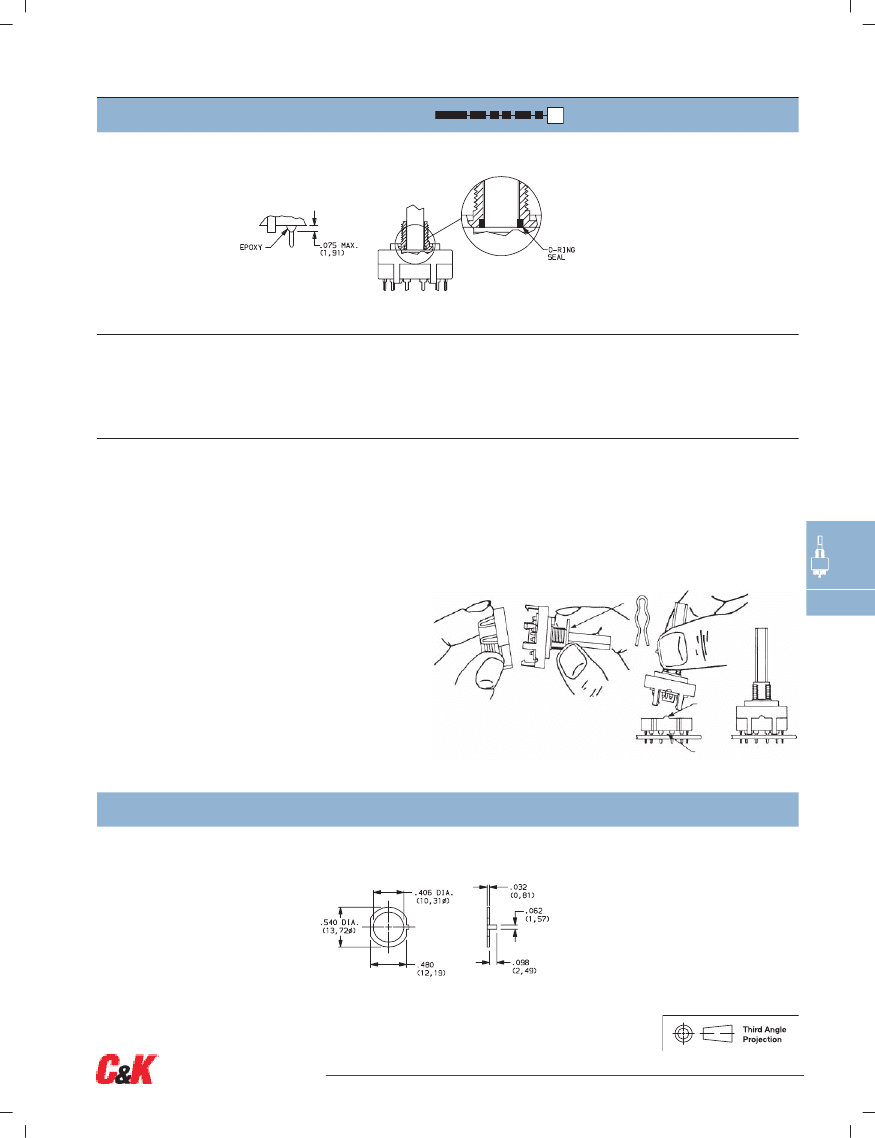

Setting Stops on A112 and A125 Models
The number of switch positions is adjustable on A112
and A125 models only by means of a stop ring provided
with each switch. The number of positions is pre-set on
all other models and the stop ring is factory installed.
To set stops: Turn shaft fully counter-clockwise and
insert stop ring tab in desired hole. Install lockwasher
and nut to retain stop ring for both PC and panel
mounting. Switch without stop ring has 12 positions.

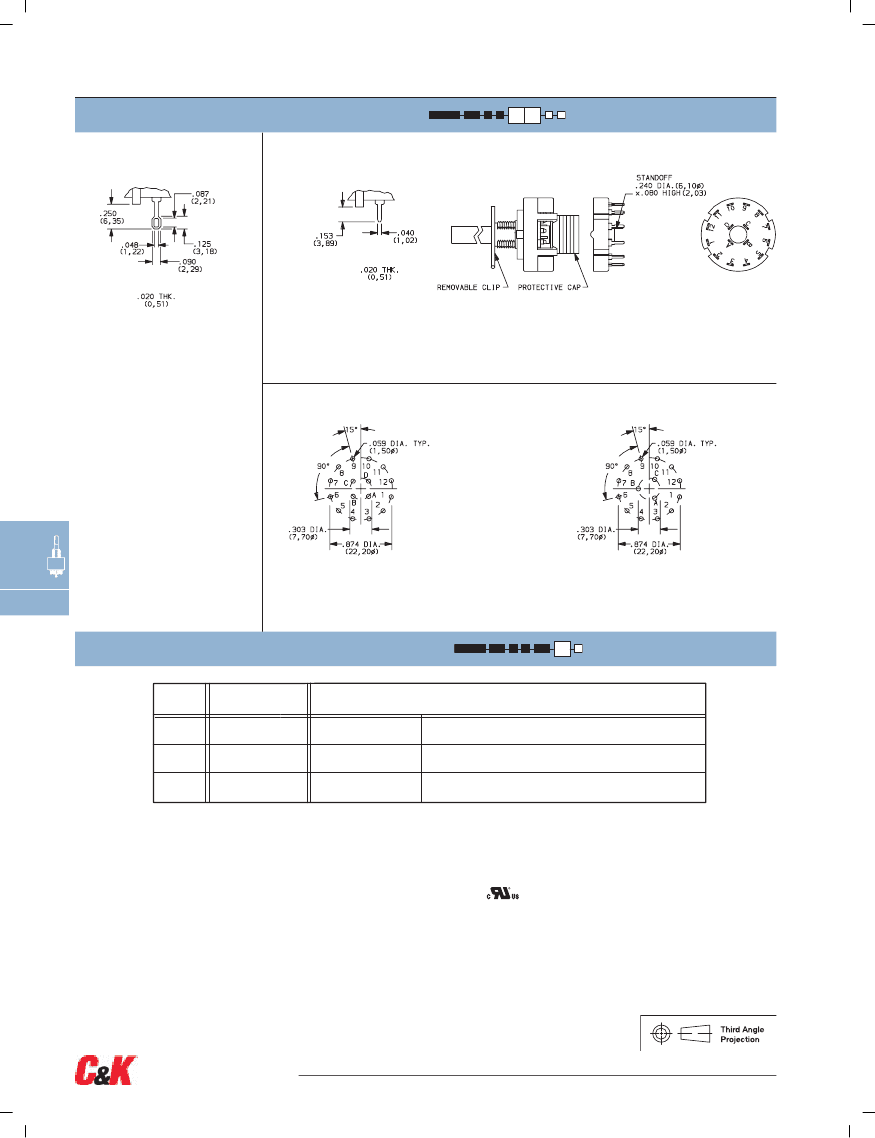

Soldering, Cleaning and Assembly Instructions for ‘MC’ Termination Option
Soldering
1. Insert switch base only into PC board.
2. Do not bend terminals.
3. Wave soldering recommended at
500F solder temperature.
4. Hand solder at 500F, 10 sec.
max./terminal.
Switch Assembly
1. Hold housing/shaft assembly by housing. Remove
protective cap by squeezing tabs and discard. (FIG. 1)
2.
Do not push on switch shaft. Detent mechanism will
come apart.
3. While holding switch housing, align locating tab on
base with notch on housing and engage 4 housing
latches in slots on base. (FIG. 2)
4. Push firmly on housing until latches snap in place.
5. Remove clip from shaft and discard. Assembly is
complete. (FIG. 3)
Cleaning
1. Flux clean using vapor degreaser and forced
rinse or triple bath method.
2. Do not allow switch base to ‘trap’ fluids.
3. Freon TMC, TF or Methylene Chloride give
excellent results.
REMOVABLE CLIP
K
Rotary
(FIG. 1)
LOCATING
TAB
STANDOFF
(FIG. 2)
(FIG. 3)
AVAILABLE HARDWARE
Stop ring
PART NO.
767B00201
Material: Brass
Finish: Nickel plated
Dimensions are shown: Inch (mm)
Specifications and dimensions subject to change
K–7
www.ck-components.com
