KSD1362-O

Description

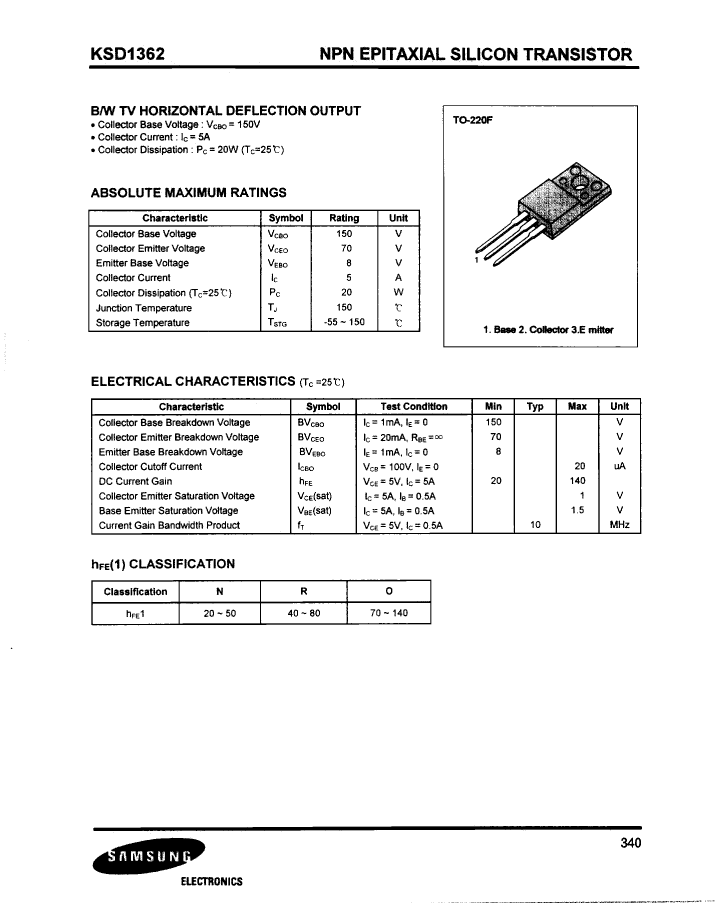

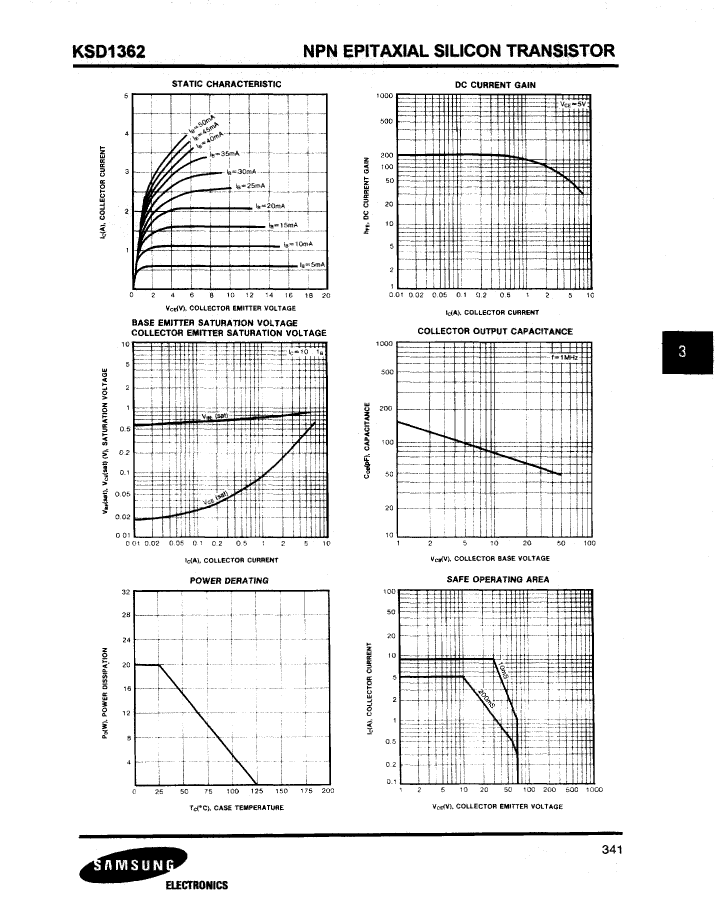

Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-220F, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size116KB,2 Pages
ManufacturerSAMSUNG
Websitehttp://www.samsung.com/Products/Semiconductor/
Download Datasheet Parametric Compare View All

KSD1362-O Overview

Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-220F, 3 PIN

KSD1362-O Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSAMSUNG
Parts packaging codeTO-220F
package instructionFLANGE MOUNT, R-PSFM-T3
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionISOLATED
Maximum collector current (IC)5 A
Collector-emitter maximum voltage70 V
ConfigurationSINGLE
Minimum DC current gain (hFE)70
JESD-30 codeR-PSFM-T3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typeNPN
Maximum power consumption environment20 W
Maximum power dissipation(Abs)20 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)10 MHz
VCEsat-Max1 V

KSD1362-O Related Products

KSD1362-O KSD1362-R KSD1362 KSD1362-N
Description Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-220F, 3 PIN Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-220F, 3 PIN Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-220F, 3 PIN Power Bipolar Transistor, 5A I(C), 70V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, TO-220F, 3 PIN
Maker SAMSUNG SAMSUNG SAMSUNG SAMSUNG
Parts packaging code TO-220F TO-220F TO-220F TO-220F
package instruction FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3
Contacts 3 3 3 3
Reach Compliance Code unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED
Maximum collector current (IC) 5 A 5 A 5 A 5 A
Collector-emitter maximum voltage 70 V 70 V 70 V 70 V
Configuration SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 70 40 20 20
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
Number of components 1 1 1 1
Number of terminals 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Polarity/channel type NPN NPN NPN NPN
Maximum power dissipation(Abs) 20 W 20 W 20 W 20 W
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE SINGLE
transistor applications AMPLIFIER AMPLIFIER AMPLIFIER AMPLIFIER
Transistor component materials SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 10 MHz 10 MHz 10 MHz 10 MHz
Is it Rohs certified? incompatible incompatible - incompatible
JESD-609 code e0 e0 - e0
Maximum power consumption environment 20 W 20 W - 20 W
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb)
VCEsat-Max 1 V 1 V - 1 V
