DLPA004: DescriptionDATA BUS TRANSIENT SUPPRESSOR; File Size71KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Compare View All

DLPA004 Overview

DATA BUS TRANSIENT SUPPRESSOR

Preview

Download Datasheet

View All

DLPA004

DATA BUS TRANSIENT SUPPRESSOR

Please click here to visit our online spice models database.

Features

•

Fast Switching Speed

Ultra-Small Surface Mount Package

Lead Free By Design/RoHS Compliant (Note 3)

"Green" Device (Note 4)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

•

Case: SOT-363

Case Material: Molded Plastic, "Green" Molding Compound.

UL Flammability Classification Rating 94V-0 (Note 3)

Moisture Sensitivity: Level 1 per J-STD-020D

Terminals: Finish

⎯

Matte Tin annealed over Alloy 42

Leadframe. Solderable per MIL-STD-202, Method 208

Ordering Information: See Page 3

Marking Information: See Page 3

Weight: 0.006 grams (approximate)

N/C

I/O

Data Line Transient Protection

NEW PRODUCT

In accordance with (Note 1):

•

IEC 61000-4-2 Contact Method: ±15kV

•

IEC 61000-4-2 Air Discharge Method: ±25kV

N/C

SOT-363

TOP VIEW

I/O

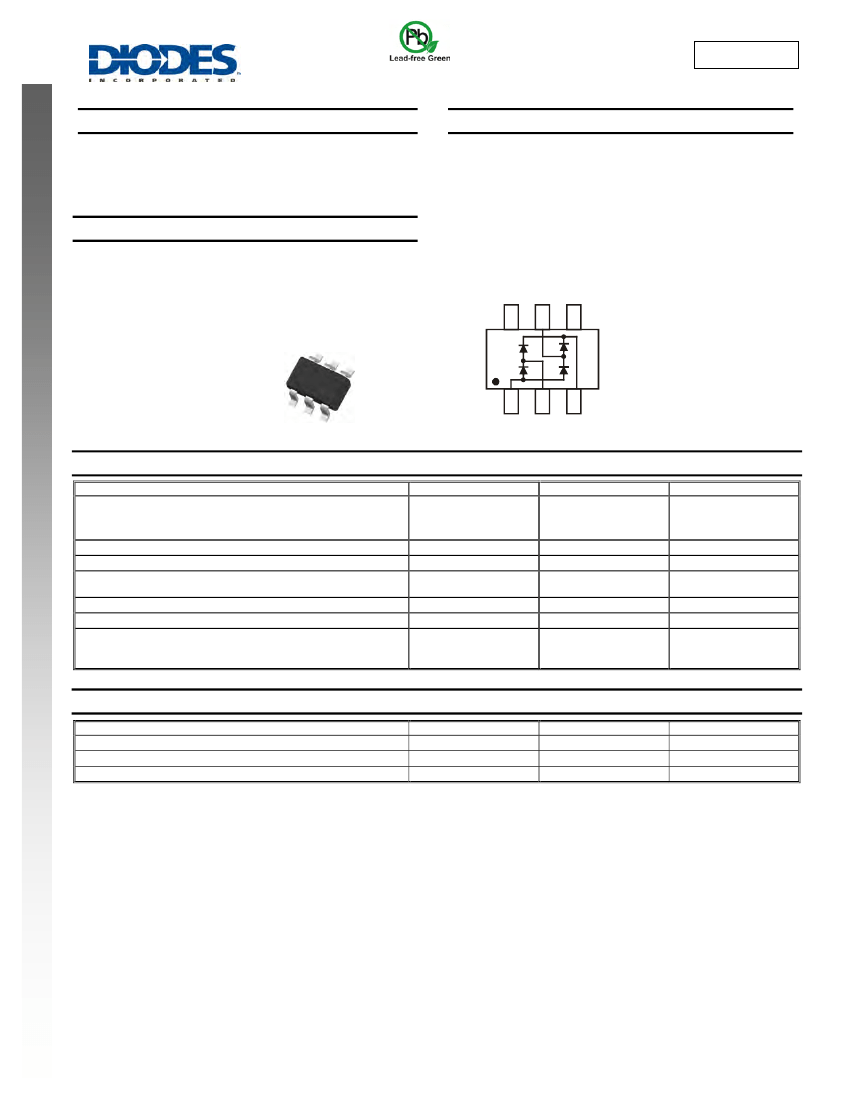

Device Schematic

Maximum Ratings

= 25°C unless otherwise specified

Symbol

RRM

RWM

R(RMS)

FM(surge)

F(AV)

FRM

FSM

Value

200

3.5

450

4.0

1.0

0.5

Unit

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Forward Current (Single Diode)

Peak Forward Surge Current

8.3ms Single half Sine-Wave Superimposed on Rated Load

Average Rectified Forward Current (Note 1)

Repetitive Peak Forward Current

Non-Repetitive Peak Forward Surge Current

@ t = 1.0μs

@ t = 1.0ms

@ t = 1.0s

Thermal Characteristics

Characteristic

Power Dissipation (Note 2)

Thermal Resistance Junction to Ambient Air (Note 2)

Operating and Storage Temperature Range

Notes:

Symbol

, T

STG

Value

200

625

-65 to +150

Unit

°C/W

°C

1. Tested with V

pins connected to GND pin.

2. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which

can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.

3. No purposefully added lead.

4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.

DLPA004

Document number: DS31593 Rev. 4 - 2

1 of 4

www.diodes.com

March 2009

DLPA004

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDING TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

NEW PRODUCT

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DLPA004

Document number: DS31593 Rev. 4 - 2

4 of 4

www.diodes.com

March 2009
