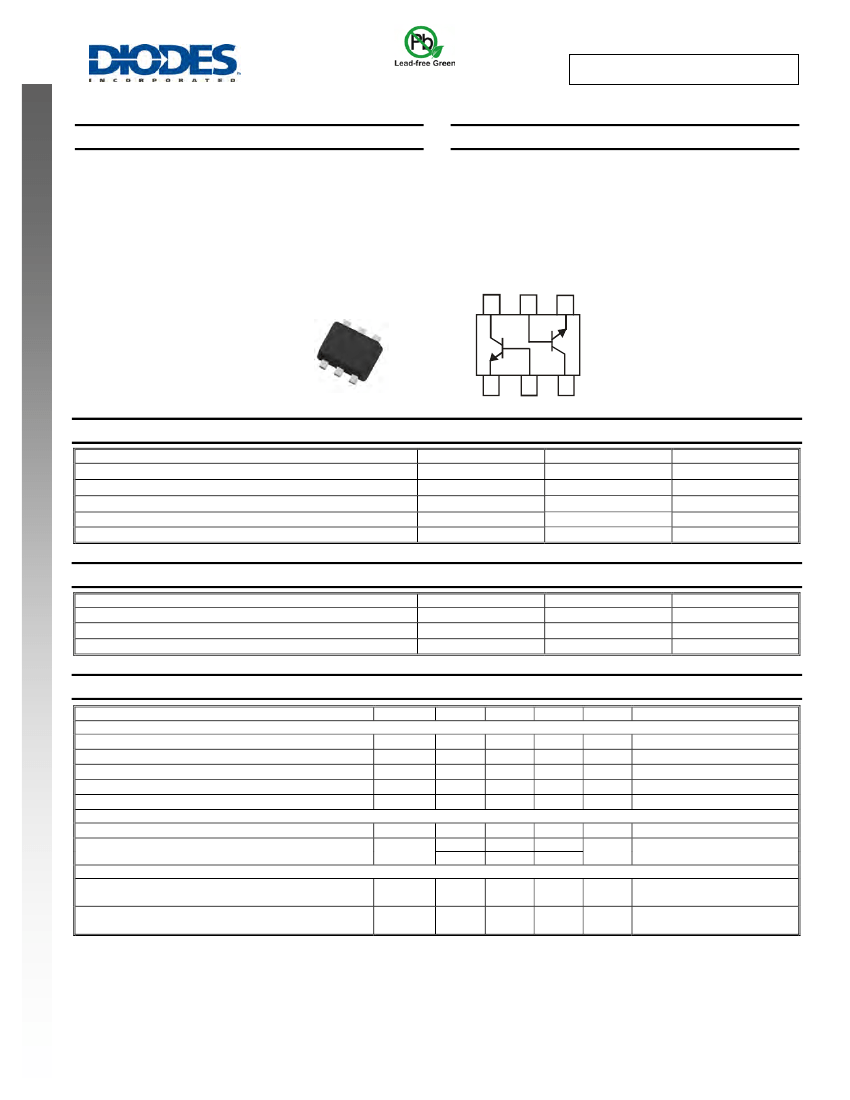

DN0150ADJ / DN0150BDJ
DUAL NPN SURFACE MOUNT TRANSISTOR
Please click here to visit our online spice models database.
Features
•
•
•
•
•
Epitaxial Planar Die Construction
Ideally Suited for Automated Assembly Processes
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
Ultra Small Package
Mechanical Data
•
•
•
•
•
•
•
SOT-963
NEW PRODUCT
Case: SOT-963
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish
⎯
Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.0027 grams (approximate)
6
5
4
Q1
Q2
1
Top View
2
3
Device Schematic
Maximum Ratings
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current – Continuous
Base Current
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
Value
60
50
5
100
30
Unit
V
V
V
mA
mA
Characteristic
Thermal Characteristics
Characteristic
Power Dissipation (Note 3)
Thermal Resistance, Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
300
417
-55 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
OFF CHARACTERISTICS (Note 4)
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
ON CHARACTERISTICS (Note 4)
Collector-Emitter Saturation Voltage
DC Current Gain
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
Output Capactiance
Notes:
1.
2.
3.
4.
@T
A
= 25°C unless otherwise specified
Symbol
V(
BR)CBO
V(
BR)CEO
V(
BR)EBO
I
CBO
I
EBO
V
CE(SAT)
DN0150ADJ
DN0150BDJ
h
FE
Min
60
50
5
—
—
—
120
200
60
—
Typ
—
—
—
—
—
0.10
—
—
—
1.3
Max
—
—
—
0.1
0.1
0.25
240
400
—
—
Unit
V
V
V
μA
μA
V
—
Test Condition
I
C
= 10μA, I
E
= 0
I
C
= 1mA, I
B
= 0
I
E
= 10μA, I
C
= 0
V
CB
= 60V, I
E
= 0
V
EB
= 5V, I
C
= 0
I
C
= 100mA, I
B
= 10mA
V
CE
= 6V, I
C
= 2mA
V
CE
= 10V, I
E
= -1mA
f = 30MHz
V
CB
= 10V, I
E
= 0,
f = 1MHz
f
T
C
ob
MHz
pF
No purposefully added lead.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Device mounted on FR-4 PCB with minimum recommended pad layout.
Measured under pulsed conditions. Pulse width = 300µs. Duty cycle
≤2%
DN0150ADJ / DN0150BDJ
Document number: DS31484 Rev. 3 - 2
1 of 4
www.diodes.com
April 2009
© Diodes Incorporated

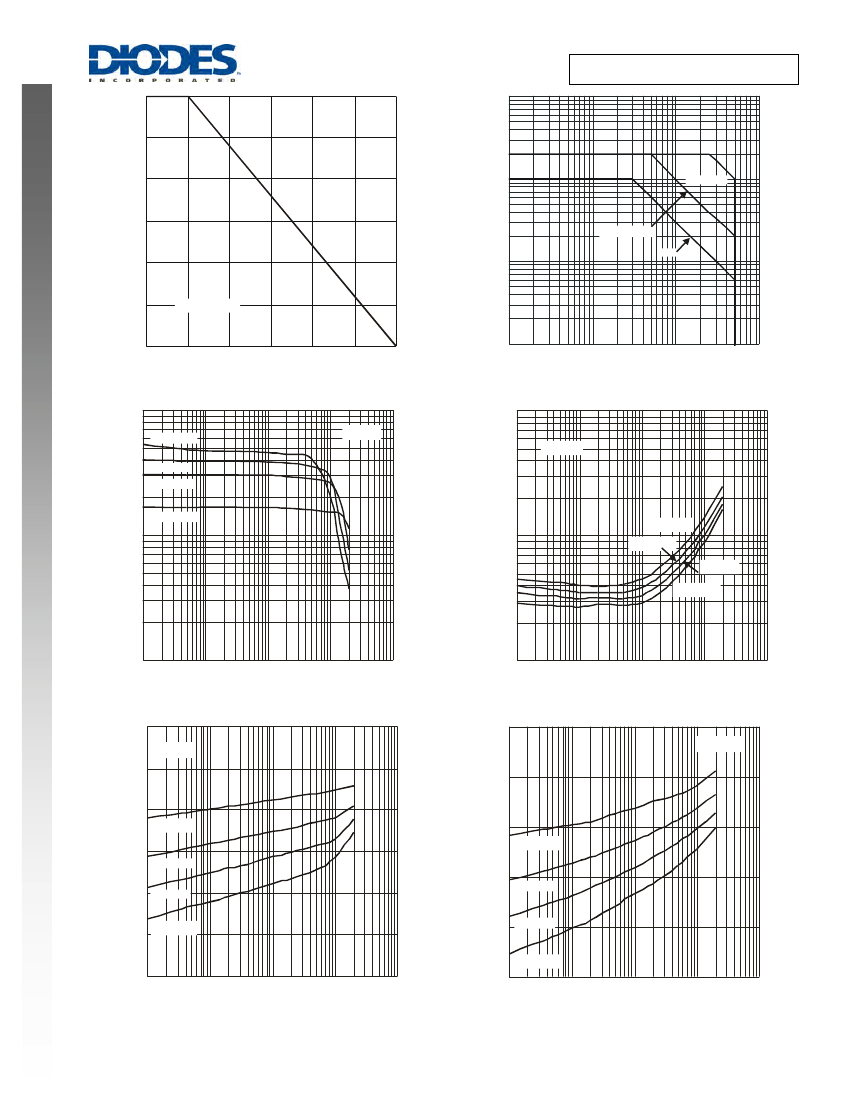

DN0150ADJ / DN0150BDJ
300
250
1,000
-I
C
, COLLECTOR CURRENT (mA)
P
D
, POWER DISSIPATION (W)
200
100
Pw = 10ms
NEW PRODUCT
150
Pw = 100ms
DC
100
10
50
0
R
θJA
= 417°C/W
1
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Dissipation vs. Ambient Temperature (Note 3)
0
1,000
T
A
= 150°C
T
A
= 85°C
V
CE
= 6V
0.1
1
10
100
-V
CE
, COLLECTOR-EMITTER VOLTAGE (V)
Fig. 2 Typical Collector Current
vs. Collector-Emitter Voltage (Note 3)
1
V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
I
C
/I
B
= 10
h
FE
, DC CURRENT GAIN
T
A
= 25°C
T
A
= -55°C
100
0.1
T
A
= 150°C
T
A
= 85°C
T
A
= 25°C
T
A
= -55°C
10
0.1
1
10
100
I
C
, COLLECTOR CURRENT (mA)
Fig. 3 Typical DC Current Gain
vs. Collector Current (DN0150BDJ)
1,000
0.01
0.0001
0.001
0.01
0.1
1
I
C
, COLLECTOR CURRENT (A)
Fig. 4 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
V
CE
= 6V
V
BE(ON)
, BASE-EMITTER TURN-ON VOLTAGE (V)
1.2
I
C
/I
B
= 10
V
BE(SAT)
, BASE-EMITTER SATURATION VOLTAGE (V)
1.2
1.0
1.0
0.8
T
A
= -55°C
0.8
T
A
= -55°C
0.6
T
A
= 25°C
0.6
0.4
T
A
= 85°C
T
A
= 25°C
0.2
T
A
= 150°C
0.4
T
A
= 85°C
0
0.0001
T
A
= 150°C
0.001
0.01
0.1
I
C
, COLLECTOR CURRENT (A)
Fig. 5 Typical Base-Emitter Turn-On Voltage
vs. Collector Current
1
0.2
0.0001
0.001
0.01
0.1
1
I
C
, COLLECTOR CURRENT (A)
Fig. 6 Typical Base-Emitter Saturation Voltage
vs. Collector Current
DN0150ADJ / DN0150BDJ
Document number: DS31484 Rev. 3 - 2
2 of 4
www.diodes.com
April 2009
© Diodes Incorporated

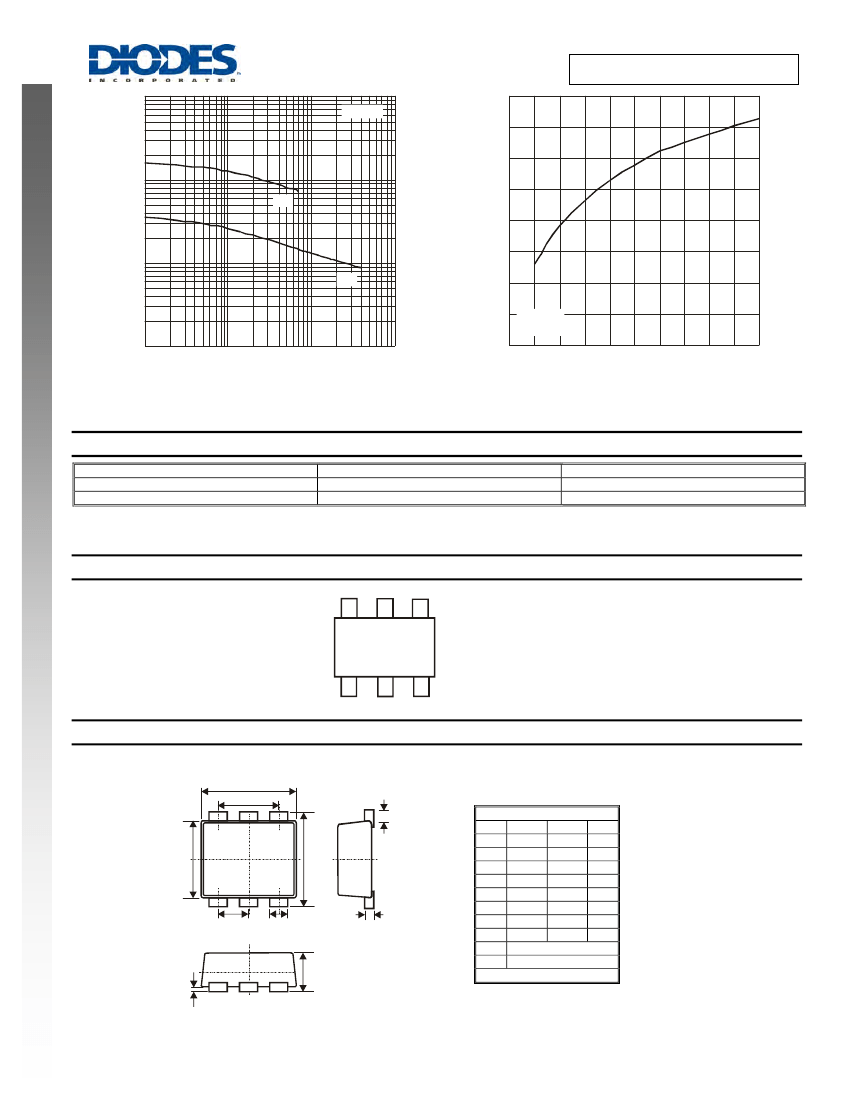

DN0150ADJ / DN0150BDJ
100
f = 1MHz
320
f
T
, GAIN-BANDWIDTH PRODUCT (MHz)
280
240
200
160
120
80
40
0
V
CE
= 6V
f = 30MHz
CAPACITANCE (pF)
10
C
ibo
NEW PRODUCT
1
C
obo
0
0.1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 7 Typical Capacitance Characteristics
0
2
4
6
8
I
C
, COLLECTOR CURRENT (mA)
Fig. 8 Typical Gain-Bandwidth Product
vs. Collector Current
10
Ordering Information
Device
DN0150ADJ-7
DN0150BDJ-7
Notes:
5.
(Note 5)
Packaging
SOT-963
SOT-963
Shipping
10,000/Tape & Reel
10,000/Tape & Reel
For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
xx
xx= Product Type Marking Code:
T3 = DN0150ADJ
T4 = DN0150BDJ
Package Outline Dimensions
D
e1
L
E1
E
e
b (5 places)
c
A
A1
SOT-963
Dim Min
Max Typ
A
0.40
0.50 0.45
A1
0
0.05
-
c
0.077 0.177 0.127
D
0.95
1.05 1.00
E
0.95
1.05 1.00
E1
0.75
0.85 0.80
L
0.05
0.15 0.10
b
0.10
0.20 0.15
e
0.35 Typ
e1
0.70 Typ
All Dimensions in mm
DN0150ADJ / DN0150BDJ
Document number: DS31484 Rev. 3 - 2
3 of 4
www.diodes.com
April 2009
© Diodes Incorporated
DN0150ADJ / DN0150BDJ
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDING TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
NEW PRODUCT
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B.
A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2009, Diodes Incorporated
www.diodes.com
DN0150ADJ / DN0150BDJ
Document number: DS31484 Rev. 3 - 2
4 of 4
www.diodes.com
April 2009
© Diodes Incorporated
