6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

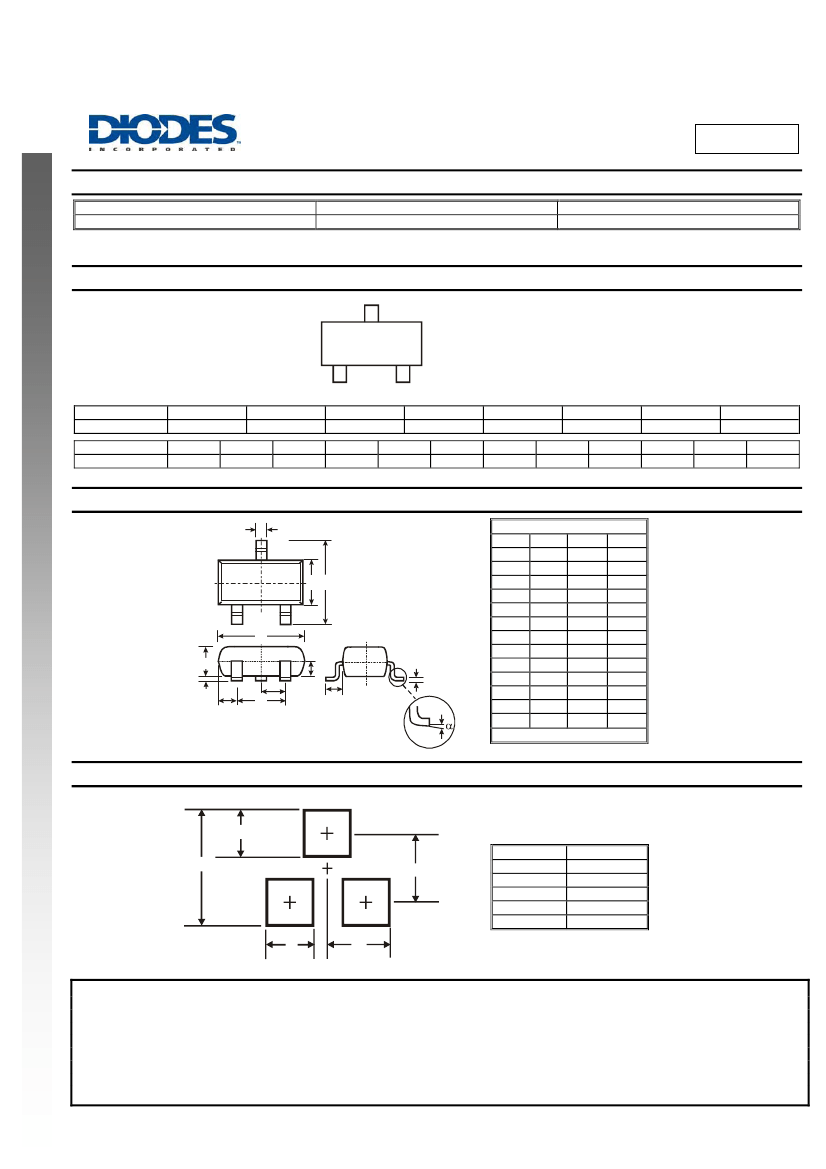

Marking Information
NEW PRODUCT
ZP2 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
ZP2
Date Code Key
Year
Code
Month
Code
2008
V
Jan
1
Feb
2
2009
W
Mar
3
2010
X
Apr
4
May
5
YM
2011
Y
Jun
6
2012
Z
Jul
7
Aug
8
2013
A
Sep
9
2014
B
Oct
O
Nov
N
2015
C
Dec
D
Package Outline Dimensions
A
B C
H
K
D
J
F
G
L
M
K1
SOT-23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.903 1.10
1.00
K1
-
-
0.400
L
0.45
0.61
0.55
M
0.085 0.18
0.11
0°
8°
-
α
All Dimensions in mm
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
2.9
X
0.8
Y
0.9
C
2.0
E
1.35
X
E
