DZQA5V6AXV5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DZQA5V6AXV5

DZQA5V6AXV5: Description20 W, UNIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE; Categorysemiconductor Discrete semiconductor; File Size74KB，4 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

DZQA5V6AXV5 Overview

20 W, UNIDIRECTIONAL, 4 ELEMENT, SILICON, TVS DIODE

DZQA5V6AXV5 Parametric

Parameter Name	Attribute value
Minimum breakdown voltage	5.3 V
Maximum breakdown voltage	5.9 V
Number of components	4
Number of terminals	5
Processing package description	GREEN, ULTRA SMALL, PLASTIC PACKAGE-5
each_compli	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	Active
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
breakdown_voltage_nom	5.6 V
clamping_voltage_max	13 V
structure	COMMON ANODE, 4 ELEMENTS
Diode component materials	SILICON
jesd_30_code	R-PDSO-F5
jesd_609_code	e3
moisture_sensitivity_level	1
Maximum non-repetitive peak speed power	20 W
Minimum operating temperature	-55 Cel
Maximum operating temperature	150 Cel
Packaging Materials	PLASTIC/EPOXY
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
eak_reflow_temperature__cel_	260
polarity	UNIDIRECTIONAL
wer_dissipation_max	0.3800 W
qualification_status	COMMERCIAL
sub_category	Transient Suppressors
surface mount	YES
Craftsmanship	AVALANCHE
terminal coating	MATTE TIN
Terminal form	FLAT
Terminal location	DUAL
ime_peak_reflow_temperature_max__s_	40
dditional_feature	HIGH RELIABILITY

Preview

Download Datasheet

View All

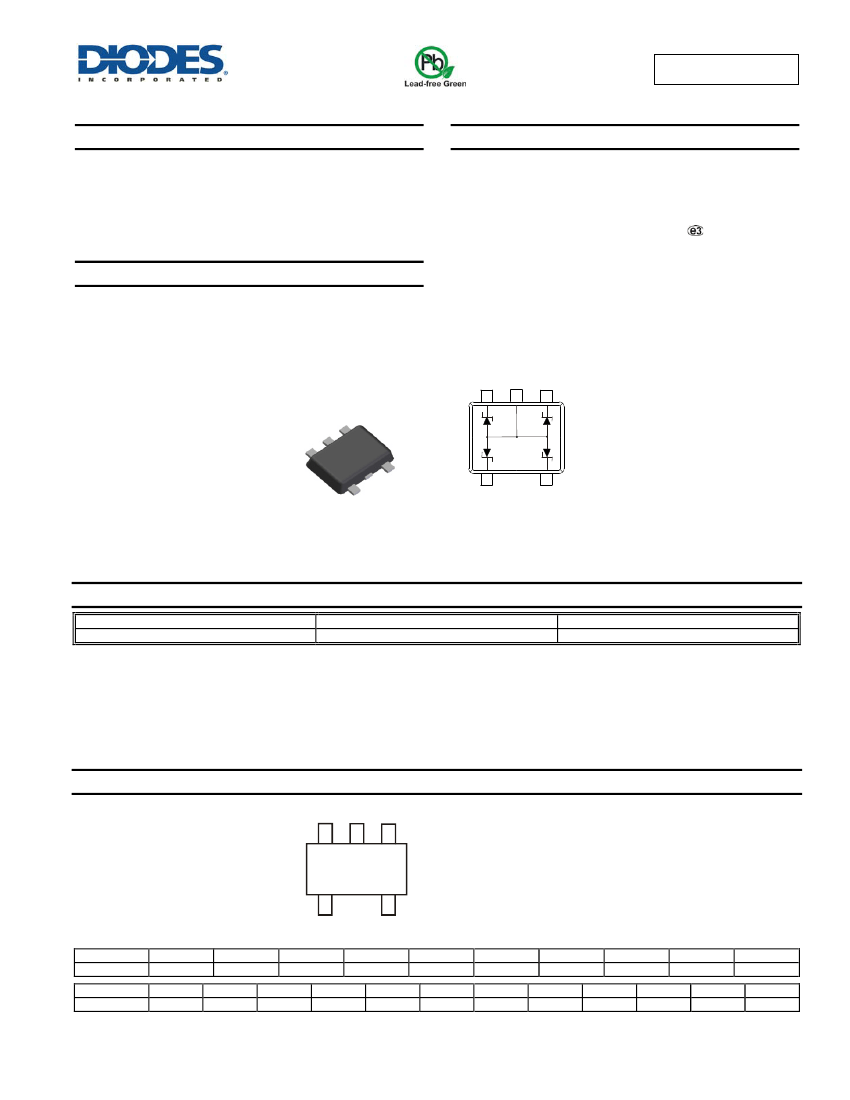

DZQA5V6AXV5

QUAD SURFACE MOUNT TVS ARRAY

Features

•

Quad TVS in Common Anode Configuration

Ultra-Small Surface Mount Package

Ideal For Transient Suppression and ESD Protection

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

•

Case: SOT553

Case Material: Molded Plastic, “Green” Molding Compound. UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminal Finish: Matte Tin, Annealed Over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Weight: 0.002 grams (approx.)

ESD Capability

•

IEC 61000-4-2 Contact Method ±8kV

IEC 61000-4-2 Air Discharge Method ±15kV

SOT553

A1/A2

A3/A4

Top View

Device Schematic

Ordering Information

(Note 4)

Part Number

DZQA5V6AXV5-7

Notes:

Case

SOT553

Packaging

3000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com.

Marking Information

T56

T56 = Product type marking code

YM = Date Code Marking

Y = Year (ex: W = 2009)

M = Month (ex: 9 = September)

Date Code Key

Year

Code

Month

Code

2009

Jan

2010

Feb

Mar

2011

Apr

2012

May

2013

Jun

2014

Jul

2015

Aug

Sep

2016

Oct

2017

Nov

2018

Dec

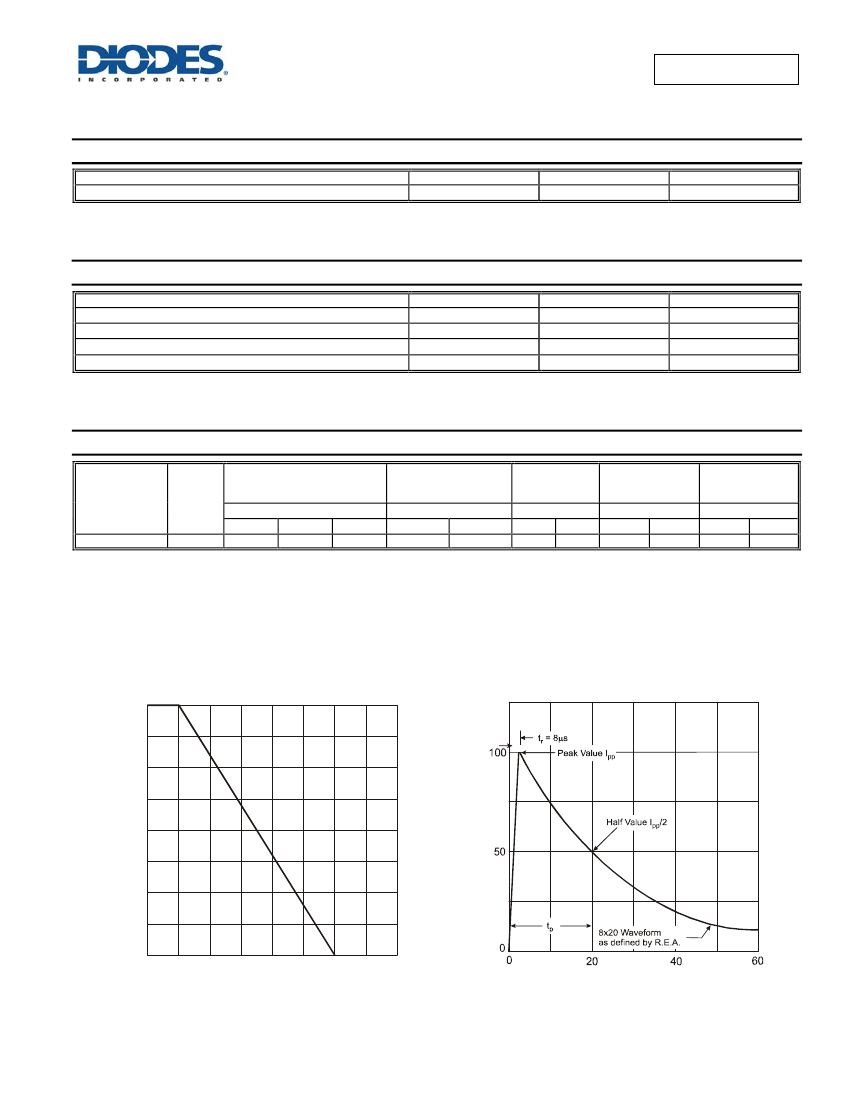

DZQA5V6AXV5

Document number: DS31557 Rev. 4 - 2

1 of 4

www.diodes.com

December 2012

DZQA5V6AXV5

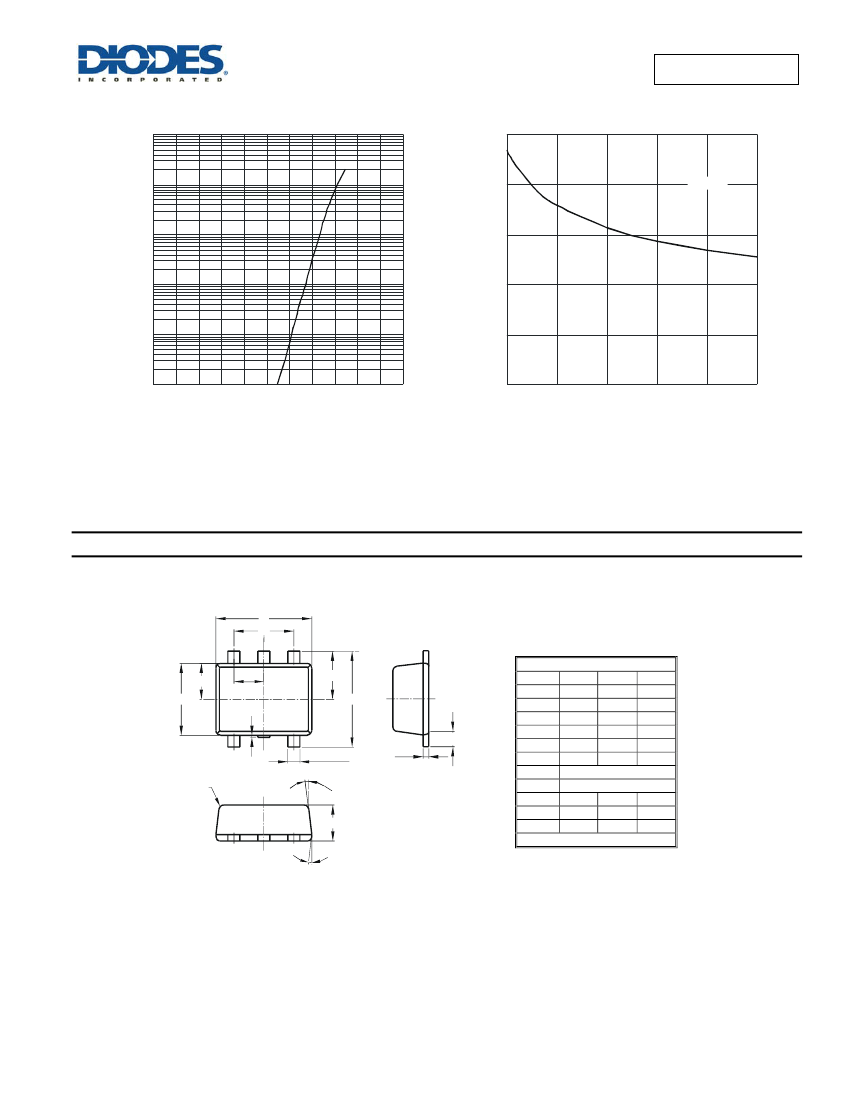

Suggested Pad Layout

Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.

Dimensions Value (in mm)

2.2

1.2

0.375

0.5

1.7

0.5

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the

final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DZQA5V6AXV5

Document number: DS31557 Rev. 4 - 2

4 of 4

www.diodes.com

December 2012
