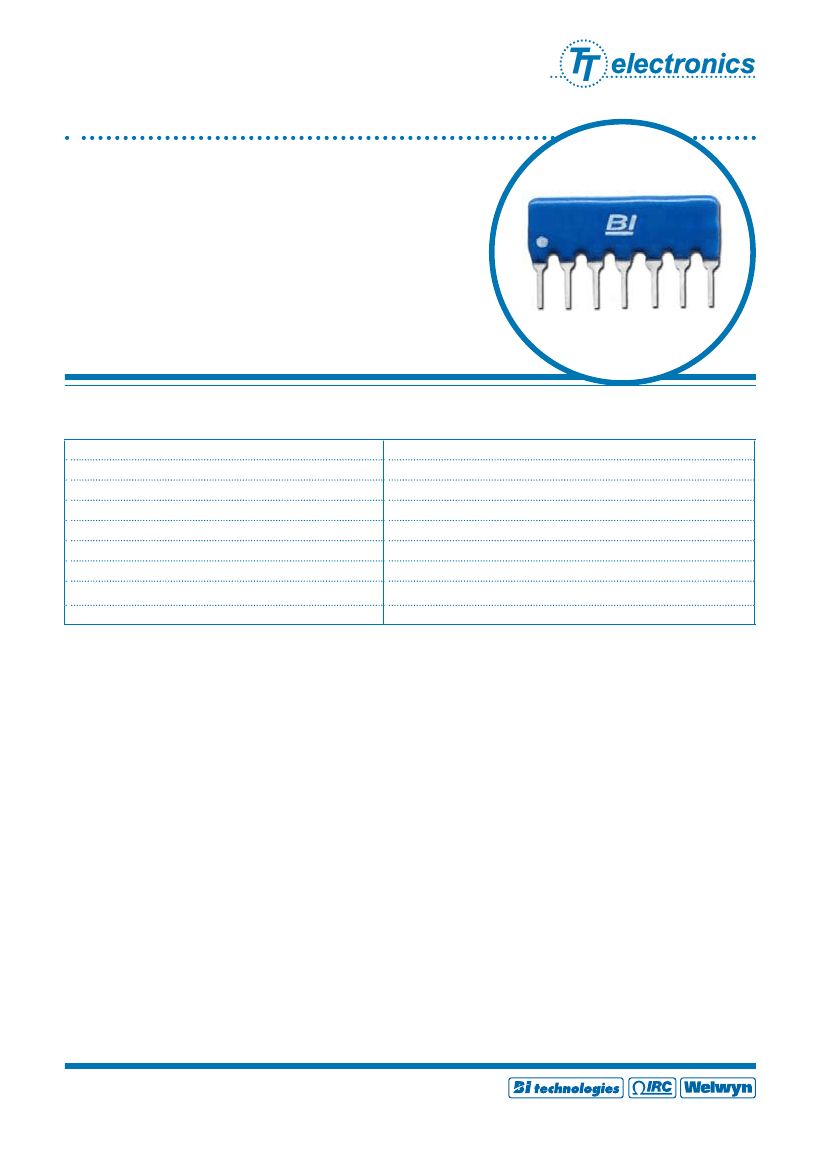

Single-In-Line Conformal
Coated RoHS Compliant
D Series
·
·
·
4 to 14 Leads
Standard and custom circuits
Space saving design
Specification
Reverse Voltage, V
R
Reverse Current, I
R
Forward Current, I
F
Forward Voltage, V
F
Package Power, P
PKG
Reverse Recovery Time, t
rr
Capacitance, C
Storage Temperature Range
Operating Temperature Range
80V
1.0µA (V
R
= 70V)
100mA Average, 300mA Surge (1µs Max.)
1.2V @ I
F
= 100mA
200mW @ 25
o
C
4ns (V
R
= 6V, I
F
= 5mA, R
L
= 50Ω)
5.5pF (V
R
= 6V, f = 1MHz)
- 55°C to 125°C
- 25°C to 80°C
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
03.12
Single-In-Line Conformal
Coated RoHS Compliant
D Series

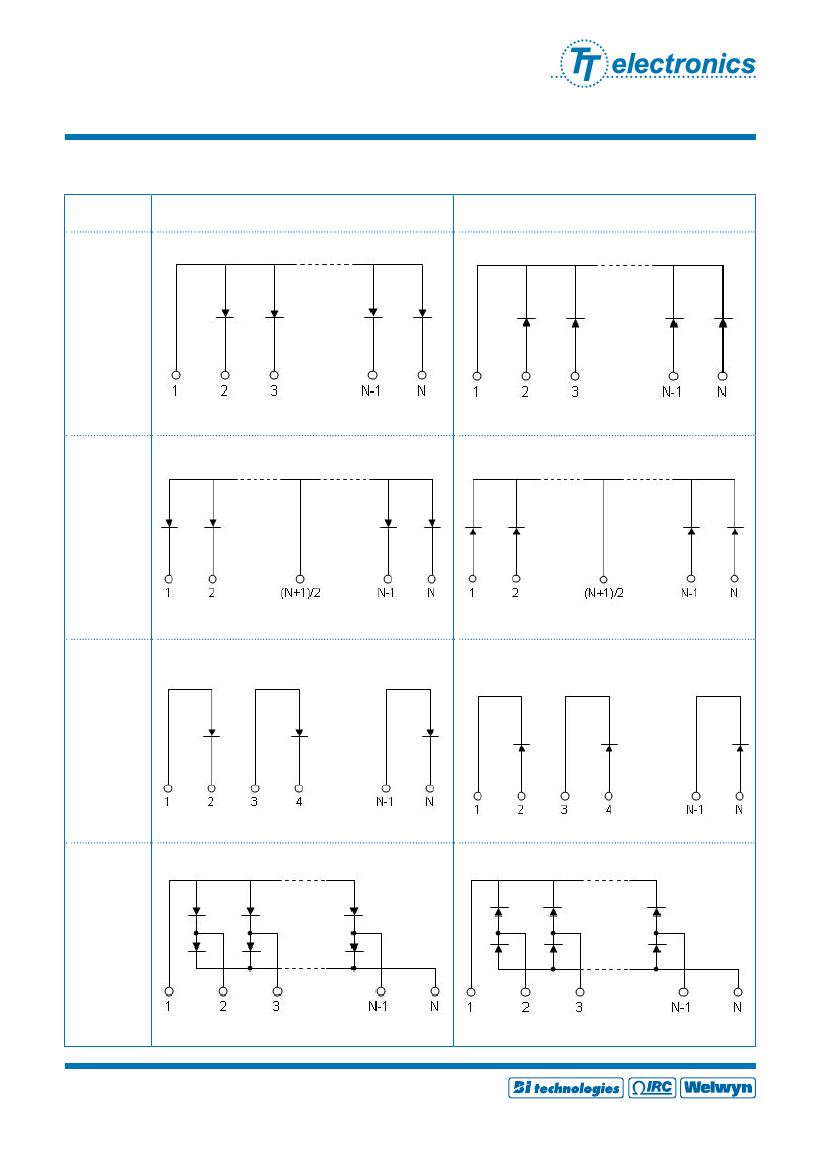

Specification
Circuit Type
Polarity “A”
Polarity “C”
1
N = 4 to 14
2
N = 3 to 13
(Odd #)
3
N = 4 to 14
(Even #)
5
N = 4 to 14
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
03.12
Single-In-Line Conformal
Coated RoHS Compliant
D Series

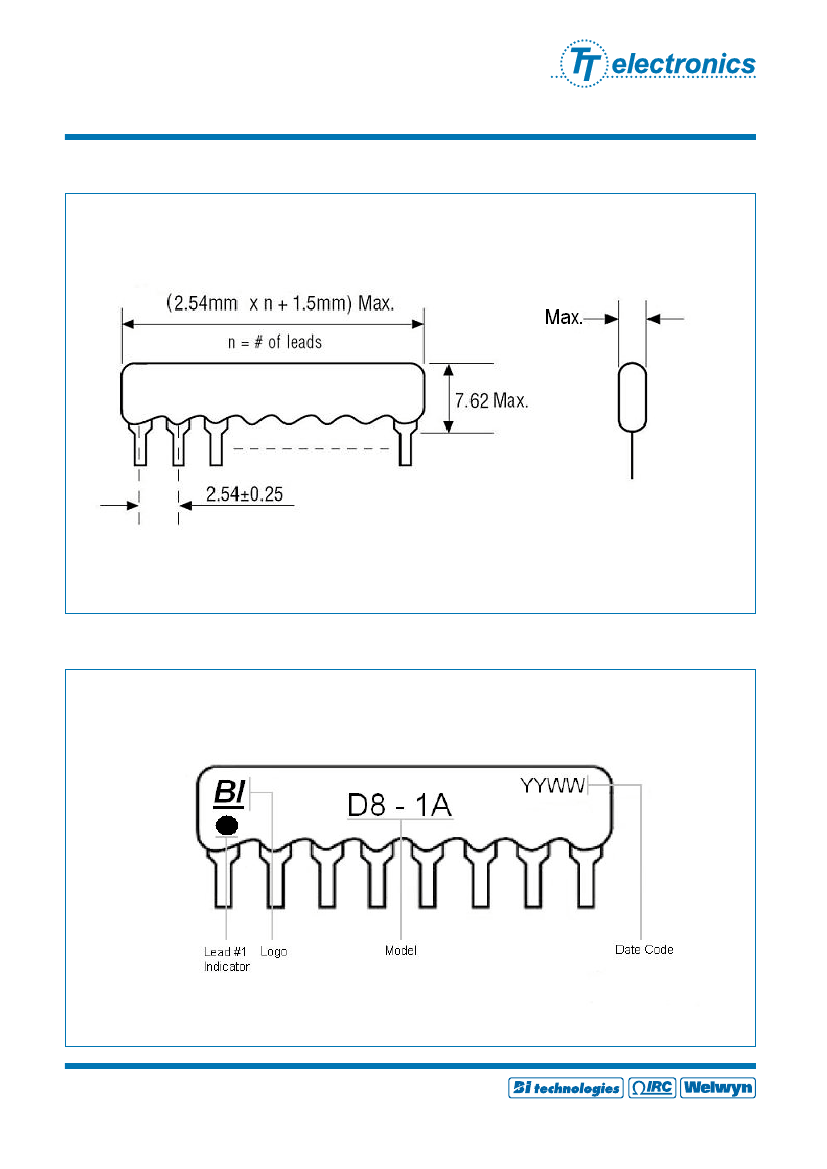

Outline Dimensions (Inch/mm)
Typical Part Marking
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
03.12
Single-In-Line Conformal
Coated RoHS Compliant
D Series
Ordering Information
D 8-3 C
Model
Number of pins:
4 to 14
Circuit type:
1 = Bussed with pin 1 in common.
2 = Bussed with centered common.
3 = Isolated.
5 = Dual termination.
Polartity (see schematic)
A = Common Anode ( circuit 1, circuit 2)
Annode is at pin number 1 (circuit 3, circuit 5)
C = Common Cathode (circuit 1, circuit 2)
Cathode is at pin number 1 (circuit 3, circuit 5)
Material
Part
Substrate
Diode
Termination
Lead Pins
Junction and Lead Pin finish
Conformal Coat
Material
Alumina ceramic
Small mold package silicon expitaxial planar diode array
100% Ag
100% Sn Plated steel
96%Sn, 3.5%Ag, 0.5%Cu
Expoxy resin, UL-94 V-0 rated
Packaging
Number of pins
3 to 6
7 to 12
13 to 14
Qty. per plastic bag
100
100
50
Qty. per box
1000
500
250
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
03.12
