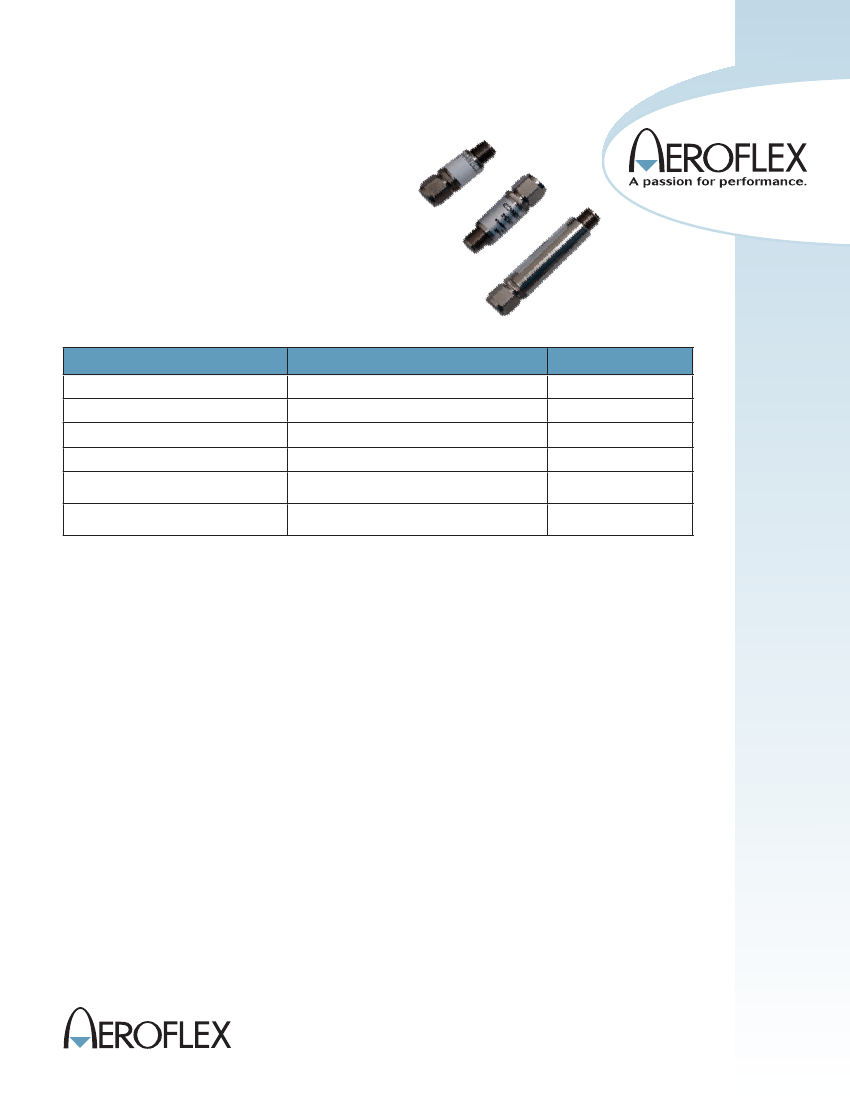

ACTP-1573
Coaxial Tunnel Diode Detector
Features:
•
Contains hermetically sealed modules, inter-
nal RF matching, DC return, and RF bypass
capacitor.
The video port is protected from static or
transient charges.
Input impedance matching.
Models may be chosen for broadband RF
performance of for optimized narrow bands
•
•
•
Specifications:
Parameter
Frequency Range (min)
Sensitivity (min)
Flatness vs. Frequency (max)
Typical TSS
Typical VSWR
Nominal Video Capacitance
Specification
Units
GHz
mV/mW
±dB
dBm
Ratio
pF
0.1 – 4
800
0.3
-51
2.3:1
75
Notes:
Maximum input power: +14dBm (3dB guardband for
+17dBm possible burnout)
Sensitivity is measured into an open circuit load
(>10k ohm).
VSWR is measured at or below -20dBm input power
level.
Video capacitance is used for RF bypass. This value
can be changed if required for video response time.
Contact the factory for more information.
SCREENING:
Internal Visual per MIL-STD-883, Method 2017
Temperature Cycle: -65°C to +100°C, 10 cycles
OPTIONAL HIGH-REL SCREENING
(Ref MIL-PRF-38534):
Stabilization Bake per MIL-STD-883, Method 1008
Temperature Cycle per MIL-STD-883, Method 1010
Constant Acceleration per MIL-STD-883, Method
2001
Burn-in per MIL-STD-883, Method 1015
Leak Test per MIL-STD-883, Method 1014
External Visual per MIL-STD-883, Method 2009
Environmental Specifications:
Designed to meet:
MIL-E-5400, MIL-STD-202, MIL-E-16400
Operating Temp: -55°C to +125°C
Storage Temp: -65°C to +150°C
Humidity: MIL-STD-202F, M103, Cond B
Shock: MIL-STD-202F, M213, Cond B
Altitude: MIL-STD-202F, M105, Cond B
Vibration: MIL-STD-202F, M204, Cond B
Thermal Shock: MIL-STD-202F, M107, Cond A
Temperature Cycle: MIL-STD-202F, M105C, Cond D
SIGNAL & CONTROL SOLUTIONS
Revision Date: 10/5/2013
40 Industrial Way East, Eatontown , NJ 07724 [USA]
Phone: (732) 460-0212, Fax: (732) 460-0214
www.aeroflex.com/ascs, email: ascs-sales@aeroflex.com
SIGNAL & CONTROL SOLUTIONS
ACTP-1573
Coaxial Tunnel Diode Detector

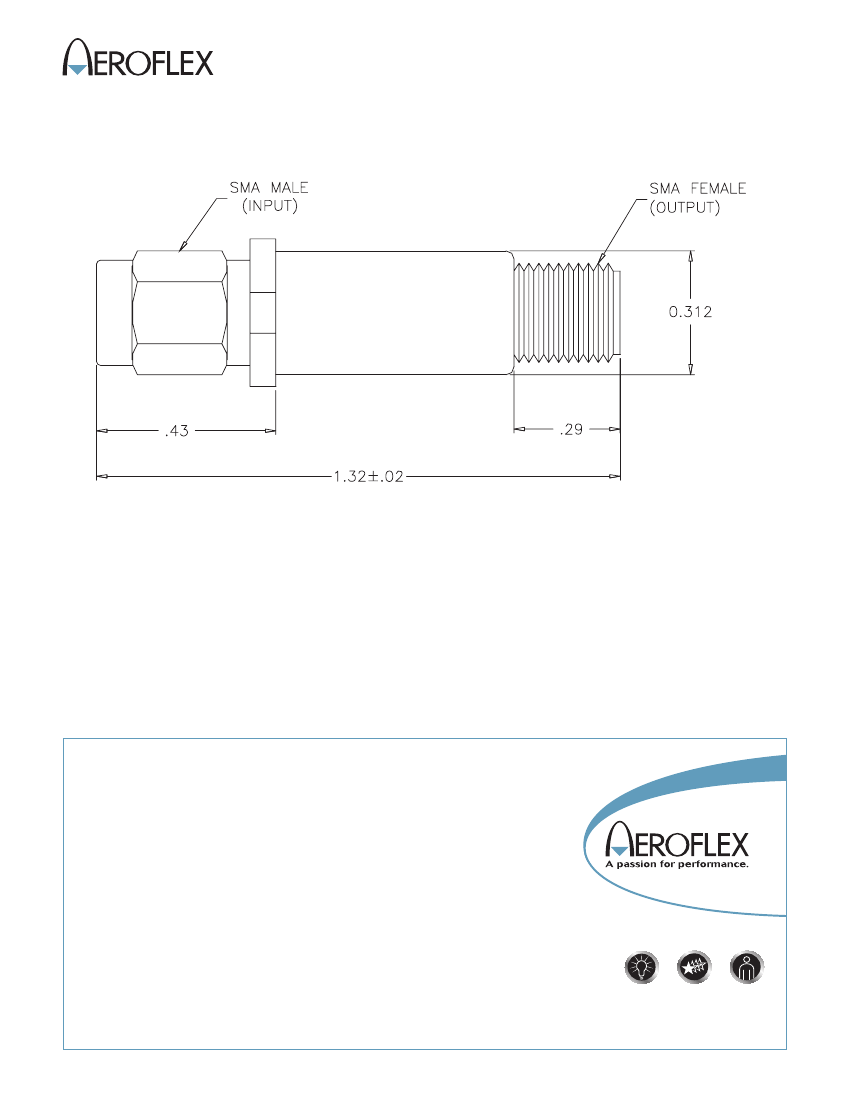

Outline Drawing:
STANDARD CASE STYLE C3
(Optional Case Styles – C8, C15, C32)
Part Number Ordering Information:
•
•
•
•
Add desired polarity suffix: “N” for Negative, “P” for Positive (Ex: ACTP-1573N)
Add desired case style suffix: “C3” (Ex: ACTP-1573NC3)
Add “R” suffix: Reverse Connector Configuration (Ex: ACTP-1573NC3R) (SMA Female
Input/SMA Male Output)
Add “-RC” suffix: RoHS-compliant (Ex: ACTP-1573NZC3-RC)
Aeroflex Signal & Control Solutions
Aeroflex Microelectronic Solutions
40 Industrial Way East
Eatontown , NJ 07724 [USA]
Fax: (732) 460-0214
Sales
Phone: (732) 460-0212
ASCS-sales@aeroflex.com
ISO 9001:2008 certified
www.aeroflex.com/Microwave www.aeroflex.com/ASCS
Aeroflex Signal & Control Solutions reserves the right to make changes to any prod-
ucts and services herein at any time without notice. Consult Aeroflex or an authorized
sales representative to verify that the information in this data sheet is current before
using this product. Aeroflex does not assume any responsibility or liability arising
out of the application or use of any product or service described herein, except as
expressly agreed to in writing by Aeroflex; nor does the purchase, lease, or use of a
product or service from Aeroflex convey a license under any patent rights, copyrights,
trademark rights, or any other of the intellectual rights of Aeroflex or of third parties.
Copyright 2013 Aeroflex Signal & Control Solutions. All rights reserved.
Revision Date: 10/5/2013
