Features
■
Leadless, surface mount for economical
■
■
■
■
assembly
Compact mini-size
High surge current rating
Low capacitance and insertion loss
Stable breakdown throughout life
UL Recognized
■
RoHS compliant* version available
■

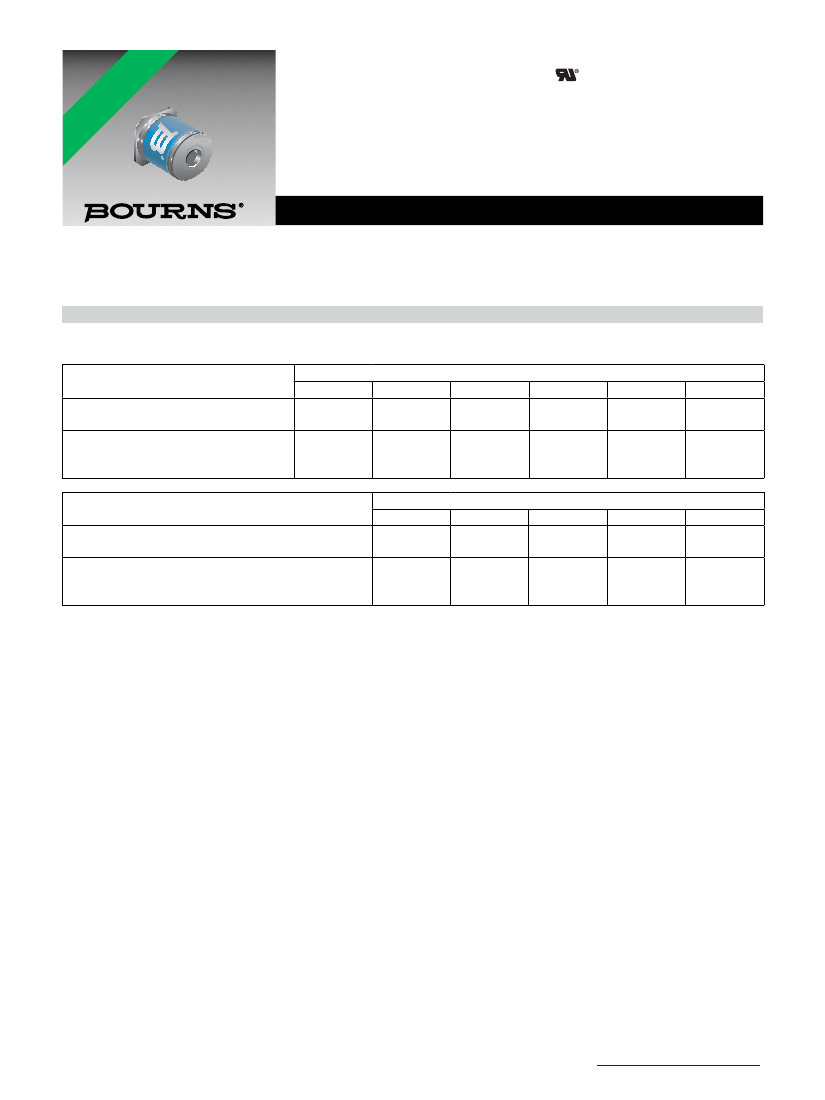

2035-xx-SM Precision Gas Discharge Tube Surge Protector
Bourns now offers a surface mount (SM) 2-electrode GDT surge protection device. The industry-leading quality and features of the
Bourns
®
miniature 2035 Series GDT continue in this new SM version. Compatible with “pick and place” assembly systems, the SM is
ideal for high-density applications such as PCBs for telecommunications, commercial and industrial applications.
Characteristics
Test Methods per ITU-T K.12, IEEE C62.31 and IEC 61643-311 GDT standards.
Model No.
2035-09
2035-15
2035-20
2035-23
2035-25
2035-30
Characteristic
DC Sparkover ±15 %
(±20 % for Model 2035-09) @ 100 V/s
90 V
350 V
525 V
150 V
400 V
550 V
200 V
425 V
575 V
230 V
450 V
600 V
Model No.
250 V
475 V
625 V
300V
525 V
650 V
Impulse Sparkover
(1)
100 V/μs
1000 V/μs
Characteristic
DC Sparkover ±15 % @ 100 V/s
(-12 %, +15 % for Model 2035-60) @ 100 V/s
Impulse Sparkover
(1)
100 V/μs
1000 V/μs
(1)
2035-35
2035-40
2035-42
2035-47
2035-60
350 V
600 V
750 V
400 V
650 V
800 V
420 V
675 V
850 V
470 V
750 V
950 V
600 V
950 V
1100 V
Impulse Sparkover voltage is defined as typical values of distribution.
Insulation Resistance (IR) ..................100 V (50 V for Model 2035-09) ............................................. > 10
10
Ω
Glow Voltage ......................................10 mA ..................................................................................... ~ 70 V
Arc Voltage .........................................>1 A ........................................................................................ ~ 10 V
Glow-Arc Transition Current ............................................................................................................... < 0.5 A
Capacitance........................................1 MHz ..................................................................................... < 1 pF
DC Holdover Voltage
(2)
.....................>135 V, (52 V for Model 2035-09, .......................................... < 150 ms
80 V for Model 2035-15)
Impulse Discharge Current .................10000 A, 8/20
μs
(3)
................................................................. 1 operation minimum
5000 A, 8/20
μ
s ...................................................................... > 10 operations
1000 A, 10/350
μ
s .................................................................. 1 operation
100 A, 10/1000
μ
s ................................................................. > 300 operations
100 A, 10/700
μ
s ................................................................... > 500 operations
Alternating Discharge Current ............20 Arms, 11 cycles
(3)
.............................................................. 1 operation minimum
5 Arms, 1 s ............................................................................. > 10 operations
Operating Temperature....................................................................................................................... -55 to +85 °C
Climatic Category (IEC 60068-1)........................................................................................................ 40/90/21
Notes:
• UL Recognized component, UL File E153537
• Surface Mount (SM) parts may show a temporary increase in DCBD after the solder reflow process. Most devices will recover within 24 hours
time. It should be noted that there is no quality defect nor change in protection levels during the temporary change in DCBD.
• Sparkover limits after life ±20 % (-25 %, +30 % for Model 2035-09, 2035-60), IR >10
8
.
• At delivery AQL 0.65 Level II, DIN ISO 2859.
• Bourns recommends reflowing surface mount devices per IPC/JEDEC J-STD-020 rev D.
(2)
(3)
Network applied.
Tube may exceed ±20 % but will continue to protect without venting.
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.

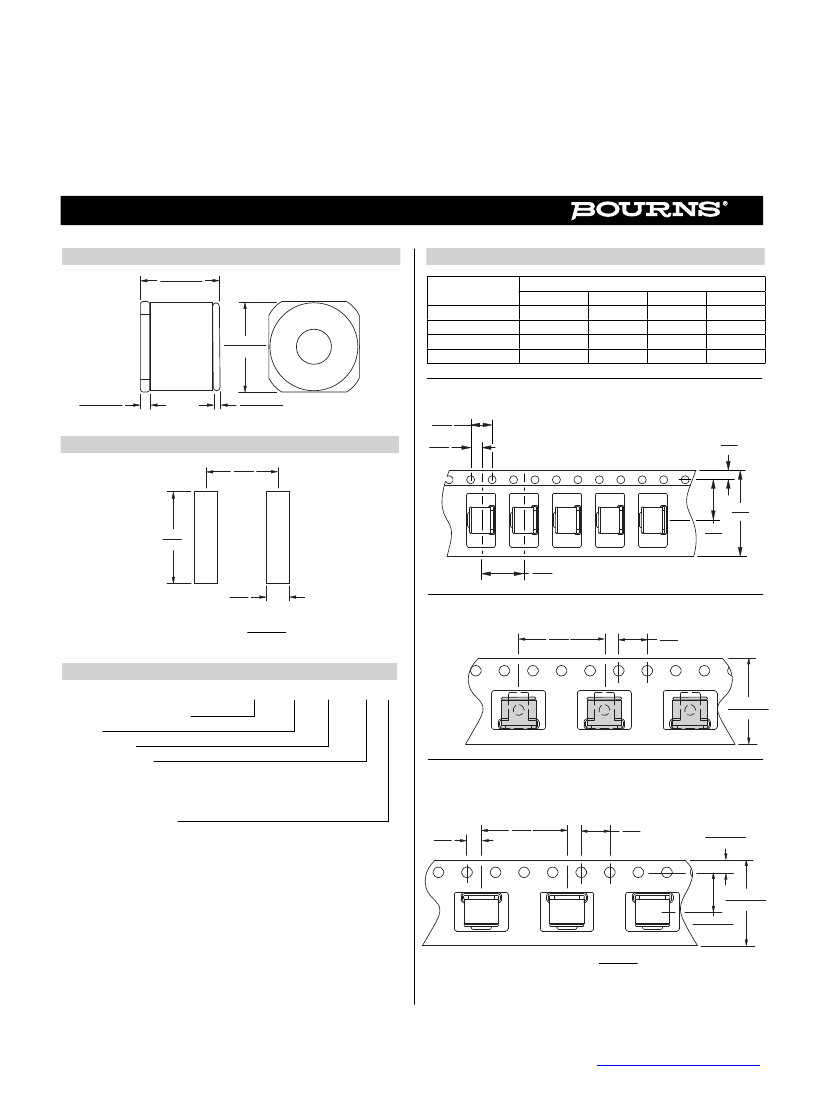

2035-xx-SM Precision Gas Discharge Tube Surge Protector
Product Dimensions
4.4 ± 0.2
(.173 ± .008)
Packaging Specifications
Standard Packaging Quantity
Bulk(Bag)
Tray
Box
Reel
250
1000
1500
1000
1000
5.0 ± 0.25
(.197 ± .010)
Model
2035-SM
2035-SM-RP
2035-SM-RP3
2035-SM-RP4
0.51 ± 0.1
(.020 ± .004)
0.33 ± 0.1
(.013 ± .004)
-RP
Reel is 13 inches in diameter and 3/4 inch wide.
4.00
(.158)
2.00
(.079)
1.75
(.069)
Recommended Pad Layout
4.0
(.156)
16.0
(.63)
5.6
(.220)
8.00
(.315)
7.5
(.30)
1.3
(.050)
DIMENSIONS:
MM
(INCHES)
-RP3
Reel is 13 inches in diameter and 11/16 inch wide.
12.00
(.473)
4.00
(.158)
How to Order
2035 - xx - SM - RP LF
Model Number Designator
Voltage
Surface Mount
Packaging Options
Blank = Bulk Packaging (Standard)
RP = Reelpack (Optional)
RP3 = Reelpack (Optional)
RP4 = Reelpack (Optional)
RoHS Compliant Option
Blank = Standard Product
LF = RoHS Compliant Product
12.00 ± 1.27
(.473 ± .050)
-RP4
Reel is 13 inches in diameter and 11/16 inch wide.
RP4 features the GDTs placed upside-down inside the carrier tape.
1.99
(.078)
12.00
(.473)
4.00
(.158)
1.75 ± 2.5
(.069 ± .100)
12.00 ± 1.27
(.473 ± .050)
5.50 ± 1.27
(.217 ± .050)
DIMENSIONS:
MM
(INCHES)
Unless otherwise specified, tolerances in decimals
are .X ± 0.3, .XX ± 0.15 for lengths in millimeters and ±1 ° for degrees.
REV. O 09/19
*RoHS Directive 2015/863, Mar 31, 2015 and Annex.
Specifications are subject to change without notice.
Users should verify actual device performance in their specific applications.
The products described herein and this document are subject to specific legal disclaimers as set forth on the last page of this document, and at
www.bourns.com/docs/legal/disclaimer.pdf.
Legal Disclaimer Notice
This legal disclaimer applies to purchasers and users of Bourns
®
products manufactured by or on behalf of Bourns, Inc. and
Unless otherwise expressly indicated in writing, Bourns
®
products and data sheets relating thereto are subject to change
and complete before placing orders for Bourns
®
products.
The characteristics and parameters of a Bourns
®
product set forth in its data sheet are based on laboratory conditions, and
statements regarding the suitability of products for certain types of applications are based on Bourns’ knowledge of typical
requirements in generic applications. The characteristics and parameters of a Bourns
®
®
product with other components
the actual performance of the Bourns
®
®
®
product as meeting the requirements of a particular industry
®
of Bourns products are responsible for ensuring compliance with safety-related requirements and standards applicable to
®
Bourns
®
on a case-by-case basis, use of any Bourns
®
®
®
®
®
Bourns
®
®
standard products that are suitable for use in aircraft
®
standard
the user’s sole risk.
®
and the user for which such Bourns
®
®
custom products shall be negotiated on a case-by-case basis by Bourns
®
also apply to such Bourns custom products.
Users shall not sell, transfer, export or re-export any Bourns
®
Bourns
®
standard products shall
products and Bourns technology and technical data may not under any circumstance be
exported or re-exported to countries subject to international sanctions or embargoes. Bourns
®
products may not, without
®
bilingual versions are available at:
Web Page:
http://www.bourns.com/legal/disclaimers-terms-and-policies
PDF:
http://www.bourns.com/docs/Legal/disclaimer.pdf
