2SD1592-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2SD1592-K

2SD1592-K: Description5A, 300V, NPN, Si, POWER TRANSISTOR, PLASTIC PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size206KB，6 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

2SD1592-K Overview

5A, 300V, NPN, Si, POWER TRANSISTOR, PLASTIC PACKAGE-3

2SD1592-K Parametric

Parameter Name	Attribute value
package instruction	FLANGE MOUNT, R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Shell connection	ISOLATED
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	300 V
Configuration	DARLINGTON WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	1000
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power dissipation(Abs)	30 W
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

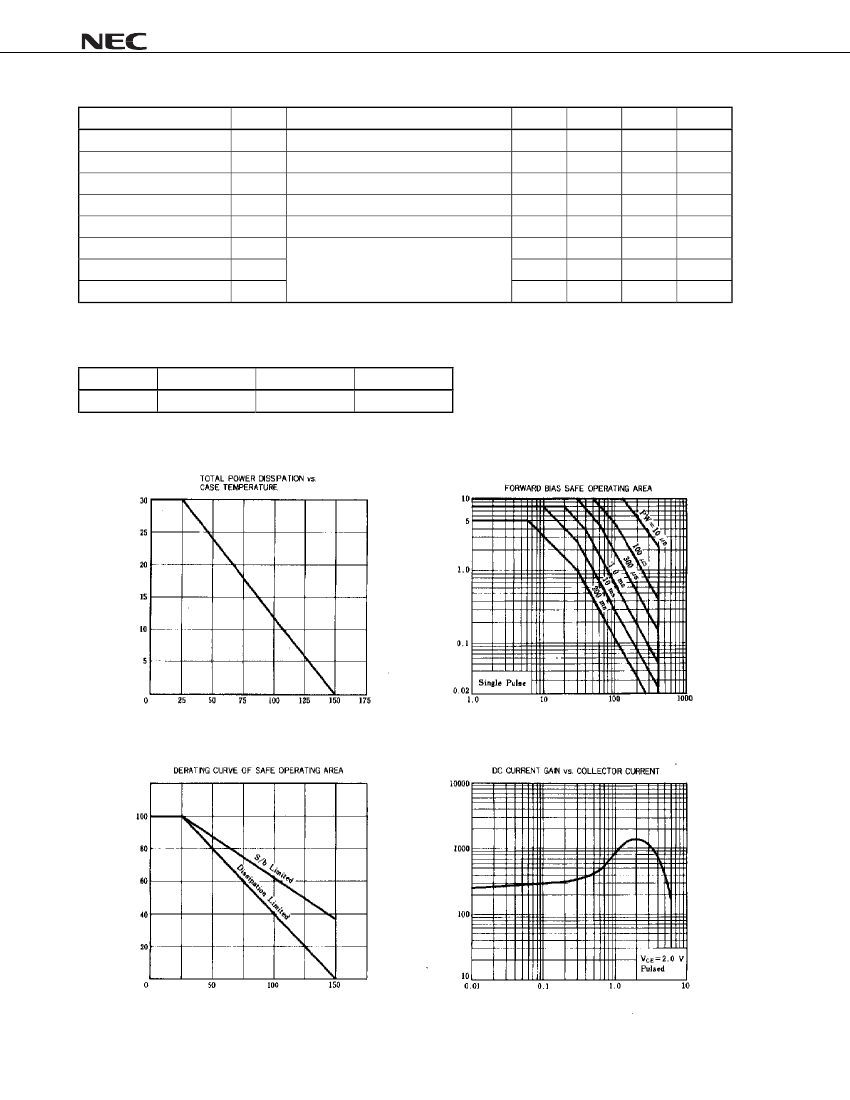

Preview
