OP-09GR datasheet, PDF - EEWORLD Datasheet

OP-09GR: DescriptionOperational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, DIE; CategoryAnalog mixed-signal IC Amplifier circuit; File Size293KB，7 Pages; ManufacturerPrecision Monolithics Inc

Download Datasheet Parametric View All

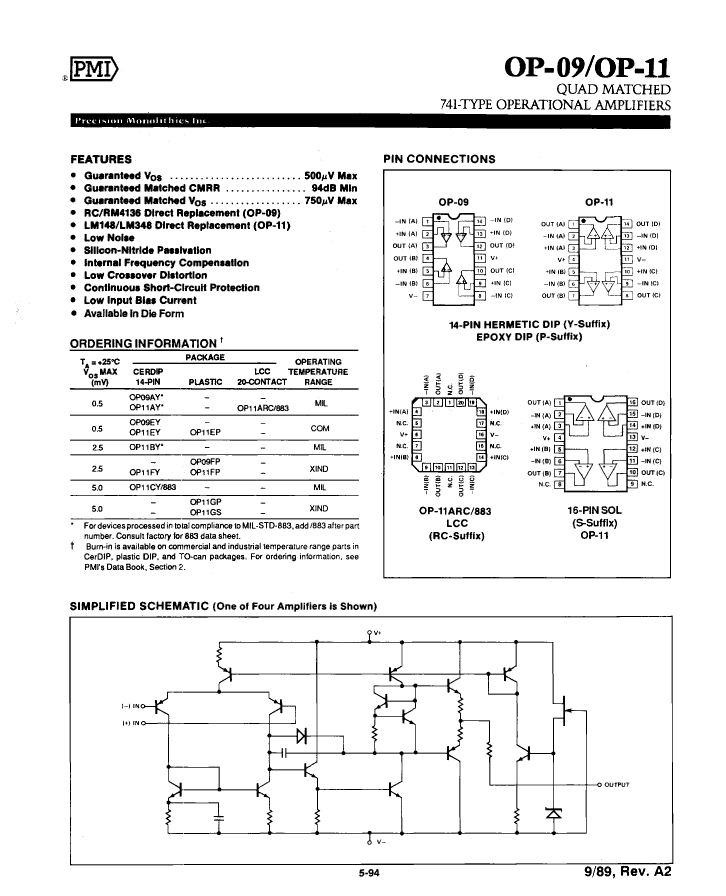

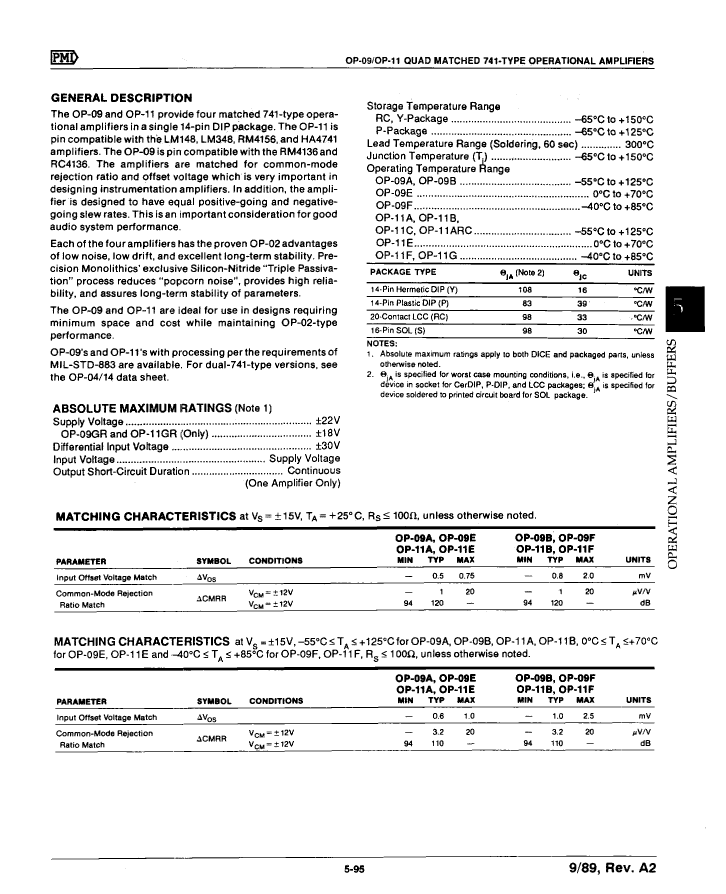

OP-09GR Overview

Operational Amplifier, 4 Func, 5000uV Offset-Max, BIPolar, DIE

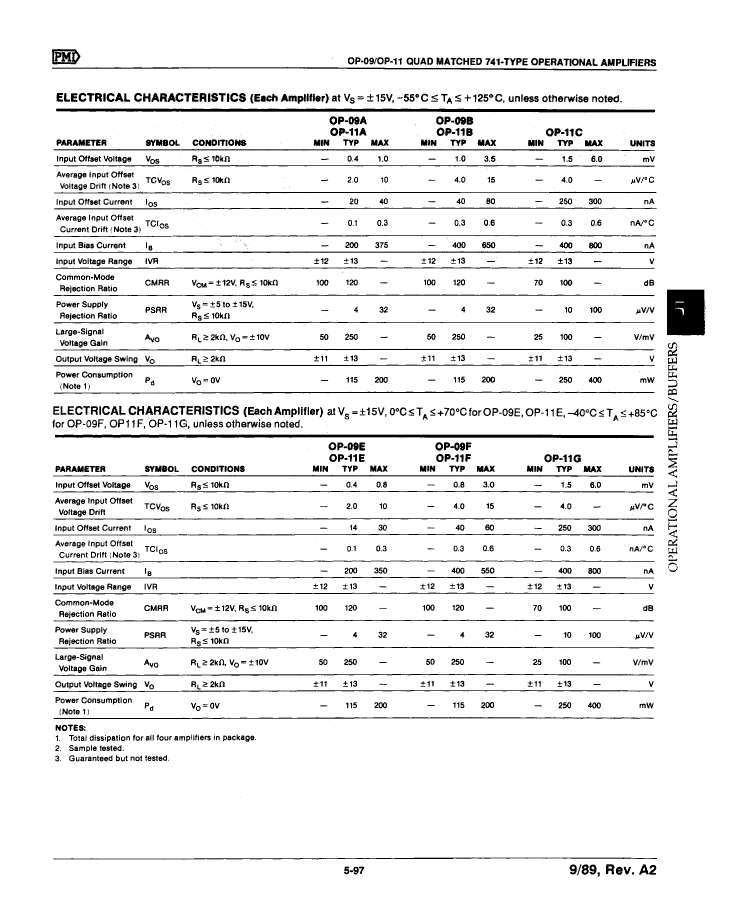

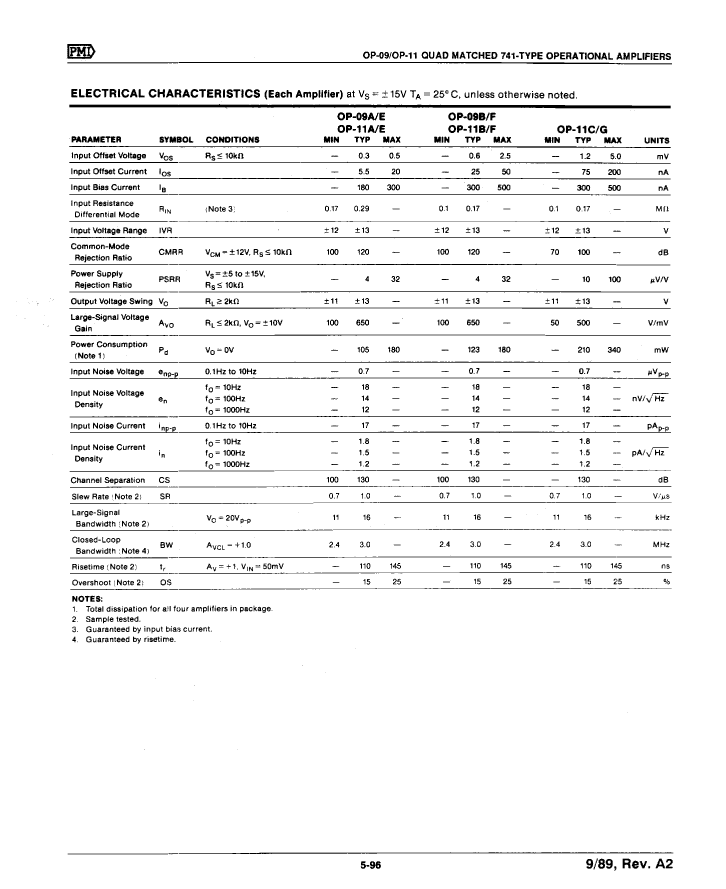

Parameter Name	Attribute value
Maker	Precision Monolithics Inc

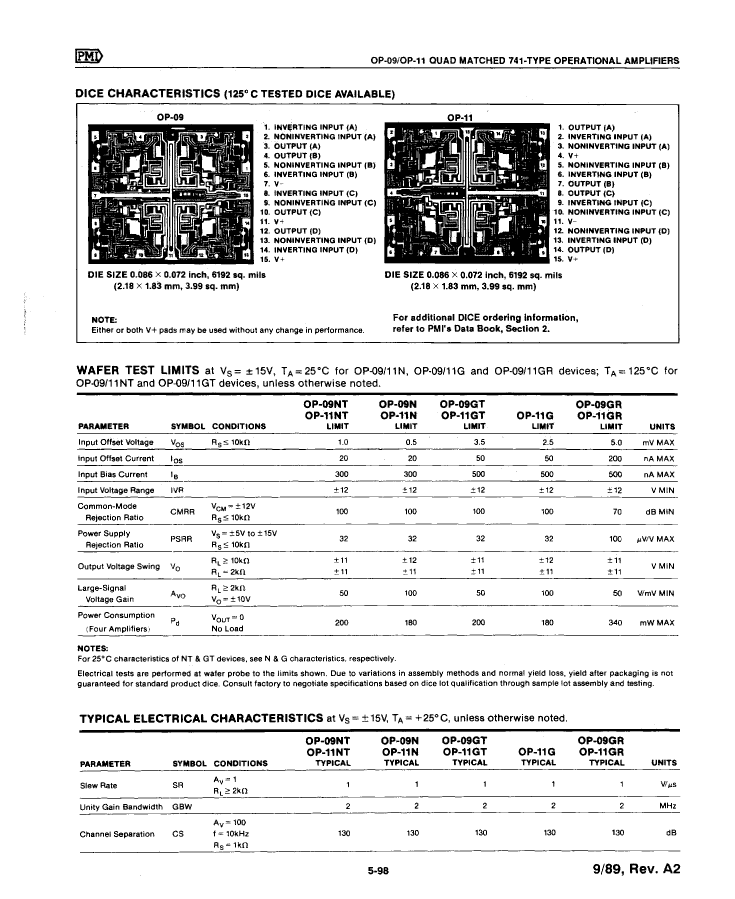

package instruction	DIE
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.5 µA
Nominal Common Mode Rejection Ratio	70 dB
Maximum input offset voltage	5000 µV
JESD-30 code	R-XUUC-N15
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	15
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Nominal slew rate	1 V/us
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Terminal form	NO LEAD
Terminal location	UPPER
Nominal Uniform Gain Bandwidth	2000 kHz
