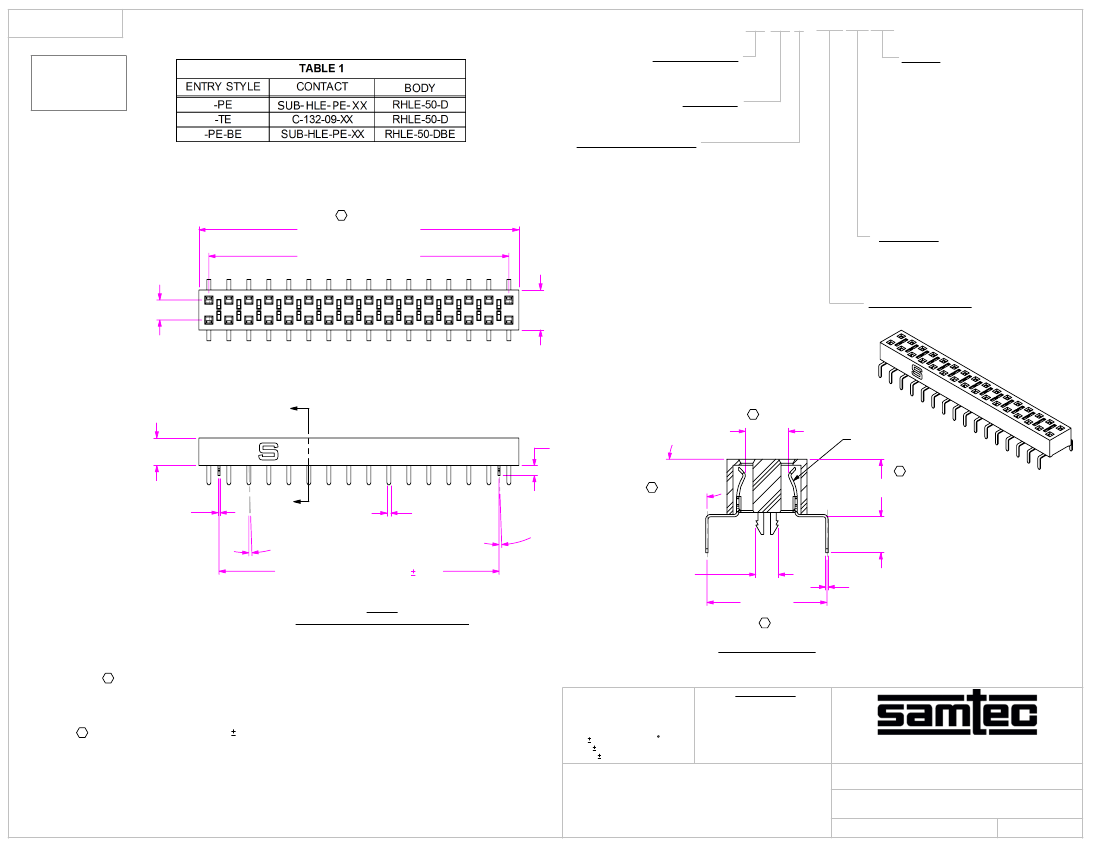

REVISION AI
DO NOT
SCALE FROM
THIS PRINT
HLE-1XX-02-XX-DV-XE-XX
No OF POSITIONS
-02 THRU -50
(PER ROW)
LEAD STYLE
-02
PLATING SPECIFICATION
-G: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, 3µ" GOLD ON TAIL
-L: 10µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-F: 3µ" FLASH SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-LM: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
OPTION
-BE: BOTTOM ENTRY
(AVAILABLE ON -PE STYLE ONLY)
(NOT AVAILABLE WITH -TE)
-LC: LOCKING CLIP (SEE NOTE 10)
(USE LC-08-TM-01)
(AVAILABLE ON -PE STYLE ONLY)
-TR: TAPE & REEL
(2 - 29 POSITIONS ONLY)
(-TE & -PE OPTIONS ONLY)
-P: METAL PAD
(USE LMP-02)
(SEE FIG 2)
C
No OF POS. x .100
- .005
(No OF POS. -1) x .100
02
+.008
ENTRY STYLE
-PE: PASS THROUGH ENTRY
(SEE FIG 1)
-TE: TOP ENTRY
(SEE FIG 2)
ROW SPECIFICATION
-DV: DOUBLE VERTICAL
.100 REF
.200
REF
01
"A"
.138
REF
.050 (TYP)
+5°
90°
- 3°
C
.108
+.010
- .005
(SEE TABLE 1)
C
.010 REF
"A"
2° MAX SWAY
(TYP)
({(No. OF POS - 2) x .100}
C
+.010
.144
- .000
(TYP)
MEASURE OVER BEND
CLOSEST TO THE BODY
.020 REF
2° MAX SWAY
(TYP)
.090
.056 REF
(TYP)
.300
- .013
C
+.015
.005
FIG 1
(-PE: PASS THROUGH ENTRY)
(SHOWN WITH -LC OPTION)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. CUT ASSEMBLIES AFTER FILL. CUT FLASH TO BE .010 MAX WITH NO FLASH
ALLOWED IN HOLES OR EXTENDING BELOW LEADS. WILL LOSE A POSITION
FOR EVERY CUT.
3. TUBE POSITIONS 03 THRU 50. LAYER PACKAGE POSITION 02.
.005.
C
4. ENDWALL THICKNESS: .030
5. MINIMUM CONTACT RETENTION IN PLASTIC: 12 OUNCES
6. AFTER PLATING, PIN IS NAMED SUB-C-132-10-X. AFTER FORMING, PIN IS C-132-10-X
7. MAX VARIATION OF 3 DEGREES WITHIN 16 PINS.
8. MEASURE FROM BEND TO TIP OF PIN.
9. MEASURE FROM CONTACT BARB AREA TO TIP OF PIN
10. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE
-LC OPTION IS NOT COMPATIBLE WITH AUTO PLACEMENT, SAMTEC
RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES WITH
THE -LC OPTION.
.006
REF
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
.XX: .01
.XXX: .005
.XXXX: .0020
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BODY: VECTRA E130i
COLOR: BLACK
CONTACT: BeCu
F:\DWG\MISC\MKTG\HLE-1XX-02-XX-DV-XE-XX-MKT.SLDDRW
.100 C.L. SINGLE BEAM SOCKET STRIP
HLE-1XX-02-XX-DV-XE-XX
KEVIN B
10/27/99
BY:
SHEET
1
OF
2

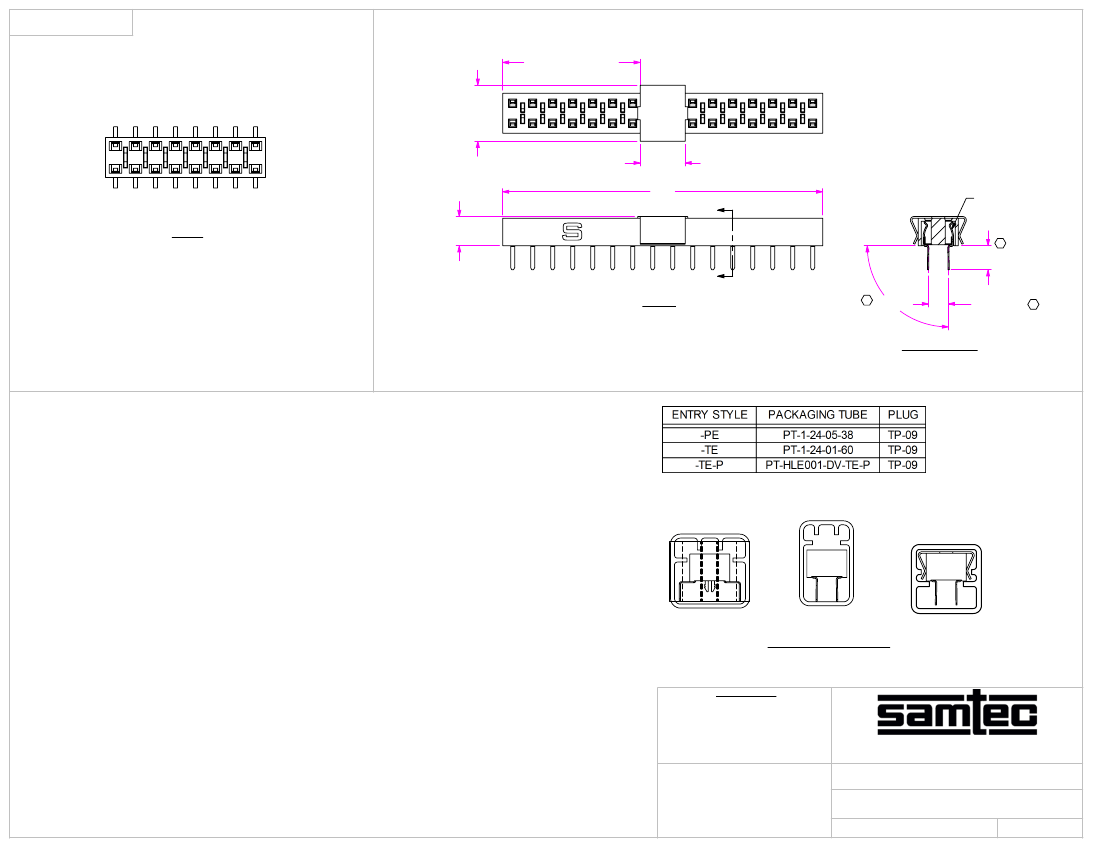

REVISION AI
"P"/2 -.1125±.010
.280
REF
.225
REF
"P"
(SEE TABLE 1, SHT 1)
"B"
FIG 3
(BOTTOM ENTRY OPTION)
(SAME AS FIG 1 EXCEPT AS SHOWN)
.146
C
.120
"B"
(-TE WITH -P OPTION)
(SAME AS FIG 1 EXCEPT AS SHOWN)
FIG 2
C
90°
+4°
- 2°
.100±.008
C
SECTION "B"-"B"
PACKAGING VIEWS
F:\DWG\MISC\MKTG\HLE-1XX-02-XX-DV-XE-XX-MKT.SLDDRW
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
SHEET SCALE: 2:1
.100 C.L. SINGLE BEAM SOCKET STRIP
HLE-1XX-02-XX-DV-XE-XX
KEVIN B
10/27/99
BY:
SHEET
2
OF
2
