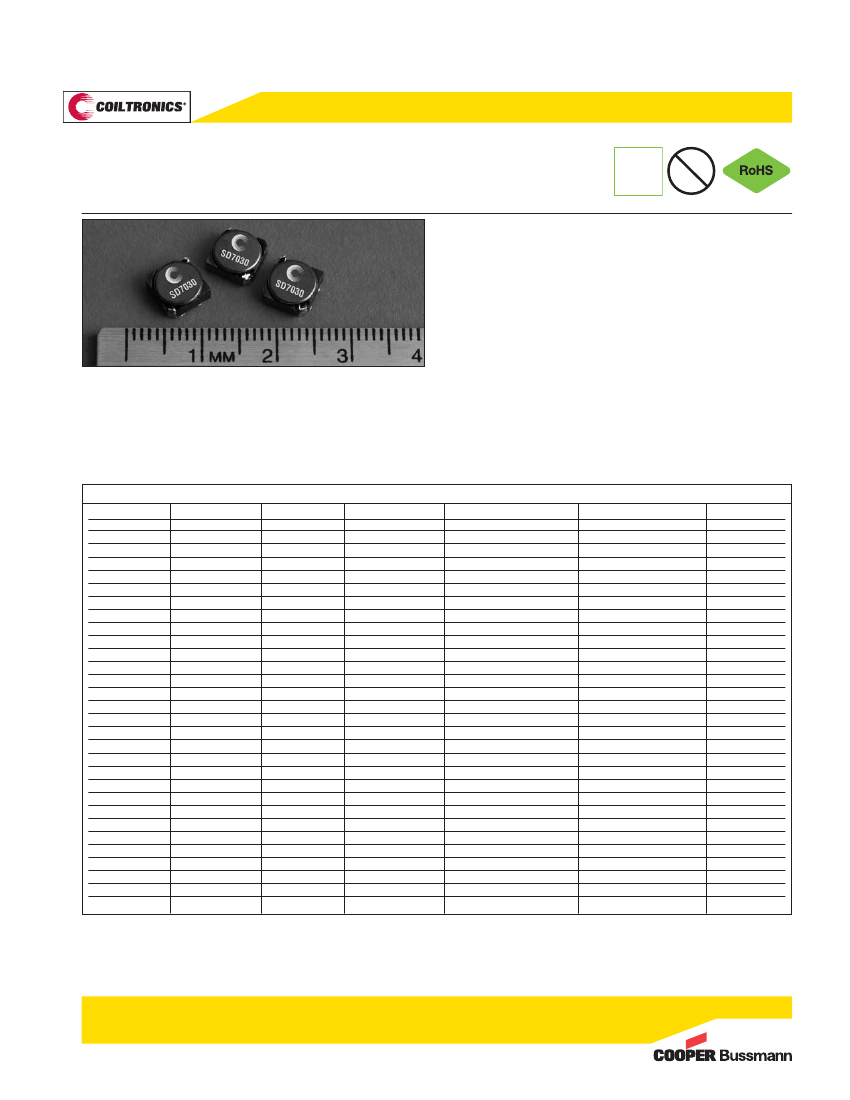

Low profile 7.0 x 7.0 x 3.0mm maximum surface mount package
Ferrite material shielded drum core
Inductance range from 1.5µH to 680µH
Current range from 0.21 to 5.5 Amps
Frequency range up to 1MHz
Part Number
5
SD7030-1R5-R
SD7030-3R3-R
SD7030-3R9-R
SD7030-5R0-R
SD7030-6R0-R
SD7030-7R3-R
SD7030-8R0-R
SD7030-100-R
SD7030-120-R
SD7030-150-R
SD7030-180-R
SD7030-220-R
SD7030-260-R
SD7030-300-R
SD7030-390-R
SD7030-440-R
SD7030-560-R
SD7030-680-R
SD7030-820-R
SD7030-101-R
SD7030-121-R
SD7030-151-R
SD7030-181-R
SD7030-221-R
SD7030-271-R
SD7030-331-R
SD7030-391-R
SD7030-471-R
SD7030-561-R
SD7030-681-R
OCL
1
μH
± 30%
1.5
3.3
4.1
4.9
5.8
7.0
7.8
10.0
11.5
14.6
17.3
21.0
24.9
30.0
39.7
43.4
54.4
66.6
81.4
95.5
115.2
145
174
211
264
317
381
460
561.0
677.2
Irms
2
Amps
5.5
3.7
3.4
3.2
2.8
2.3
2.2
2.1
1.9
1.7
1.7
1.4
1.3
1.2
1.1
1.1
0.99
0.85
0.82
0.70
0.67
0.57
0.54
0.51
0.44
0.38
0.36
0.34
0.29
0.28
Isat
3
Amps
4.5
3.00
2.60
2.40
2.25
2.10
1.85
1.70
1.55
1.40
1.32
1.20
1.05
0.97
0.86
0.80
0.73
0.65
0.60
0.54
0.50
0.44
0.40
0.36
0.33
0.30
0.27
0.25
0.23
0.21
Packaging
• Supplied in tape and reel packaging, 1500 parts per 13” diameter. reel
Product Specifications
Typ. DCR mΩ @ 25°C
10
20
22
26
29
45
48
54
58
70
79
107
118
138
175
198
231
253
325
446
629
715
805
1102
1259
1438
1857
2150
2857
3206
Max DCR mΩ @ 25°C
12
24
27
31
35
54
58
65
70
84
95
128
142
165
210
238
277
304
390
535
755
858
966
1322
1475
1725
2228
2581
3428
3847
K-factor
4
32
22
19
17
16
13
12
11
10
9.3
8.8
7.6
6.9
6.4
5.7
5.3
4.9
4.3
4.0
3.6
3.3
2.9
2.7
2.4
2.2
2.0
1.8
1.7
1.5
1.4
1 Open Circuit Inductance Test Parameters: 100kHz, 0.1V, 0.0Adc.
2 Irms: DC current for an approximate
ΔT
of 40°C without core loss. Derating is necessary for AC
currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating
components will affect the temperature rise. It is recommended that the temperature of the part not
exceed 125°C under worst case operating conditions verified in the end application.
3 Isat Amps peak for approximately 35% rolloff (@25°C)
4 K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K*L*ΔI, Bp-p(mT), K: (K factor from
table), L: (Inductance in
μH), ΔI
(Peak-to-peak ripple current in Amps).
5 Part Number Definition: SD7030-xxx-R
SD7030 = Product code and size; -xxx = Inductance value in
μH;
R = decimal point; If no R is present, third character = # of zeros.
-R suffix = RoHS compliant
1011
BU-SB111167
Page 1 of 4
Data Sheet: 4330

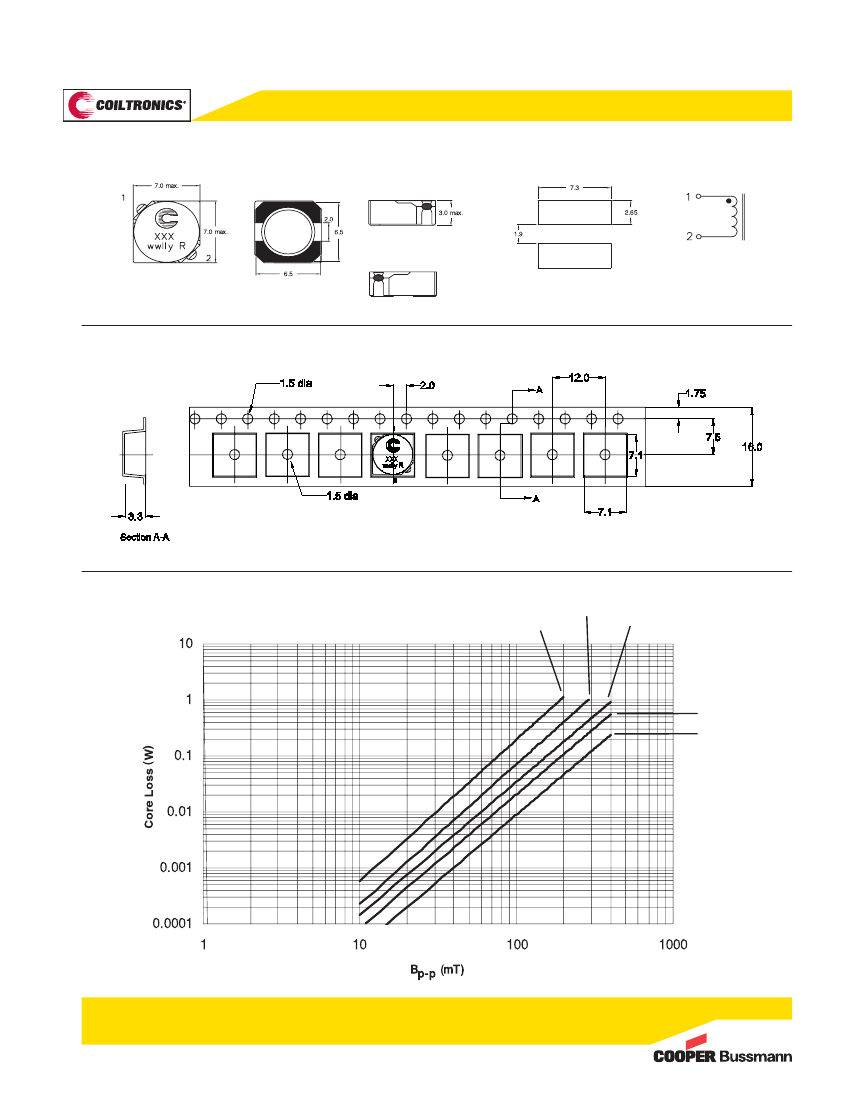

Dimensions - mm
Top View
Bottom View
Front View
Recommended Pad Layout
Schematic
Left View
Part Marking: Coiltronics Logo
xxx = inductance value in
μH.
R = decimal point. If no “R” is present, third character = # of zeros. wwlly or wwllyy = date code. R = revision level
Packaging Information - mm
Supplied in tape-and-reel packaging, 1500 parts per reel, 13” diameter reel.
Core Loss
500kHz
300kHz
1MHz
200kHz
100kHz
1011
BU-SB111167
Page 2 of 4
Data Sheet: 4330

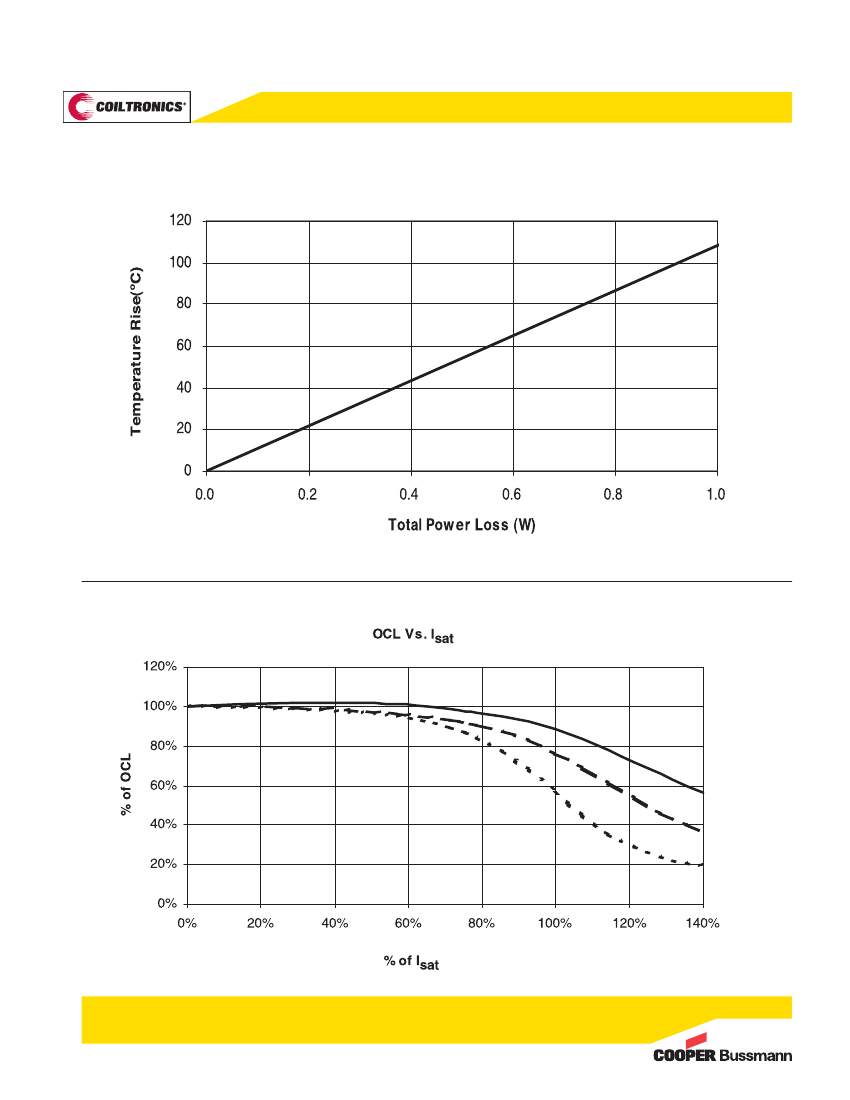

Temperature Rise vs. Loss
Inductance Characteristics
-40°C
+25°C
+85°C
1011
BU-SB111167
Page 3 of 4
Data Sheet: 4330
Solder Reflow Profile
T
P
Max. Ramp Up Rate = 3°C/s
Max. Ramp Down Rate = 6°C/s
T
L
Preheat
A
t
t
P
T
C
-5°C
T
ab
l
e
1 -
S
t
a
n
da
r
d S
nP
b S
ol
de
r (T c)
Package
Thickness
<2.5mm
_
>2.5mm
Volume
mm
3
<350
235°C
220°C
Volume
mm
3
_
>350
220°C
220°C
Temperature
T
smax
T
ab
l
e
2 - L
ead
(P
b
) Fr
ee S
ol
de
r (T c)
T
smin
t
s
Volume
Package
mm
3
Thickness
<350
<1.6mm
260°C
1.6 – 2.5mm 260°C
>2.5mm
250°C
Time
Volume
mm
3
350 - 2000
260°C
250°C
245°C
Volume
mm
3
>2000
260°C
245°C
245°C
25°C
Time 25°C to Peak
Reference JDEC J-STD-020D
Profile Feature
Preheat
and Soak
• Temperature min. (Tsmin)
• Temperature max. (Tsmax)
• Time (Tsmin to Tsmax) (ts)
Average ramp up rate Tsmax to Tp
Liquidous temperature (T
L
)
Time
at
liquidous (tL)
Peak package
body
temperature (TP)*
Time (tp)** within 5 °C of the specified classification temperature (Tc)
Average ramp-down rate (Tp to Tsmax)
Time 25°C to Peak Temperature
Standard SnPb Solder
100°C
150°C
60-120 Seconds
3°C/
Second
Max.
183°C
60-150 Seconds
Table 1
20
Seconds**
6°C/ Second
Max.
6
Minutes Max.
Lead (Pb) Free
Solder
150°C
200°C
60-120 Seconds
3°C/
Second
Max.
217°C
60-150 Seconds
Table 2
30
Seconds**
6°C/ Second
Max.
8 Minutes Max.
*
Tolerance for peak profile temperature (Tp) is
defined as a
supplier minimum
and a
user maximum.
**
Tolerance for time
at
peak profile temperature (tp) is
defined as a
supplier minimum
and a
user maximum.
