54ACT11004J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54ACT11004J

54ACT11004J: DescriptionInverter, ACT Series, 6-Func, 1-Input, CMOS, CDIP20, DIP-20; Categorylogic logic; File Size710KB，4 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

54ACT11004J Overview

Inverter, ACT Series, 6-Func, 1-Input, CMOS, CDIP20, DIP-20

54ACT11004J Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknown
Other features	CENTER PIN VCC AND GND
series	ACT
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	24.195 mm
Logic integrated circuit type	INVERTER
Number of functions	6
Number of entries	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	10.3 ns
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

REI Datasheet

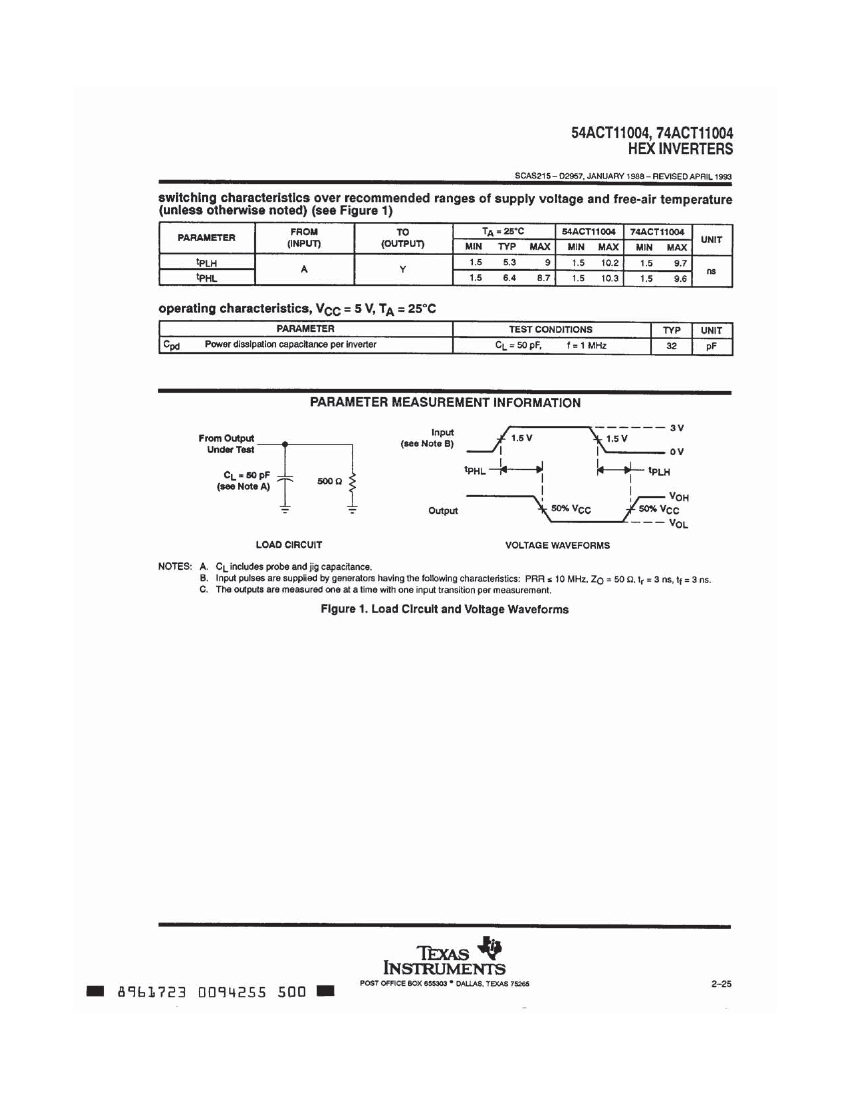

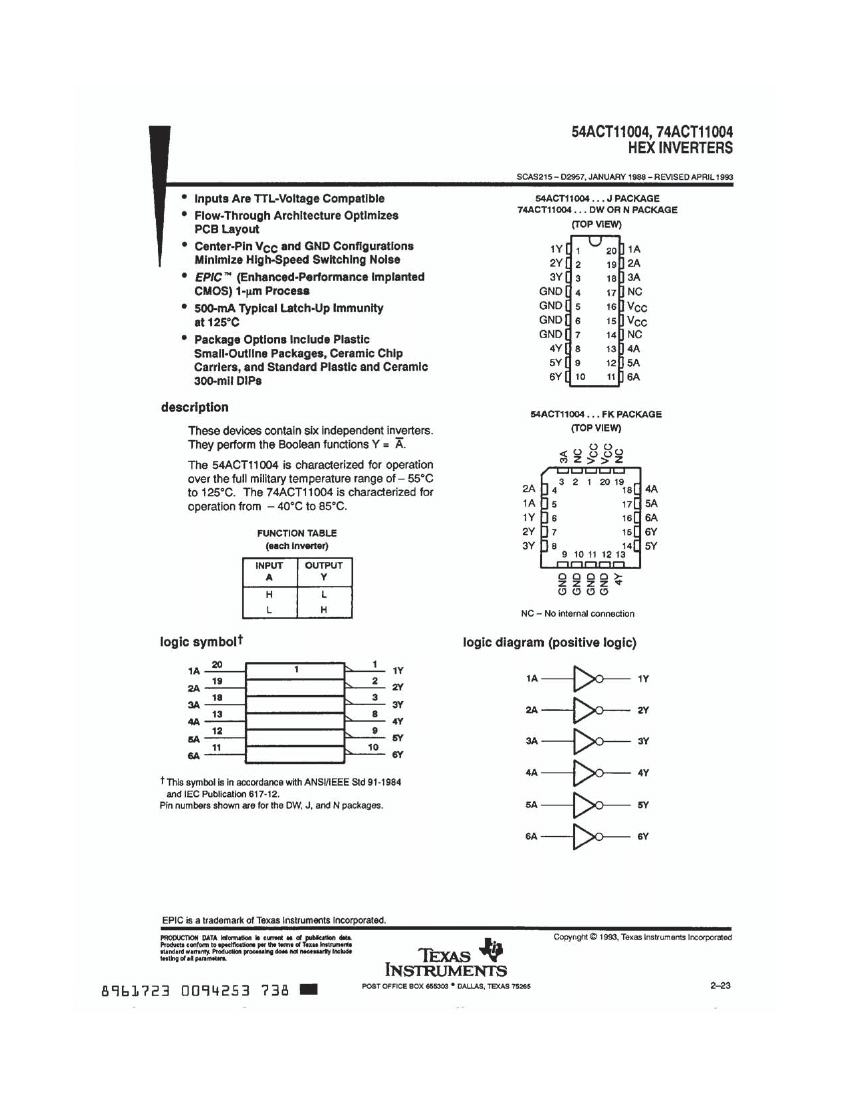

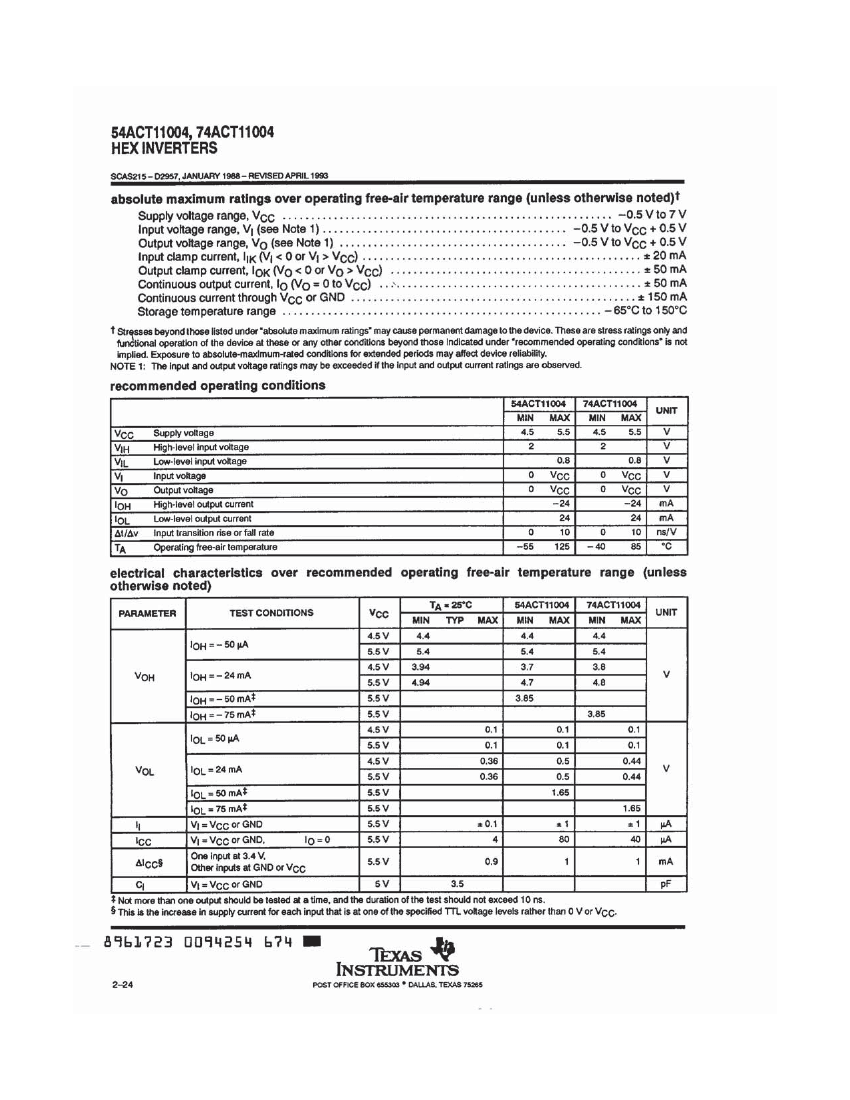

54ACT11004, 74ACT11004

Hex Inverters

The 54ACT11004 is characterized for operation over the full military temperature range of -55°C

to 125°C while the 74ACT11004 is characterized for operation from -40°C to 85°C. These devices

contain six independent inverters. They perform the Boolean functions Y = A.
