86428-001: DescriptionTelecom and Datacom Connector, 30 Contact(s), Female, Right Angle, Surface Mount Terminal; CategoryThe connector The connector; File Size114KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

86428-001 Overview

Telecom and Datacom Connector, 30 Contact(s), Female, Right Angle, Surface Mount Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (150) OVER NICKEL
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	86428
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0

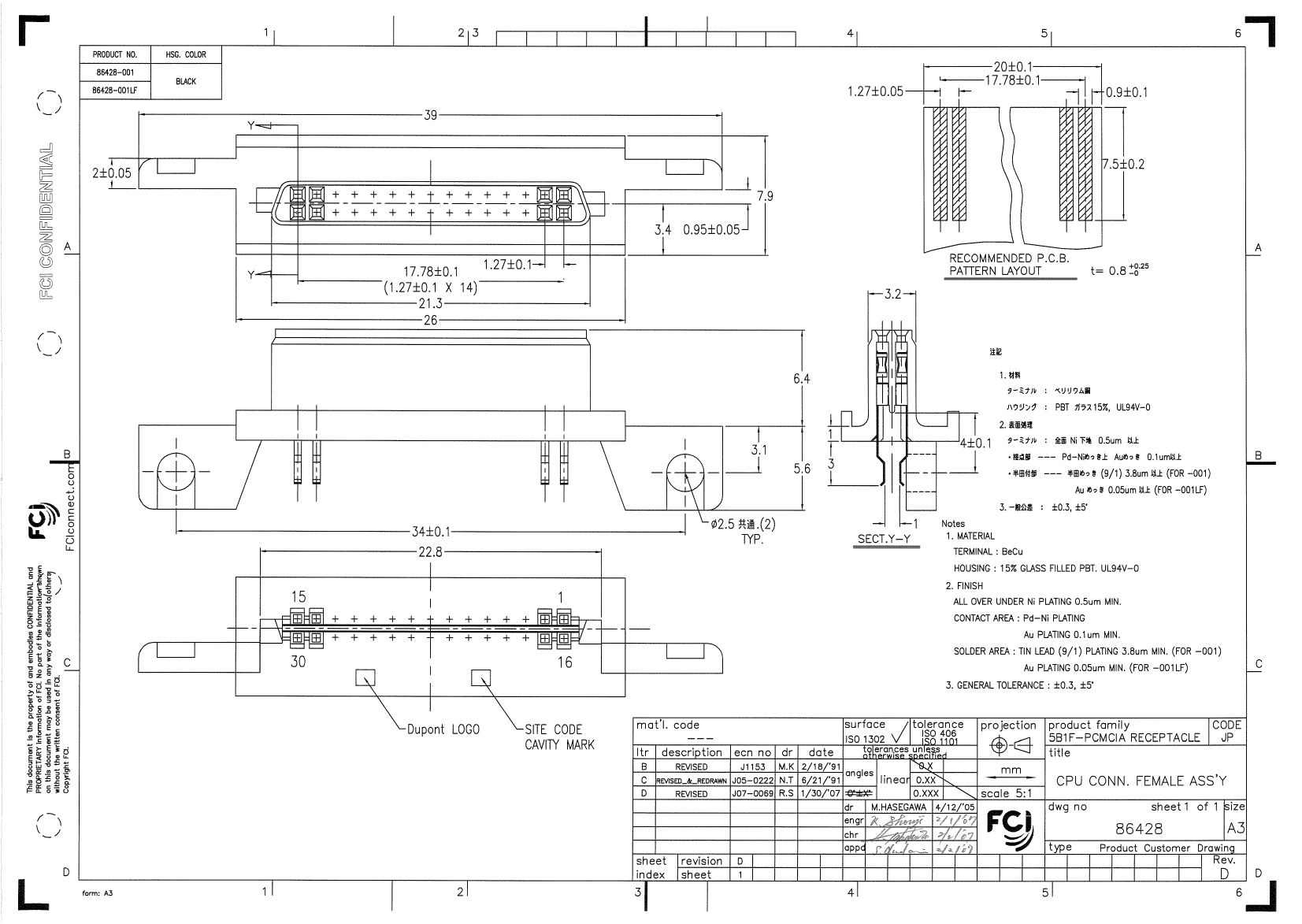

PDM: Rev:D

STATUS:

Released

Printed: Sep 15, 2009

.

	86428-001	86428-001LF
Description	Telecom and Datacom Connector, 30 Contact(s), Female, Right Angle, Surface Mount Terminal	Telecom and Datacom Connector, 30 Contact(s), Female, Right Angle, Surface Mount Terminal, LEAD FREE
Maker	Amphenol	Amphenol
Reach Compliance Code	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN LEAD (150) OVER NICKEL	GOLD (2) OVER NICKEL
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
JESD-609 code	e0	e4
MIL compliance	NO	NO
Manufacturer's serial number	86428	86428
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	30	30
UL Flammability Code	94V-0	94V-0
