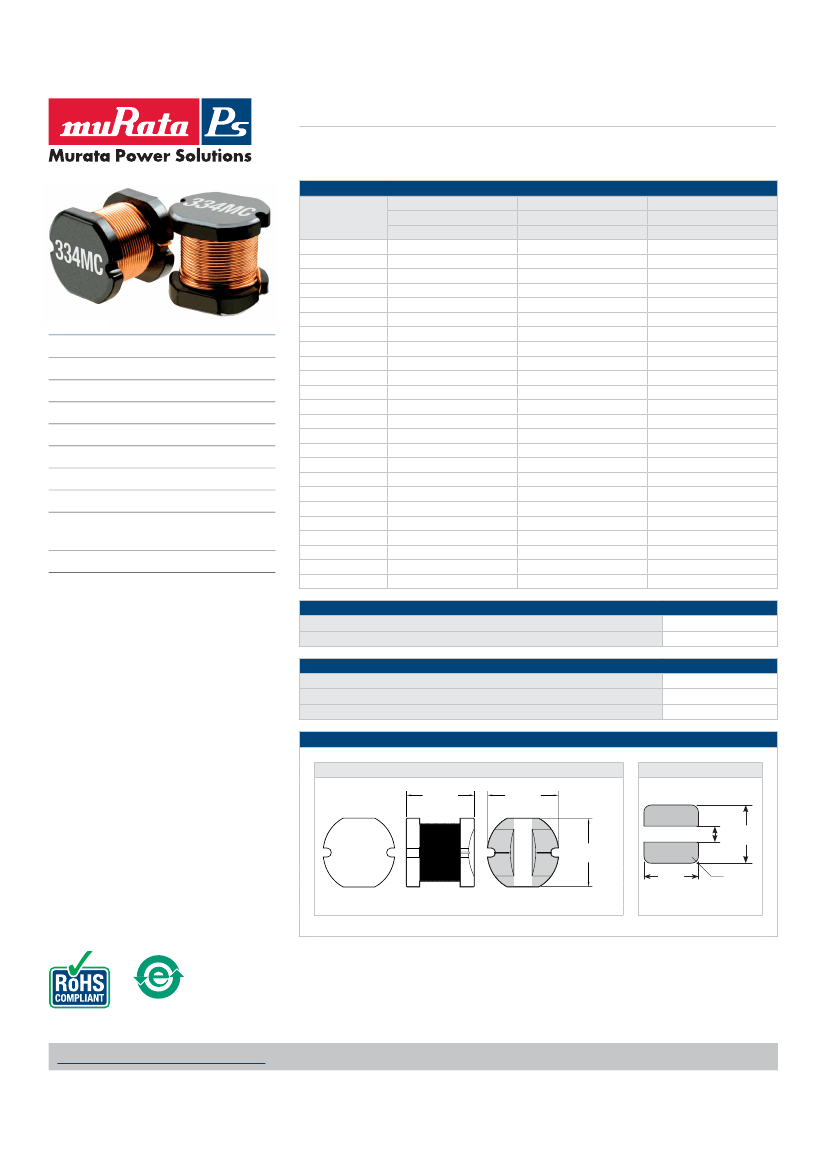

2200RM Series
Bobbin Wound Surface Mount Inductors
SELECTION GUIDE
Order Code
22R103MC
22R153MC
22R223MC
22R333MC
22R473MC
22R683MC
22R104MC
22R154MC
22R224MC
22R334MC
22R474MC
22R684MC
22R105MC
22R155MC
22R225MC
22R335MC
22R475MC
22R685MC
22R106MC
22R156MC
22R226MC
22R336MC
22R476MC
22R686MC
Inductance, (1kHz, 0.1V
AC
)
±10%
μH
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
1.0mH
1.5mH
2.2mH
3.3mH
4.7mH
6.8mH
10.0mH
15.0mH
22.0mH
33.0mH
47.0mH
68.0mH
DC Current
1
Max.
A
2.52
2.08
1.81
1.31
0.99
0.84
0.80
0.64
0.50
0.42
0.37
0.30
0.21
0.16
0.14
0.12
0.10
0.077
0.068
0.055
0.044
0.037
0.033
0.026
DC Resistance
Max.
Ω
0.05
0.07
0.09
0.14
0.22
0.28
0.39
0.54
0.83
1.21
1.65
2.64
3.63
6.49
8.58
10.0
13.2
22.0
37.4
49.5
82.5
110.0
154.0
242.0
FEATURES
RoHS compliant
Up to 2.52A I
DC
10μH to 68mH
Low DC resistance
Surface mount
Compact size
Tape and reel packaging
Compatible with RoHS soldering systems
Backward compatible with
Sn/Pb soldering systems
Custom parts available
DESCRIPTION
The 2200RM Series is a surface mount alternative
to our 2200R Series. It is a general purpose range
of inductors suitable for low to medium current
applications. Their small footprint makes them
ideal for high density applications where a chip
inductor will not cope with the power requirement.
ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range
Storage temperature range
-40°C to 85°C
-40°C to 150°C
SOLDERING INFORMATION
2
Peak reflow temperature
Pin finish
Moisture sensitivity level
3
250˚C
Hot dipped tin
1
PACKAGE SPECIFICATIONS
Mechanical Dimensions
7.50± 0.4
(0.295± 0.016)
7.80± 0.4
(0.307± 0.016)
Recommended Pad Layout
2.20
(0.087)
8.00
(0.315)
7.00± 0.4
(0.276± 0.016)
686MC
7.50
(0.295)
Package weight: 1.30g Typ.
Unless otherwise stated, all dimensions in mm (inches) ± 0.25 (0.010).
R1.00
(0.039)
All specifications typical at T
A
=25°C
1 Maximum DC current occurs when either the inductance falls to 90% of its nominal value or when its temperature rise reaches 30°C,
whichever is sooner.
2 For further information, please visit www.murata-ps.com/rohs
3 When tested to moisture sensitivity level 1, as described per IPC/JEDEC J-STD-020D, products passed electrical testing, package
coplanarity and visual inspection.
For full details go to
www.murata-ps.com/rohs
www.murata-ps.com/support
KMP_2200RMC_A04
Page 1 of 3
2200RM Series
Bobbin Wound Surface Mount Inductors
INDUCTANCE Vs CURRENT
100000
68mH
10000
10mH
Inductance, L (μH)
1mH
1000
100μH
100
10μH
10
1
0.001
0.01
0.1
1
10
Current, I
DC
(A)
TEMPERATURE Vs CURRENT
60
10mH
Temperature rise above ambient, t (ºC)
50
1mH
100μH
10μH
40
30
20
10
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
Current, I
DC
(A)
INDUCTANCE Vs FREQUENCY
1000000
68mH
100000
10mH
Inductance, L (μH)
10000
1mH
1000
100μH
100
10μH
10
1
10
100
1000
10000
Frequency, (kHz)
www.murata-ps.com/support
KMP_2200RMC_A04
Page 2 of 3
2200RM Series
Bobbin Wound Surface Mount Inductors

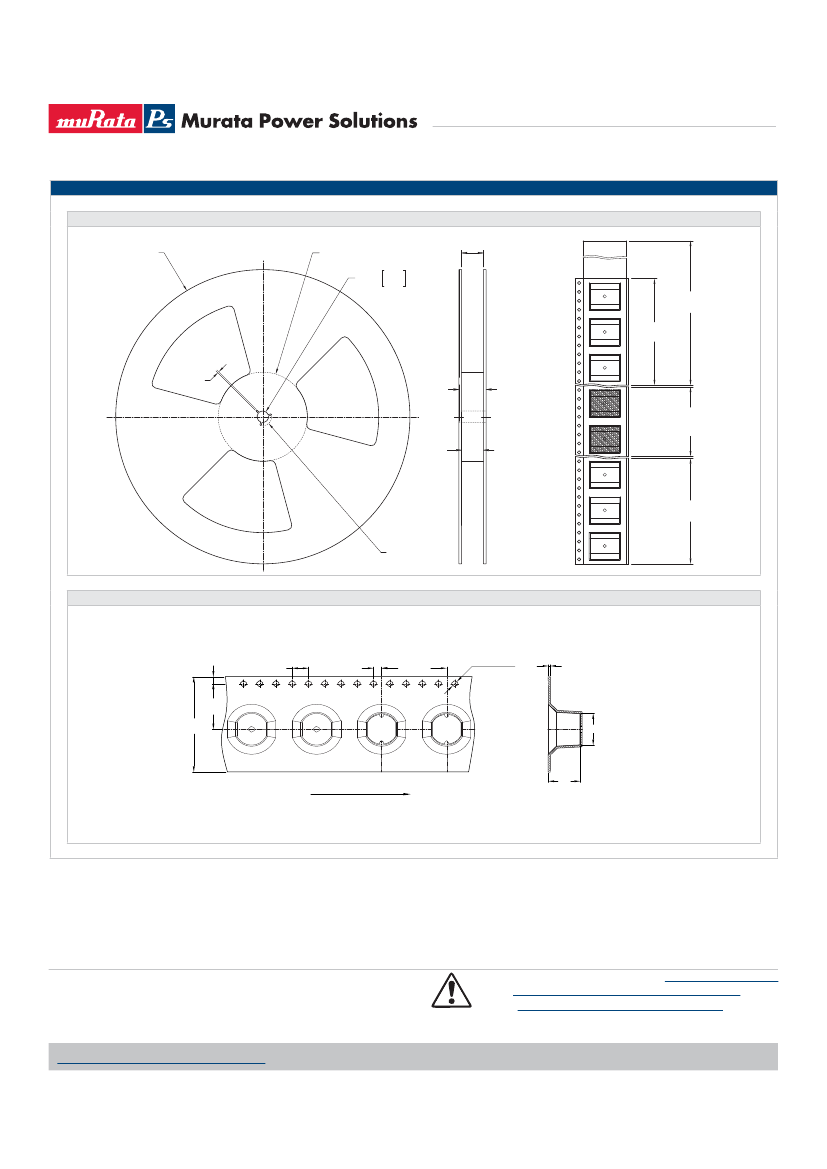

TAPE & REEL SPECIFICATIONS
REEL OUTLINE DIMENSIONS
Ø331 [13.03] Max.
100 ±0.5 [3.937 ±0.02]
13.50 0.531
Ø
12.80 0.504
Leader Section
400 [15.748] Min.
100 [3.937]
Min.
23.9-27.4
[0.94-1.08]*
Ø
1.50 [0.059] Min.
24.7
[0.972]
Max.
†
Goods
Enclosure
Section
24.4 [0.96]†
+2 [0.079]
-0 [0]
Trailer Section
160 [6.299] Min.
All dimensions in mm (inches)
* Includes flange distortion at outer edge
† Measured at hub
Ø20.20 [Ø0.795] Min.
TAPE OUTLINE DIMENSIONS
1.75
(0.069)
4 (0.157)
2 (0.079)
16 (0.63)
Ø1.5 (0.059)
0.4 (0.016)
11.5
(0.453)
686MC
686MC
24
(0.945)
8.05 (0.315)
User direction of unreeling
7.8
(0.307)
Reel quantity: 500
All dimensions in mm (inches)
This product is subject to the following
operating requirements
and the
Life and Safety Critical Application Sales Policy:
Refer to:
http://www.murata-ps.com/requirements/
Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other
technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply
the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.
© 2018 Murata Power Solutions, Inc.
www.murata-ps.com/support
KMP_2200RMC_A04
Page 3 of 3
