MIT-6102: DescriptionTelecom Transformer, RADIAL LEADED, ROHS COMPLIANT; CategoryPower management transformer; File Size50KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MIT-6102 Overview

Telecom Transformer, RADIAL LEADED, ROHS COMPLIANT

MIT-6102 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
high	12 mm
length	24 mm
Manufacturer's serial number	MT
Installation features	THROUGH HOLE MOUNTED
Maximum operating frequency	4000 kHz
physical size	24.0mm X 23.0mm X 12.0mm
main impedance	600 OHMS
secondary impedance	301 OHMS
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	23 mm

MIT-6102 Preview

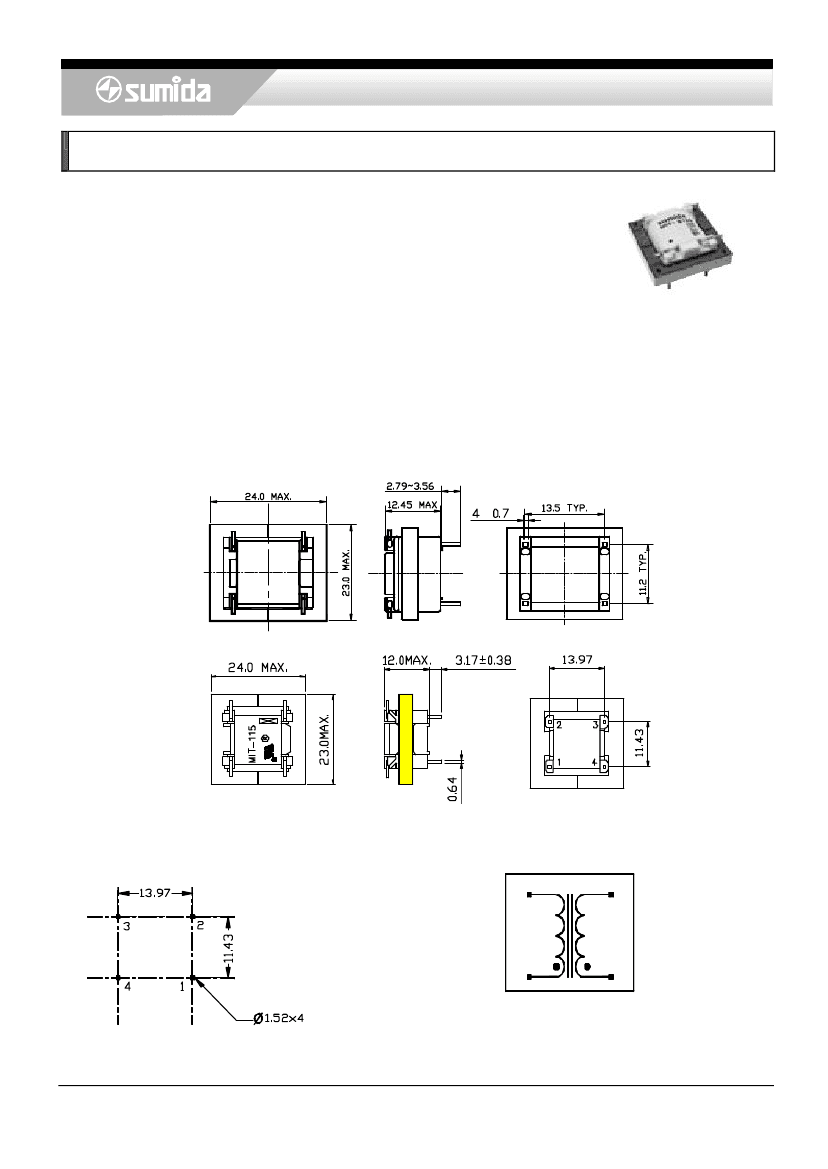

MODEM Transformer< Pin Type: MT Series>

Type: MT2212/MT2212A/MT2212B

◆

Product Description

・24.0×23.0mm

Max.(L×W),12.0mm Max.(MT2212:12.45mm Max.) Height.

・Operating

frequency: 4MHz Max.

◆

Feature

・International

safety standard approved for reinforced isolation.

・Silicone

Steel is used.

・Ideally

used in set-top box,FAX, MODEM.

・V.92(56kbps)

to V.32bis(14.4kbps).

・RoHS

Compliance.

◆

Dimensions (mm)

×

MT2212

2

3

1

4

sumida

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

CN

MT2212A

MT2212B

◆

Schematics(Bottom)

4

PRIMARY

(LINE)

5

SECONDAR

(MODEM

S

1

8

“S” is winding start.

S

www.sumida.com

1/2

MODEM Transformer< Pin Type: MT Series>

Type: MT2212/MT2212A/MT2212B

◆

Specification

Part Name

MIT-6120

MIT-4115V

MIT-101

MIT-115

MIT-6102

Type

MT2212

MT2212A

MT2212B

Speed

V.32

Impedance(O )

PRI:SEC

600:301

600:470

600:301

THD@600Hz

(dB)

-55

-50

-60

IL(dB)

3.75

2.65

2.5

4.0

RL(dB)

17

14

5

8

D.C.R.(O )

PRI:SEC

152:152

110:128

108:120

160:160

Please refer to the sales offices on our website for a representative near you

www.sumida.com

2/2

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MIT-6102 Related Products

	MIT-6102	MIT-4115V	MIT-115	MIT-6120
Description	Telecom Transformer, RADIAL LEADED, ROHS COMPLIANT	TELECOM TRANSFORMER, RADIAL LEADED, ROHS COMPLIANT	Telecom Transformer, RADIAL LEADED, ROHS COMPLIANT	TELECOM TRANSFORMER, RADIAL LEADED, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	SUMIDA	SUMIDA	SUMIDA	SUMIDA
package instruction	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT	RADIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
high	12 mm	12.45 mm	12 mm	12.45 mm
length	24 mm	24 mm	24 mm	24 mm
Manufacturer's serial number	MT	MT	MT	MT
Installation features	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED	THROUGH HOLE MOUNTED
Maximum operating frequency	4000 kHz	4000 kHz	4000 kHz	4000 kHz
physical size	24.0mm X 23.0mm X 12.0mm	24.0mm X 23.0mm X 12.45mm	24.0mm X 23.0mm X 12.0mm	24.0mm X 23.0mm X 12.45mm
main impedance	600 OHMS	600 OHMS	600 OHMS	600 OHMS
secondary impedance	301 OHMS	470 OHMS	470 OHMS	301 OHMS
surface mount	NO	NO	NO	NO
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	23 mm	23 mm	23 mm	23 mm

Recommended Resources

Timing circuit that prohibits restarting

DC servo constant current power amplifier 01

AC static single pole double throw switch circuit diagram

Huabao YHX60-2A high temperature electronic disinfection cabinet circuit diagram

Rain Alarm 2

JJlK-90～315/380-2 type auto-coupling step-down starter circuit
