SG55452BF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> SG55452BF

SG55452BF: DescriptionNAND Gate Based Peripheral Driver, 0.4A, BIPolar; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size107KB，3 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

SG55452BF Overview

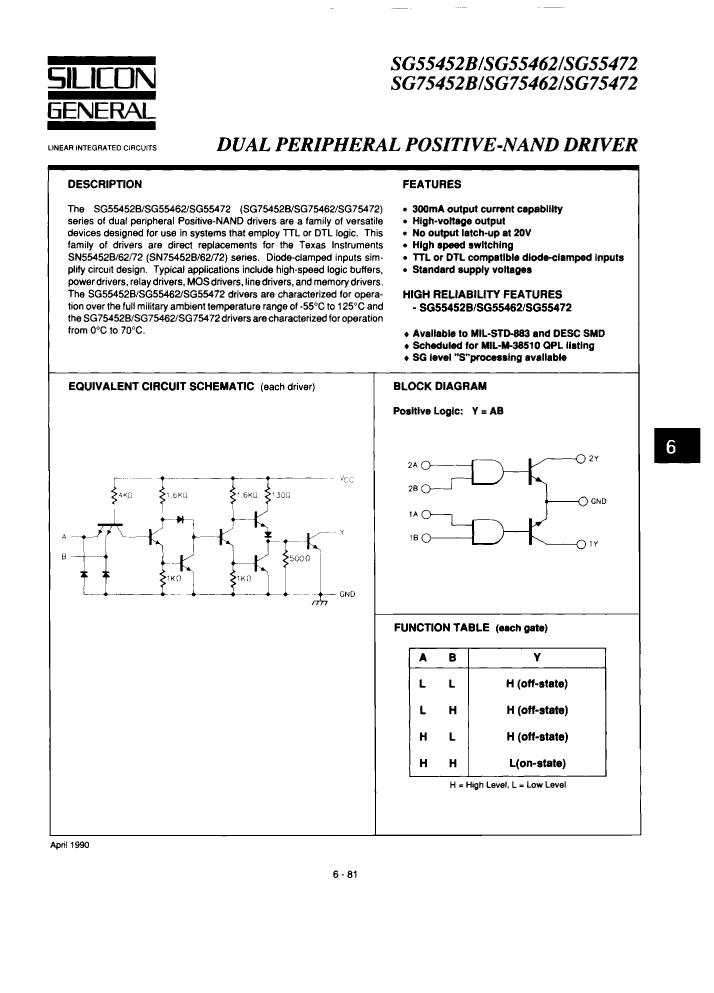

NAND Gate Based Peripheral Driver, 0.4A, BIPolar

SG55452BF Parametric

Parameter Name	Attribute value
Maker	Microsemi
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	STANDARD
Interface integrated circuit type	NAND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-CDFP-F
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Output current flow direction	SINK
Nominal output peak current	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum slew rate	71 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Disconnect time	0.035 µs
connection time	0.035 µs

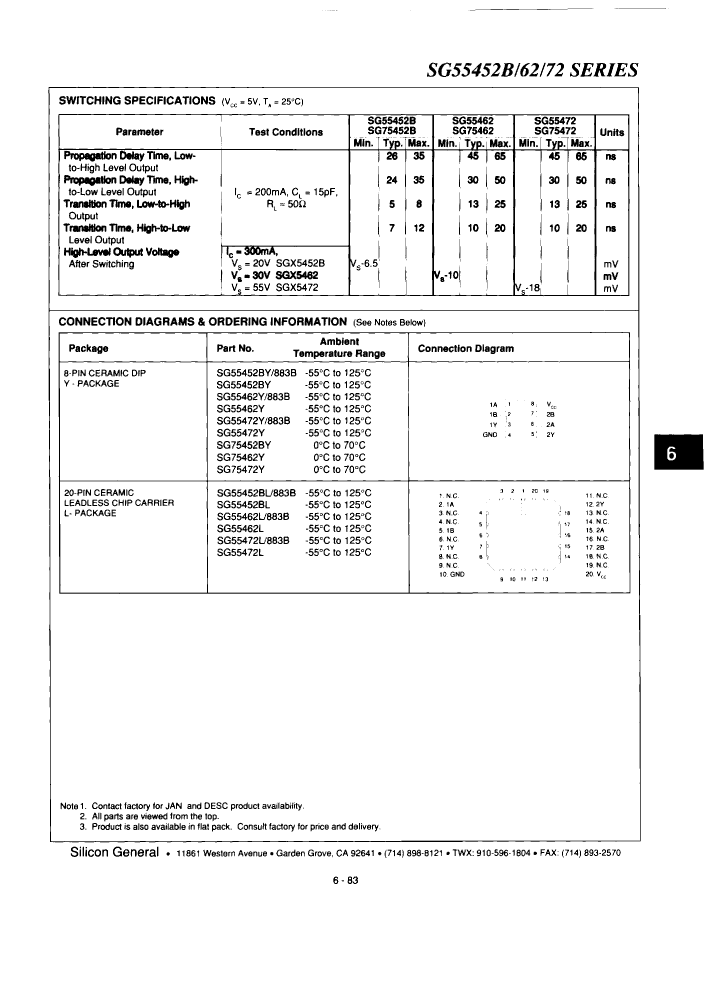

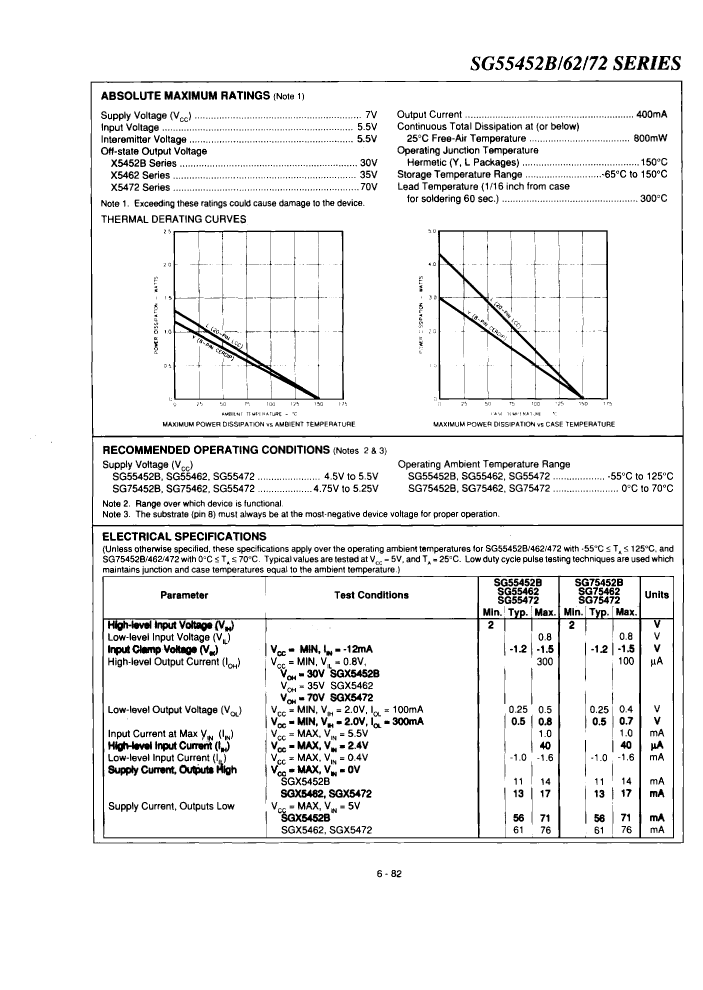

Preview

Download Datasheet

View All

SG55452BF Related Products

	SG55452BF	SG75462F	SG55462F/883B	SG75452BF	SG55452BF/883B	SG55462F
Description	NAND Gate Based Peripheral Driver, 0.4A, BIPolar	NAND Gate Based Peripheral Driver, 0.4A, BIPolar	NAND Gate Based Peripheral Driver, 0.4A, BIPolar	NAND Gate Based Peripheral Driver, 0.4A, BIPolar	NAND Gate Based Peripheral Driver, 0.4A, BIPolar	NAND Gate Based Peripheral Driver, 0.4A, BIPolar
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	NAND GATE BASED PERIPHERAL DRIVER	NAND GATE BASED PERIPHERAL DRIVER	NAND GATE BASED PERIPHERAL DRIVER	NAND GATE BASED PERIPHERAL DRIVER	NAND GATE BASED PERIPHERAL DRIVER	NAND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F	R-CDFP-F
Number of functions	2	2	2	2	2	2
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Output current flow direction	SINK	SINK	SINK	SINK	SINK	SINK
Nominal output peak current	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A	0.4 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	71 mA	76 mA	76 mA	71 mA	71 mA	76 mA
Maximum supply voltage	5.5 V	5.25 V	5.5 V	5.25 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.5 V	4.75 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Disconnect time	0.035 µs	0.065 µs	0.065 µs	0.035 µs	0.035 µs	0.065 µs
connection time	0.035 µs	0.05 µs	0.05 µs	0.035 µs	0.035 µs	0.05 µs
Maker	Microsemi	Microsemi	Microsemi	-	Microsemi	Microsemi
