869476-6

Description
D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,
CategoryThe connector    The connector
File Size68KB,2 Pages
ManufacturerAPI Technologies
Websitehttp://www.apitech.com/about-api
Download Datasheet Parametric View All

869476-6 Overview

D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,

869476-6 Parametric

Parameter NameAttribute value
MakerAPI Technologies
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionYES
IEC complianceNO
insulator materialPOLYETHYLENE
MIL complianceNO
Manufacturer's serial number869476
Mixed contactsNO
Installation typeBOARD
Shell surfaceTIN
Shell materialSTEEL
Housing size3/B
Termination typeSOLDER
Total number of contacts25
UL Flammability Code94V-0
Quiet Line
Filtered PCB Connectors
HD-20 Filtered Connectors–.318 Footprint
Plug
Material and Finish:
Front Shell—Steel,
tin plated
Housing—94V-0
rated thermoplastic,
black
Eyelets—Brass,
tin plated
Threaded Inserts—Zinc
Boardlocks—Copper
alloy, tin-lead
plated
Pin Contacts (Posted)—Brass,
duplex plated as follows:
.000030 [0.00076] gold on mating end,
tin-lead on termination end, with entire
contact .000050 [0.00127] (min.)
nickel underplated
A
B
C

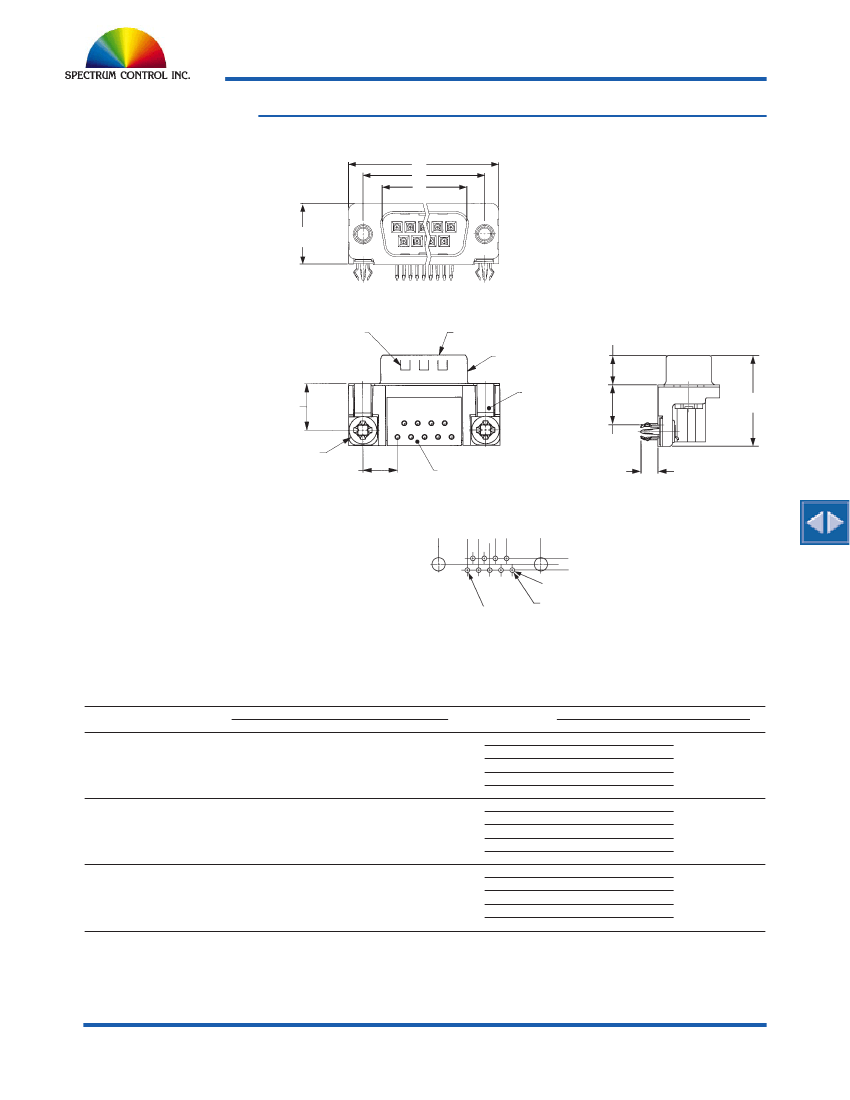

.494±.015
[12.55±0.38]
GROUNDING INDENT
TYP
MATING FACE
SHELL
D
.375±.010
[9.52±0.25]
TYP
GROUNDING
STRAP
2 PLC
E
.227 MAX DIA
[5.77]
.276±.015
EYELET
[7.01±0.38]
2 PLC
.318±.015
[8.08±0.38]
Typ.
FERRITE
.125±.015
[3.18±0.38]
Typ.
Plug
.492
[12.50]
.216
[5.49]
.108
[2.74]
.054
[1.37]
.162
[4.11]
0
.492
[12.50]
0
Position 1
(Plugs)
Position 1
(Receptacles)
.041
[1.04] Dia.
9 Holes

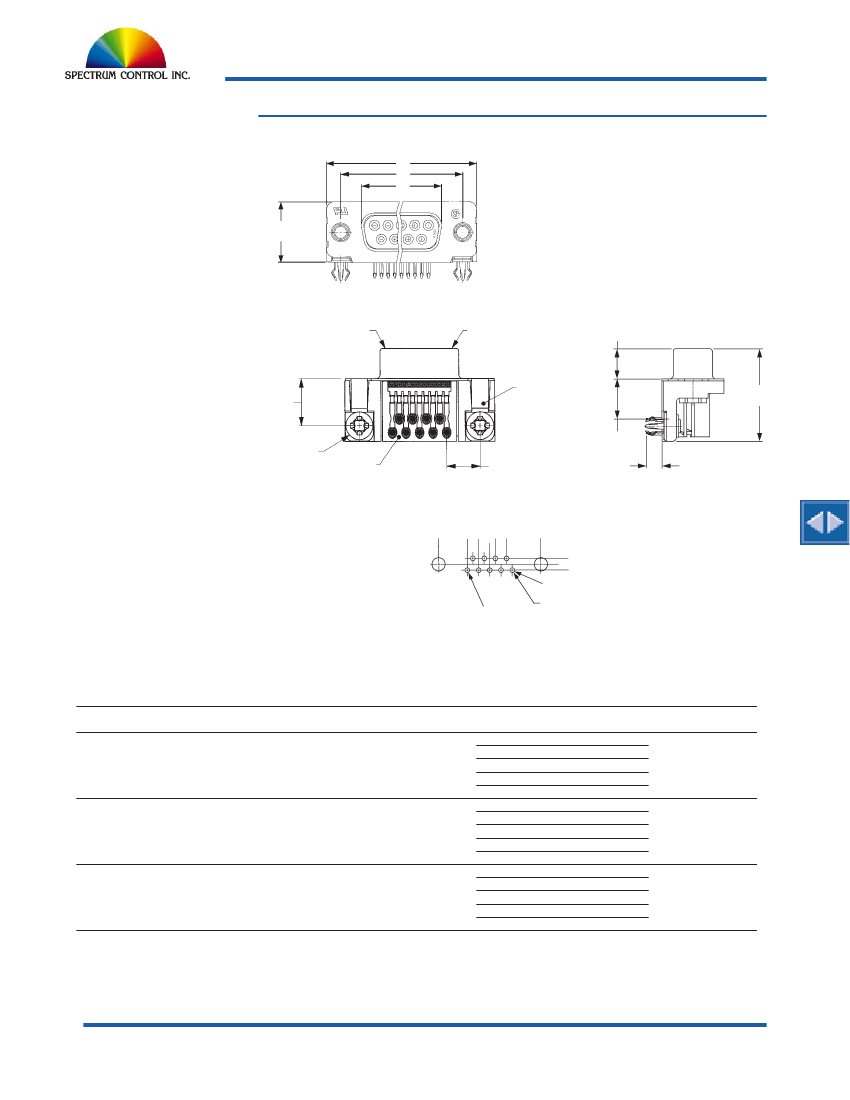

Recommended PC Board
Hole Pattern—9 Position
Plugs
Shell
Size
No. of
Pos.
A
1.213
30.81
B
.984
24.99
Dimensions
C
.666
16.92
D
.235
5.97
E
.733
18.62
Capacitance
pF
1500
820
470
220
100
1500
820
470
220
100
1500
820
470
220
100
Part Number
Ferrite & Capacitors
Ferrite Only
869470-5
869470-6
869470-7
869436-2
869470-8
1-869470-0
869527-5
869527-6
869527-7
869526-2
869527-8
1-869527-0
869476-5
869476-6
869476-7
869442-2
869476-8
1-869476-0
1
9
2
15
1.541
39.14
1.312
33.32
.994
25.25
.235
5.97
.733
18.62
3
25
2.088
53.04
1.852
47.04
1.534
38.96
.230
5.84
.738
18.75
Dimensions are in inches and millimeters unless otherwise specified. Values in brackets are metric equivalents.
