DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SK3112
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
The 2SK3112 is N-channel MOS FET device that features a
low on-state resistance and excellent switching characteristics,
and designed for high voltage applications such as DC/DC
converter, actuator driver.
ORDERING INFORMATION
PART NUMBER
2SK3112
2SK3112-S
2SK3112-ZJ
PACKAGE

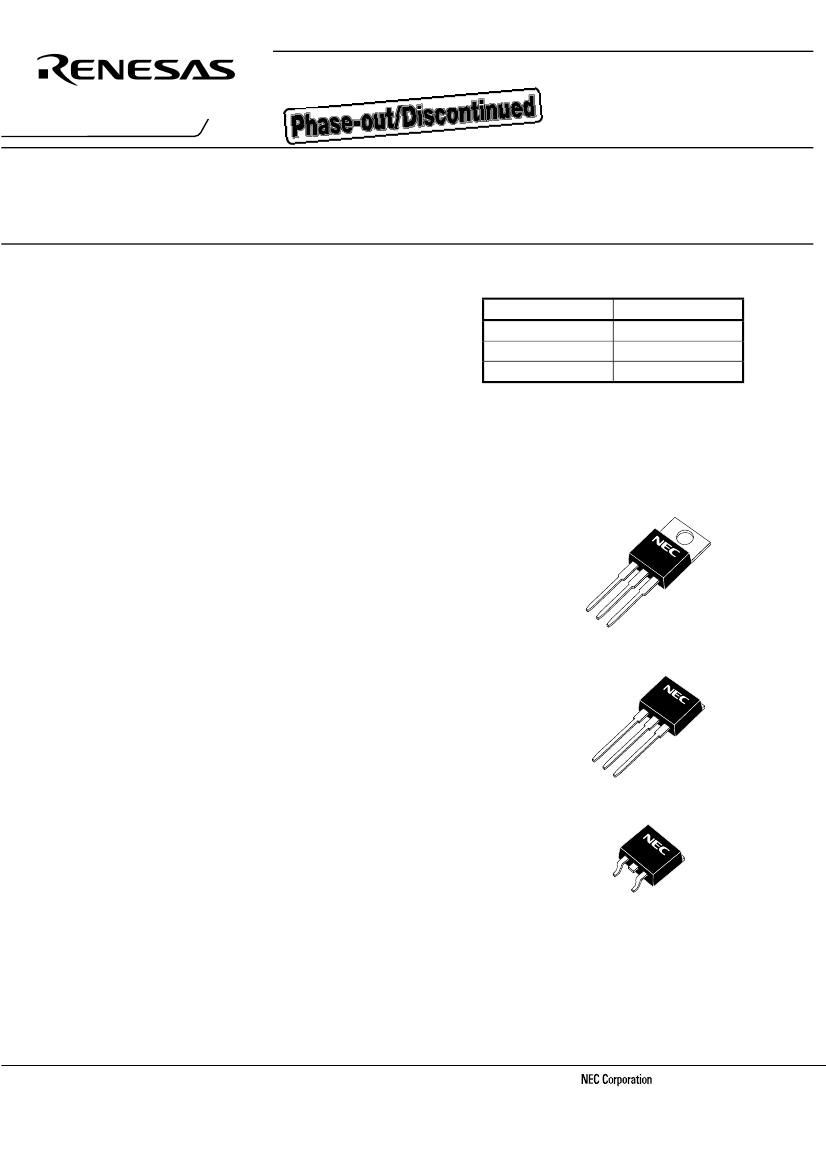

TO-220AB
TO-262
TO-263(MP-25ZJ)
FEATURES
•
Gate voltage rating ±30 V
•
Low on-state resistance
R
DS(on)
= 110 mΩ MAX. (V
GS
= 10 V, I
D
= 13 A)
•
Low input capacitance
C
iss
= 1600 pF TYP. (V
DS
= 10 V, V
GS
= 0 V)
•
Avalanche capability rated
•
Built-in gate protection diode
•
Surface mount device available
(TO-220AB)
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Drain to Source Voltage (V
GS
= 0 V)
Gate to Source Voltage (V
DS
= 0 V)
Drain Current (DC) (T
C
= 25°C)
Drain Current (pulse)
Note1
V
DSS
V
GSS
I
D(DC)
I
D(pulse)
P
T1
P
T2
T
ch
T
stg
200
±30
±25
±75
100
1.5
150
−55
to +150
25
250
V
V
A
A
W
W
°C
°C
A
mJ
(TO-263)
(TO-262)
Total Power Dissipation (T
C
= 25°C)
Total Power Dissipation (T
A
= 25°C)
Channel Temperature
Storage Temperature
Single Avalanche Current
Single Avalanche Energy
Note2
Note2
I
AS
E
AS
Notes 1.
PW
≤
10
µ
s, Duty Cycle
≤
1%
2.
Starting T
ch
= 25°C, V
DD
= 100 V, R
G
= 25
Ω,
V
GS
= 20 V→0 V
