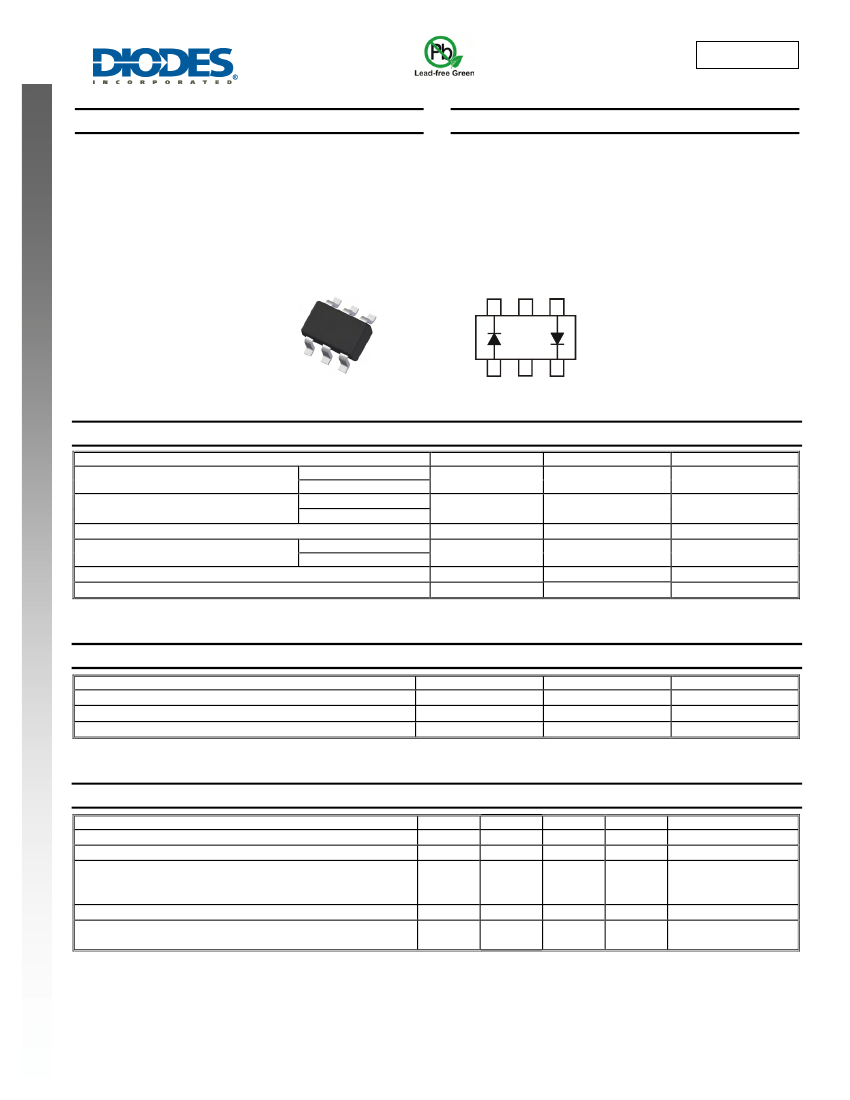

BAW101S
HIGH VOLTAGE DUAL SWITCHING DIODE
Features
•
•
•
•
•
•
Fast Switching Speed: max. 50ns
High Reverse Breakdown Voltage: 300V
Two Electrically Isolated Elements in a Single Compact Package
Low Leakage Current: 150nA at Room Temperature
Lead, Halogen and Antimony Free, RoHS Compliant (Note 3)
"Green" Device (Note 4)
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-363
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin annealed over Alloy 42 leadframe.
Solderable per MIL-STD-202, Method 208
Marking Information: See Page 2
Ordering Information: See Page 2
Weight: 0.006 grams (approximate)
NEW PRODUCT
6
5
4
1
2
3
Top View
Device Schematic
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
Single Diode
Series Connection
Single Diode
Series Connection
V
RRM
V
RWM
V
R
V
R(RMS)
I
F
I
FSM
I
FRM
Value
300
600
300
600
212
250
140
4.5
625
Unit
V
V
V
mA
A
mA
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Current (Note 2)
Single Diode Loaded
Double Diode Loaded
Non-Repetitive Peak Forward Surge Current @ t = 1.0μs
Repetitive Peak Forward Current @ t = 8.3ms (Note 2)
Thermal Characteristics
Characteristic
Power Dissipation (Note 2)
Thermal Resistance Junction to Ambient Air (Note 2)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
300
417
-55 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 1)
Forward Voltage
Reverse Current (Note 1)
Total Capacitance
Reverse Recovery Time
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
I
R
C
T
t
rr
Min
300
⎯
⎯
⎯
⎯
Max
⎯
1.1
50
150
75
2.0
50
Unit
V
V
nA
nA
μA
pF
ns
⎯
⎯
Test Condition
I
R
= 100μA
I
F
= 100mA
V
R
= 5V
V
R
= 250V
V
R
= 250V, T
J
= 150°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
1. Short duration pulse test used to minimize self-heating effect.
2. Part mounted on FR-4 board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
3. No purposefully added lead. Halogen and Antimony Free.
4. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
BAW101S
Document number: DS32177 Rev. 4 - 2
1 of 4
www.diodes.com
July 2010
© Diodes Incorporated
BAW101S
300
Note 2
P
D
, POWER DISSIPATION (mW)
250
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
1,000
100
200
NEW PRODUCT
150
10
100
1
50
0
0
25
50
75
100
125
150 175
T
A
, AMBIENT TEMPERATURE (
°
C)

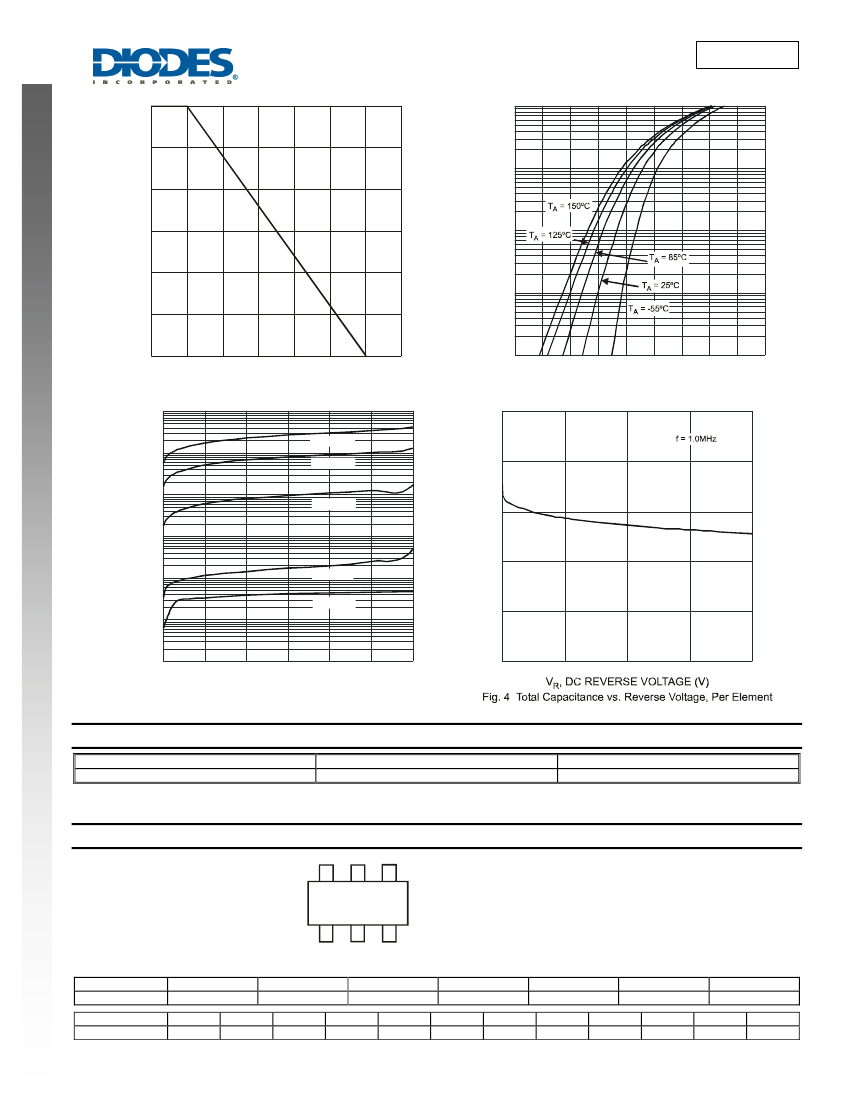

Fig. 1 Power Derating Curve, Total Package
0.1
0
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics, Per Element
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
100,000
T
A
= 150ºC
1.0
C
T
, TOTAL CAPACITANCE (pF)
10,000
T
A
= 125ºC
0.8
1,000
T
A
= 8 5ºC
0.6
100
0.4
10
T
A
= 25ºC
T
A
= -55ºC
1
0.2
0.1
0
50
100
150
200
250
300
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics, Per Element
0
0
10
20
30
40
Ordering Information
(Note 5)
Part Number
BAW101S-7
Notes:
Case
SOT-363
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
K97 YM
K97 YM
Date Code Key
Year
Code
Month
Code
2010
X
Jan
1
Feb
2
2011
Y
Mar
3
Apr
4
2012
Z
May
5
Jun
6
K97 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: X = 2010)
M = Month (ex: 9 = September)
2013
A
Jul
7
2014
B
Aug
8
Sep
9
2015
C
Oct
O
Nov
N
2016
D
Dec
D
July 2010
© Diodes Incorporated
BAW101S
Document number: DS32177 Rev. 4 - 2
2 of 4
www.diodes.com
BAW101S
Package Outline Dimensions
A
B C
H
K
M
J
D
F
L
SOT-363
Dim
Min
Max
A
0.10
0.30
B
1.15
1.35
C
2.00
2.20
D
0.65 Typ
F
0.40
0.45
H
1.80
2.20
J
0
0.10
K
0.90
1.00
L
0.25
0.40
M
0.10
0.22
0°
8°
α
All Dimensions in mm
