BC856BR datasheet, PDF - EEWORLD Datasheet

BC856BR: DescriptionTransistor; CategoryDiscrete semiconductor The transistor; File Size468KB，7 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

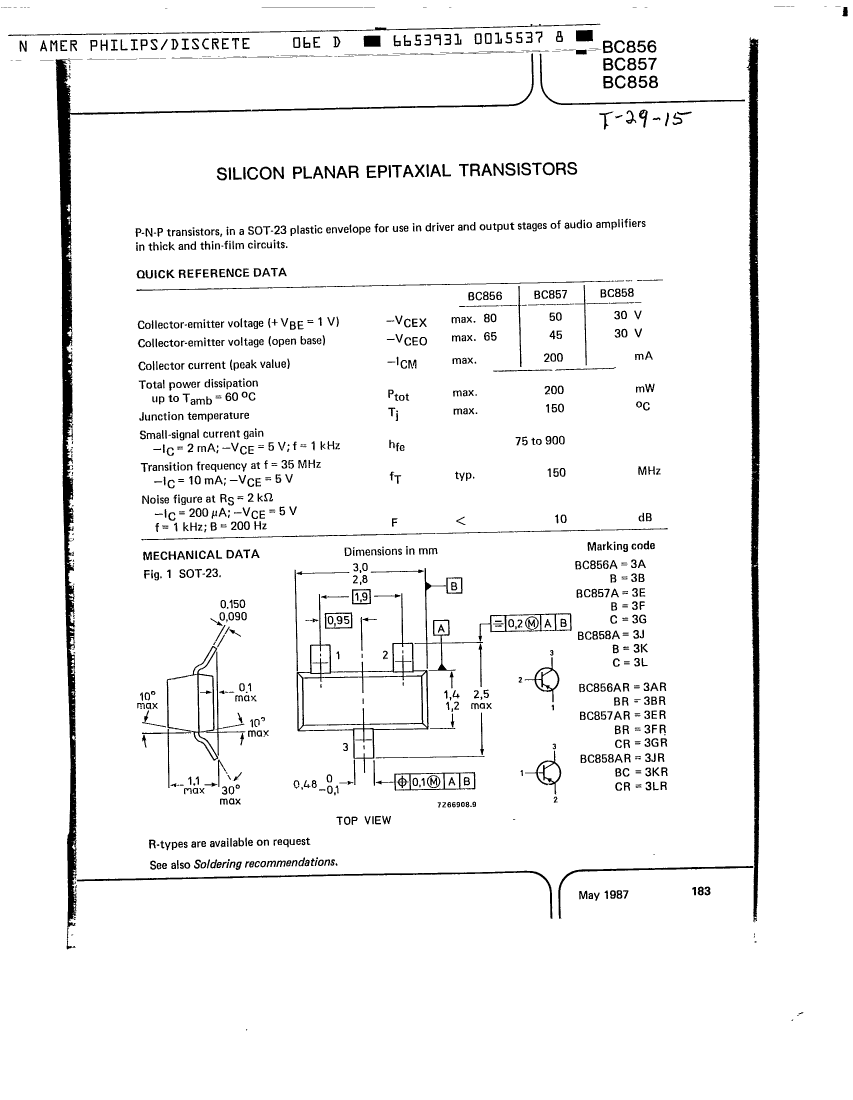

BC856BR Overview

Transistor

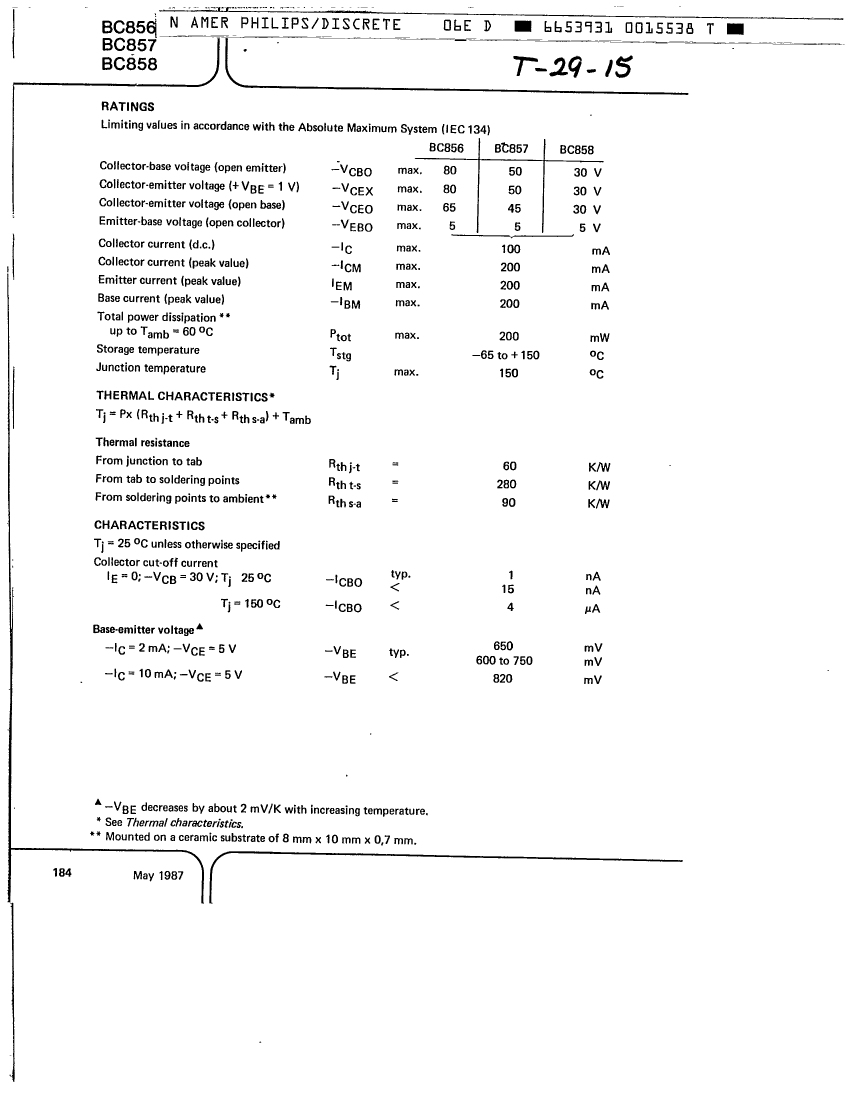

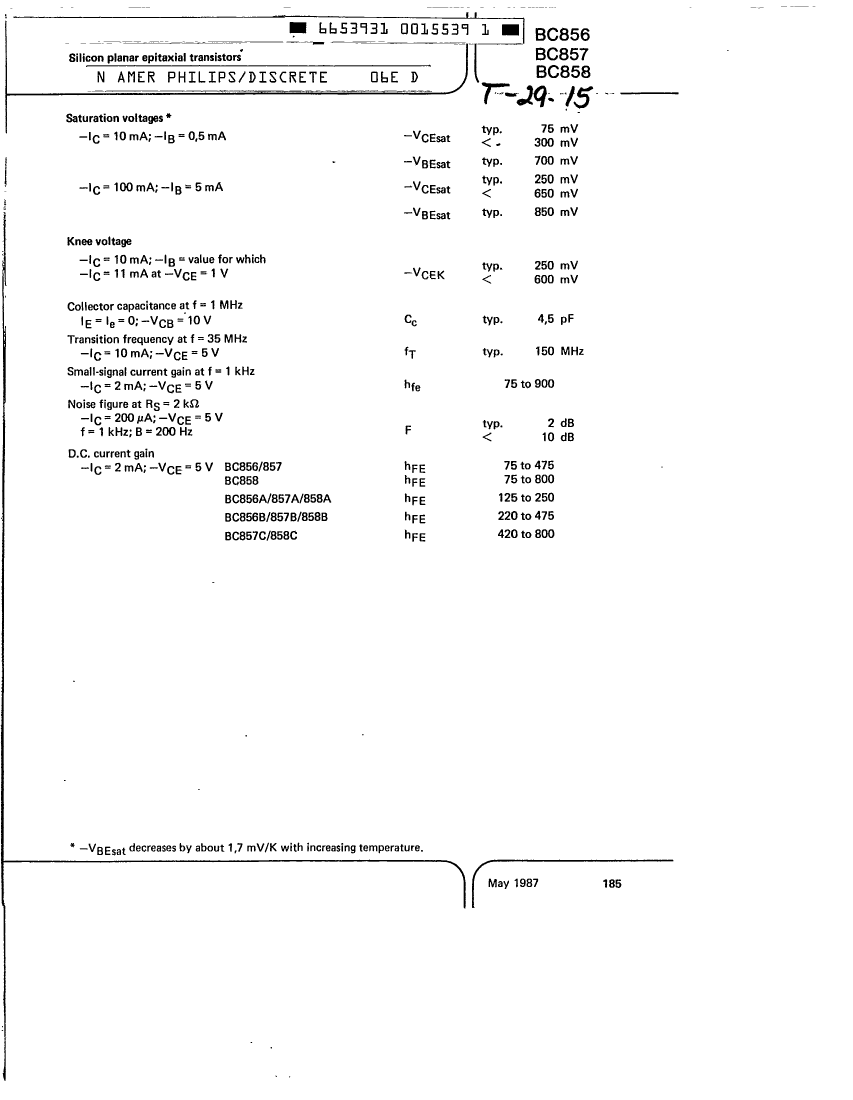

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.1 A
Configuration	Single
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	150 MHz

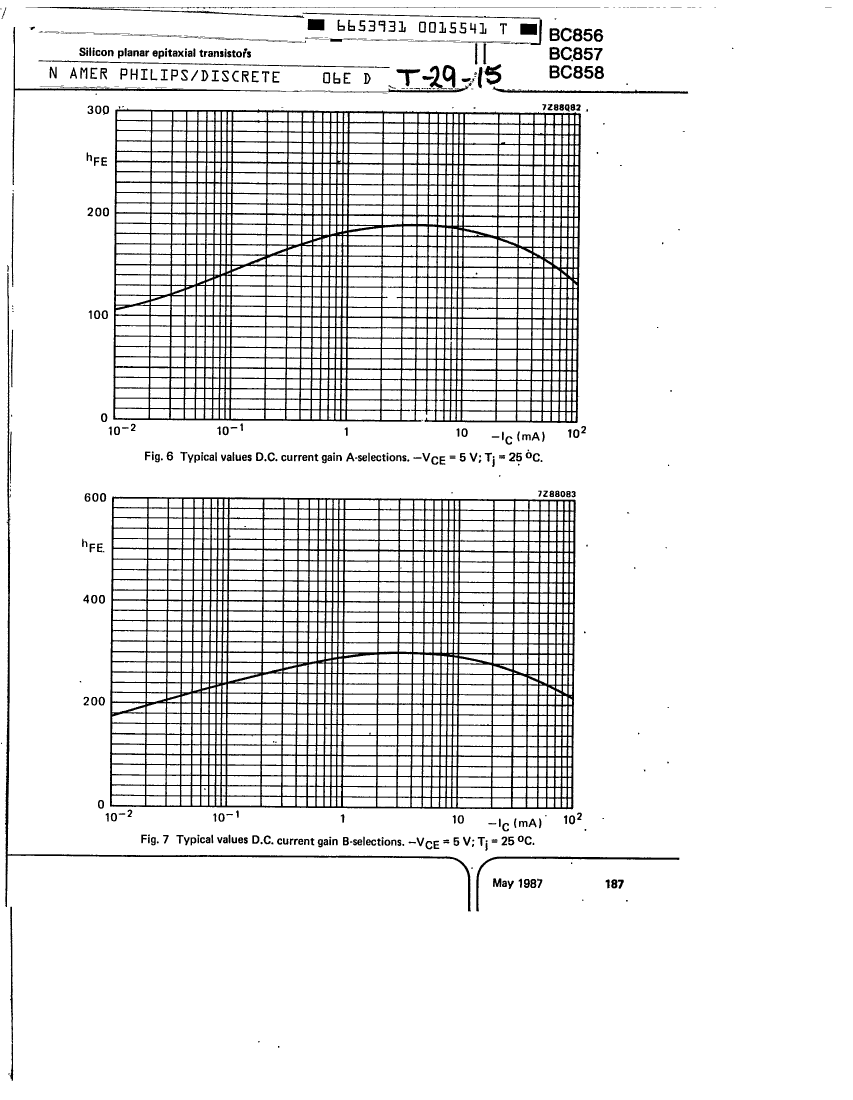

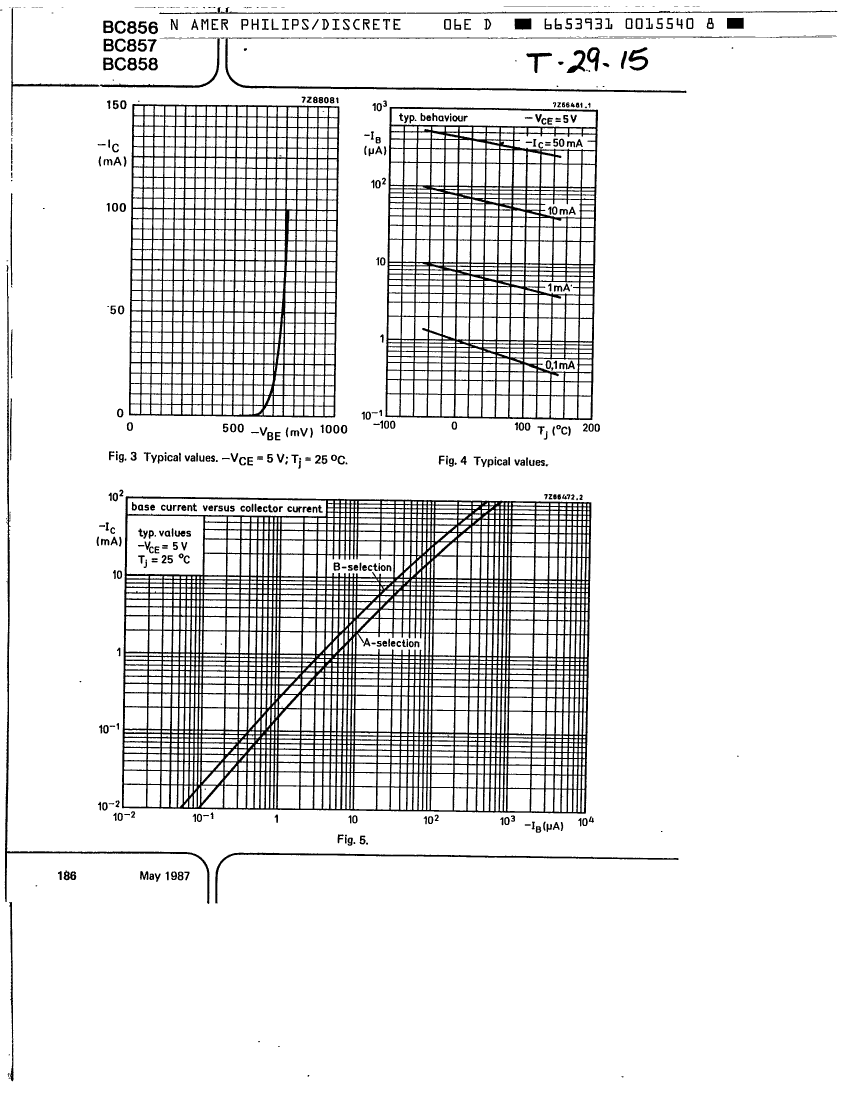

	BC856BR	BC858BR	BC857AR	BC857BR	BC857CR	BC858CR	BC856AR	BC856R	BC857R
Description	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor	Transistor
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Configuration	Single	Single	Single	Single	Single	Single	Single	Single	Single
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz	150 MHz
Maker	North American Philips Discrete Products Div	North American Philips Discrete Products Div	-	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div	North American Philips Discrete Products Div
Maximum power dissipation(Abs)	0.2 W	0.2 W	-	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
