BCM5801
PRODUCT
®
Brief
PROCESSOR
O F
B E N E F I T S
BCM5801
B C M 5 8 0 1
CRYPTOGRAPHIC
F E AT U R E S
S U M M A R Y
• Smallest footprint
• Lowest system cost
•
High-performance single-chip cryptographic processor
•
Supports DES, 3DES, HMAC- SHA-1 and
HMAC-MD5
data
•
Low-cost, easy-to-design-single-chip security solution
•
Sustainable real-world performance
•
Flexible, easy-to-use PCI 2.2 interface
• DMA supports multi-packet processing
• Pre-fetch of new context and packet
• No external components required
• Ideal for low-cost add-in card applications
• Compatible with all existing PC systems
•
Single-pass encryption and authentication of packet
•
200 Mbps IPSec (3DES, SHA-1) in-system
performance, with new Security Association (SA)
per packet
•
Unlimited SA support via system memory
•
Compatible with SSH IPSec software
•
Supports multi-packet processing and pre-fetch of
packet data and context
with single PCI writes
•
Complete product solution minimizes time-to-market
•
Flexible VPN solution for all data security
applications:
•
•
•
•
Firewalls
VPN appliances
Client applications
IPSec acceleration
• Software Reference Library (SRL) including a hardware
abstraction software layer
• Compatible with industry standard SSH IPSec software
•
Multi-threaded DMA allows multi-packet processing
•
Accommodates most PCI latency problems without
performance degradation
•
66-MHz operating frequency
•
PCI 2.2 interface, 32-bit, 33/66 MHz
•
Low-power 3.3V design
•
144-pin DQFP package

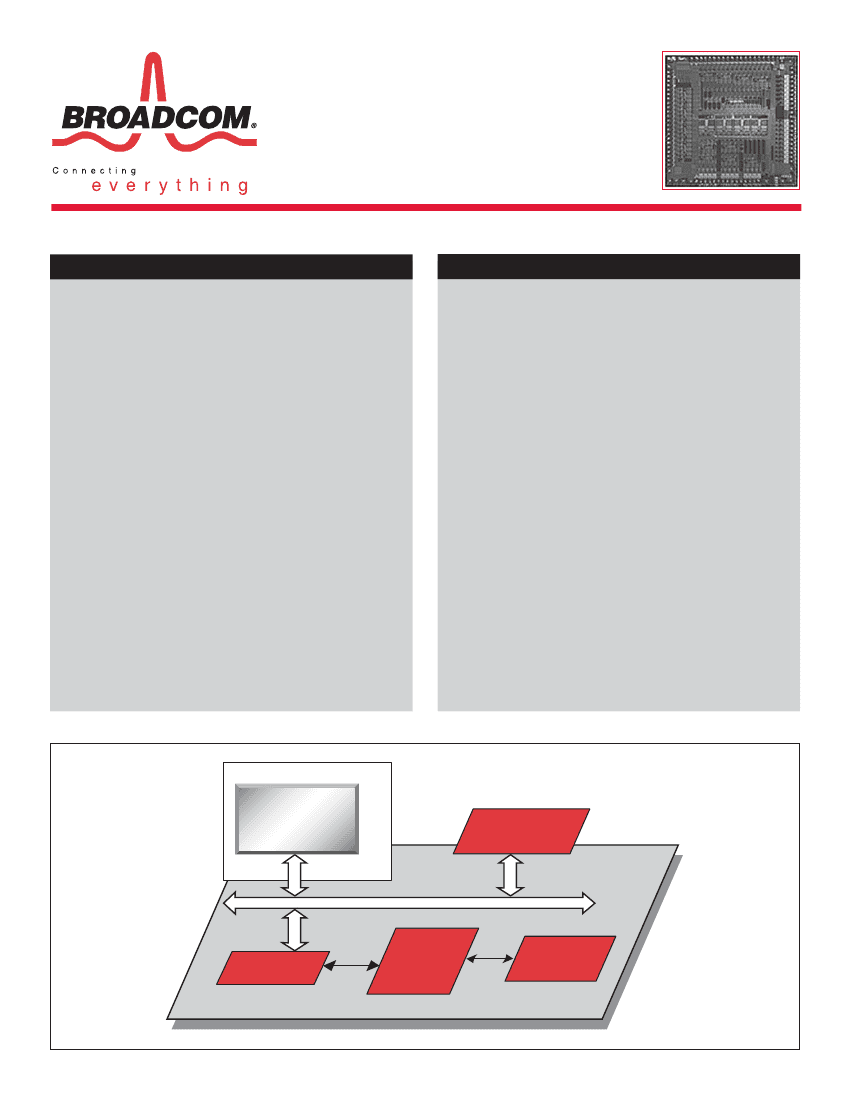

BCM5801 Cryptographic Add-In Card System Diagram
Security Add-In Card
BCM5801
Cryptographic
Processor
PCI
LAN Interface
PCI
PCI Bus
PCI
Bridge
Mother Board
CPU
Memory
B C M 5 8 0 1
O V E R V I E W
Clock
Master Controller
(DMA, Sequencing)
Current Context
PCI
Bus
PCI
Bus
Interface
SHA-1/MD5
Authenication
The
BCM5801
Cryptographic Processor integrates a high-
performance IPSec engine (DES, 3DES, HMAC-SHA-1,
HMAC-MD5), PCI interface and context buffer memory into a
single chip. Ideally suited for cost-sensitive client applications,
the
BCM5801
Cryptographic Processor offers tremendous
performance in a compact design. Offering hardware
acceleration for IPSec cryptographic functions makes the
BCM5801
an ideal solution for applications such as SOHO
routers and gateways, firewalls, VPN appliances, and network
interface cards.
The
BCM5801
provides complete 200-Mbps IPSec processing
(3DES, HMAC-SHA-1) performance in a highly integrated
design. The
BCM5801
offers a unique combination of
performance and cost-optimization by integrating the necessary
functional blocks into a single chip.
The
BCM5801’s
PCI interface makes it a perfect solution for all
cost-sensitive security applications. Requiring no external
components, the
BCM5801
is ideal for add-in card applications
requiring IPSec acceleration. A multi-threaded DMA engine
utilizes system memory to maximize throughput in real-world
applications. Unlimited security association (SA) support via
system memory, and the ability to pre-fetch packet contexts,
minimizes the performance degradation when processing small
packets.
Application program interface (API) support through
Broadcom’s Software Reference Library (SRL) for IPSec
application software offers
BCM5801
users a complete system
solution. Compatibility with industry-standard SSH IPSec
software eases integration and reduces time to market.
Broadcom
®
, the pulse logo and
Connecting everything
®
are trademarks of
Broadcom Corporation and/or its subsidiaries in the United States and certain other countries.
All other trademarks are the property of their respective owners.
®
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2003 by BROADCOM CORPORATION. All rights reserved.
5801-PB03-R 06.25.03
Phone: 949-450-8700
FAX: 949-450-8710
Email: info@broadcom.com
Web: www.broadcom.com
Prefetch
Context Buffer
3DES/DES
Encryption
