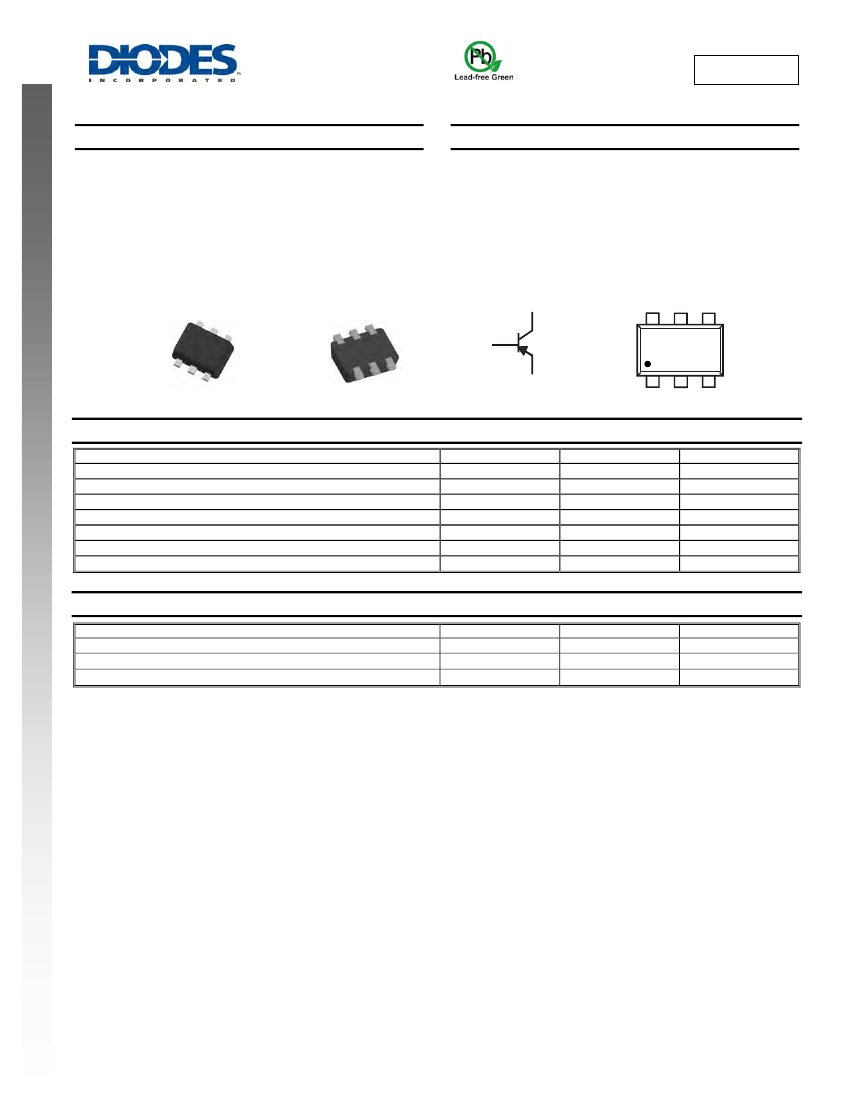

DSS5220V
LOW V
CE(SAT)
PNP SURFACE MOUNT TRANSISTOR
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Type Available (DSS4220V)
Low Collector-Emitter Saturation Voltage, V
CE(SAT)
High Current Gain (h
FE
) at High I
C
Surface Mount Package Suited for Automated Assembly
Ultra-Small Surface Mount Package
Lead Free/RoHS Compliant (Note 1)
"Green Device" (Note 2)
Mechanical Data
•
•
•
•
•
•
•
Case: SOT-563
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Finish
⎯
Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Marking Information: See Page 4
Ordering Information: See Page 4
Weight: 0.003 grams (approximate)
NEW PRODUCT
1, 2, 5, 6
6
5
4
3
4
Top View
Bottom View
Device Schematic
1
2
3
Pin Out Configuration
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
I
BM
Value
-20
-20
-5
-2
-4
-0.3
-0.6
Unit
V
V
V
A
A
A
A
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current - Continuous
Peak Pulse Collector Current
Base Current (DC)
Peak Base Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 3) @ T
A
= 25°C
Thermal Resistance, Junction to Ambient (Note 3) @ T
A
= 25°C
Operating and Storage Temperature Range
Notes:
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
600
208
-55 to +150
Unit
mW
°C/W
°C
1. No purposefully added lead.
2. Diode’s Inc.’s “Green” policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB with minimum recommended pad layout.
DSS5220V
Document number: DS31660 Rev. 2 - 2
1 of 5
www.diodes.com
March 2009
© Diodes Incorporated

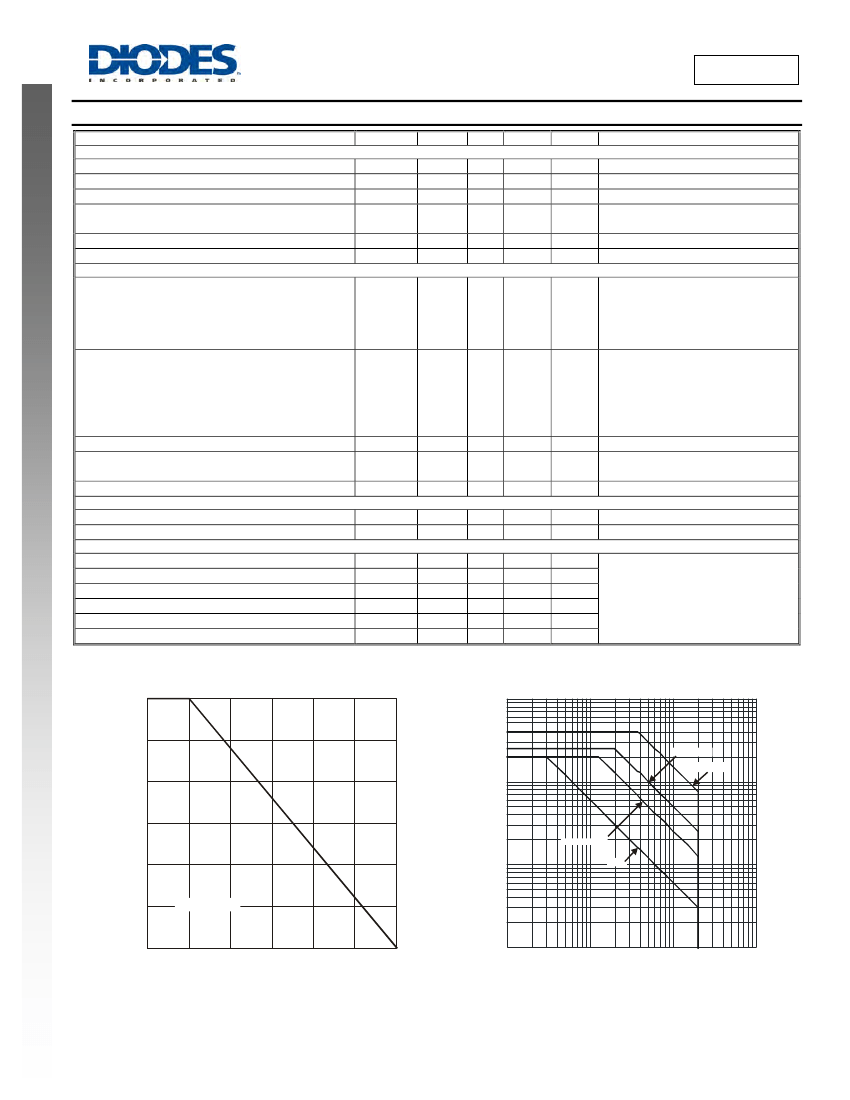

DSS5220V
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
CES
I
EBO
Min
-20
-20
-5
⎯
⎯
⎯
220
220
220
155
60
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
150
⎯
⎯
⎯
⎯
⎯
⎯
Typ
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
⎯
60
20
40
167
140
27
Max
⎯
⎯
⎯
-100
-50
-100
-100
⎯
⎯
⎯
⎯
⎯
-80
-115
-220
-210
-455
-390
210
-1.1
-1.1
-1
20
⎯
⎯
⎯
⎯
⎯
⎯
⎯
Unit
V
V
V
nA
μA
nA
nA
Test Condition
I
C
= -100μA, I
E
= 0
I
C
= -10mA, I
B
= 0
I
E
= -100μA, I
C
= 0
V
CB
= -20V, I
E
= 0
V
CB
= -20V, I
E
= 0, T
A
= 150°C
V
CE
= -20V, V
BE
= 0
V
EB
= -5V, I
C
= 0
V
CE
= -2V, I
C
= -1mA
V
CE
= -2V, I
C
= -100mA
V
CE
= -2V, I
C
= -500mA
V
CE
= -2V, I
C
= -1A
V
CE
= -2V, I
C
= -2A
I
C
= -100mA, I
B
= -1mA
I
C
= -500mA, I
B
= -50mA
I
C
= -1A, I
B
= -50mA
I
C
= -1A, I
B
= -100mA
I
C
= -2A, I
B
= -100mA
I
C
= -2A, I
B
= -200mA
I
C
= -1A, I
B
= -100mA
I
C
= -1A, I
B
= -50mA
I
C
= -1A, I
B
= -100mA
V
CE
= -5V, I
C
= -1A
V
CB
= -10V, f = 1.0MHz
V
CE
= -10V, I
C
= -50mA, f = 100MHz
Characteristic
OFF CHARACTERISTICS
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 4)
Emitter-Base Breakdown Voltage
Collector Cutoff Current
Collector Cutoff Current
Emitter Cutoff Current
ON CHARACTERISTICS (Note 4)
NEW PRODUCT
DC Current Gain
h
FE
⎯
Collector-Emitter Saturation Voltage
V
CE(SAT)
mV
Collector-Emitter Saturation Resistance
Base-Emitter Saturation Voltage
Base-Emitter Turn On Voltage
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
Current Gain-Bandwidth Product
SWITCHING CHARACTERISTICS
Turn-On Time
Delay Time
Rise Time
Turn-Off Time
Storage Time
Fall Time
Notes:
R
CE(SAT)
V
BE(SAT)
V
BE(ON)
C
obo
f
T
t
on
t
d
t
r
t
off
t
s
t
f
mΩ
V
V
pF
MHz
ns
ns
ns
ns
ns
ns
V
CC
= -10V
I
C
= -1A, I
B1
= I
B2
= -50mA
4. Measured under pulsed conditions. Pulse width = 300μs. Duty cycle
≤2%.
600
10
P
D
, POWER DISSIPATION (mW)
-I
C
, COLLECTOR CURRENT (A)
500
Pw = 10ms
Pw = 1ms
400
1
300
Pw = 100ms
200
0.1
DC
100
R
θJA
= 208°C/W
0
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Power Dissipation vs.
Ambient Temperature (Note 3)
150
0.01
0.1
1
10
100
-V
CE
, COLLECTOR-EMITTER VOLTAGE (V)
Fig. 2 Typical Collector Current
vs. Collector-Emitter Voltage (Note 3)
DSS5220V
Document number: DS31660 Rev. 2 - 2
2 of 5
www.diodes.com
March 2009
© Diodes Incorporated

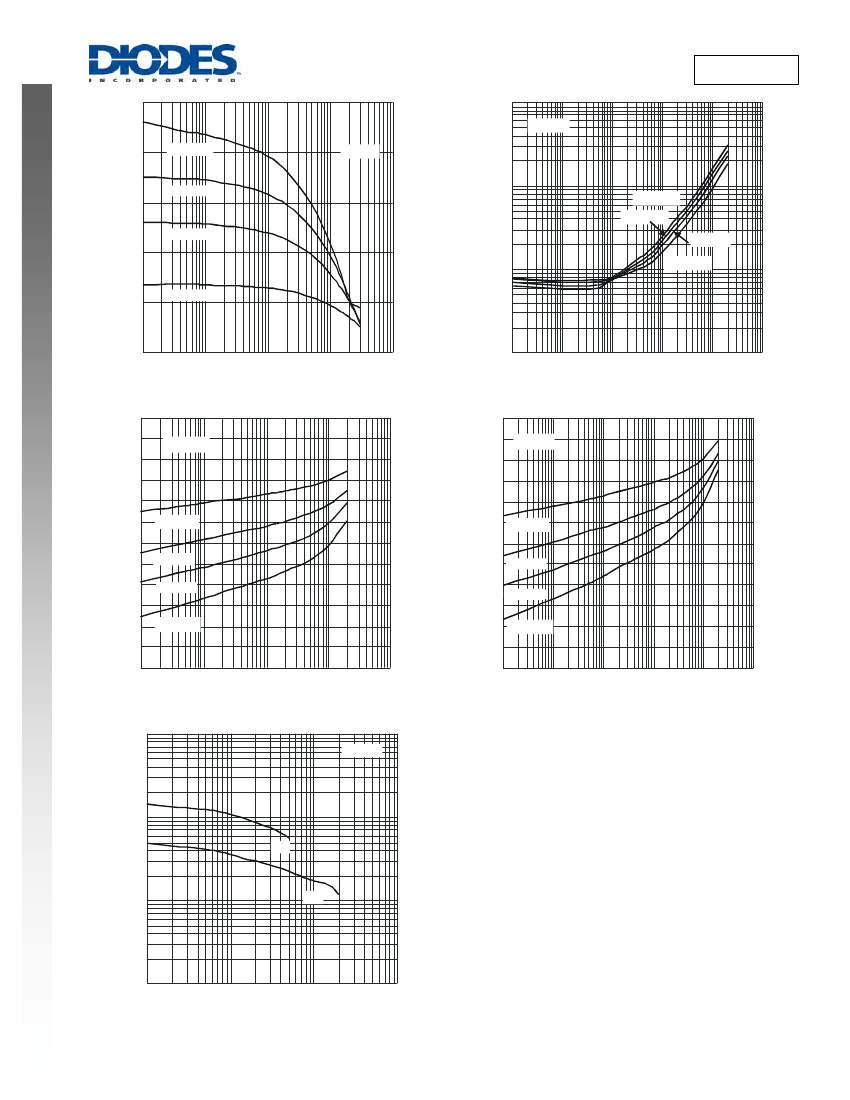

DSS5220V
1,000
1
I
C
/I
B
= 10
800
h
FE
, DC CURRENT GAIN
T
A
= 150°C
V
CE
= -2V
-V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
T
A
= 85°C
0.1
T
A
= 150°C
T
A
= 85°C
T
A
= 25°C
600
T
A
= 25°C
400
NEW PRODUCT
0.01
T
A
= -55°C
200
T
A
= -55°C
0
1,000
10,000
10
100
-I
C
, COLLECTOR CURRENT (mA)
Fig. 3 Typical DC Current Gain vs. Collector Current
1
-V
BE(ON)
, BASE-EMITTER TURN-ON VOLTAGE (V)
1.2
V
CE
= -5V
0.001
0.1
1
10
100
1,000
10,000
-I
C
, COLLECTOR CURRENT (mA)
Fig. 4 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
-V
BE(SAT)
, BASE-EMITTER SATURATION VOLTAGE (V)
1.2
I
C
/I
B
= 10
1.0
1.0
0.8
T
A
= -55°C
0.8
T
A
= -55°C
0.6
T
A
= 25°C
0.6
T
A
= 25°C
0.4
T
A
= 85°C
0.4
T
A
= 85°C
0.2
T
A
= 150°C
0.2
T
A
= 150°C
0
1
10
100
1,000
10,000
-I
C
, COLLECTOR CURRENT (mA)
Fig. 5 Typical Base-Emitter Turn-On Voltage
vs. Collector Current
f = 1MHz
0
0.1
1,000
1
10
100
10,000
-I
C
, COLLECTOR CURRENT (mA)
Fig. 6 Typical Base-Emitter Saturation Voltage
vs. Collector Current
1,000
CAPACITANCE (pF)
100
C
ibo
10
C
obo
1
0.1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Fig. 7 Typical Capacitance Characteristics
DSS5220V
Document number: DS31660 Rev. 2 - 2
3 of 5
www.diodes.com
March 2009
© Diodes Incorporated

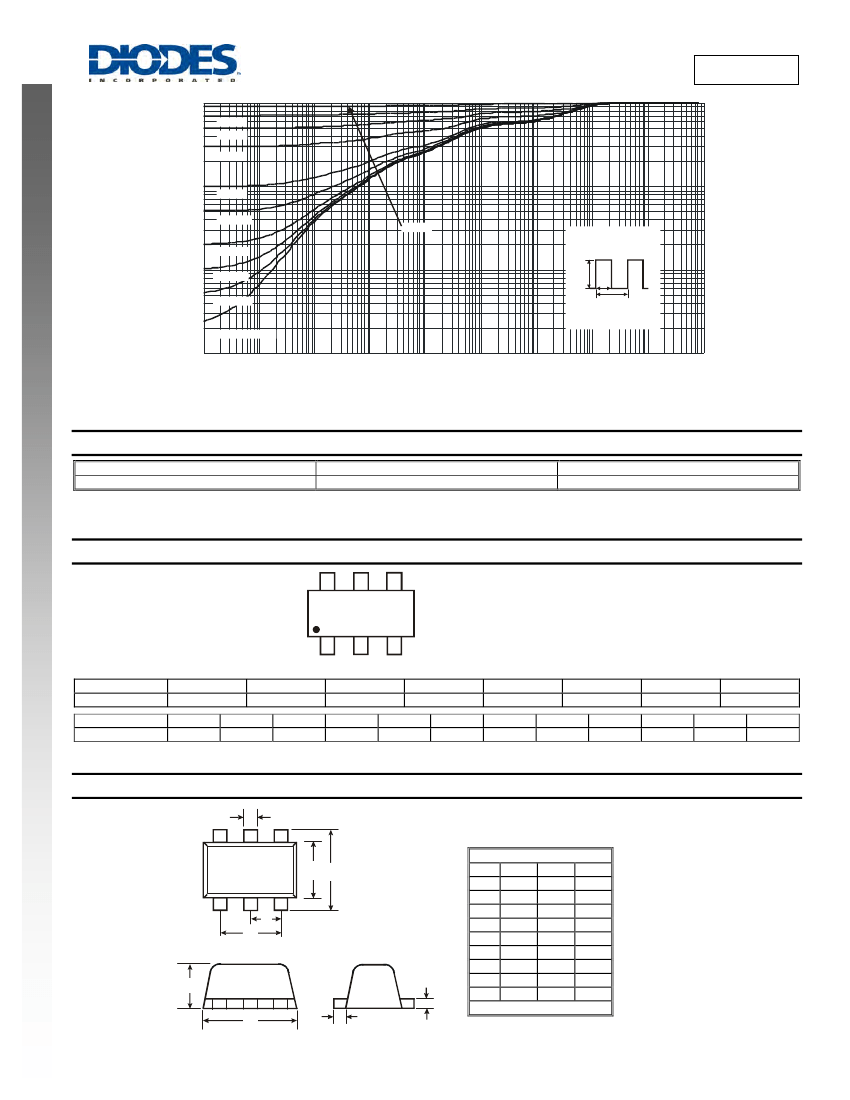

DSS5220V
1
r(t), TRANSIENT THERMAL RESISTANCE
D = 0.7
D = 0.5
D = 0.3
0.1
D = 0.1
D = 0.05
D = 0.9
D = 0.02
R
θJA
(t) = r(t) * R
θ
JA
R
θ
JA
= 145°C/W
P(pk)
NEW PRODUCT
0.01
D = 0.01
D = 0.005
t
1
t
2
T
J
- T
A
= P * R
θ
JA
(t)
Duty Cycle, D = t
1
/t
2
D = Single Pulse
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
t
1
, PULSE DURATION TIME (s)
Fig. 8 Transient Thermal Response (Note 3)
100
1,000
10,000
Ordering Information
Part Number
DSS5220V-7
Notes:
(Note 5)
Case
SOT-563
Packaging
3000/Tape & Reel
5. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
ZP7 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: V = 2008)
M = Month (ex: 9 = September)
ZP7
YM
Date Code Key
Year
Code
Month
Code
2008
V
Jan
1
Feb
2
2009
W
Mar
3
2010
X
Apr
4
May
5
2011
Y
Jun
6
2012
Z
Jul
7
Aug
8
2013
A
Sep
9
2014
B
Oct
O
Nov
N
2015
C
Dec
D
Package Outline Dimensions
A
B
C
D
G
K
M
SOT-563
Dim Min
Max
Typ
A
0.15 0.30 0.20
B
1.10 1.25 1.20
C
1.55 1.70 1.60
D
-
-
0.50
G
0.90 1.10 1.00
H
1.50 1.70 1.60
K
0.55 0.60 0.60
L
0.10 0.30 0.20
M
0.10 0.18 0.11
All Dimensions in mm
H
L
DSS5220V
Document number: DS31660 Rev. 2 - 2
4 of 5
www.diodes.com
March 2009
© Diodes Incorporated
DSS5220V
Suggested Pad Layout
C2
C2
Z
G
C1
Y
NEW PRODUCT
Dimensions Value (in mm)
Z
2.2
G
1.2
X
0.375
Y
0.5
C1
1.7
C2
0.5
X
