BCM5821
®
SUPER E-COMMERCE PROCESSOR
FEATURES
•
High-performance public-key processor
•
•
•
•
•
•
•
•
•
4000 1024-bit RSA transactions per second
3000 Diffie-Hellman transactions per second
HW supports 1024- and 2048-bit RSA keys
Support for SSL/TLS and IKE modes
DES, 3DES, ARC4, HMAC-SHA-1, HMAC-MD5
470-Mbps IPsec (3DES, HMAC-SHA-1)
600-Mbps ARC4
Supports unlimited number of simultaneous sessions
Full performance with different session for each packet
SUMMARY OF BENEFITS
•
Highest performance public key processor enables secure web
transactions in embedded applications
•
SSL appliances
•
Load balancers
•
Web/content switches
•
Web servers
•
Integrated symmetric key processor
•
Enable fast IKE negotiations for VPN applications
•
•
•
•
VPN appliances
Edge routers
Access devices
Firewalls
•
Concurrent public-key and symmetric-key processing
•
Software and package compatible with BCM5820
•
True hardware random number generator
•
Optimized PCI interface
•
PCI 2.2 interface, 32/64-bit, 33-66 MHz
•
Increased DMA block transfers
•
Optional EEPROM interface to configure PCI registers
•
High-performance SSL accelerator dramatically improves cost
of SSL transactions per second
•
Improves SSL performance and reduces delays associated with
secure Internet transactions
•
Increases SSL termination capacity
•
4000 SSL handshakes per second
•
20x the SSL performance over software solutions
•
Extensive embedded software development kit (SDK)
•
VxWorks
®
, Linux
®
, BSD
®
support
•
Software reference library
•
Complete reference design
symmetric-key operations
•
125-MHz operating frequency
•
0.18m CMOS technology, 1.8V core, 3.3V I/O
•
Low power consumption: 2.8W
•
Concurrent processing minimizes latency on public-key and
•
Integration reduces footprint and power consumption for
embedded applications
•
Over 1400 SSL sessions per watt

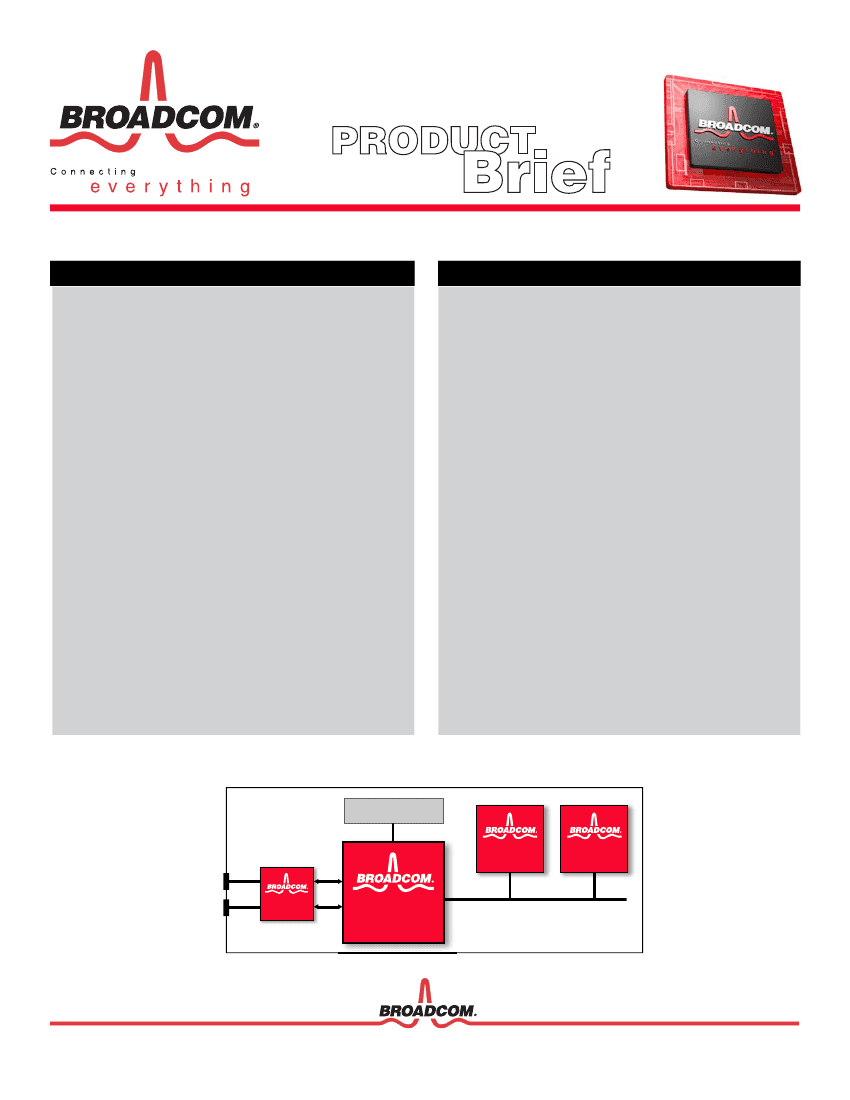

SSL Appliance Architecture
SDRAM
BCM5821
Super
E-Commerce
Processor
BCM5821
Super
E-Commerce
Processor
Dual Gigabit
Ethernet
Interfaces
BCM5402
Dual Gigabit
PHY
BCM1250
Network Processor
PCI
OVERVIEW
Clock
Master Controller
(DMA, Sequencing)
Public Key
Acceleration
Current Content
PCI 2.2
32/64 Bits
33/66 MHz
Master
Slave
3DES/DES/ARCFour
Encryption
SHA-1/MD5
Authentication
BCM5821 Block Diagram
The BCM5821 Super E-commerce processor is a high-performance
public-key processor, able to perform over 4000 SSL/TLS sessions per
second and 3000 IKE negotiations per second. The high level of
performance and integration in the BCM5821 makes it ideal for high-
performance embedded applications with footprint and power
limitations.
In addition to its high-performance public-key engines, the BCM5821
offers acceleration for symmetric key functions at increased
performance rates. The BCM5821 supports bulk SSL encryption and
authentication (ARC4, SSL-MAC-MD5/SHA-1) in-system performance
at 300 Mbps and IPsec (3DES, HMAC-SHA-1) in-system performance
at 470 Mbps.
A true hardware random number generator on the BCM5821 is well
suited for IV seeding and secret key generation.
For SSL applications, a single BCM5821 can support 4000 SSL sessions
per second, thus dramatically improving the response time of load
balancers, Web switches, servers, and SSL appliances. For IKE
applications, the BCM5821 can initiate 3000 VPN tunnels per second.
The BCM5821 device’s PCI interface makes it a perfect solution for all
cost-sensitive security applications. Requiring no external components,
the BCM5821 is ideal for embedded applications with strict board space
and power requirements. Furthermore, performance of the BCM5821
can easily be scaled to increase both public-key and bulk payload
processing performance.
Unlimited security association (SA) support via system memory and a
multi-threaded DMA engine utilizes system memory to maximize
throughput in real-world applications. The ability to prefetch packet
contexts minimizes the performance degradation when processing small
packets. Concurrent public-key and bulk payload processing minimizes
latency and improves system performance dramatically.
Application program interface (API) support through Broadcom’s
Software Reference Library (SRL) for IPSec and SSL application
software offers BCM5821 users a complete system solution. The
BCM5821 SDK includes support for VxWorks, Linux and BSD.
Broadcom
®
, the pulse logo,
Connecting everything
®
, and the Connecting everything logo are among
the trademarks of Broadcom Corporation and/or its affiliates in the United States, certain other countries
and/or the EU. Any other trademarks or trade names mentioned are the property of their respective
owners.
®
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2006 by BROADCOM CORPORATION. All rights reserved.
5821-PB04-R
04/19/06
Phone: 949-450-8700
Fax: 949-450-8710
E-mail: info@broadcom.com
Web: www.broadcom.com
Prefetch Context
Buffer
True Random
Number Generator
