DUP412VP5
QUAD SURFACE MOUNT TVS ARRAY
Features
•
•
•
•
•
•
•
Quad TVS in Common Anode Configuration
Ultra-Small Surface Mount Package
Ideal For Transient Suppression and ESD Protection
Low Capacitance, <10pF @ V
R
= 0V
Lead Free By Design/RoHS Compliant (Note 1)
"Green Device" (Note 2)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
•
•
•
Case: SOT-953
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Finish: Matte Tin, Annealed Over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.002 grams (approximate)
ESD Capability
•
•
IEC 61000-4-2 Contact Method ±8kV
IEC 61000-4-2 Air Discharge Method ±15kV
K4
5
D4
D1
2
A1/A2
A3/A4
D3
D2
K3
4
1
K1
3
K2
Top View
Device Schematic
Ordering Information
(Note 3)
Part Number
DUP412VP5-7
Notes:
Case
SOT-953
Packaging
10,000/Tape & Reel
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
V1
V1 = Product type marking code
DUP412VP5
Document number: DS31642 Rev. 8 - 2
1 of 4
www.diodes.com
January 2011
© Diodes Incorporated
DUP412VP5

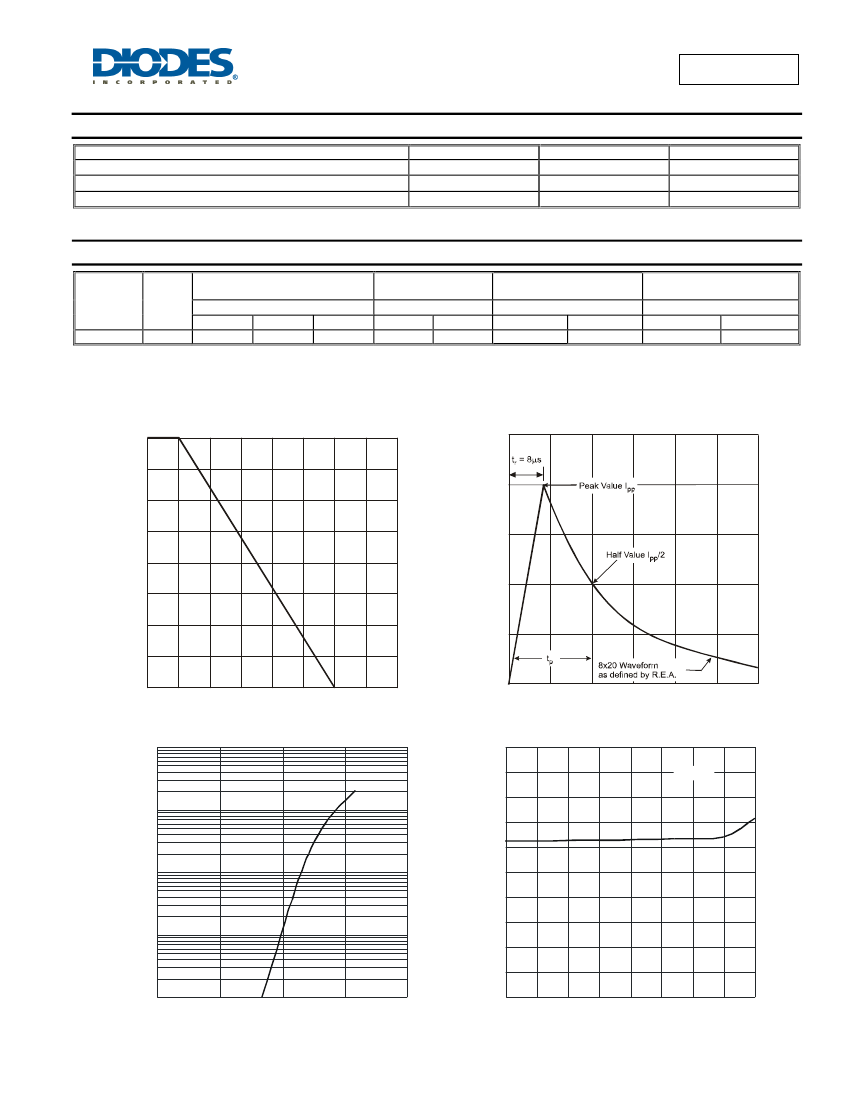

Thermal Characteristics
Characteristic
Peak Power Dissipation, 8x20μS Waveform (Note 5)
Thermal Resistance, Junction-to-Ambient (Note 5)
Operating and Storage Temperature Range
Symbol
P
pk
R
θ
JA
T
J,
T
STG
Value
18
417
-55 to +150
Unit
W
°C/W
°C
Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Type
Number
DUP412VP5
Notes:
Marking
Code
V1
Breakdown Voltage
(Note 6)
V
BR
@ I
T
= 5mA
Min (V)
Nom (V)
Max (V)
11.4
12
12.7
Leakage Current
(Note 6)
I
RM
@ V
RM
(V)
Max(μA)
0.5
9.0
Capacitance
@0V Bias(pF)
(Note 7)
C
T
Typ
Max
6.5
10
Capacitance
@3V Bias(pF)
(Note 7)
C
T
Typ
Max
3.5
5
4. Non-repetitive current pulse per Figure 2 and derate above T
A
= 25°C per Figure 1.
5. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. Suggested Pad Layout Document AP02001,
which can be found on our website at http://www.diodes.com.
6. Short duration pulse test used to minimize self-heating effect.
7. Per element, f = 1MHz, T
A
= 25°C
100
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
75
50
I
PP
, PEAK PULSE CURRENT (%I
pp
)
100
50
25
0
0
25
50
75
100 125 150 175
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 1 Pulse Derating Curve
200
0
0
20
40
t, TIME (
μ
s)
Fig. 2 Pulse Waveform
10
V
R
= 9V
60
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
1
8
0.1
6
0.01
4
0.001
2
0.0001
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 3 Typical Forward Characteristics
0
-50
-25
0
25
50
75 100 125 150
T
A
, AMBIENT TEMPERATURE (°C)
Fig. 4 Instantaneous Reverse Current
vs. Ambient Temperature
DUP412VP5
Document number: DS31642 Rev. 8 - 2
2 of 4
www.diodes.com
January 2011
© Diodes Incorporated
DUP412VP5
8
f = 1MHz
C
T
, TOTAL CAPACITANCE (pF)
6
4
2
0
0
2
4
6
8
V
R
, REVERSE VOLTAGE (V)
Fig. 5 Typical Total Capacitance vs.
Reverse Voltage (Per Element)
10
Package Outline Dimensions
D
e1
L
E1
E
e
b (5 places)
c
A
A1
SOT-953
Dim Min
Max
Typ
A
0.40 0.50 0.45
A1
0
0.05
−
b
0.10 0.20 0.15
c
0.12 0.18 0.15
D
0.95 1.05 1.00
E
0.95 1.05 1.00
E1
0.75 0.85 0.80
e
0.35
−
−
e1
0.70
−
−
L
0.05 0.15 0.10
All Dimensions in mm
Suggested Pad Layout
C
C
Y1
Dimensions Value (in mm)
C
0.350
X
0.200
Y
0.200
Y1
1.100
Y (5X)
X (5X)
DUP412VP5
Document number: DS31642 Rev. 8 - 2
3 of 4
www.diodes.com
January 2011
© Diodes Incorporated
