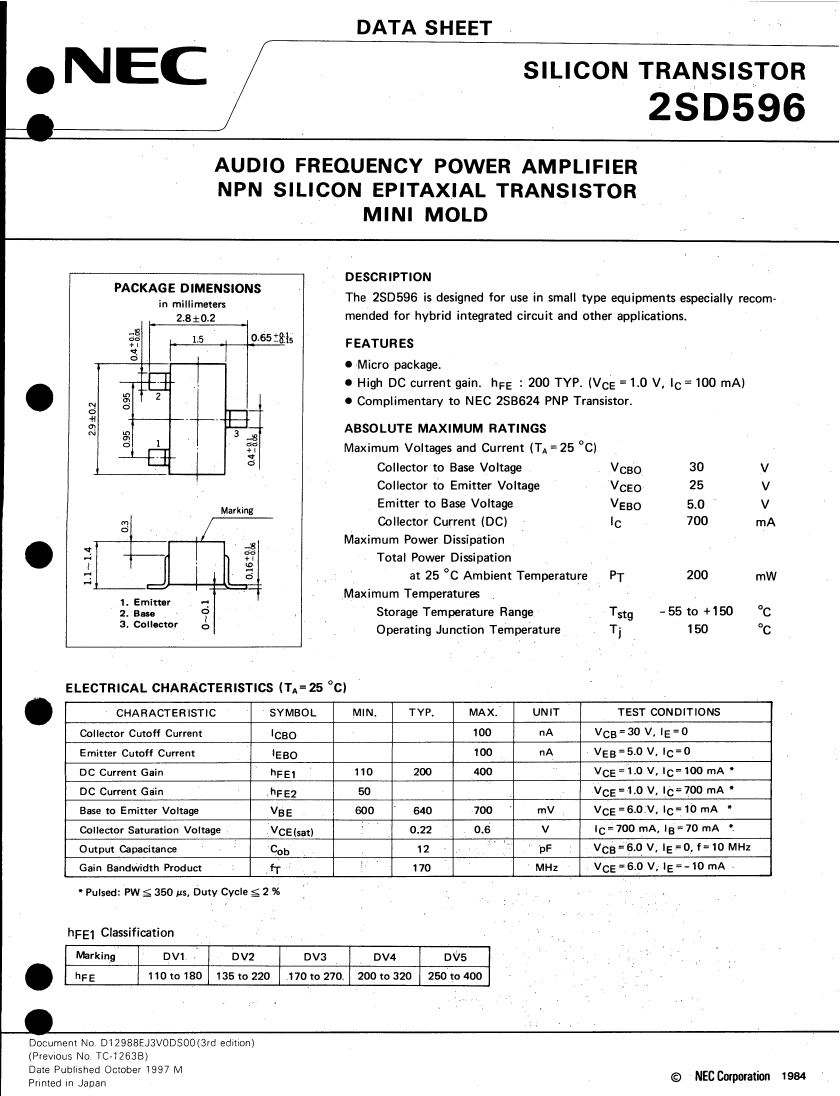

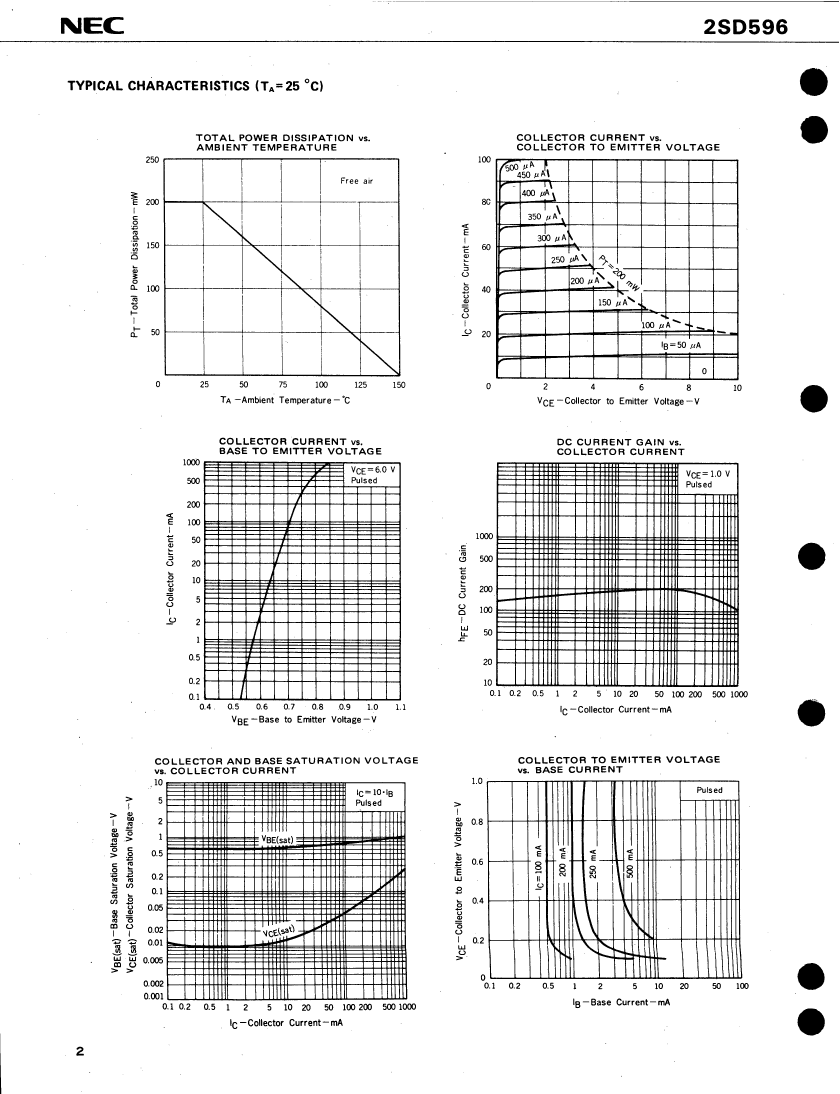

700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, MINIMOLD PACKAGE-3
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Parts packaging code | SC-59 |
| package instruction | SMALL OUTLINE, R-PDSO-G3 |
| Contacts | 3 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Maximum collector current (IC) | 0.7 A |
| Collector-emitter maximum voltage | 25 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 200 |
| JESD-30 code | R-PDSO-G3 |
| JESD-609 code | e6 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal surface | TIN BISMUTH |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |

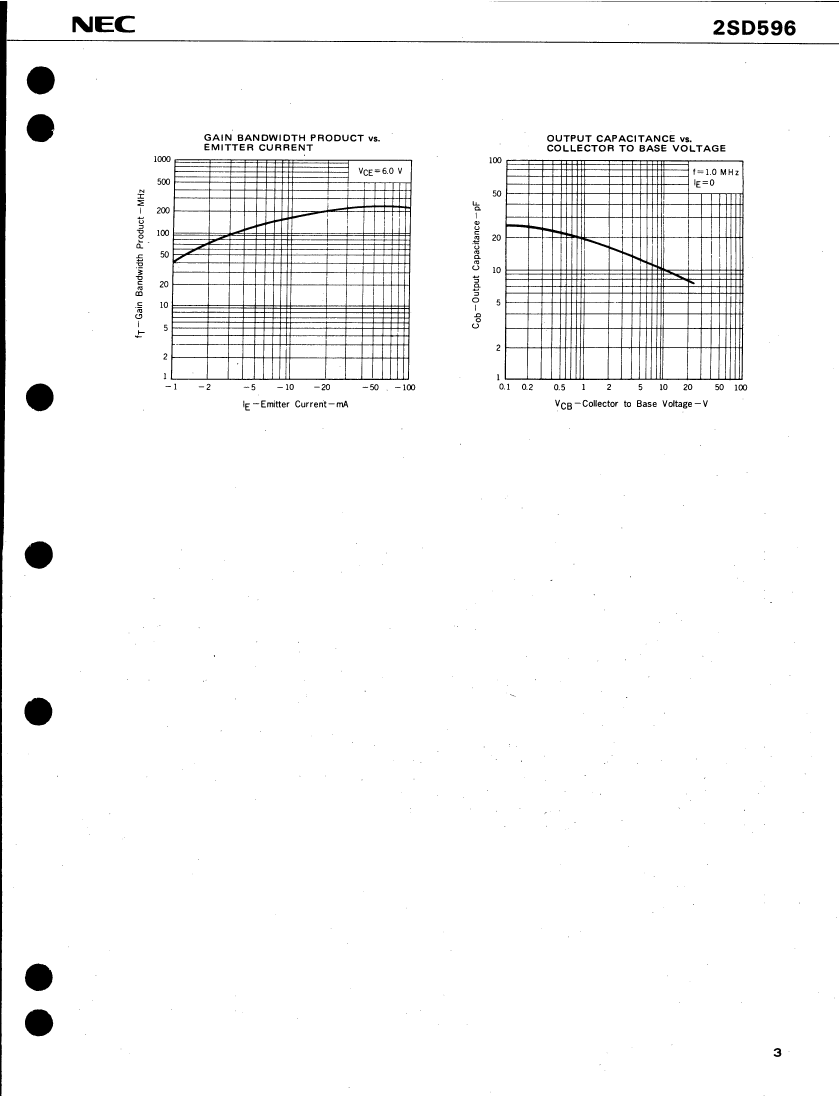

| Nominal transition frequency (fT) | 170 MHz |
| Base Number Matches | 1 |
| 2SD596DV4-A | 2SD596DV1-A | 2SD596DV2-A | 2SD596DV3-A | 2SD596DV5-A | |
|---|---|---|---|---|---|
| Description | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, MINIMOLD PACKAGE-3 | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, MINIMOLD, SC-59, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, MINIMOLD, SC-59, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, MINIMOLD, SC-59, 3 PIN | 700mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, PLASTIC, MINIMOLD PACKAGE-3 |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Lead free |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to |
| Parts packaging code | SC-59 | SC-59 | SC-59 | SC-59 | SC-59 |
| package instruction | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 | SMALL OUTLINE, R-PDSO-G3 |
| Contacts | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compli | compli | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum collector current (IC) | 0.7 A | 0.7 A | 0.7 A | 0.7 A | 0.7 A |
| Collector-emitter maximum voltage | 25 V | 25 V | 25 V | 25 V | 25 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 200 | 110 | 135 | 170 | 250 |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| JESD-609 code | e6 | e6 | e6 | e6 | e6 |
| Number of components | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES |
| Terminal surface | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH | TIN BISMUTH |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 170 MHz | 170 MHz | 170 MHz | 170 MHz | 170 MHz |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
