BCP68TRL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BCP68TRL

BCP68TRL: DescriptionTRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size80KB，3 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BCP68TRL Overview

TRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power

BCP68TRL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	85
JESD-30 code	R-PDSO-G4
JESD-609 code	e3
Number of components	1
Number of terminals	4
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal surface	TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	60 MHz
VCEsat-Max	0.5 V

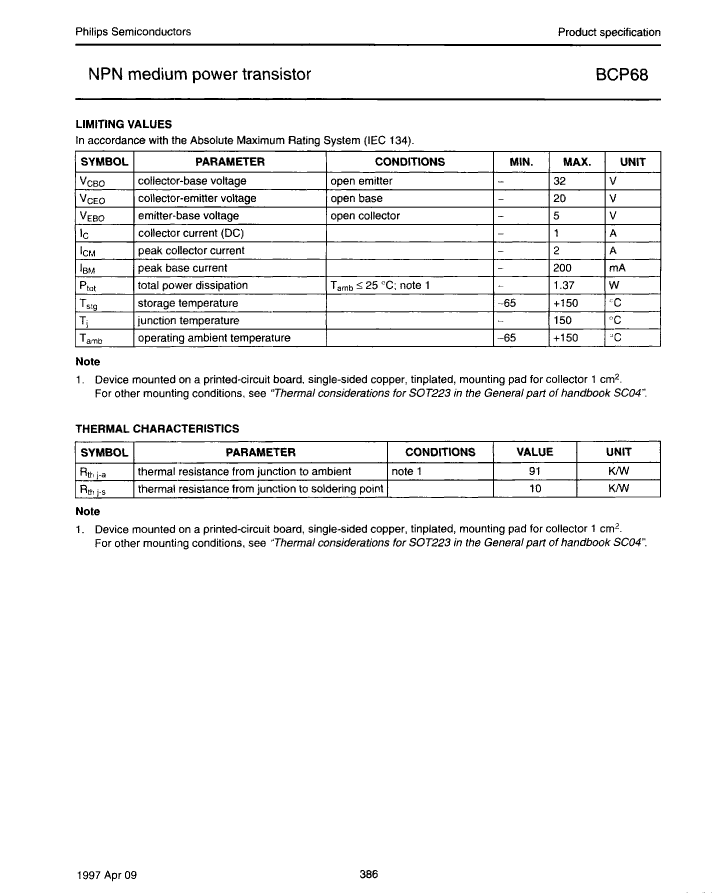

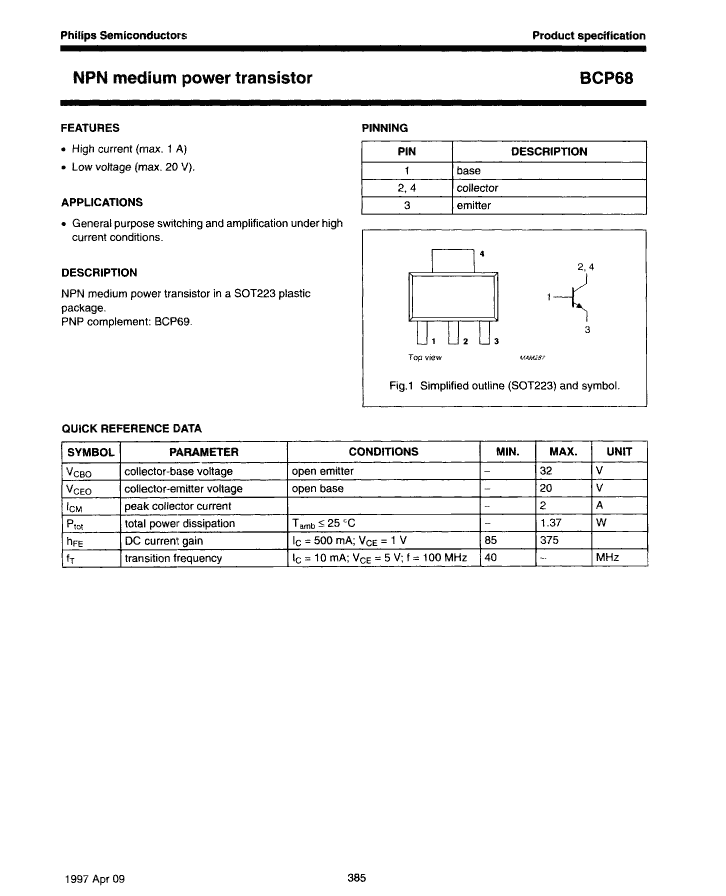

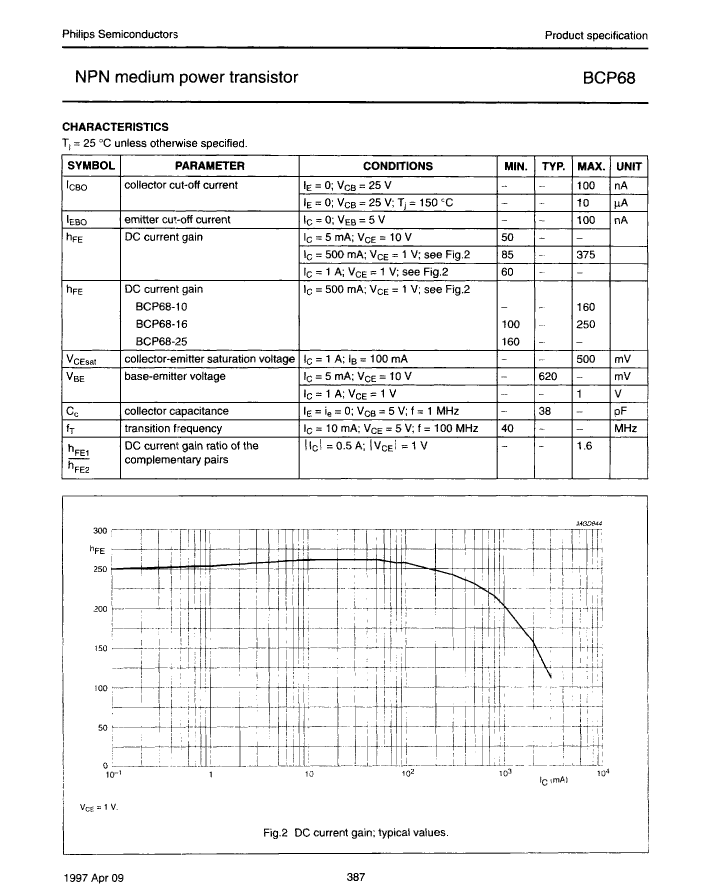

BCP68TRL Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BCP68TRL Related Products

	BCP68TRL	BCP68-16	BCP68-16T/R	BCP68-10	BCP68-10T/R
Description	TRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 1 A, 20 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power
Maker	NXP	NXP	NXP	NXP	NXP
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	85	60	60	60	60
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Number of components	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	60 MHz	60 MHz	60 MHz	60 MHz	40 MHz
VCEsat-Max	0.5 V	0.5 V	0.5 V	0.5 V	0.5 V
package instruction	-	SMALL OUTLINE, R-PDSO-G4	SMALL OUTLINE, R-PDSO-G4	-	SMALL OUTLINE, R-PDSO-G4
Shell connection	-	COLLECTOR	COLLECTOR	COLLECTOR	COLLECTOR
