SG117A/SG217A/SG317A
SG117/SG217/SG317
1.5 AMP THREE TERMINAL
ADJUSTABLE VOLTAGE REGULATOR
DESCRIPTION
The SG117A Series are 3-terminal positive adjustable voltage
regulators which offer improved performance over the original 117
design. A major feature of the SG117A is reference voltage
tolerance guaranteed within ± 1%, allowing an overall power supply
tolerance to be better than 3% using inexpensive 1% resistors. Line
and load regulation performance has been improved as well.
Additionally, the SG117A reference voltage is guaranteed not to
exceed 2% when operating over the full load, line and power
dissipation conditions. The SG117A adjustable regulators offer an
improved solution for all positive voltage regulator requirements
with load currents up to 1.5A.
FEATURES
•
•
•
•
•
1% output voltage tolerance
0.01%/V line regulation
0.3% load regulation
Min. 1.5A output current
Available in hermetic TO-220
HIGH RELIABILITY FEATURES-SG117A/SG117
♦
Available to MIL-STD-883 and DESC SMD
♦
MIL-M38510/11704BYA - JAN117K
♦
MIL-M38510/11703BXA - JAN117T
♦
LMI level "S" processing available

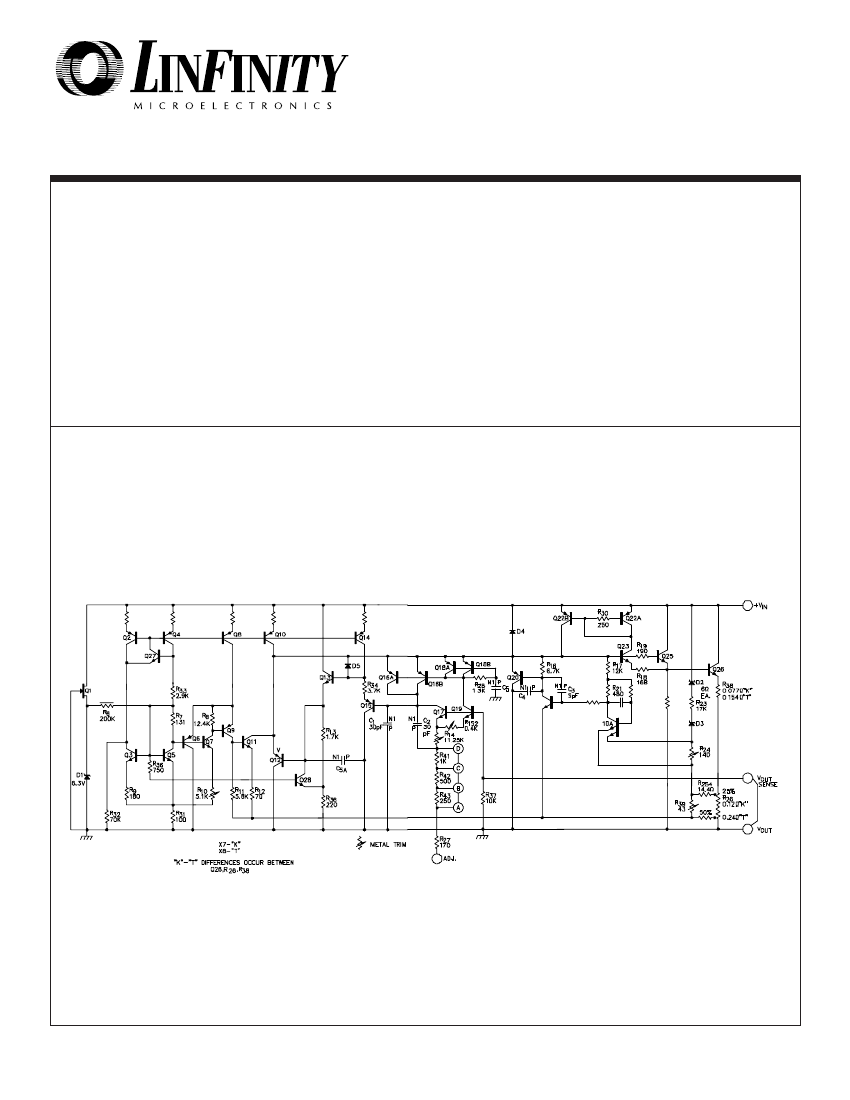

SCHEMATIC DIAGRAM
2/93 Rev 1.1 2/94
Copyright
©
1994
1
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
SG117A/SG117 SERIES
ABSOLUTE MAXIMUM RATINGS
(Note 1)
Power Dissipation ........................................ Internally Limited
Input to Output Voltage Differential ................................. 40V
Storage Temperature Range .......................... -65°C to 150°C
Note 1. Exceeding these ratings could cause damage to the device.
Operating Junction Temperature
Hermetic (K, R, T, L, IG-Packages) ............................ 150°C
Lead Temperature (Soldering, 10 Seconds) .............. 300°C
THERMAL DATA
K Package:
Thermal Resistance-
Junction to Case
,
θ
JC
................. 3.0°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
.............. 35°C/W
R Package:
Thermal Resistance-
Junction to Case
,
θ
JC
................. 5.0°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
............. 40°C/W
T Package:
Thermal Resistance-
Junction to Case
,
θ
JC
.................. 15°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
........... 120°C/W
IG Package:
Thermal Resistance-
Junction to Case
,
θ
JC
................. 3.5°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
............. 42°C/W
L Package:
Thermal Resistance-
Junction to Case
,
θ
JC
.................. 35°C/W
Thermal Resistance-
Junction to Ambient
,
θ
JA
........... 120°C/W
Note A. Junction Temperature Calculation: T
J
= T
A
+ (P
D
x
θ
JA
).
Note B. The above numbers for
θ
JC
are maximums for the limiting
thermal resistance of the package in a standard mount-
ing configuration. The
θ
JA
numbers are meant to be
guidelines for the thermal performance of the device/pc-
board system. All of the above assume no ambient
airflow.
RECOMMENDED OPERATING CONDITIONS
(Note 2 & 3)
Input Voltage Range ..............................
(V
OUT
+ 3.5V) to 37V
Operating Junction Temperature Range
SG117A/SG117 ......................................... -55°C to 150°C
SG217A/SG217 ......................................... -25°C to 150°C
SG317A/SG317 ............................................ 0°C to 125°C
Note 2. Range over which the device is functional.
Note 3. These ratings are applicable for junction temperatures of less than 150°C.
(Unless otherwise specified, these specifications apply over full operating ambient temperatures for SG117A/SG117 with -55°C
≤
T
A
≤
125°C, SG217A/
SG217 with -25°C
≤
T
A
≤
150°C, SG 317A/SG317 with 0°C
≤
T
A
≤
125°C, V
IN
- V
OUT
= 5.0V , and for I
OUT
= 500mA (K, R, and IG), and I
OUT
= 100mA
(T and L packages). Although power dissipation is internally limited, these specifications are applicable for power dissipations of 2W for the T and L
packages, and 20W for the K, R, and IG packages. I
MAX
is 1.5A for the K, R, and IG packages and 500mA for the T and L packages. Low duty cycle
pulse testing techniques are used which maintains junction and case temperatures equal to the ambient temperature.)
ELECTRICAL CHARACTERISTICS
Parameter
Reference Voltage
Test Conditions
I
OUT
= 10mA T
A
= 25°C
3V
≤
(V
IN
- V
OUT
)
≤
40V, P
≤
P
MAX
,
10mA
≤
I
OUT
≤
I
MAX
3V
≤
(V
IN
- V
OUT
)
≤
40V, I
L
= 10mA
T
A
= 25°C
T
A
= T
MIN
to T
MAX
10mA
≤
I
OUT
≤
I
MAX
V
OUT
≤
5V, T
A
= 25°C
V
OUT
≥
5V, T
A
= 25°C
V
OUT
≤
5V
V
OUT
≥
5V
T
A
= 25°C, 20ms pulse
V
OUT
= 10V, f =120Hz
C
ADJ
= 1µF, T
A
= 25°C
C
ADJ
= 10µF
10mA
≤
I
OUT
≤
I
MAX
, 2.5V
≤
(V
IN
- V
OUT
)
≤
40V
SG117A/SG217A
SG117/SG217
Min. Typ. Max. Min. Typ. Max.
1.238 1.250 1.262
1.225 1.250 1.270 1.20
0.005 0.01
0.01 0.02
5
15
0.3
0.1
50
20
1
0.3
0.002 0.02
65
80
50
0.2
1.25
0.01
0.02
5
0.1
20
0.3
0.03
65
80
50
0.2
1.30
0.02
0.05
15
0.3
50
1
0.07
Units
V
V
%/V
%/V
mV
%
mV
%
%/W
dB
dB
µA
µA
Line Regulation
(Note 4)
Load Regulation
(Note 4)
Thermal Regulation
(Note 5)
Ripple Rejection
66
66
100
5
Adjust Pin Current
Adjust Pin Current Change
100
5
2/93 Rev 1.1 2/94
Copyright
©
1994
2
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
SG117A/SG117 SERIES
ELECTRICAL CHARACTERISTICS
(continued)
Parameter
Minimum Load Current
Current Limit
Test Conditions
(V
IN
- V
OUT
) = 40V
(V
IN
- V
OUT
)
≤
15V
K, P, R, IG Packages
T, L Packages
(V
IN
- V
OUT
) = 40V, T
J
= 25°C
K, P, R, IG Packages
T, L Packages
T
A
= 125°C, 1000 Hours
T
A
= 25°C, 10Hz
≤
f
≤
10 KHz
(Note 5)
SG117/SG217
SG117A/SG217A
Min. Typ. Max. Min. Typ. Max.
5
3.5
3.5
5
1.5
0.5
0.3
0.15
2.2
0.8
0.4
0.2
1
0.3
0.001
1.5
0.5
0.3
0.15
2
1
2.2
0.8
0.4
0.2
1
0.3
0.001
Units
mA
A
A
A
A
%
%
%
Temperature Stability
(Note 5)
Long Term Stability
(Note 5)
RMS Output Noise (% of V
OUT
)
1
Parameter
Reference Voltage
Test Conditions
I
OUT
= 10mA T
A
= 25°C
3V
≤
(V
IN
- V
OUT
)
≤
40V, P
≤
P
MAX
,
10mA
≤
I
OUT
≤
I
MAX
3V
≤
(V
IN
- V
OUT
)
≤
40V, I
L
= 10mA
T
A
= 25°C
T
A
= T
MIN
to T
MAX
10mA
≤
I
OUT
≤
I
MAX
V
OUT
≤
5V, T
A
= 25°C
V
OUT
≥
5V, T
A
= 25°C
V
OUT
≤
5V
V
OUT
≥
5V
T
A
= 25°C, 20ms pulse
V
OUT
= 10V, f =120Hz
C
ADJ
= 1µF, T
A
= 25°C
C
ADJ
= 10µF
T
A
= 25°C
10mA
≤
I
OUT
≤
I
MAX
, 2.5V
≤
(V
IN
- V
OUT
)
≤
40V
(V
IN
- V
OUT
) = 40V
(V
IN
- V
OUT
)
≤
15V
K, P, R, IG Packages
T, L Packages
(V
IN
- V
OUT
) = 40V, T
J
= 25°C
K, P, R, IG Packages
T, L Packages
T
A
= 125°C
T
A
= 25°C, 10Hz
≤
f
≤
10KHz
(Note 5)
SG317A
SG317
Min. Typ. Max. Min. Typ. Max.
1.238 1.250 1.262
1.225 1.250 1.270 1.20
0.005 0.01
0.01 0.02
25
5
0.1
0.5
20
50
0.3
1
0.002 0.02
65
80
50
0.2
3.5
2.2
0.8
0.4
0.2
1
0.3
0.001
1.25
0.01
0.02
5
0.1
20
0.3
0.03
65
80
50
0.2
3.5
2.2
0.8
0.4
0.2
1
0.3
0.001
1.30
0.04
0.07
25
0.5
70
1.5
0.07
Units
V
V
%/V
%/V
mV
%
mV
%
%/W
dB
dB
µA
µA
mA
A
A
A
A
%
%
%
Line Regulation
(Note 4)
Load Regulation
(Note 4)
Thermal Regulation
(Note 5)
Ripple Rejection
66
66
100
5
10
1.5
0.5
0.15
.075
2
1
Adjust Pin Current
Adjust Pin Current Change
Minimum Load Current
Current Limit
100
5
10
1.5
0.5
0.15
.075
Temperature Stability
(Note 5)
Long Term Stability
(Note 5)
RMS Output Noise (% of V
OUT
)
1
Note 4. Regulation is measured at constant junction temperature, using pulse testing with a low duty cycle. Changes in output voltage due to
heating effects are covered under the specification for thermal regulation.
Note 5. These parameters, although guaranteed, are not tested in production.
2/93 Rev 1.1 2/94
Copyright
©
1994
3
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
SG117A/SG117 SERIES

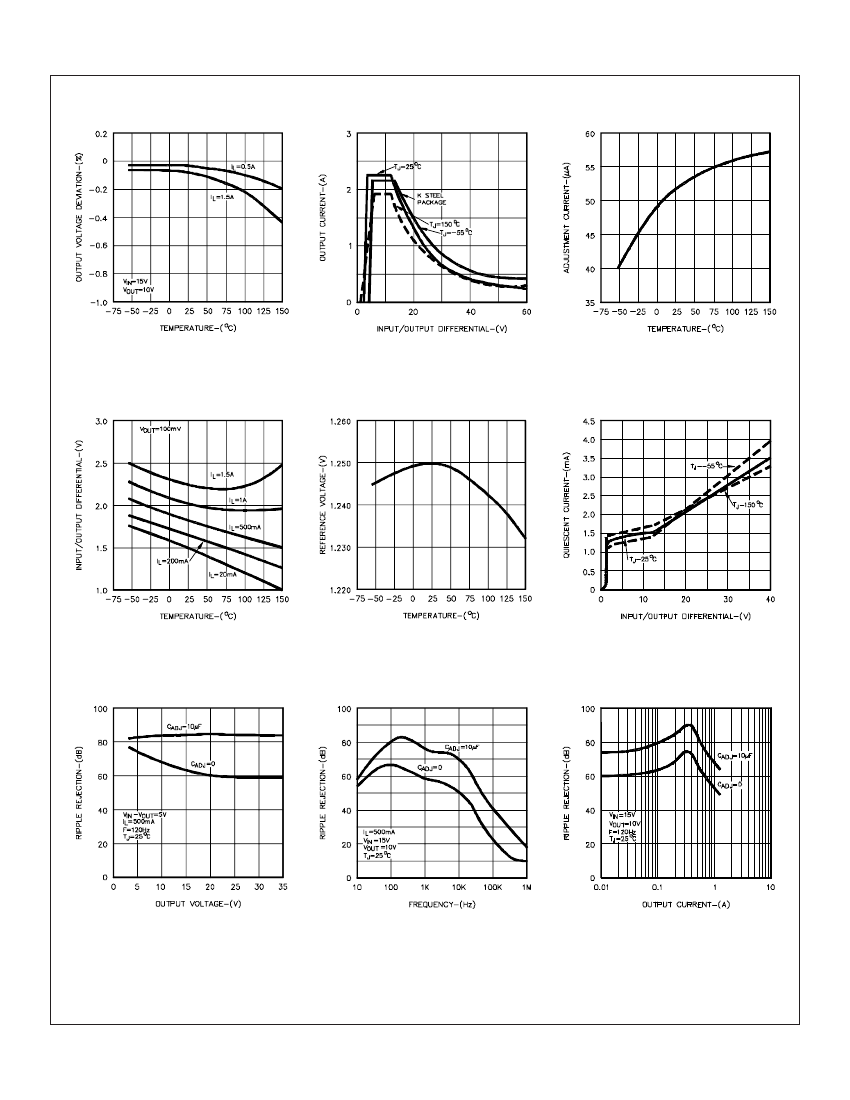

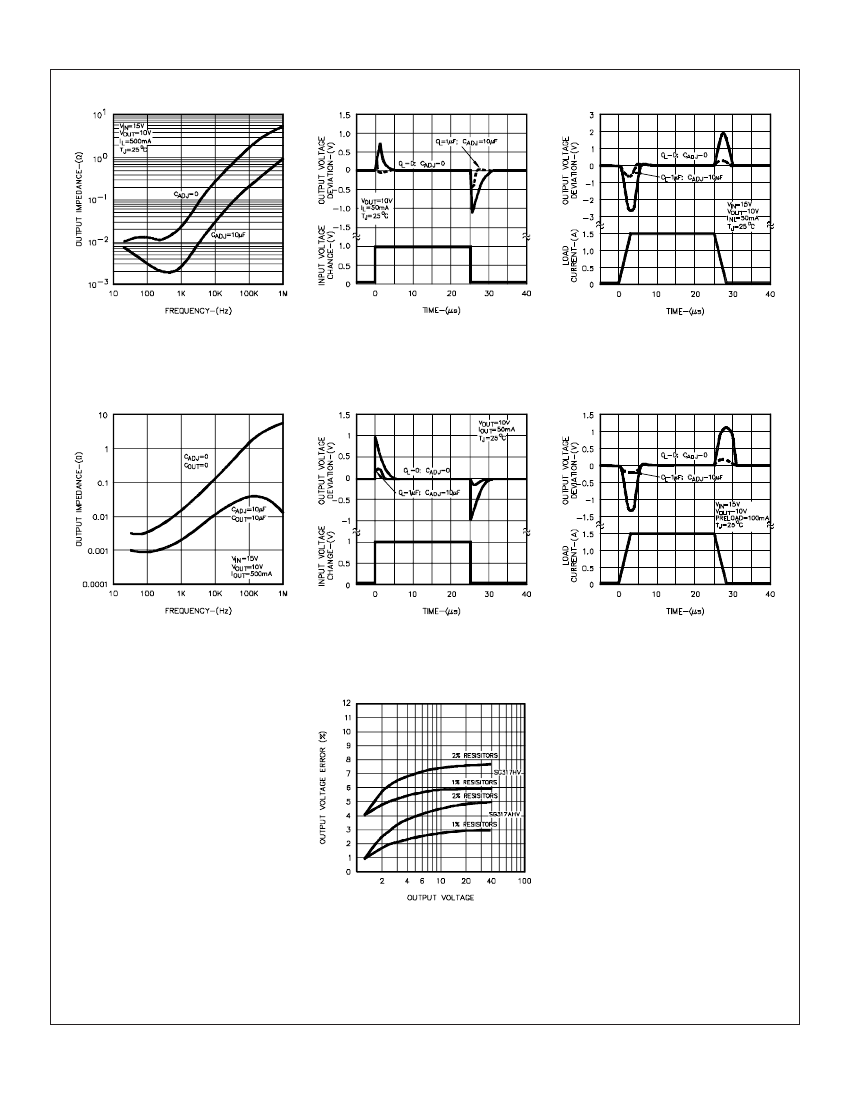

CHARACTERISTIC CURVES
FIGURE 1.
OUTPUT VOLTAGE DEVIATION VS. TEMPERATURE
FIGURE 2.
OUTPUT CURRENT VS. INPUT/OUTPUT
DIFFERENTIAL
FIGURE 3.
ADJUSTMENT CURRENT VS. TEMPERATURE
FIGURE 4.
INPUT/OUTPUT DIFFERENTIAL VS. TEMPERATURE
FIGURE 5.
REFERENCE VOLTAGE VS. TEMPERATURE
FIGURE 6.
QUISCENT CURRENT VS. INPUT/OUTPUT
DIFFERENTIAL
FIGURE 7.
RIPPLE REJECTION VS. OUTPUT VOLTAGE
FIGURE 8.
RIPPLE REJECTION VS. FREQUENCY
FIGURE 9.
RIPPLE REJECTION VS. OUTPUT CURRENT
2/93 Rev 1.1 2/94
Copyright
©
1994
4
11861 Western Avenue
∞
Garden Grove, CA 92841
(714) 898-8121
∞
FAX: (714) 893-2570
L
INFINITY
Microelectronics Inc.
