M7R18TAJFREQ datasheet, PDF - EEWORLD Datasheet

M7R18TAJFREQ: DescriptionCMOS/TTL Output Clock Oscillator, 80.001MHz Min, 125MHz Max,; CategoryPassive components oscillator; File Size51KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

M7R18TAJFREQ Overview

CMOS/TTL Output Clock Oscillator, 80.001MHz Min, 125MHz Max,

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	MtronPTI
Reach Compliance Code	unknown
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	80.001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CMOS/TTL
Output load	10 TTL, 15 PF
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	5 ns
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %

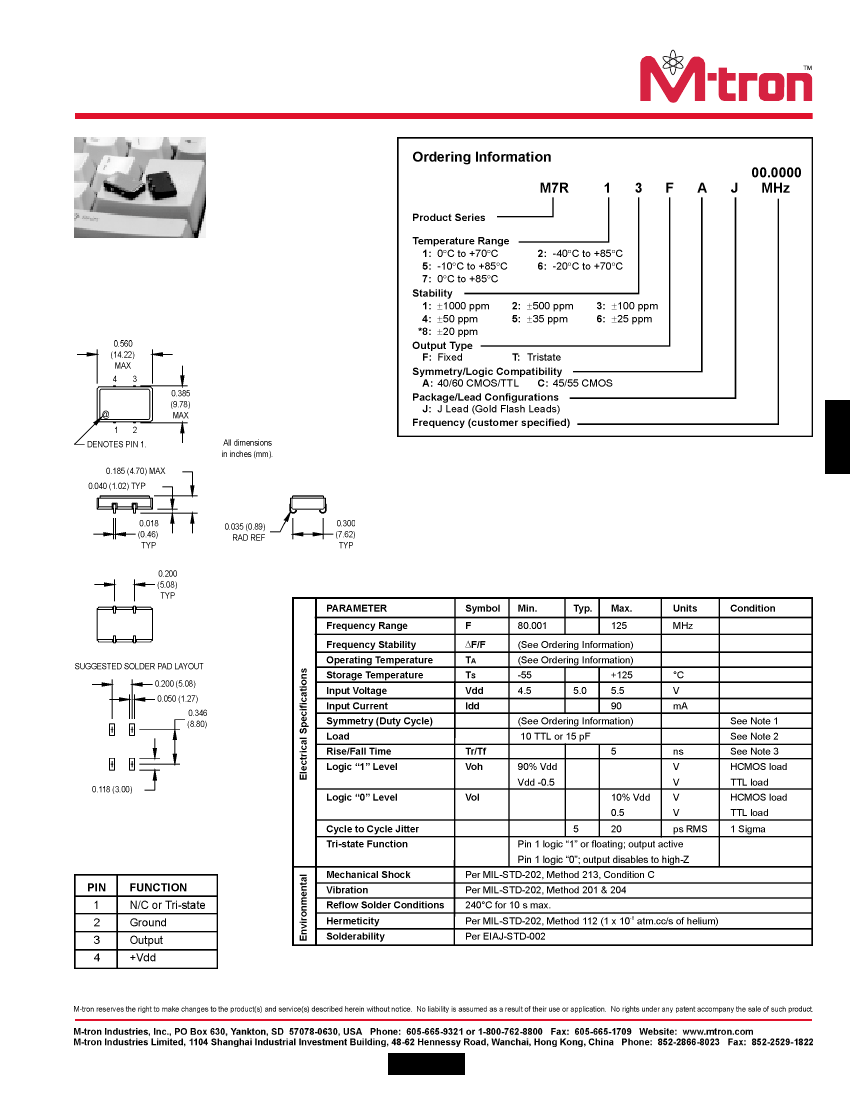

M7R Series 5.0 Volt HCMOS/TTL

Compatible Surface Mount Oscillators

These are non-PLL based high frequency

oscillators intended for applications that require

low phase jitter. For frequencies 80.000 MHz and

below, please see the M7S series.

*Consult factory for availability.

Pin Connections

1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

2. TTL load - See load circuit diagram #1 on page 92. HCMOS load - See load circuit diagram #2 on page 92.

3. Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.
