2SJ559-A

Description
100mA, 30V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET
CategoryDiscrete semiconductor    The transistor
File Size50KB,8 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

2SJ559-A Overview

100mA, 30V, P-CHANNEL, Si, SMALL SIGNAL, MOSFET

2SJ559-A Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionSMALL OUTLINE, R-PDSO-G3
Reach Compliance Codecompli
ECCN codeEAR99
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage30 V
Maximum drain current (Abs) (ID)0.1 A
Maximum drain current (ID)0.1 A
Maximum drain-source on-resistance23 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-G3
JESD-609 codee6
Number of components1
Number of terminals3
Operating modeENHANCEMENT MODE
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typeP-CHANNEL
Maximum power dissipation(Abs)0.2 W
Certification statusNot Qualified
surface mountYES
Terminal surfaceTin/Bismuth (Sn98Bi2)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Base Number Matches1
DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SJ559
P-CHANNEL MOS FIELD EFFECT TRANSISTOR
FOR HIGH SPEED SWITCHING
DESCRIPTION
The 2SJ559 is a switching device which can be driven directly
by a 2.5 V power source.
The 2SJ559 has excellent switching characteristics, and is
suitable for use as a high-speed switching device in digital
circuits.
PACKAGE DRAWING (Unit : mm)
0.3 ± 0.05
0.1
+0.1
–0.05
1.6 ± 0.1
0.8 ± 0.1
D
0 to 0.1
G
0.2
0.5
+0.1
–0
FEATURES
Can be driven by a 2.5 V power source.
Low gate cut-off voltage.
S
0.5
0.6
0.75 ± 0.05
1.0
1.6 ± 0.1

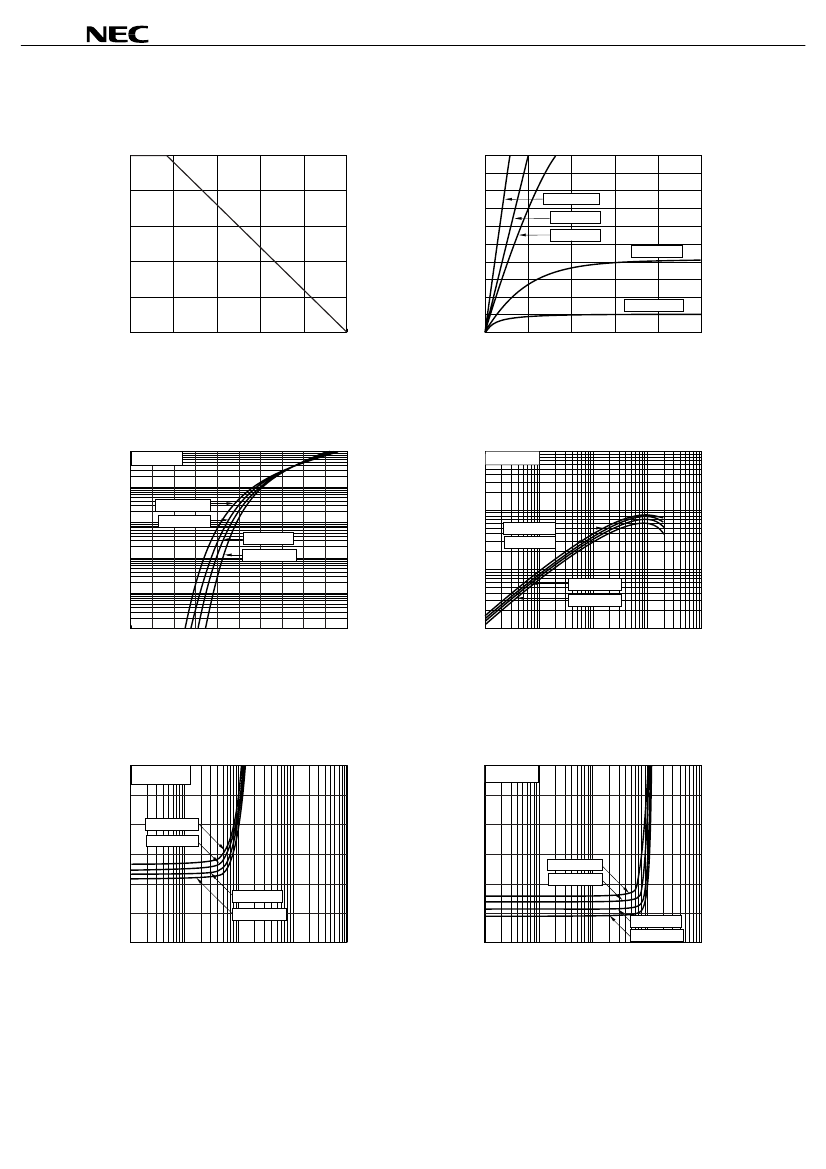

ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
Drain to Source Voltage
Gate to Source Voltage
Drain Current (DC)
Drain Current (pulse)
Note1
Note2
V
DSS
V
GSS
I
D(DC)
I
D(pulse)
P
T
T
ch
T
stg
–30
V
V
A
A
mW
°C
°C
EQUIVALENT CIRCUIT
Drain
#
20
#
0.1
#
0.4
200
150
–55 to +150
Total Power Dissipation
Channel Temperature
Storage Temperature
Gate
Gate Protect
Diode
Source
Internal Diode
Notes 1.
PW
10
µ
s, Duty Cycle
1 %
2
2.
Mounted on ceramic substrate of 3.0cm
Remark
×
0.64 mm
Marking : C1
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage
exceeding the rated voltage may be applied to this device.
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No.
D13801EJ1V0DS00 (1st edition)
Date Published June 1999 NS CP(K)
Printed in Japan
©
1999
