2000 ± 30mm
4
REV.
B
REVISION
DESCRIPTION
Updated Specifications
DATE
02-15-17
APPROVED
LY
4
CN1
2
1
3
CN2
5.5 ±
0.3
0.1
5.5 ±
0.3
0.1

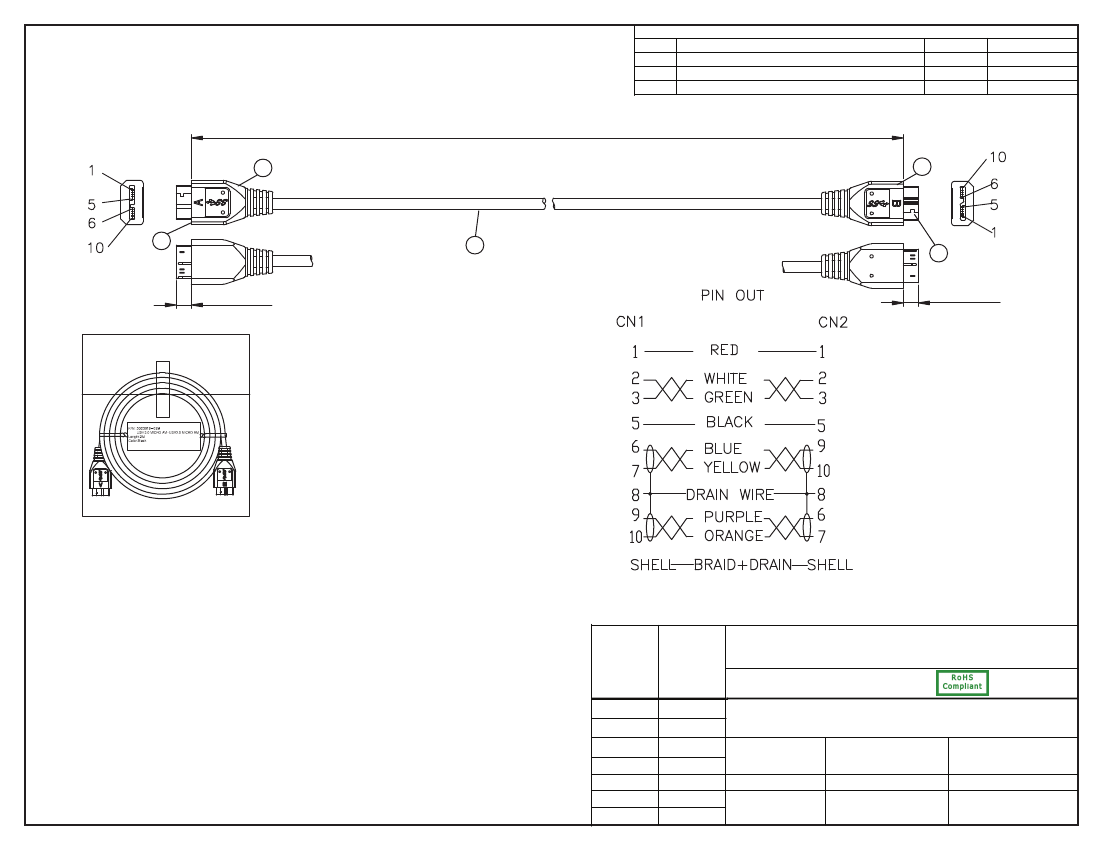

NOTES:
1. CABLE: UL20276
(30AWG*1PR+EAM)*2C+30AWG*1PR+24AWG*2C+AEB (AL) 65%
OUTER JACKET: BLACK, OD: 5.5 ± 0.2mm
2. CONNECTOR: MICRO USB 3.0 A TYPE MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
3. CONNECTOR: MICRO USB 3.0 B TYPE MALE
INSULATOR: BLACK
PIN G/F
NICKEL PLATED SHELL
4. PVC MOLDED: 45P BLACK
5. ELECTRICAL TEST:
<1>.100% OPEN SHORT & MISS WIRE TEST
<2>. INSULATION RESISTANCE: DC300V 20M ohm MIN.
<3>. CONDUCTOR RESISTANCE: 2 ohm MAX.
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3023019-02M
MICRO USB 3.0 A/M - MICRO USB 3.0 B/M
UNIT: mm
REV. B
Approved / Date
LY / 06-25-10
Drawn / Date
R.Nuti
06-25-10
Checked / Date
06-25-10
