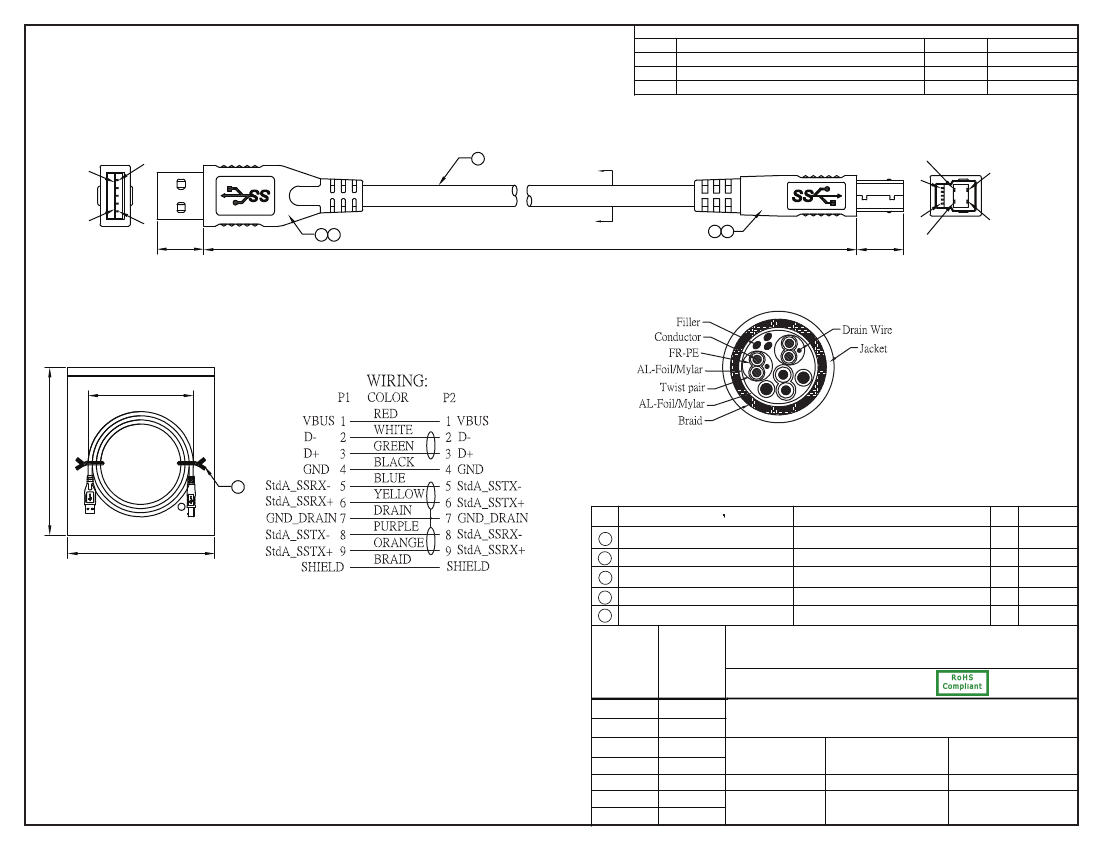

THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REV.
REVISION
DESCRIPTION
DATE
APPROVED
4
5
P1
1
A
P2
2
5
9
1
3
1
9
24
12 ± 0.3
3000 ± 30
A
34
12 ± 0.3
4
110 ± 10
8”
A-A
5
No.
1
CABLE
USB3.0 A M 9PIN GOLD PLATED
USB3.0 B M 9PIN GOLD PLATED
PVC
CABLE TIE
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Drawn / Date
R.Nuti
06-25-10
PARTS NAME
CONTROLLED
SPECIFICATION STANDARD
UL 20276 O.D. 5.5mm COLOR: BLACK
30U” SHELL NICKEL PLATED INSULATOR BLUE
30U” SHELL NICKEL PLATED INSULATOR BLUE
QTY REMARKS
1
1
1
14
2
g
6”
2
3
4
5
45P PVC BLACK
L=9cm COLOR: BLACK
NOTES:
1. CABLE: UL20276
(1Px30AWG+D+AL+MY)x2C+1Px30AWG+2Cx24AWG+AL+B
OUTER JACKET: BLACK, O.D.: 5.5mm
2. CONNECTORS: USB 3.0 A MALE TO USB 3.0 B MALE
3. HOOD: MOLDED TYPE, COLOR: BLACK
4. PACKING: 1PC/POLYBAG
5. RoHS COMPLIANT
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3023027-03M
USB 3.0 A/M - USB 3.0 B/M
UNIT: mm
Checked / Date
06-25-10
Approved / Date
LY / 06-25-10
