78HF01GW

Description
Slide Dip Switch, 1 Switches, DPST, On-off, Latched, 0.15A, 30VDC, Solder Terminal, Surface Mount-straight
CategoryMechanical and electronic products    switch
File Size51KB，1 Pages
ManufacturerGrayhill
Websitehttp://www.grayhill.com
Download Datasheet Parametric Compare View All

78HF01GW Overview

Slide Dip Switch, 1 Switches, DPST, On-off, Latched, 0.15A, 30VDC, Solder Terminal, Surface Mount-straight

78HF01GW Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerGrayhill
Reach Compliance Codenot_compliant
ECCN codeEAR99
Actuator angle
Actuator colorNATURAL
Actuator length0.027 inch
Actuator materialTHERMOPLASTIC
Actuator typeSLIDE
Other featuresTAPE AND REEL PACKAGING
body width9.65 mm
Body colorNATURAL
body height6.81 mm
Body length or diameter7.1 mm
center contact materialBRASS
Center contact platingGOLD OVER NICKEL
Maximum contact current (DC)0.15 A
Contact (DC) maximum rated R load.15A@30VDC
Contact functionON-OFF
Contact resistance0.1 mΩ
contact timeMAKE-BEFORE-BREAK
Maximum contact voltage (DC)30 V
Dielectric withstand voltage500VRMS V
Electrical life10000 Cycle(s)
End contact materialCOPPER ALLOY
End contact platingGOLD OVER NICKEL
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
JESD-609 codee0
Manufacturer's serial number78H
Installation featuresSURFACE MOUNT-STRAIGHT
Number of positions1
Number of switching segments1
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
method of packingTUBE
SolderabilityMIL-STD
surface mountNO
Switch actionLATCHED
switch functionDPST
Switch typeSLIDE DIP SWITCH
Terminal surfaceTin/Lead (Sn/Pb)
Terminal materialCOPPER ALLOY
Termination typeSOLDER
WashabilitySOLVENT

Preview

Download Datasheet

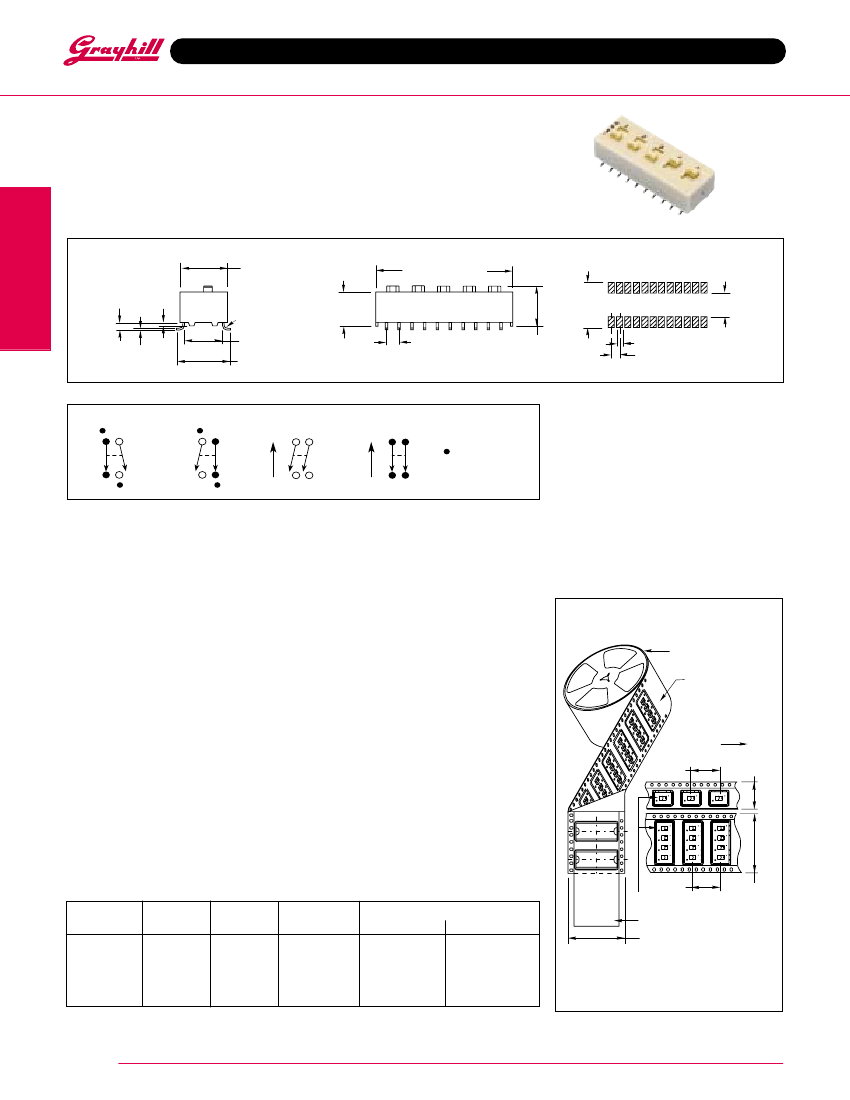

Surface Mount DIP Switches
SERIES 78H
SPDT and DPST
FEATURES
• Compatible with SMT Assembly
Including Infrared Reflow and
Vapor-Phase
• Reliable Spring and Ball Contact
DIMENSIONS
DIP Switches
In inches (and millimeters)
Recommended PC Pad Dimensions
LENGTH ± .010 (0,25)
SEE ORDER INFO
.530
(13,46)
TYP.
.100 ± .005
(2,54 ± 0,13) TYP.
.295 + .000 – .020
(7,49 – 0,51)
C C
L L
.070 (1,78) TYP.
.100 (2,54) TYP.
.280 (7,11)
TYP.
SPDT, DPST, Top Actuated, Slide Operated
.380 ± .010
(9,65 ± 0,25)
.023
.055 ± .010 (5,84)
(1,40 ± 0,25) REF.
.025 (0,64) R.
.303 ± .015
(7,70 ± 0,38)
.424 ± .015
(10,77 ± 0,38) TYP.
.268 ± .010
(6,81 ± 0,25)
.012 ± .001
(0,30 ± 0,03)
TYP.
C C
L L
CIRCUITRY
SPDT
2 Circuits (no common)
1
1
ON
DPST
1
ON
Materials and Finishes
1
Dot indicates
active circuit.
OFF
ON
SPECIFICATIONS
Electrical Ratings
Make-and-break Current Rating:
10,000
operations per switch position at 1 mA, 5 Vdc;
50 mA, 30 Vdc; or 150 mA, 30 Vdc
Contact Resistance:
Initial: 30 mohms max.
After Life: 100 mohms max. (10 mA at 50 Vdc,
open circuit)
Insulation Resistance:
Minimum, at 100 Vdc
between adjacent closed contacts and also across
open switch contacts. Initial: 2,000 Mohms; After
Life: 1,000 Mohms
Dielectric Strength:
Minimum voltage (AC,
RMS) measured between adjacent closed
contacts and also across open switch contacts.
Initial: 750 volts; After Life: 500 volts
Current Carry Rating:
4 amps, maximum rise of
20°C
Switch Capacitance:
2 pF at 1megahertz
Terminal Strength:
Per specification
Thermal Aging:
1,000 hours at 85°C; no failures
Thermal Shock:
Per specification; no failures;
passes contact resistance
Shorting Member:
Brass, gold-plated
over nickel barrier.
Base Contacts:
Copper alloy, gold-plated
over nickel barrier.
Terminals:
Copper alloy, solder-plated over
nickel barrier.
Non-Conductive Parts:
Cover is natural color
thermoplastic, actuators are white thermoplastic
(UL94V-O)
TAPE AND REEL PACKAGING
Meets requirements of EIA 481-2 or
EIA 481-3
13 INCH
DIAMETER REEL
CONDUCTIVE
PLASTIC EMBOSSED
TAPE
4
3
2
1
Environmental Ratings
Meets all requirements of MIL- S-83504. Where
Grayhill performance is superior, the MIL spec is
listed in parentheses.
Operating Temperature Range:
-40°C to + 85°C
Storage Temperature Range:
-55°C to + 85°C
Moisture Resistance:
Per specification, Method
106
4
Soldering Information
4
3
2
1
Mechanical Ratings
Mechanical Life:
20,000 operations per switch
position
Vibration Resistance:
Per method 204, Test
Condition B. 1 mS opening (10 mS allowed)
Mechanical Shock:
Per Method 213, Test
Condition A. 1 mS opening (10 mS allowed)
Solderability:
Per MIL-STD-202, Method 208
Soldering Heat Resistance:
Per MIL-S-83504,
six second test
Recommended Processing Temperature:
220°C–230°C (1 pass—260°C maximum)
Processing Position:
Switch is to be processed
with all actuators in the closed (on) position as
shipped.
DIRECTION
OF FEED
16mm
16 & 24mm
TAPE
1
1
3
2
1
4
3
2
1
4
3
2
1
4
1
2
3
4
1
2
3
4
1
2
3
4
ORDERING INFORMATION: Tube Packaging
No. of
Positions
1
2
3
4
5
Length
(inches)
0.280"
0.480"
0.680"
0.880"
1.080"
Length
(metric)
7,1 mm
12,2 mm
17,3 mm
22,4 mm
27,4 mm
Carrier Width
Dim. A
24 mm
24 mm
32 mm
44 mm
44 mm
Part Number*
SPDT
DPST
78HJ01GW
78HJ02GW
78HJ03GW
78HJ04GW
78HJ05GW
78HF01GW
78HF02GW
78HF03GW
78HF04GW
78HF05GW
16mm
PIN ONE LOCATION
COVER TAPE
32 & 44mm
TAPE
DIM. A (SEE ORDER INFO.)
Each reel has a 15.750 inch (390 mm)
minimum leader and a 6.30 inch (160 mm)
minimum trailer.
* Add "R" to the Grayhill part number for tape and reel packaging (500 switches/reel).
Available from your local Grayhill Distributor.
For prices and discounts, contact a local Sales
Office, an authorized local Distributor or Grayhill.
B-7
Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
