2000 ± 30
12 ± 0.3
110 ± 10
A-A
8”
4
No.
1
CABLE
USB3.0 A M 9PIN GOLD PLATED
OUTER JACKET
CABLE TIE
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
Drawn / Date
R.Nuti
06-25-10
PARTS NAME
CONTROLLED
SPECIFICATION STANDARD
UL 20276 O.D. 5.5mm COLOR: BLACK
30U” SHELL NICKEL PLATED INSULATOR BLUE
QTY REMARKS
1
2
20
2
g
6”
2
3
4
PVC 45Pa BLACK
L=13cm COLOR: BLACK

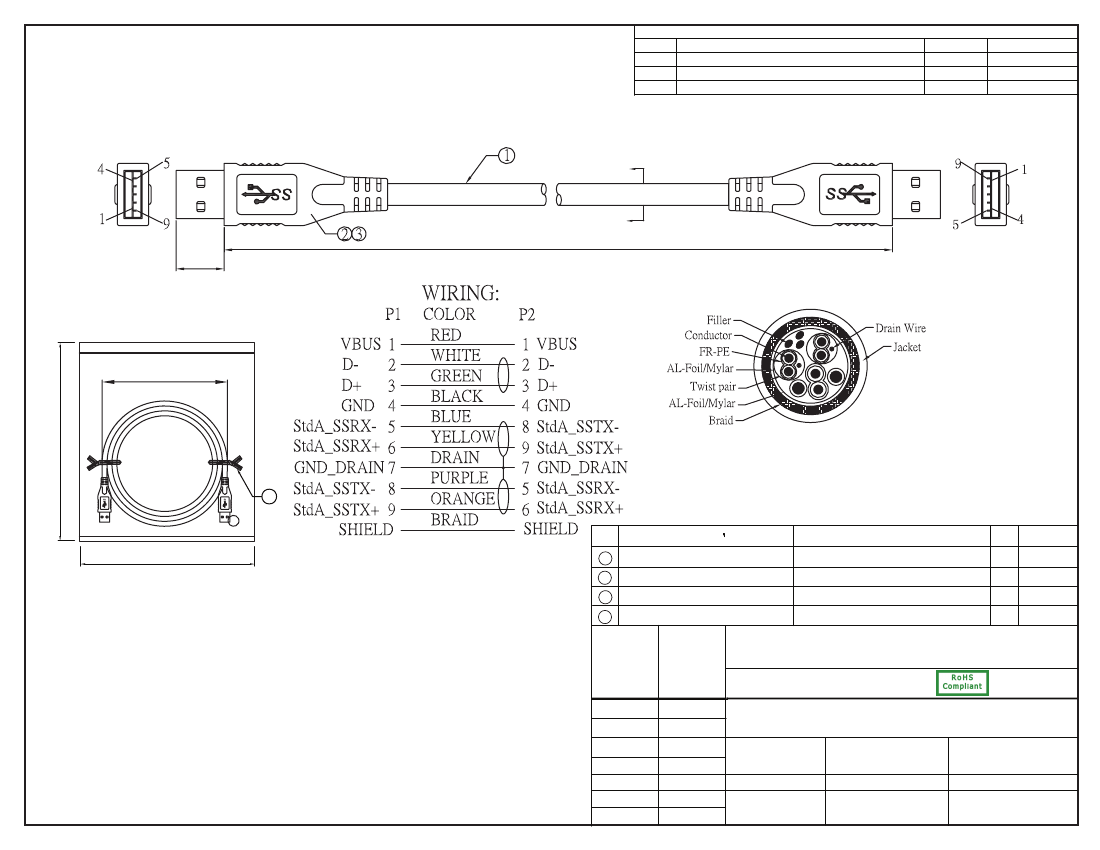

NOTES:
1. CABLE: UL20276
(1Px30AWG+D+AL+MY)x2C+1Px30AWG+2Cx24AWG+AL+B
OUTER JACKET: BLACK, O.D.: 5.5mm
2. CONNECTORS: USB 3.0 A MALE TO USB 3.0 A MALE
3. HOOD: MOLDED TYPE, COLOR: BLACK
4. PACKING: 1PC/POLYBAG
5. RoHS COMPLIANT
Qualtek Electronics Corp.
Part Number:
Description:
WCI DIVISION
3023013-02M
USB 3.0 A/M - USB 3.0 A/M
UNIT: mm
Checked / Date
06-25-10
Approved / Date
LY / 06-25-10
