2NBS8RG3221331LF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> 2NBS8RG3221331LF

2NBS8RG3221331LF: DescriptionRESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT; CategoryPassive components The resistor; File Size348KB，4 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2NBS8RG3221331LF Overview

RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT

2NBS8RG3221331LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DUAL TERMINATOR
Component power consumption	0.1 W
The first element resistor	220 Ω
JESD-609 code	e3
Manufacturer's serial number	2NBS
Installation features	SURFACE MOUNT
Network Type	TERMINATOR
Number of components	2
Number of functions	6
Number of terminals	8
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
Rated power dissipation(P)	0.6 W
Rated temperature	70 °C
Resistor type	ARRAY/NETWORK RESISTOR
Second/last element resistor	330 Ω
surface mount	YES
technology	THIN FILM
Temperature Coefficient	100 ppm/°C
Temperature coefficient tracking	25 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	GULL WING
Tolerance	2%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Applications

■

RoHS compliant*

Multiple SCSI termination resistors

Stable thin-film-on-silicon technology

Ultra-miniature packages to JEDEC

standards

Single-ended SCSI termination

SCSI host adaptor cards

All SCSI bus devices

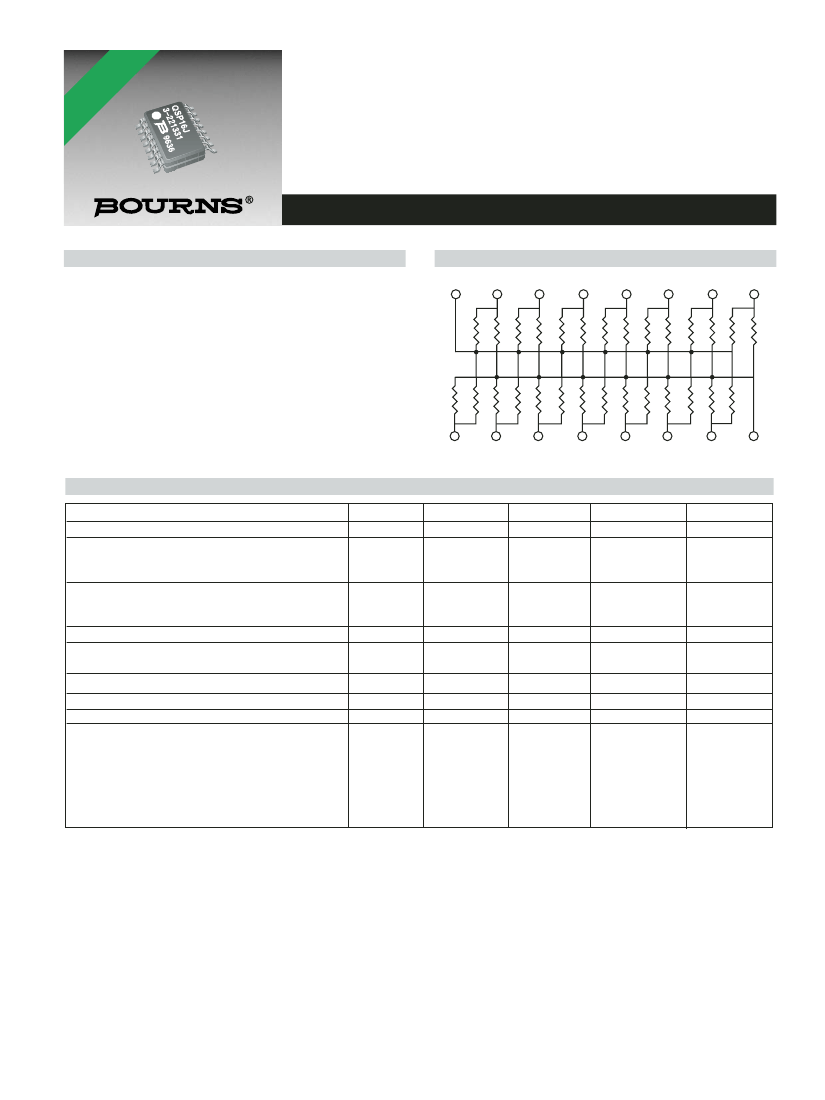

Thin Film on Silicon 2QSP / 2NBS-XX3 Dual Terminator

General Information

Package Schematic

Dual Terminator networks are used to correctly terminate

single-ended SCSI bus lines. The standard R1, R2 combina-

tion ensures that the high frequency component of a signal

transition will see an impedance at the termination equal to

the characteristic impedance of the line. Fabricated with

Tantalum Nitride on Silicon, these resistors feature excellent

stability, TCR and tracking performance. The JEDEC

standard miniature packages offer the most space-efficient

Dual Terminator resistor array available.

R1 R2

Electrical & Environmental Characteristics

Electrical Characteristics

Resistance Range

Tolerance:

Absolute

Ratio

TCR:

Absolute

Tracking

Operating Voltage

Symbol

Minimum

220

±1 %

±0.5 %

Nominal

Maximum

750

±5 %

±2 %

Unit

Ω

ppm/°C

100

-55

-65

°C

Watt

Environmental Characteristics

ESD

Operating Temperature

Storage Temperature

Power Rating per Resistor @ 70 °C

Power Rating per Package @ 70 °C:

QSOP:

16 Pin

20, 24 Pin

28 Pin

NBSOIC: 8 Pin

14, 16 Pin

Tstg

+125

+150

0.1

0.75

1.00

1.12

0.60

1.00

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

2NBS8RG3221331LF Related Products

	2NBS8RG3221331LF	2NBS8RF3221331LF	2NBS8RJ3221331LF	2NBS8TF3221331LF	2NBS8TG3221331LF	2NBS8TJ3221331LF
Description	RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT	RESISTOR, NETWORK, FILM, TERMINATOR, 0.6W, SURFACE MOUNT, SOIC, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	DUAL TERMINATOR	DUAL TERMINATOR	DUAL TERMINATOR	DUAL TERMINATOR	DUAL TERMINATOR	DUAL TERMINATOR
Component power consumption	0.1 W	0.1 W	0.1 W	0.1 W	0.1 W	0.1 W
The first element resistor	220 Ω	220 Ω	220 Ω	220 Ω	220 Ω	220 Ω
JESD-609 code	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	2NBS	2NBS	2NBS	2NBS	2NBS	2NBS
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Network Type	TERMINATOR	TERMINATOR	TERMINATOR	TERMINATOR	TERMINATOR	TERMINATOR
Number of components	2	2	2	2	2	2
Number of functions	6	6	6	6	6	6
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH	TR, 13 INCH	TR, 13 INCH	TUBE	TUBE	TUBE
Rated power dissipation(P)	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W
Rated temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Resistor type	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR	ARRAY/NETWORK RESISTOR
Second/last element resistor	330 Ω	330 Ω	330 Ω	330 Ω	330 Ω	330 Ω
surface mount	YES	YES	YES	YES	YES	YES
technology	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM	THIN FILM
Temperature Coefficient	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C	100 ppm/°C
Temperature coefficient tracking	25 ppm/°C	25 ppm/°C	25 ppm/°C	25 ppm/°C	25 ppm/°C	25 ppm/°C
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Tolerance	2%	1%	5%	1%	2%	5%
Operating Voltage	50 V	50 V	50 V	50 V	50 V	50 V
Base Number Matches	1	1	1	1	1	1
