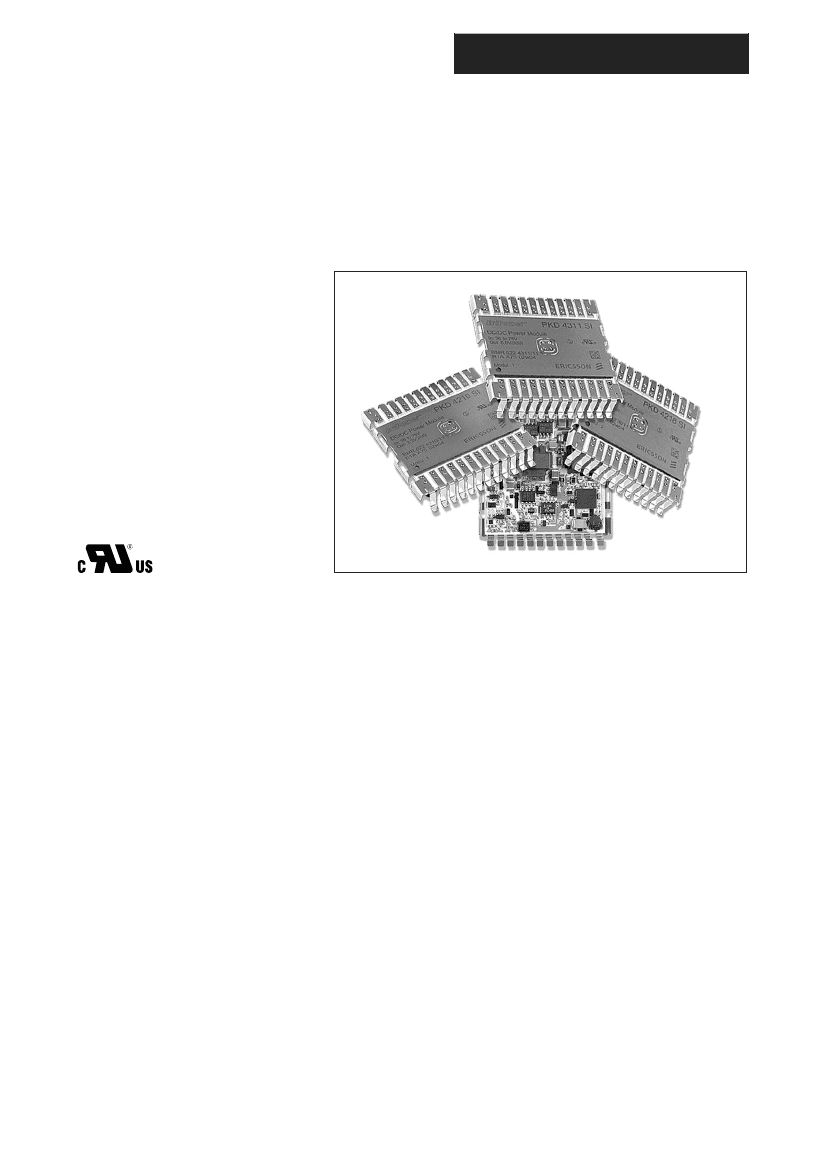

PKD 4000 SI
17- 30W DC/DC power modules
48V Input series
• Efficiency typ 89% from 30% to
full load for 3.3V converter
• Meets new and future
requirements of high temperature
reflow processes enabling lead-
free soldering
• Low profile 7.5 mm (0.295 in.)
• 1500 Vdc isolation voltage
• MTBF >590 years at +75°C case
temperature
• Full power up to +70°C ambient at
1 m/s airflow
• Complete, no extra heatsinks
required
The PKD 4000 SI series of DC/DC power modules
are intended to be used as distributed power sources
in decentralized 48/60VDC power systems. The PKD
series use a ceramic substrate with thickfilm tech-
nology and a high degree of silicon integration. That,
together with the electrical design using synchronous
rectification gives good thermal management, high
reliability and high efficiency.
The high efficiency makes it possible to operate over a
wide temperature range without a heatsink. At forced
convection cooling >200lfm (1m/s), the PKD units
can deliver full power up to +70°C ambient tempera-
ture. The high reliability and the low profile of the
PKD series makes them particularly suited for Infor-
mation Technology and Telecom (IT&T) applications
with board spacing down to 15mm (0.6 in.).
These products are manufactured using highly auto-
mated manufacturing lines with a world-class quality
commitment and a five-year warranty.
Ericsson Microelectronics AB has been an ISO 9001
certified supplier since 1991.
For product program please
reference the back cover.
E
General
Absolute Maximum Ratings
Characteristics
T
C
T
S
V
I
V
ISO
Case temperature @
max output power
1)
Storage temperature
Input voltage
Isolation voltage
(input to output test voltage)
Remote on/off voltage pin 5
Output adjust voltage pin 16
2)
SI version
SIN version
min
–45
–55
– 0.5
1500
max
+100
+125
+80
Unit
°C
°C
V dc
V dc
Safety
The PKD 4000 SI Series DC/DC power
modules are designed in accordance with
EN 60 950
Safety of information technology
equipment including electrical business
equipment,
and certified by UL.
The isolation is an operational insulation in
accordance with EN 60 950.
The PKD DC/DC power modules are re-
cognized by UL and meet the applicable re-
quirements in UL 1950
Safety of information
technology equipment,
the applicable Cana-
dian safety requirements and UL 1012
Stan-
dard for power supplies.
The DC/DC power
module shall be installed in an end-use
equipment and is intended to be supplied by
isolated secondary circuitry and shall be in-
stalled in compliance with the requirements
of the ultimate application. When the supply
to the DC/DC power module meets all the
requirements for SELV (<60Vdc), the output
is considered to remain within SELV limits
(level 3). If connected to a 60 V DC power
system reinforced insulation must be pro-
vided in the power supply that isolates the
input from the ac mains. Single fault testing
in the power supply must be performed in
combination with the DC/DC power module
to demonstrate that the output meets the
requirement for SELV. One pole of the input
and one pole of the output is to be grounded
or both are to be kept floating. The terminal
pins are only intended for connection to
mating connectors of internal wiring inside
the end-use equipment.
These DC/DC power modules may be used
in telephone equipment in accordance with
paragraph 34 A.1 of UL 1459 (Standard for
Telephone Equipment, second edition).
The isolation voltage is a galvanic isolation
and is verified in an electric strength test.
Test voltage between input and output is
1500 Vdc for 60 s. In production the test
duration may be decreased to 1 s.
The capacitor between input and output has
a value of 2.2 nF and the leakage current is
less than 1µA @ 50 Vdc. Flammability ratings
of the terminal support and internal plastic
construction details meets UL 94V-0.
V
RO
V
adj
1)
2)
– 0.5
– 0.5
– 0.5
+6
+9
2 × Voi
Vdc
Vdc
Vdc
Measured on pin 22.
V
OI
= initial output voltage setting.
Stress in excess of Absolute Maximum Ratings may cause permanent damage. Absolute
Maximum Ratings, sometimes referred to as no destruction limits, are normally tested with
one parameter at a time exceeding the limits of Output data or Electrical Characteristics.
If exposed to stress above these limits, function and performance may degrade in an
unspecified manner.
Input
T
C
< T
C max
Characteristics
V
I
V
Ioff
V
Ion
C
I
P
Ii
P
Ist-by
1)
Conditions
min
36
typ
max
75
Unit
V
V
Input voltage range
1)
Turn-off input voltage
Turn-on input voltage
Input capacitance
Input idling power
Input stand-by power
1)
I
O
=0,V
I
= 53 V
V
I
=53V
(See Operating Information)
(See Operating Information)
32
36
1.4
2.0
0.5
V
µF
W
W
With module inhibited with RC pin no 5.
Environmental Characteristics
Characteristics
Bump
IEC 68-2-29
Test Eb
Test procedure & conditions
Peak acceleration
Duration
Directions
Number of bumps
Peak acceleration
Shock duration
Temperature
Number of cycles
Case temperature
Load
Input Voltage
Duration
IEC 68-2-45 XA
Method 1
Water
Isopropyl alcohol
Glykol ether
Method
40 g
6 ms
6
1000/direction
200 g
0.5 ms
–40°C… +125°C
300
100°C
Nominal
Max
1000h
+55 ±5°C
+35 ±5°C
+35 ±5°C
with rubbing
Note:
1) The input voltage range 36...75 V meets
the requirements in the European Telecom
Standard prETS 300 132-2 for Normal input
voltage range in 48 V and 60 V DC power
systems, –40.5...–57.0 V and –50.0...–72.0 V
respectively.
Shock
(Half sinus)
Temperature
change
Operational
Lifetime test
IEC68-2-27
JESD-22-A104
(IEC 68-2-14 N
a
)
Resistance to
cleaning solvents
2
EN/LZT 146 120 R2A © Ericsson Microelectronics AB, June 2002
