BZG03C62 datasheet, PDF - EEWORLD Datasheet

BZG03C62: DescriptionSurface Mount Zener Diodes, Diodes, Single, 0.05, 62V, 10mA, 3000mW, -; File Size559KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric View All

BZG03C62 Overview

Surface Mount Zener Diodes, Diodes, Single, 0.05, 62V, 10mA, 3000mW, -

BZG03C62 Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
Parts packaging code	SMA
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	80 Ω
Number of components	1
Maximum operating temperature	150 °C
Maximum power dissipation	3 W
Nominal reference voltage	62 V
surface mount	YES
Maximum voltage tolerance	6.4%
Working test current	10 mA
category
Tolerance	0.05
VZ (V) nom.	62
Condition1_IT (mA)	10
PD (mW) max	3000
AEC Qualified	-
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	-
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Pin	-
Package Outlines	SMA

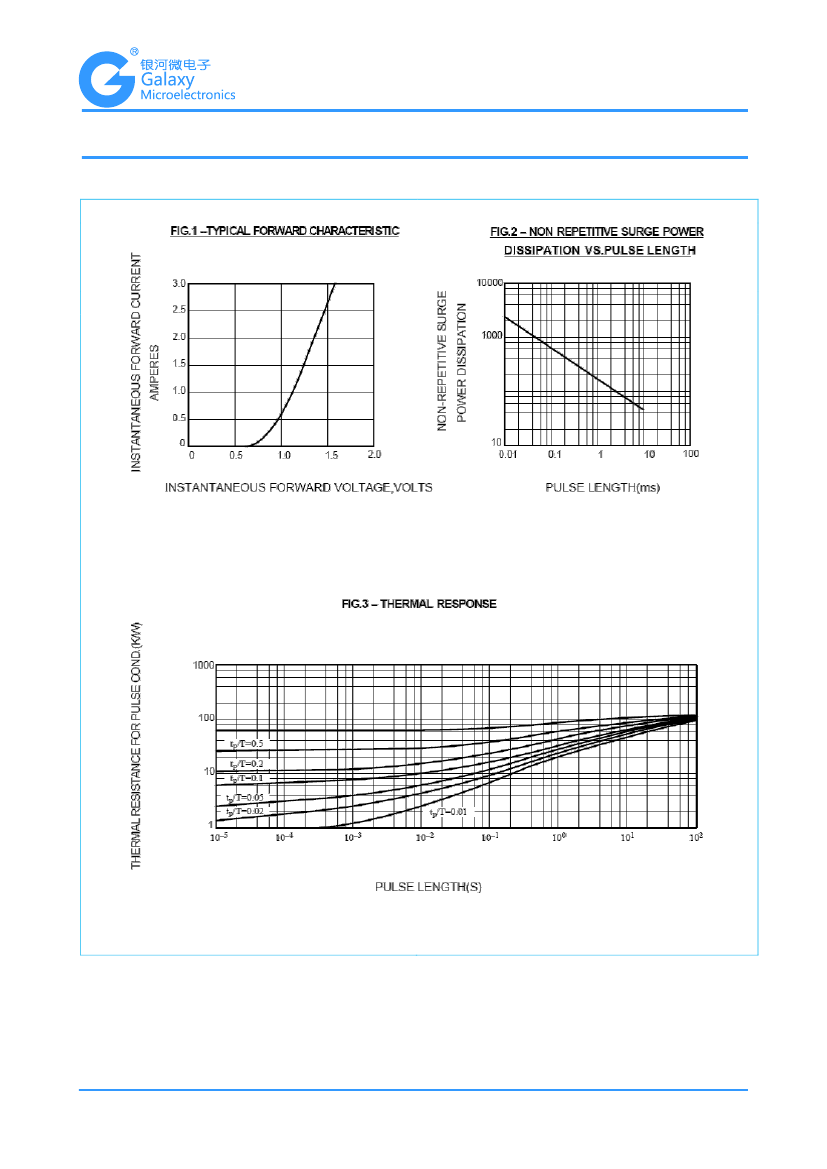

Preview

Download Datasheet

View All

Production specification

Zener Diodes

Features



High reliability

Voltage range 10 V to 270 V

Fits onto 5 mm SMD footpads

Wave and reflow solderable Glass passivated junction

Case: SMA molded plastic

Molding compound, UL flammability classification rating 94V-0

Polarity: Color band denotes cathode end

BZG03C--SERIES

Mechanical Data

Maximum Ratings

(@T

= 25°C unless otherwise specified)

Parameter

Power dissipation at Ttp=100°C

Forward voltage @I

=500mA

Maximum thermal resistance

junction to ambient

Peak reverse power dissipation(non-repetitive)

tp=100μs square wave

Junction temperature

Storage temperature range

Symbol

tot

θJA

ZSM

STG

Value

1.2

150

Units

K/W

600

65 to +150

°C

SMA502AA

Rev.B

www.gmesemi.com
