GHF10053N9K-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> GHF10053N9K-T

GHF10053N9K-T: DescriptionGeneral Purpose Inductor, 0.0039uH, 10%, 1 Element, SMD,; CategoryPassive components inductor; File Size140KB，5 Pages; ManufacturerCal-Chip Electronics; Environmental Compliance

Download Datasheet Parametric View All

GHF10053N9K-T Overview

General Purpose Inductor, 0.0039uH, 10%, 1 Element, SMD,

GHF10053N9K-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cal-Chip Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	0.22 Ω
Nominal inductance(L)	0.0039 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	8
Maximum rated current	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	MULTILAYER
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	10%

Preview

Download Datasheet

View All

Cal-Chip

EATURES

Electronics,

porated

GHF S

ERIES

Multilayer Chip Inductors For High Frequency

• Multilayer inductor made of advanced ceramics with low-resistivity

silver used as internal conductors provides excellent Q and SRF

characteristics.

• Designed to address surface mount inductor needs for applica-

tions above 100MHz.

• Multilayer block structure ensures outstanding reliability, high

productivity and product quality.

Operating Temperature

1005: -55~+125°C

1608: -40~+85°C

2125: -40~+85°C

ECOMMENDED

PPLICATIONS

• Portable telephones, PHS and pagers.

• Miscellaneous high-frequency circuits.

• EMI counter-measure in high-frequency circuits.

XTERNAL

IMENSIONS

Type

GHF1005

(0402)

GHF1608

(0603)

1.00±0.05

(0.039±0.002)

1.6±0.15

(0.063±0.006)

0.50±0.05

(0.020±0.002)

0.8±0.15

(0.031±0.006)

GHF2125

(0805)

2.0±0.3

(0.079±0.012)

1.25±0.2

(0.049±0.008)

0.50±0.05

(0.020±0.002)

0.8±0.15

(0.031±0.006)

0.85±0.2

1.0±0.2

(0.033±0.008)

(0.039±0.008)

0.25±0.10

(0.010±0.004)

0.3±0.2

(0.012±0.008)

0.5±0.3

(0.020±0.012)

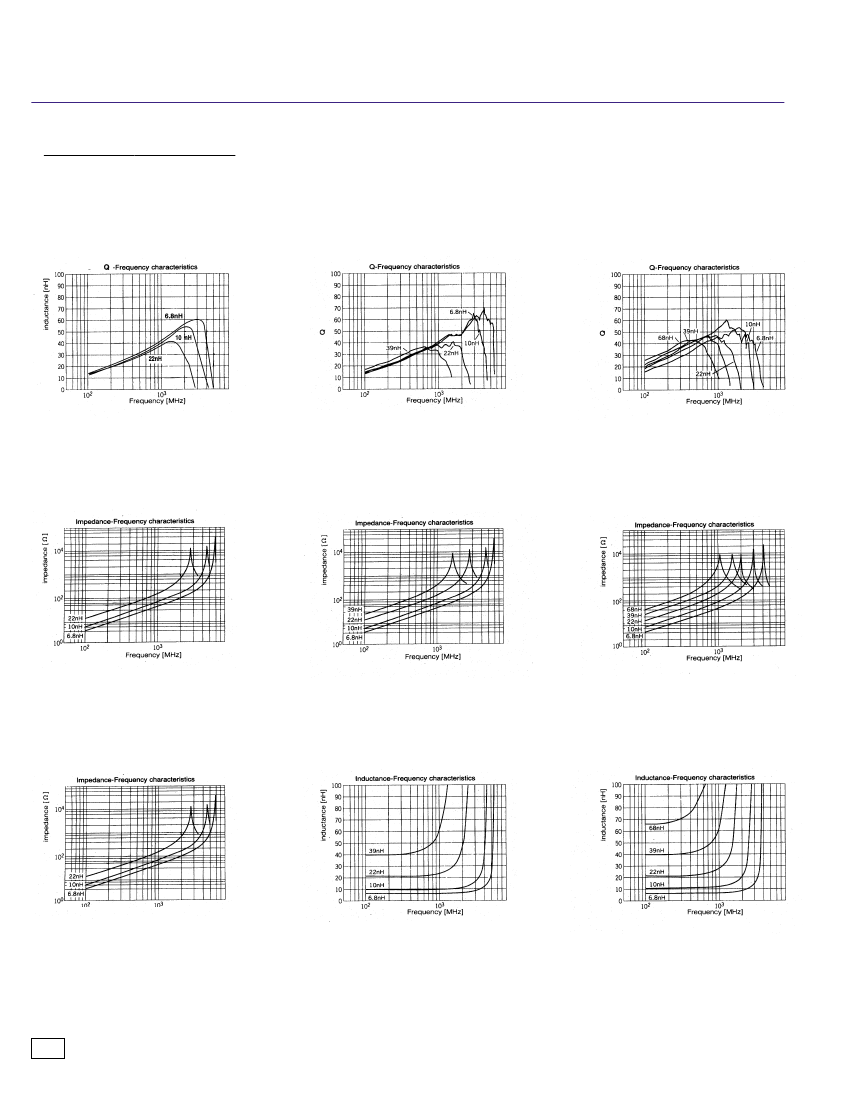

YPICAL

ALUES

Inductance

1.5nH

10.0nH

100.0nH

Imax [mA]

200

—

Rdcmax [Ω]

0.15

0.73

—

Imax [mA]

300

Rdcmax [Ω]

0.10

0.35

1.00

Imax [mA]

300

Rdcmax [Ω]

0.10

0.30

0.90

RDERING

ODE

Type - Multilayer Chip Inductors

for High Frequency

External Dimensions (LxW) (mm)

1005 (0402) - 1.0 x 0.5

1608 (0603) - 1.6 x 0.8

2125 (0805) - 2.0 x 1.25

GHF

2125

10N

J-

Packaging

T = Tape & Reel

Nominal Inductance (µH)

Example:

3N9 = 0.0039

10N = 0.01

R10 = 0.1

R12 = 0.12

Inductance Tolerance

J- = ±5

K- = ±10

R = decimal point

N = 0.0 (nH type)
