SEAM-30-03.5-SM-08-1-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> SEAM-30-03.5-SM-08-1-TR

SEAM-30-03.5-SM-08-1-TR: DescriptionBoard Stacking Connector, 240 Contact(s), 8 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size4MB，5 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

SEAM-30-03.5-SM-08-1-TR Overview

Board Stacking Connector, 240 Contact(s), 8 Row(s), Male, Straight, Surface Mount Terminal,

SEAM-30-03.5-SM-08-1-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SAMTEC
Reach Compliance Code	compliant
body width	0.478 inch
subject depth	0.28 inch
body length	1.696 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	CENTRONIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of rows loaded	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Rated current (signal)	2.7 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	240

Preview

Download Datasheet

View All

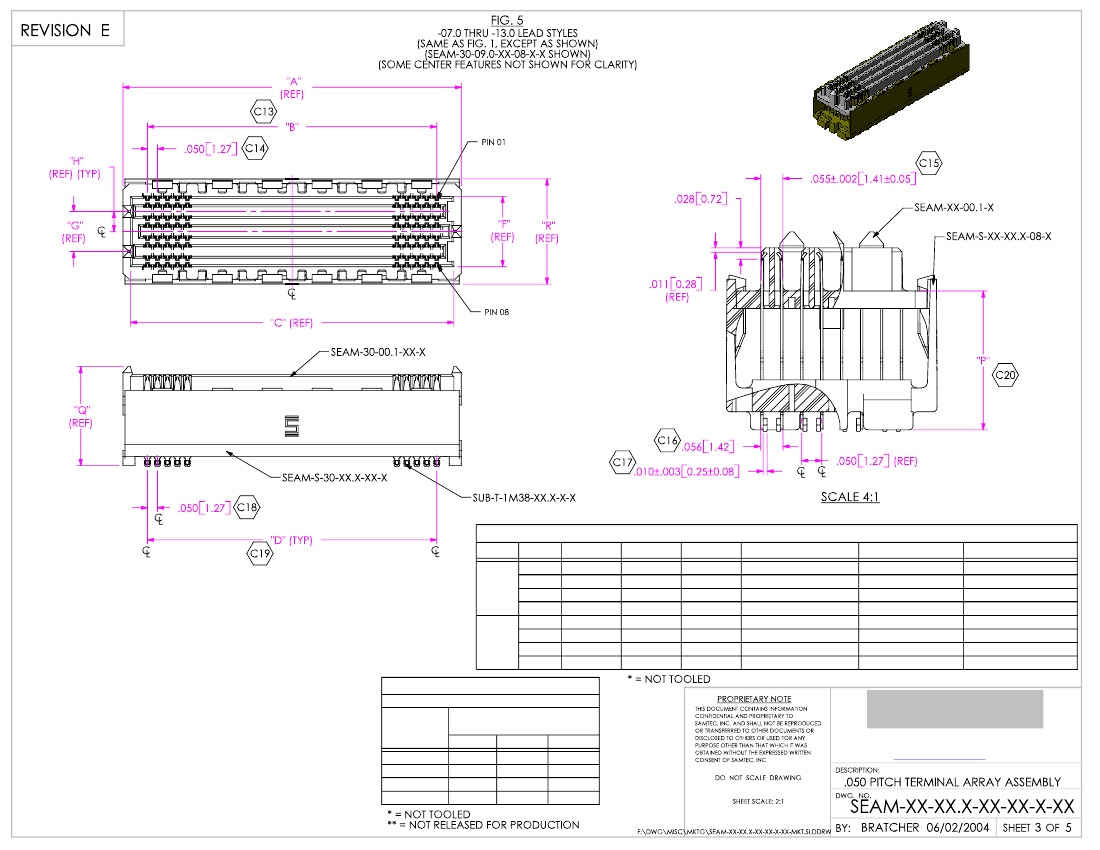

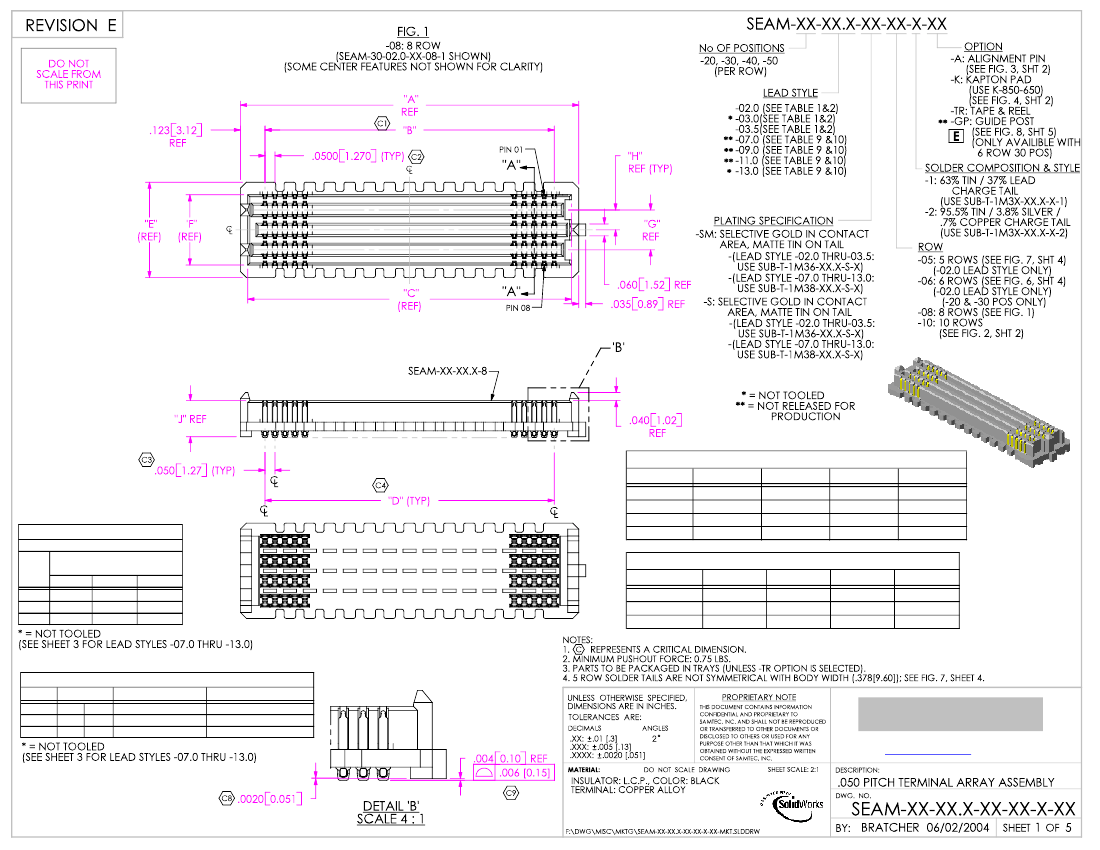

TABLE 3

No. OF POS

-20

-30

-40

-50

"A"

"B"

"C"

"D"

1.196 [30.38] .950 [24.13] 1.122 [28.50] .950 [24.13]

1.696 [43.08] 1.450 [36.83] 1.622 [41.20] 1.450 [36.83]

2.196 [55.78] 1.950 [49.53] 2.122 [53.90] 1.950 [49.53]

2.696 [68.48] 2.450 [62.23] 2.622 [66.60] 2.450 [62.23]

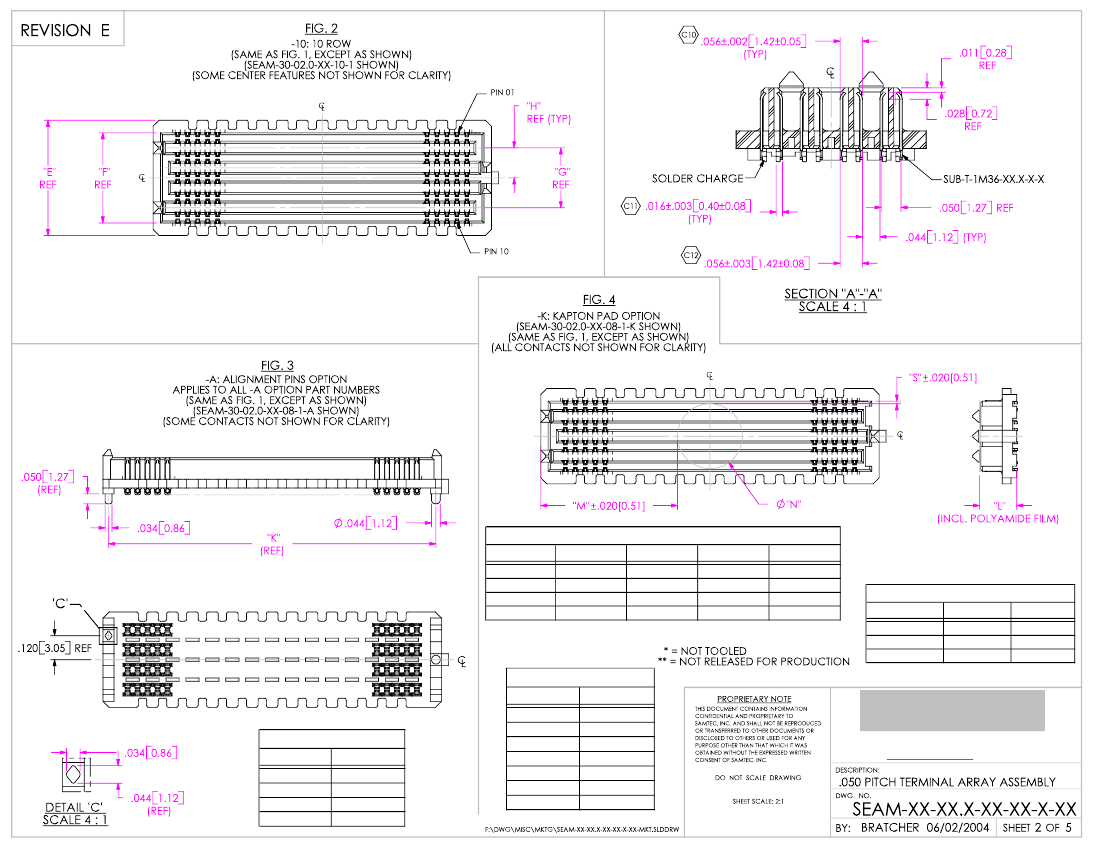

TABLE 2

STACK HEIGHT

SEAM

LEAD

STYLE

-02.0

*-03.0

-03.5

SEAF LEAD STYLE

-05.0

7mm

8mm

8.5mm

-06.0

8mm

9mm

9.5mm

-06.5

8.5mm

9.5mm

10mm

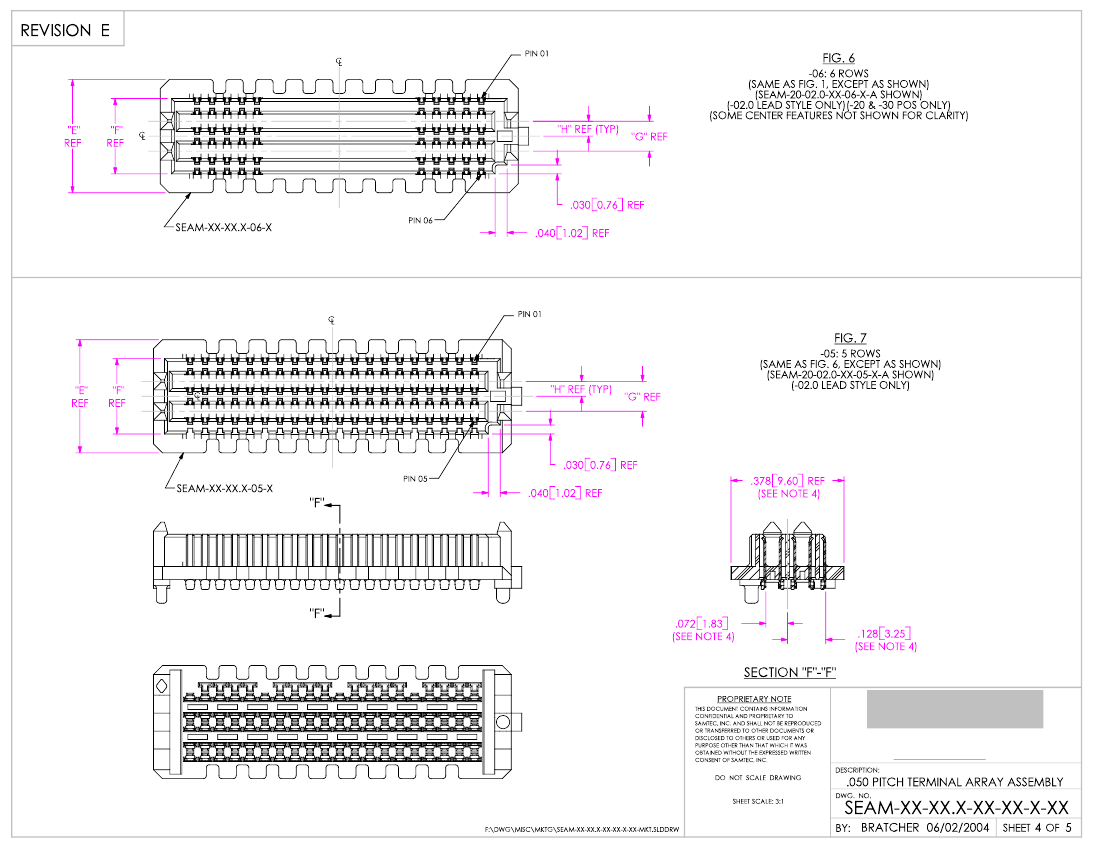

TABLE 4

No. OF ROWS

**-05, **-06

-08

-10

"E"

"F"

"G"

.100 [2.54]

.200 [5.08]

.300 [7.62]

"H"

.050 [1.27]

.100 [2.54]

.150 [3.81]

.378 [9.60] .252 [6.40]

.478 [12.14] .352 [8.94]

.578 [14.68] .452 [11.48]

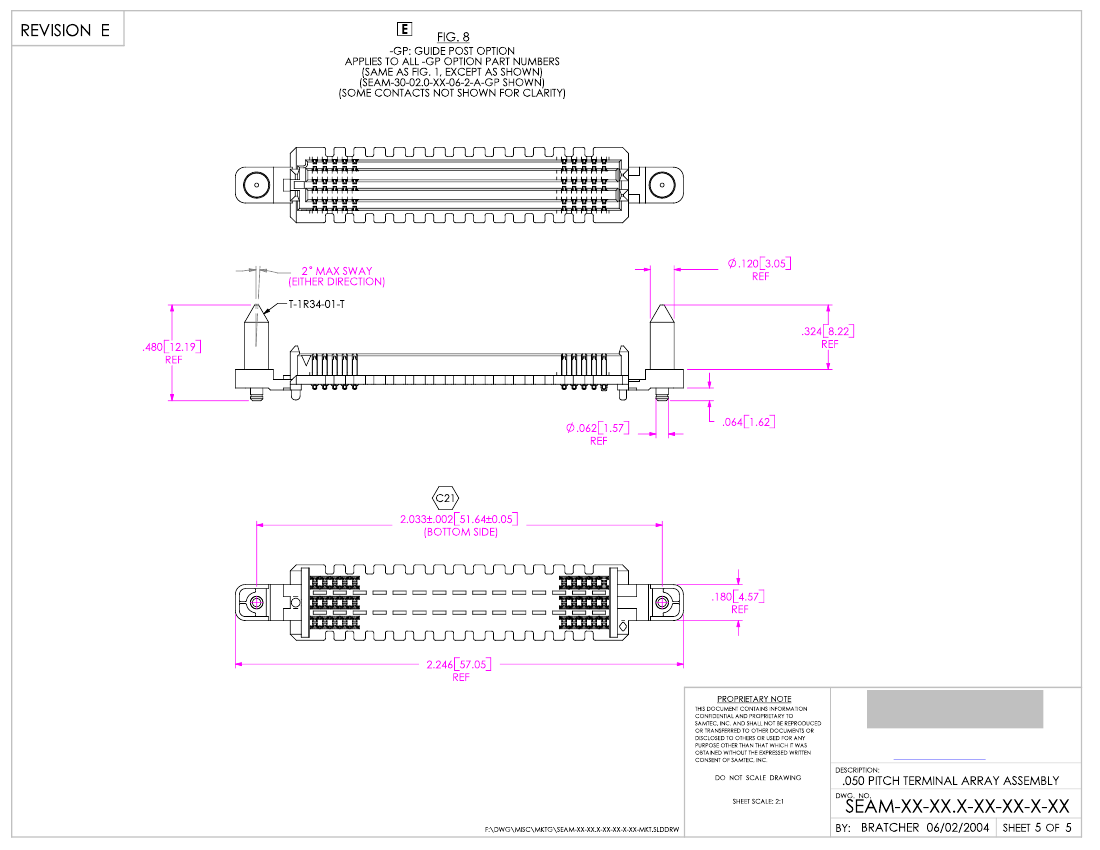

TABLE 1

STYLE

-02.0

*-03.0

-03.5

"J"

0.181 [4.60]

0.220 [5.59]

0.240 [6.10]

BODY CALLOUT

SEAM-XX-02.0-XX-X

SEAM-XX-03.0-XX-X

SEAM-XX-03.5-XX-X

TERMINAL

SUB-T-1M36-02.0-X-X

SUB-T-1M36-03.0-X-X

SUB-T-1M36-03.5-X-X

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
