RMJSV-26SH003

Description
Board Connector, 26 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT
CategoryThe connector    The connector
File Size241KB,5 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Environmental Compliance
Download Datasheet Parametric View All

RMJSV-26SH003 Overview

Board Connector, 26 Contact(s), 3 Row(s), Female, Straight, Solder Terminal, Receptacle, ROHS COMPLIANT

RMJSV-26SH003 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerITT
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresPOLARIZATION AVAILABLE
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50)
Contact completed and terminatedGOLD (50)
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberMJS
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeCABLE
Number of rows loaded3
OptionsGENERAL PURPOSE
Termination typeSOLDER
Total number of contacts26
Micro Center Jackscrew

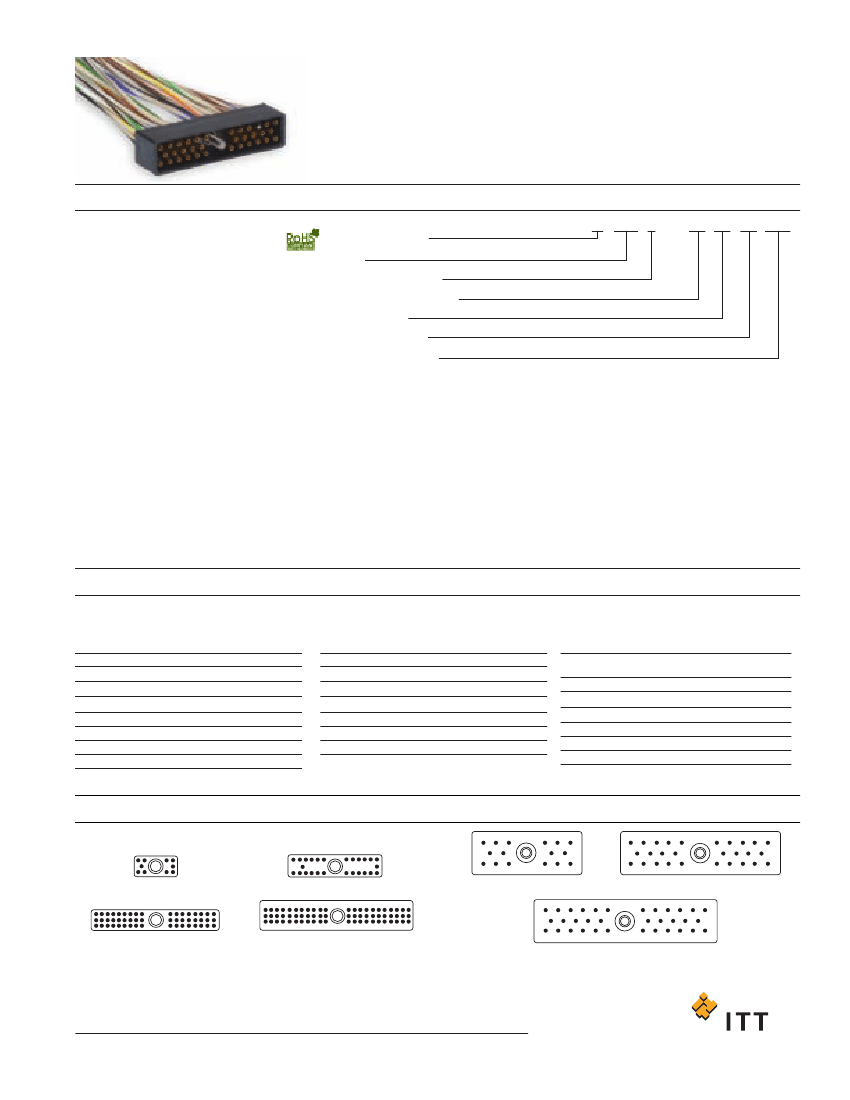

The MJS jackscrew series provides a reliable interconnect for board-to-board,
board-to-cable and in-line cable-to-cable applications. Layouts accommodating
up to 76 MICROPIN/MICROSOCKET
TM
contacts are available, with the same
wide range of options as are offered with the other MICRO Line products offered
in this catalog.
MJS
How to Order
R
RoHS COMPLIANCE
SERIES
INSULATOR MATERIAL
CONTACT ARRANGEMENT
CONTACT TYPE
TERMINATION TYPE
TERMINATION CODES
SERIES
MJS - Micro Center Jackscrew
INSULATOR MATERIAL
B - Diallyl phthalate
V - Polyester
U - Polyetherimide
R - Polyphenylene sulfide
CONTACT ARRANGEMENTS
Unshrounded Receptacle: 10, 26, 51, 66
Shrouded Receptacle; 10, 26, 34, 38, 42, 76
Low Profile Plug and Receptacle
(shrouded): 28
CONTACT TYPE
P - Pin
S - Socket
TERMINATION TYPE
H - Insulated wire harness.
I - Integral tail (MJSV-28S only).
L - Solid - uninsulated wire.
S - Solder pot to accept #26 AWG
harness wire.
T - Thru bundle pigtail (MJSV-28P only).
TERMINATION CODE*
(H) 001
- 18" , 7/34 strand, #26 AWG,
MIL-W-16878/4, Type E Teflon,
yellow.
- 18", 7/34 strand, #26 AWG,
MIL-W-16878/4, Type E Teflon,
color coded to MIL-STD-681
System I.
- 1/2" uninsulated solid #25
AWG gold plated copper.
- 1" uninsulated solid #25 AWG
gold plated copper.
MJS
*
-
26
P
H
001
(H) 003
(L) 1
(L) 2
* See Termination Codes shown below.
Standard Wire Termination Codes
The following termination codes are listed for your information. For additional codes please refer to Appendix on page 79 and 81.
All wire lengths are minimum.
Harness Type (H)
#26 AWG per MIL-W-16878/4 Type E Teflon, 7/34 stranded.
Solid Uninsulated Type (L)
#25 AWG gold plated solid copper.
Length
3 (76.2)
6 (152.4)
8 (203.2)
10 (254.0)
12 (304.8)
18 (457.2)
20 (508.0)
All Yellow
H 020
H 019
H 026
H 029
H 028
H 001
H 038
Color Coded
H 027
H 016
H 034
H 025
H 002
H 003
H 023
Length
24 (609.6)
30 (762.0)
36 (914.4)
48 (1219.2)
72 (1828.8)
120 (3048.0)
All Yellow
H 009
H 010
H 011
H 013
H 017
H 042
Color Coded
H 004
H 005
H 006
H 048
H 046
H 041
Termination
Code
L61
L56
L57
L39
L58
L1
Length
Termination
Code
L14
L2
L7
L6
L16
L10
Length
.125 (3.18)
.150 (3.81)
.190 (4.83)
.250 (6.35)
.375 (9.53)
.500 (12.70)
.750 (19.05)
1.000 (25.40)
1.500 (38.10)
2.000 (50.80)
2.500 (63.50)
3.000 (76.20)
Contact Arrangements
Face view of pin-use reverse order for socket
4
6
10
1
5
7
12
14
26
1
13
15
1
7
11
6
10
16
1
11
19
10
18
28
10 Contacts
17
34
51
1
18
35
21
44
66
26 Contacts
1
23
45
16 Contacts**
1
13
23
28 Contacts**
12
22
34
51 Contacts
66 Contacts
MJSB/MJSU (unshrouded)
34 Contacts
MJSV (shrouded)
*Low profile configuration
**MJSV & MJSR
Identification numbers are for reference only and do not appear on connectors.
Dimensions shown in inch (mm)
Specifications and dimensions subject to change
www.ittcannon.com
