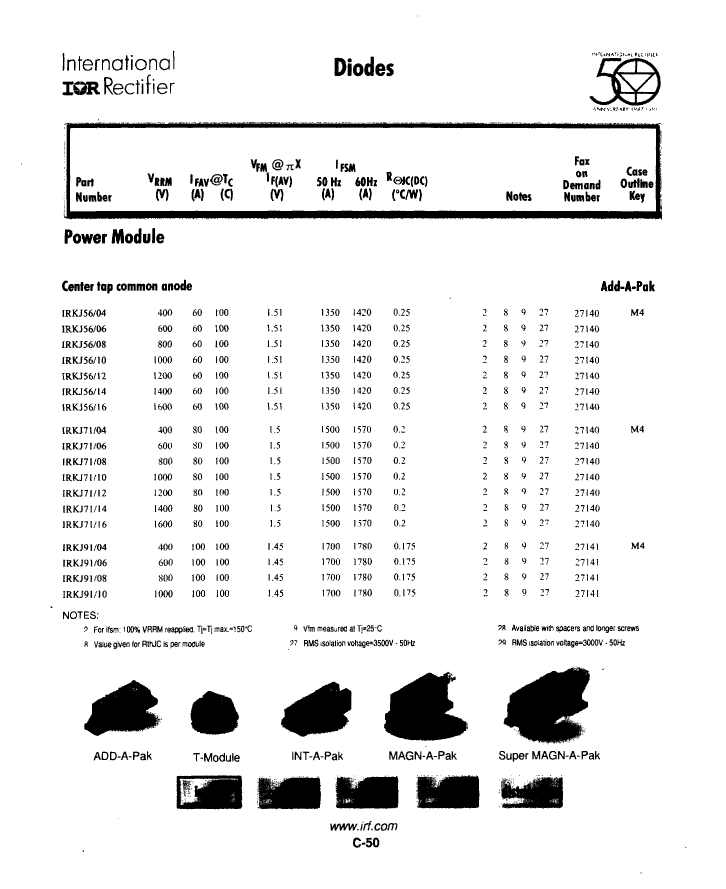

IRKJ91/10: DescriptionDIODE 100 A, 1000 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size32KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

IRKJ91/10 Overview

DIODE 100 A, 1000 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode

Parameter Name	Attribute value
Maker	Vishay
package instruction	R-PUFM-X3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
application	POWER
Shell connection	ISOLATED
Configuration	COMMON ANODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PUFM-X3
Maximum non-repetitive peak forward current	1780 A
Number of components	2
Phase	1
Number of terminals	3
Minimum operating temperature	-40 °C
Maximum output current	100 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER

	IRKJ91/10	HCHP2208K1561DNPT131	HCHP2208K1561DNPT151	IRKJ91-10	IRKJ91/06	IRKJ91-06	IRKJ91-08	IRKJ91/08
Description	DIODE 100 A, 1000 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 1560ohm, 200V, 0.5% +/-Tol, -100,100ppm/Cel, 2208,	Fixed Resistor, Metal Glaze/thick Film, 0.75W, 1560ohm, 200V, 0.5% +/-Tol, -100,100ppm/Cel, 2208,	DIODE 100 A, 1000 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode	DIODE 100 A, 600 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode	DIODE 100 A, 600 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode	DIODE 100 A, 800 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode	DIODE 100 A, 800 V, SILICON, RECTIFIER DIODE, POWER, ADD-A-PAK-3, Rectifier Diode
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown	unknow	unknow
Maker	Vishay	-	-	Vishay	Vishay	Vishay	Vishay	Vishay
package instruction	R-PUFM-X3	-	-	POWER, ADD-A-PAK-3	R-PUFM-X3	POWER, ADD-A-PAK-3	POWER, ADD-A-PAK-3	R-PUFM-X3
Contacts	3	-	-	3	3	3	3	3
Number of terminals	3	2	2	-	3	-	-	3
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-	-40 °C	-	-	-40 °C
Package form	FLANGE MOUNT	SMT	SMT	-	FLANGE MOUNT	-	-	FLANGE MOUNT
