LDT-M4002RI datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LDT-M4002RI

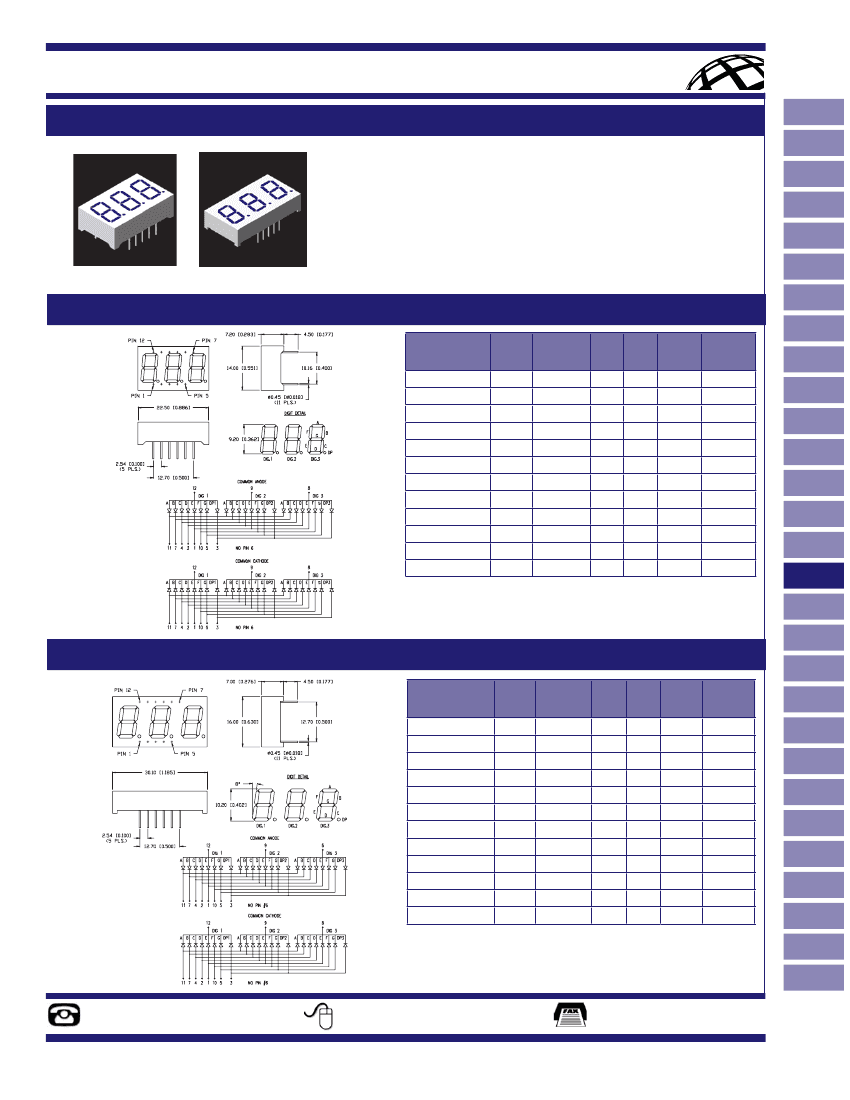

Preview

LDT-M4002RI: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 10.2mm; CategoryLED optoelectronic/LED photoelectric; File Size171KB，1 Pages; ManufacturerLumex; Websitehttps://www.lumex.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LDT-M4002RI Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 10.2mm

LDT-M4002RI Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Lumex
Reach Compliance Code	compliant
color	GREEN
Configuration	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	10.2 mm
Maximum forward current	0.025 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

LDT-M4002RI Preview

LED

Displays ~ Seven Segment ~ Numeric

Triple Digit

Features/Options

►

Standard and high brightness chips

►

Intensity grading available

►

Custom sizes at minimal tooling

►

Face and segment off colors in grey

and milky white

1

Applications/Uses

►

Panel meter displays

►

Time lapsed panels

►

Diagnostic equipment

►

Counter displays

2

3

4

5

6

7

0.36” triple digit

Part Number

Wave

Length

(nm)

565

635

660

574

636

470

565

635

660

574

636

470

Brightness

(μcd)

@ 10mA

2500

8000

7000

15,000

6000

2500

8000

7000

15,000

6000

Vf

(typ)

10mA

2.2

2.0

1.7

2.2

2.0

3.5

2.2

2.0

1.7

2.2

2.0

3.5

Vf

(max)

10mA

2.6

2.5

2.2

2.6

4.0

2.6

2.5

2.2

2.6

4.0

Emitted

Color

Green

Red

Green

Red

Blue

Green

Red

Green

Red

Blue

Polarity

(common)

Anode

Cathode

8

9

10

11

12

13

14

15

16

17

18

19

LDT-M3602RI

LDT-M3604RI

LDT-M3606RI

LDT-M3602RI-SUG

LDT-M3604RI-SI

LDT-M3607RI-USB

LDT-N3602RI

LDT-N3604RI

LDT-N3606RI

LDT-N3602RI-SUG

LDT-N3604RI-SI

LDT-N3607RI-USB

0.40” triple digit

Part Number

Wave

Length

(nm)

565

635

660

574

636

470

565

635

660

574

636

470

Brightness

(μcd)

@ 10mA

2500

8000

7000

15,000

6000

2500

8000

7000

15,000

6000

Vf

(typ)

10mA

2.2

2.0

1.7

2.2

2.0

3.5

2.2

2.0

1.7

2.2

2.0

3.5

Vf

(max)

10mA

2.6

2.5

2.2

2.6

4.0

2.6

2.5

2.2

2.6

4.0

Emitted

Color

Green

Red

Green

Red

Blue

Green

Red

Green

Red

Blue

Polarity

(common)

Anode

Cathode

20

21

22

23

24

25

26

27

28

29

LDT-M4002RI

LDT-M4004RI

LDT-M4006RI

LDT-M4002RI-SUG

LDT-M4004RI-SI

LDT-M4007RI-USB

LDT-N4002RI

LDT-N4004RI

LDT-N4006RI

LDT-N4002RI-SUG

LDT-N4004RI-SI

LDT-N4007RI-USB

USA/Canada

+1-800-278-5666

Europe

+49-6081-964380

Asia

+886-3-5821124

www.lumex.com

243

USA/Canada

+1-847-359-8904

Europe

+49-6081-964381

Asia

+886-3-5821154

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

LDT-M4002RI Related Products

	LDT-M4002RI	LDT-M4002RI-SUG	LDT-M3602RI-SUG	LDT-N4004RI-SI
Description	Smart/Normal 7 Seg Numeric LED Display, Green, 10.2mm	Smart/Normal 7 Seg Numeric LED Display, Green, 10.2mm	Smart/Normal 7 Seg Numeric LED Display, Green, 9.2mm	Smart/Normal 7 Seg Numeric LED Display, Red, 10.2mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Lumex	Lumex	Lumex	Lumex
Reach Compliance Code	compliant	compliant	compliant	compliant
color	GREEN	GREEN	GREEN	RED
Configuration	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display height	10.2 mm	10.2 mm	9.2 mm	10.2 mm
Maximum forward current	0.025 A	0.025 A	0.025 A	0.03 A
Number of functions	3	3	3	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
