* SUGGESTED THICKNESS OF MOUNTING

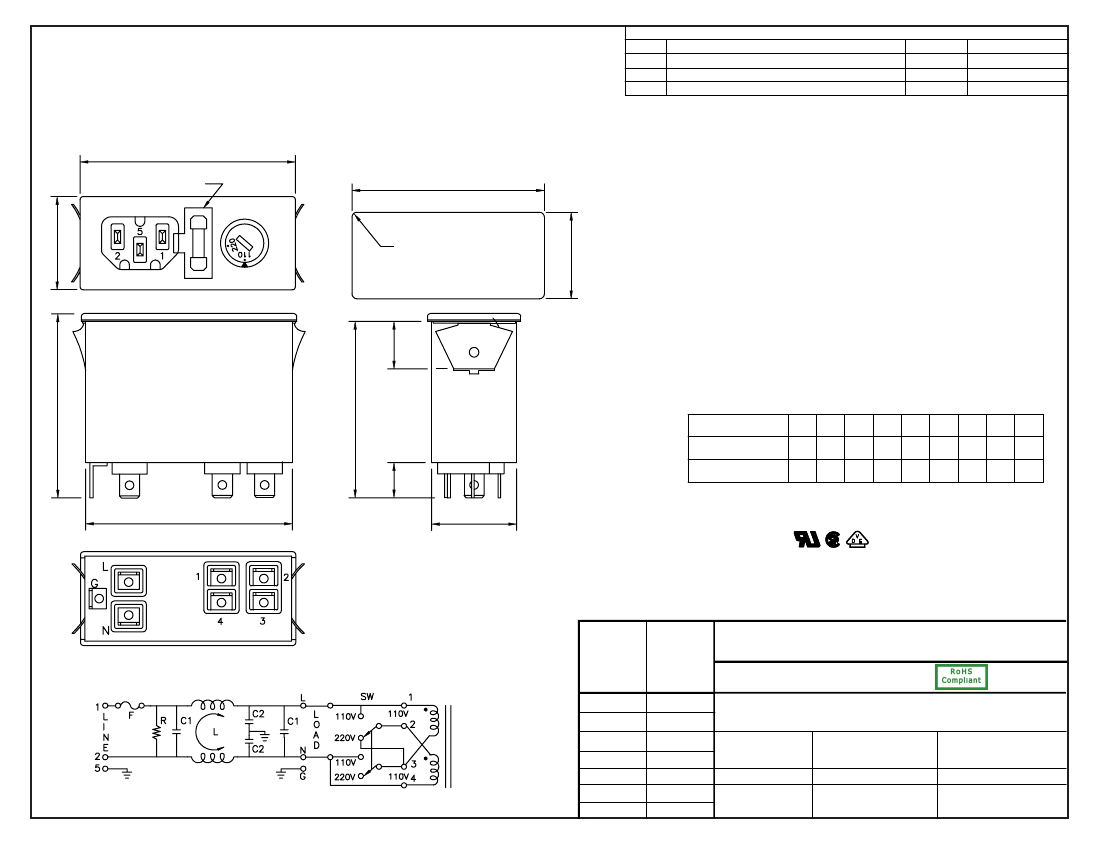

PHYSICAL DIMENSIONS:
2.65
FUSE HOLDER
PANEL IS FROM 0.04 TO 0.07 INCH
* SUGGEST MOUNTING CUTOUT
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
1-2.
CURRENT RATING
A. @ 115V VAC ................................................6 A RMS MAX
B. @ 250 VAC .................................................6 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.25 mA MAX
B. @ 250 VAC 50Hz.............................0.45 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
/
/
.10
15
6
.15
16
6
.50
25
30
1.0
30
48
5.0
42
40
10
45
40
30
40
40
2.60 ± 0.003
1.063 ± 0.003
1.15
R0.04MAX
1-3.
1-4.
0.57
1-5.
2.24
2.17
1-6.
FREQ. MHz
4
0.43
G
3
COM. MODE db
DIF. MODE db
1-7.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
RoHS COMPLIANT
2.57(TYP.)
1.06MAX
1-8.
1-9.
SCHEMATIC:
L: 1.3mH
C1: 0.1uF
C2: 3300pF
R: 2.2MΩ
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
PPC DIVISION
862-06/007
MULTI-FUNCTION MODULE FILTER
UNIT: in
REV. B
Approved / Date
JJH / 01-16-03
Drawn / Date
B.ZHANG
01-16-03
Checked / Date
01-16-03
