THESE DRAWINGS ARE THE PROPERTY OF QUALTEK
ELECTRONICS AND NOT TO BE REPRODUCED FOR
OR COMMUNICATED TO A THIRD PARTY WITHOUT
THE EXPRESS WRITTEN PERMISSION OF AN OFFICER
OF QUALTEK ELECTRONICS.
REVISION
REV.
B
DESCRIPTION
RoHS Compliancy
DATE
06-01-06
APPROVED
DP

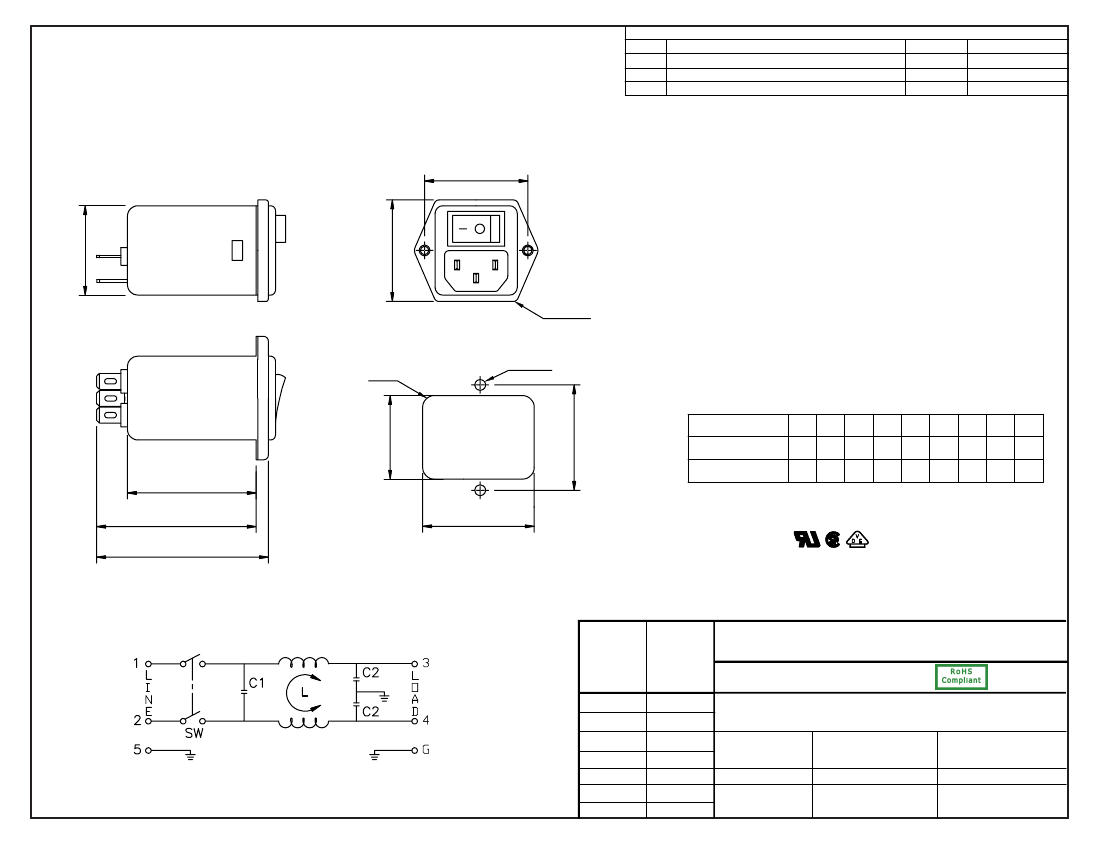

1. PHYSICAL DIMENSIONS
ELECTRICAL CHARACTERISTICS:
1-1.
VOLTAGE RATING...................................115/250VAC
36.0
1-2.
CURRENT RATING
A. @ 115 VAC..........................................10 A RMS MAX
B. @ 250 VAC.........................................10 A RMS MAX
OPERATING FREQUENCY......................50/60Hz
LEAKAGE CURRENT: EACH LINE TO GROUND
A. @ 115 VAC 60Hz............................0.20 mA MAX
B. @ 250 VAC 50Hz.............................0.40 mA MAX
HIPOT RATING (FOR ONE MINUTE)
A. LINE TO GROUND...........................2250 VDC
B. LINE TO LINE.....................................1450 VDC
MINIMUM INSERTION LOSS IN dB: (AT 50 OHM SYSTEM)
.01
/
/
.05
/
/
.10
/
/
.15
5
5
.50
10
10
1.0
20
20
5.0
30
30
10
35
35
30
35
35
38.3
LABEL
41.0
1-3.
1-4.
R2.5(8X)
R3.5
28.5 ± 0.1
M3(2X)
1-5.
1-6.
36.00 ± 0.1
FREQ. MHz
COM. MODE dB
DIF. MODE dB
43.5
54.5
57.5
2. ELECTRICAL SCHEMATIC
Dim
range
(mm)
0-1
1-6
6-18
18-50
50-120
120-250
250-500
1-7.
OPERATING TEMPERATURE.................-25° TO +85° C
SAFETY:
RoHS COMPLIANT
39.0 ± 0.1
PANEL CUTOUT
1-8.
1-9.
Tolerance
+/-
(mm)
0.15
0.20
0.30
0.50
0.70
0.90
1.20
CONTROLLED
Qualtek Electronics Corp.
Part Number:
Description:
L: 0.3mH
C1: 0.1uF
C2: 2200pF
PPC DIVISION
860-10/024
EMI FILTER
UNIT: mm
REV. B
Approved / Date
JJH / 02-04-03
Drawn / Date
B.ZHANG
02-04-03
Checked / Date
02-04-03
